Power, Grounds and Diagnostics

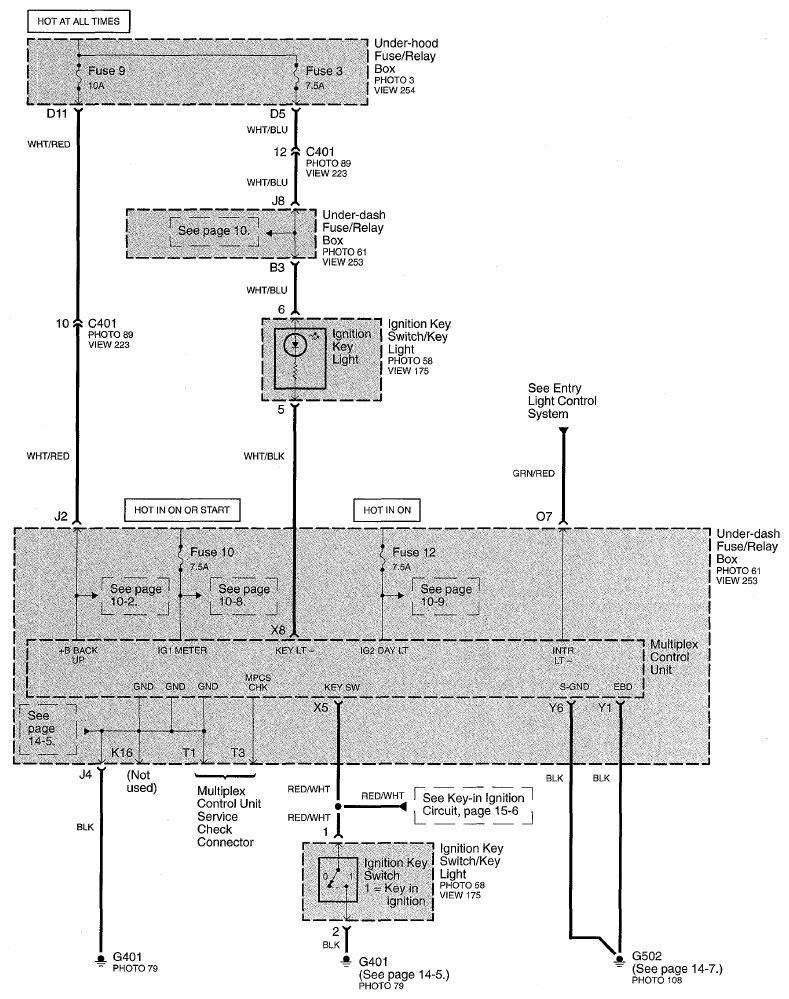

Fig 1: Power, Grounds And Diagnostics Circuit Diagram (Page 50)
G07758340

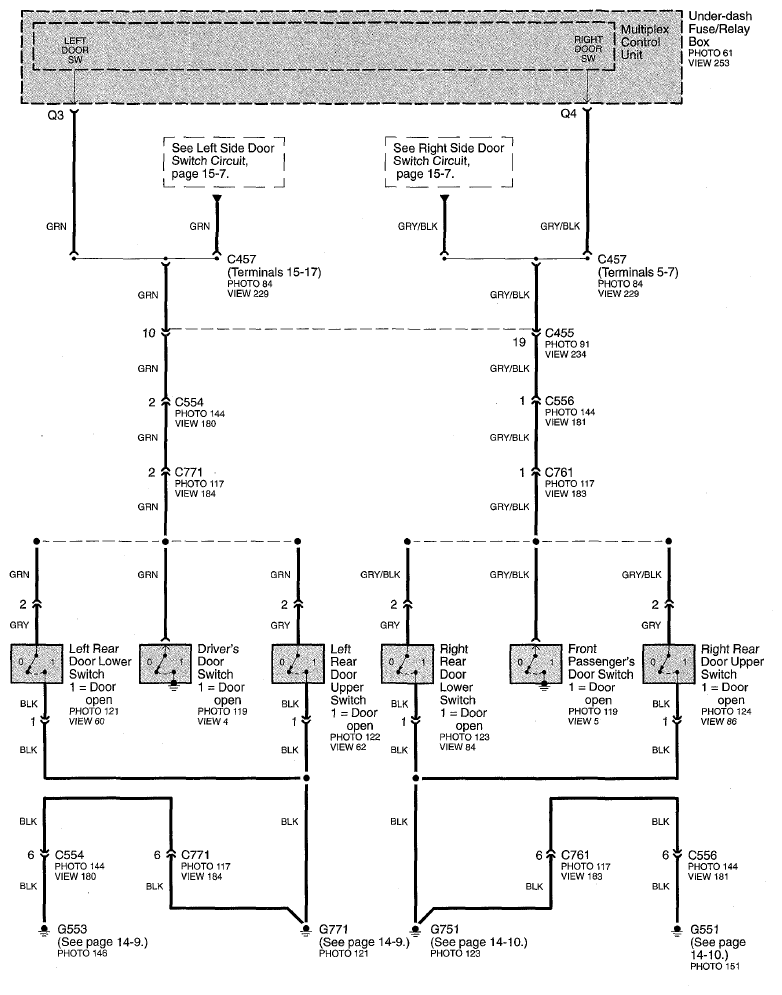

Fig 2: Power, Grounds And Diagnostics Circuit Diagram (Page 50-1)
G07758341

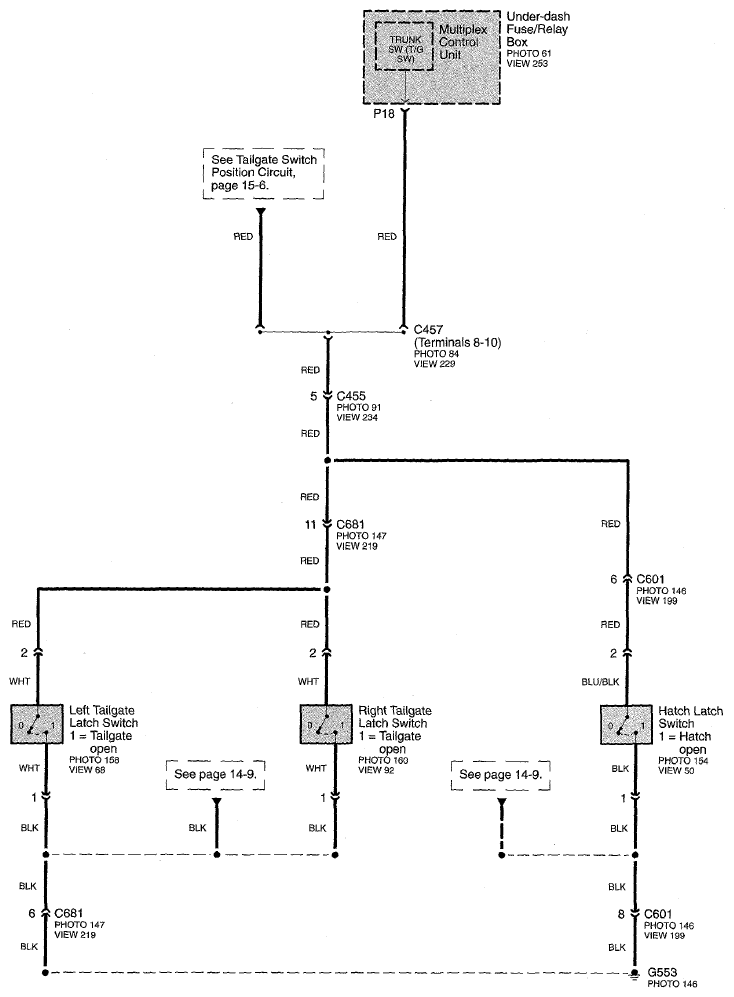

Fig 3: Power, Grounds And Diagnostics Circuit Diagram (Page 50-2)
G07758342
