OEM Circuit Diagrams: HVAC: Notes

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

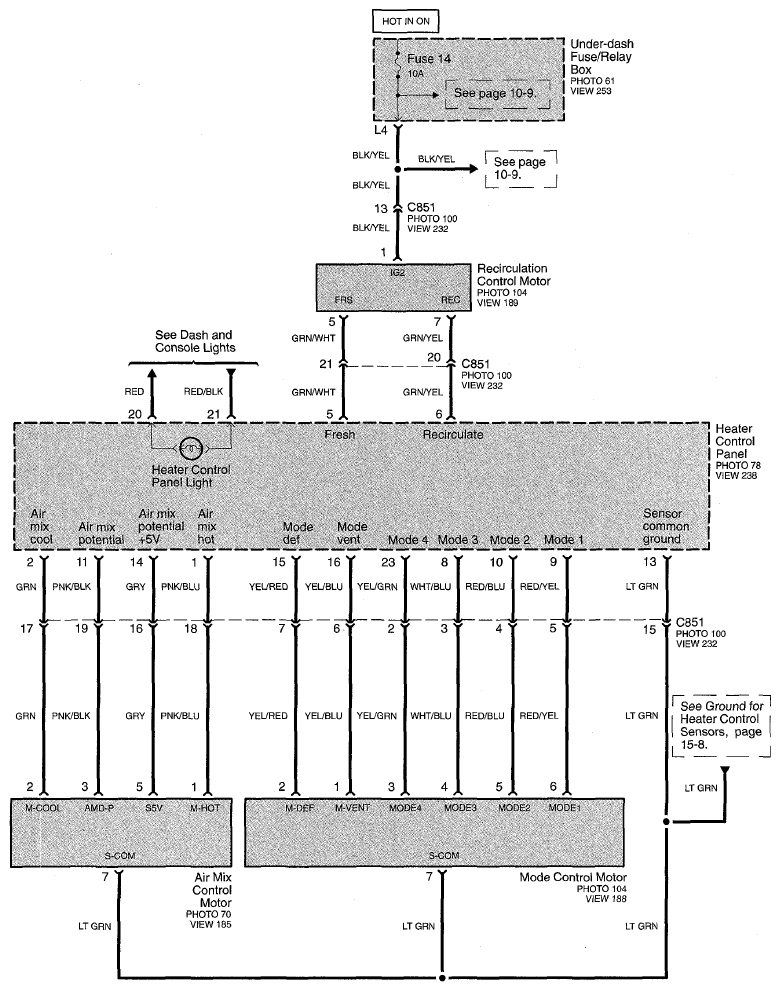

Fig 1: HVAC Circuit Diagram (Page 60)
G07758347

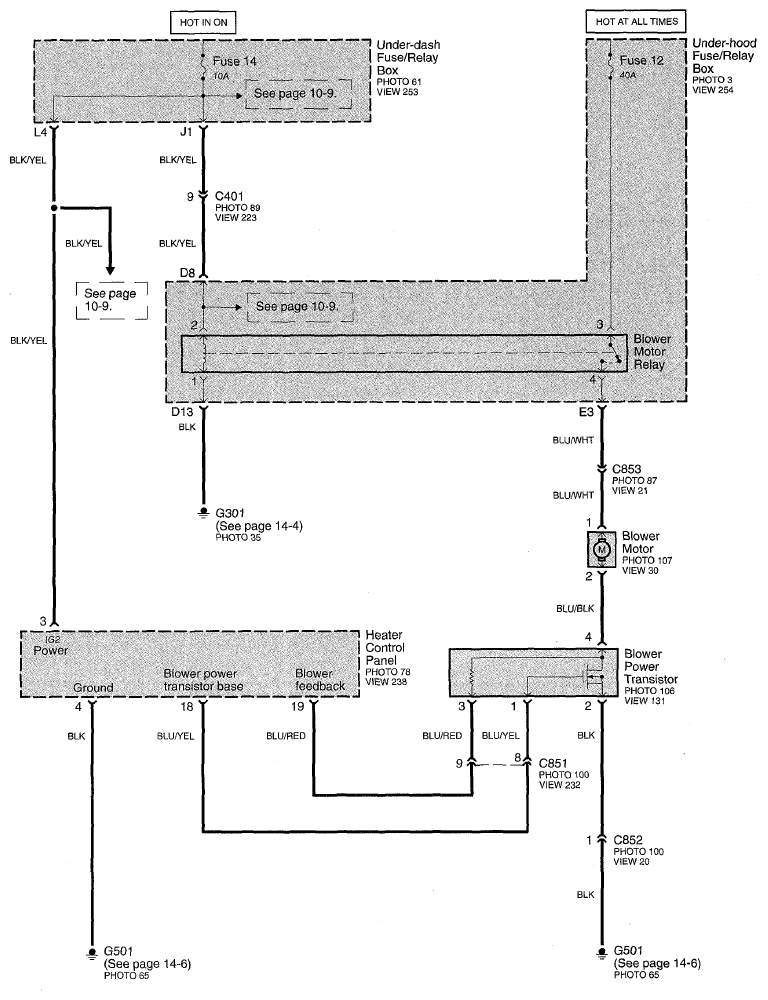

Fig 2: HVAC Circuit Diagram (Page 60-1)
G07758348

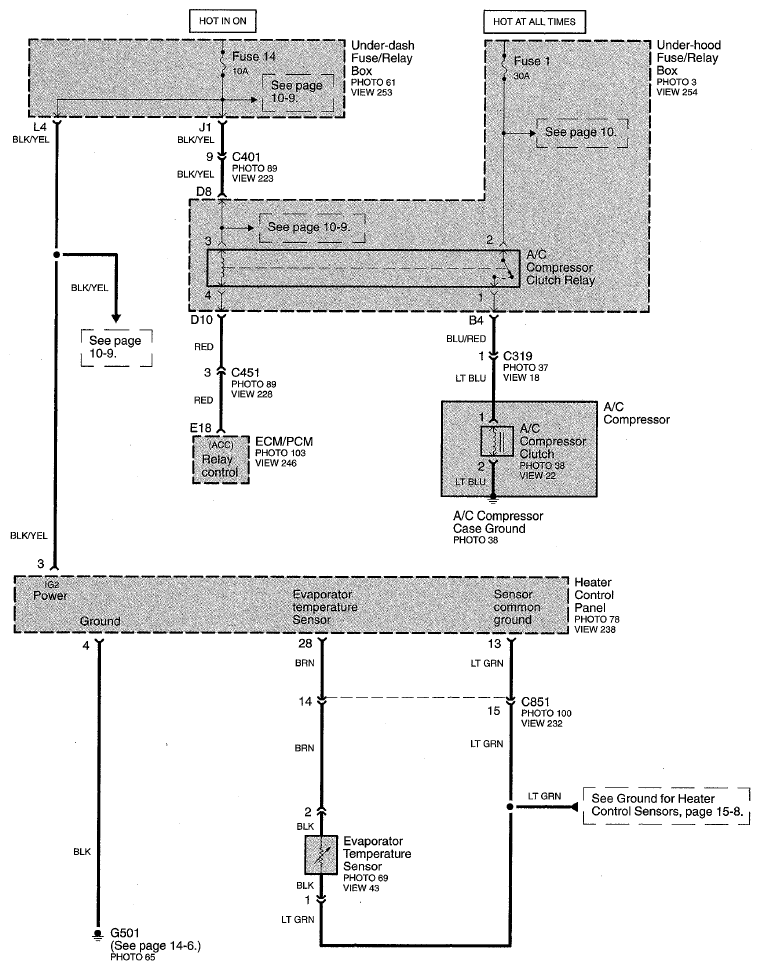

Fig 3: HVAC Circuit Diagram (Page 60-2)
G07758349

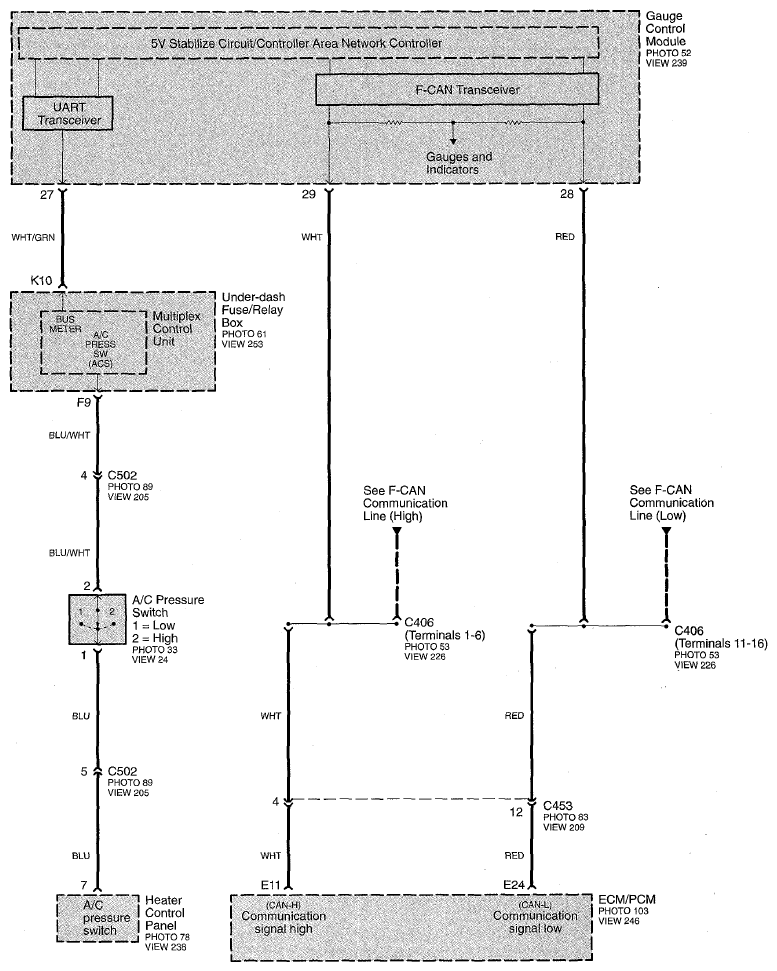

Fig 4: HVAC Circuit Diagram (Page 60-3)
G07758350
