Ground Distribution: G201

NOTE: Wires shown without color codes are black.

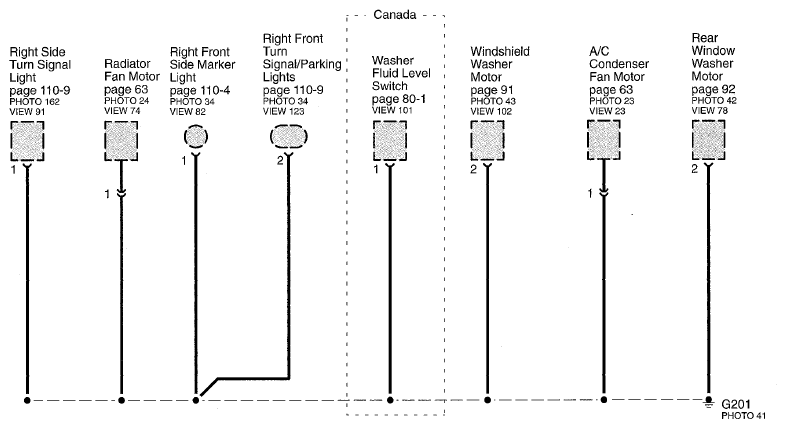

Fig 1: Ground Distribution Circuit Diagram - G201 (Page 14-3)

G07758258
