OEM Circuit Diagrams: Fans: Notes

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

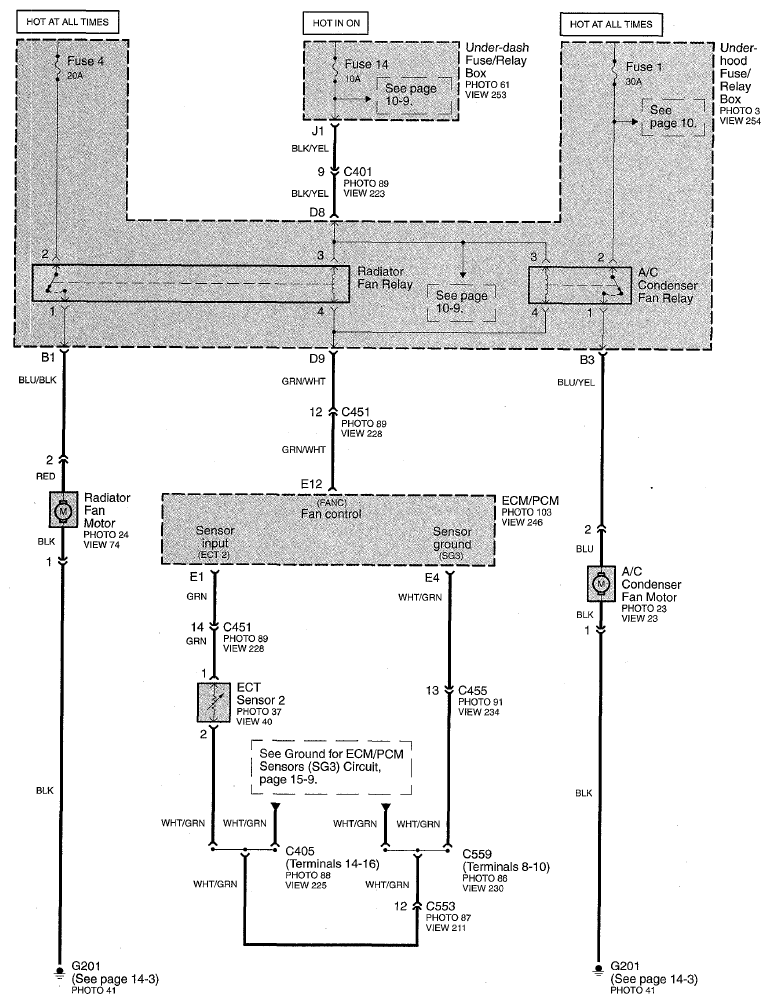

Fig 1: Fans Circuit Diagram (Page 63)
G07758351
