Audio System
>>
EX, SC: except Navigation
EX, SC: except Navigation

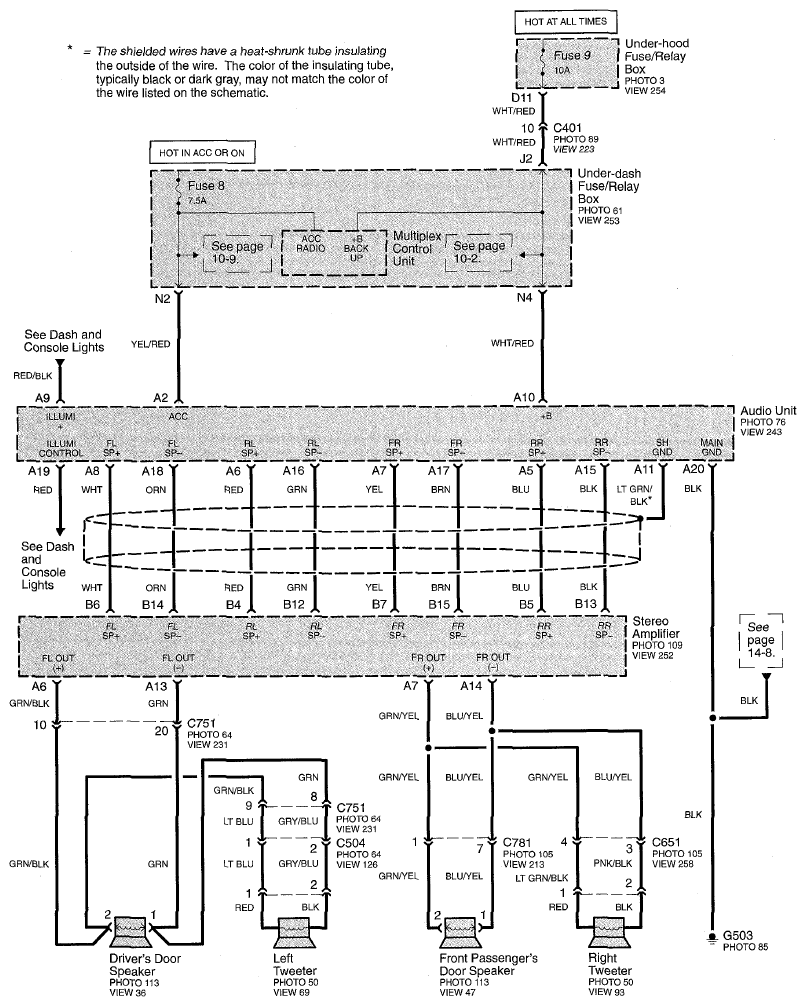

Fig 1: Audio System (Except Navigation) Circuit Diagram (Page 150-1)

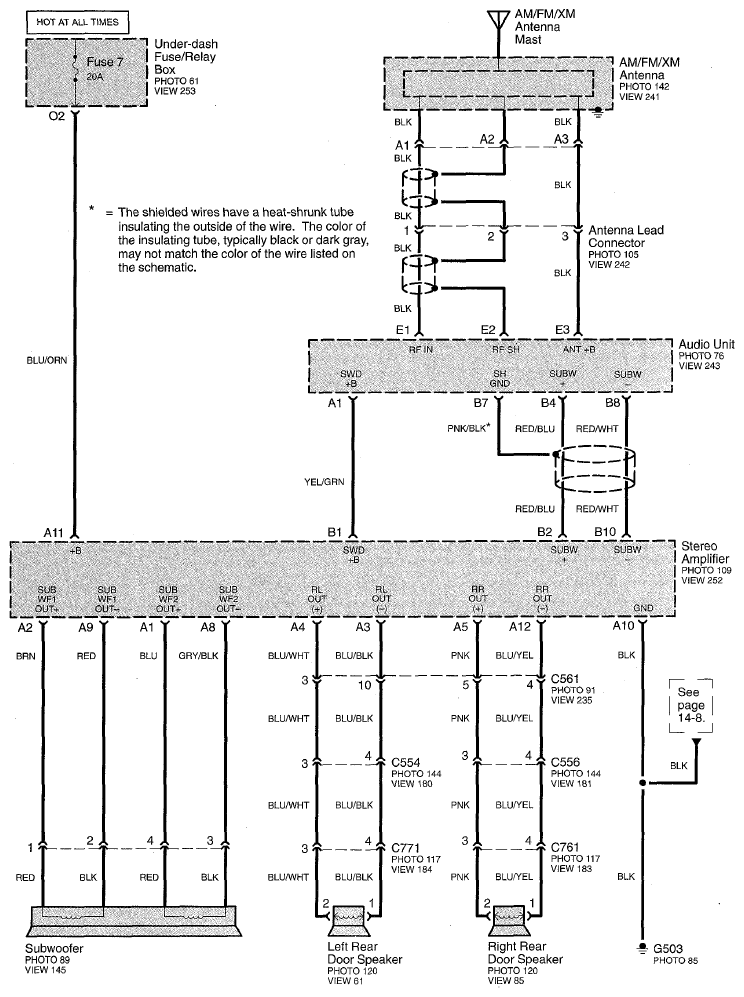

Fig 2: Audio System (Except Navigation) Circuit Diagram (Page 150-2)

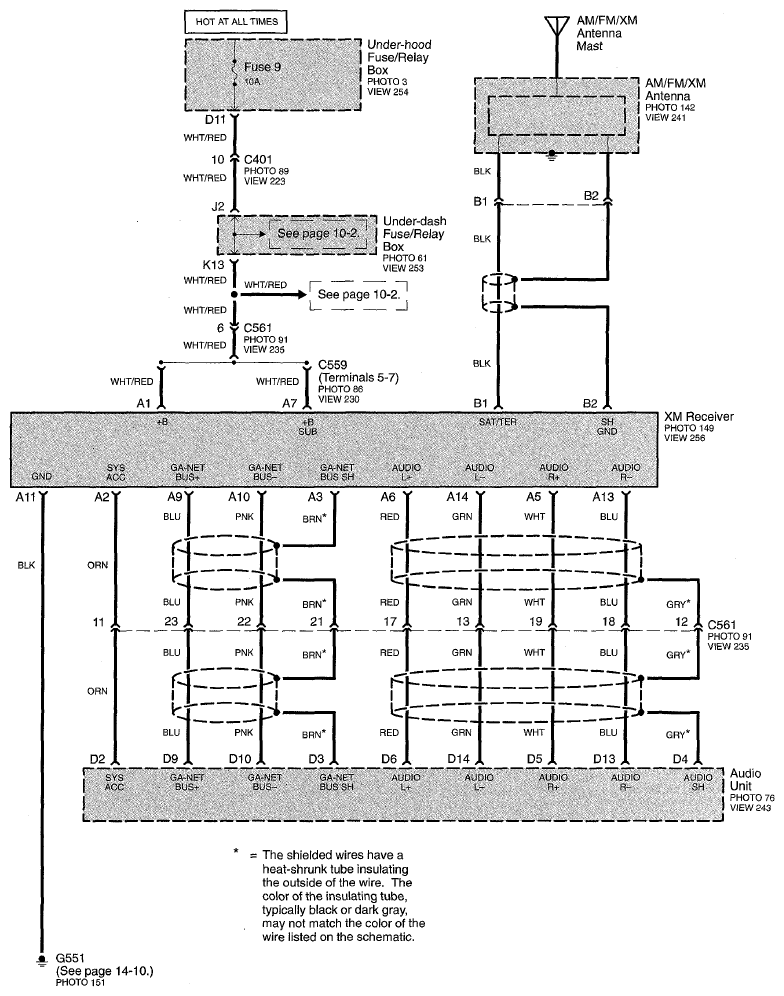

Fig 3: Audio System (Except Navigation) Circuit Diagram (Page 150-3)

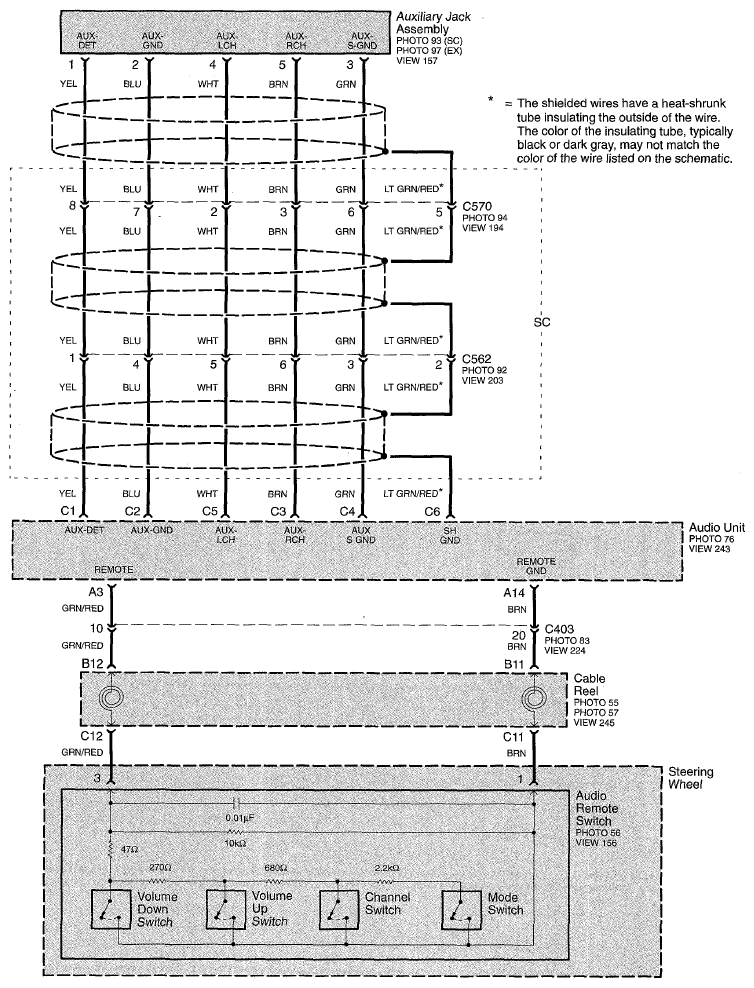

Fig 4: Audio System (Except Navigation) Circuit Diagram (Page 150-4)
