Home
>>
Honda
>>
2009
>>
Element SC, Automatic
>>
Repair and Diagnosis
>>
Brakes
>>
Mechanical - Hydraulic
>>
Conventional Brake Components
>>
Parking Brake Cable Replacement
>>
Exploded View
>>
Except SC Model
Except SC Model

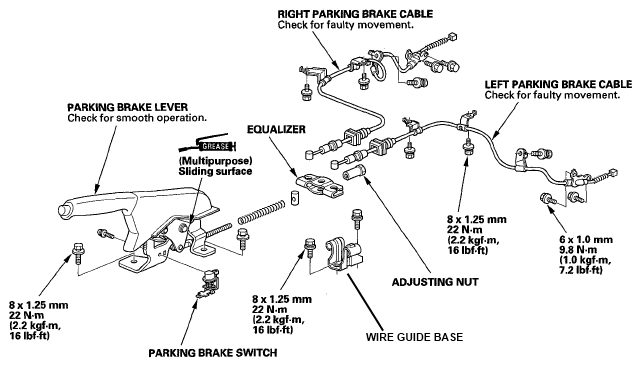

Fig 1: Identifying Parking Brake Cable Replacement Components - Except SC Model With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
