Brake Fluid Level Switch Test

Check for continuity between the terminals (1) and (2) with the float in the down position and in the up position.

NOTE:

Remove the brake fluid completely from the reservoir. With the float down, there should be continuity.
Fill the reservoir with brake fluid to the MAX (upper) level (A). With the float up, there should be no continuity.
If both the ABS/VSA indicator and the brake system indicator come on at same time, check the VSA system first (see GENERAL TROUBLESHOOTING INFORMATION ).
If the parking brake switch and fluid level switch are OK, but brake system indicator does not function, do the gauge control module test (see SELF-DIAGNOSTIC FUNCTION ).

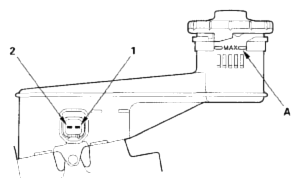

Fig 1: Identifying Brake Fluid MAX (Upper) Level With Connector Terminal
Courtesy of AMERICAN HONDA MOTOR CO., INC.
