Exploded View

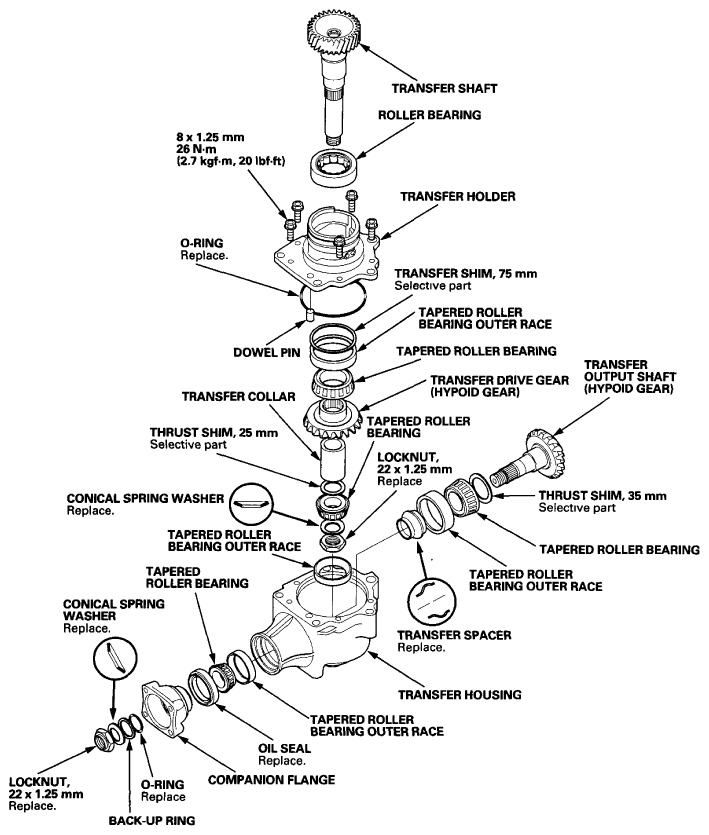

Fig 1: Exploded View Of Transfer Assembly With Torque Specification

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Holder Handle 07JAB-001020A
• Companion Flange Holder 07RAB-TB4010A or 07RAB-TB4010B

1. Remove the transfer holder (A) from the transfer housing (B).
   Fig 2: Identifying Transfer Holder, Transfer Housing And Bolts

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Cut the lock tab on the locknut of the transfer output shaft using a chisel.
   Fig 3: Cutting Lock Tab On Locknut Of Transfer Output Shaft Using Chisel

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

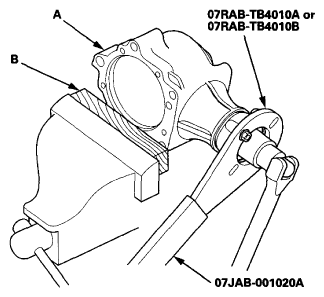

3. Secure the transfer housing (A) in a bench vise (B) with soft jaws. To prevent damage to the transfer housing, always use soft jaws or equivalent materials between the transfer housing and a vise.
   Fig 4: Identifying Transfer Housing And Bench Vise

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Install the companion flange holder on the companion flange, then loosen the locknut.
5. Remove the companion flange holder.
6. Remove the locknut (A), the conical spring washer (B), the back-up ring (C), the O-ring (D), and the companion flange (E) from the transfer output shaft (hypoid gear) (F).
   Fig 5: Identifying Locknut, Conical Spring Washer, Back-Up Ring, O-Ring And Companion Flange

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. Remove the transfer output shaft (hypoid gear) (A) from the transfer housing (B), then remove the transfer spacer (C) from the transfer output shaft (hypoid gear).
   Fig 6: Identifying Transfer Output Shaft (Hypoid Gear) And Transfer Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Remove the oil seal (A) and the tapered roller bearing (B) from the transfer housing (C).

Fig 7: Identifying Oil Seal, Tapered Roller Bearing And Transfer Housing

Courtesy of AMERICAN HONDA MOTOR CO., INC.
