Shift Control - D Position D3 Driving Mode Control

The automatic transmission is provided with the D3 driving mode in D. D has two modes; general driving mode (shifts gears automatically 1st through 5th), and the D3 driving mode (shifts gears automatically 1st through 3rd). The transmission mode switches by pressing the D3 button on the shift lever knob in D.

Fig 1: Identifying D3 Button On Shift Lever Knob
G06615496Courtesy of AMERICAN HONDA MOTOR CO., INC.

In D3 driving mode, the D3 indicator next to the D indicator in the gauge control module comes on. The D3 driving mode is cancelled by pressing the D3 button, and the D3 indicator goes off. Also, the D3 driving mode is cancelled when the ignition switch is turned to LOCK (0). When the shift lever is moved out of D in the D3 driving mode, the D3 indicator goes off, but the transmission returns into the D3 driving mode when returning the shift lever into D, and the D3 indicator comes on.

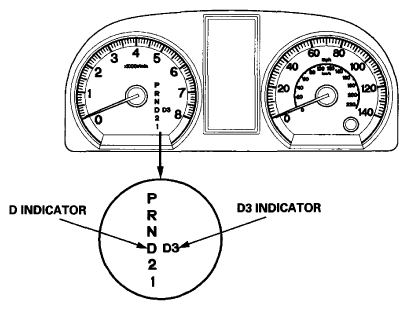

Fig 2: Identifying D And D3 Indicator
G06615497Courtesy of AMERICAN HONDA MOTOR CO., INC.
