Clutch Pressure Control
The PCM actuates A/T clutch pressure control solenoid valves A, B, and C to control the clutch pressure. When shifting between gears, the clutch pressure regulated by A/T clutch pressure control solenoid valves A, B, and C engages and disengages the clutch smoothly.

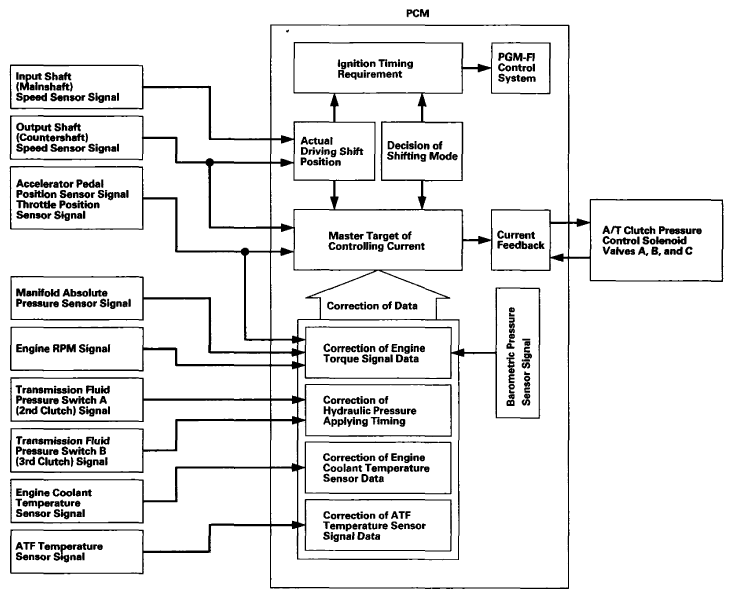

The PCM receives input signals from the various sensors, switches, processes the data, and outputs current to AST clutch pressure control solenoid valves A, B, and C.
