Fuel Pressure Regulator Replacement

Remove the fuel tank unit (see FUEL TANK UNIT REMOVAL AND INSTALLATION ).
Remove the reservoir (A).

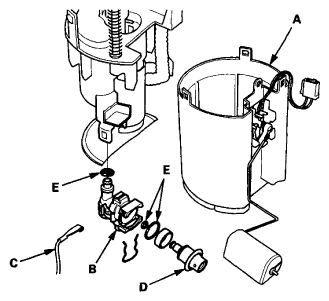

Fig 1: Identifying Reservoir, Bracket, Ground And Fuel Pressure Regulator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bracket (B).
Remove the ground (C).
Remove the fuel pressure regulator (D).
Install the parts in the reverse order of removal with new O-rings (E) and a new bracket.
NOTE: Coat the O-rings with clean engine oil; do not use any other oils or fluids.

Do not pinch the O-rings during installation.
Install the fuel tank unit (see INSTALLATION ).
