Component Location Index

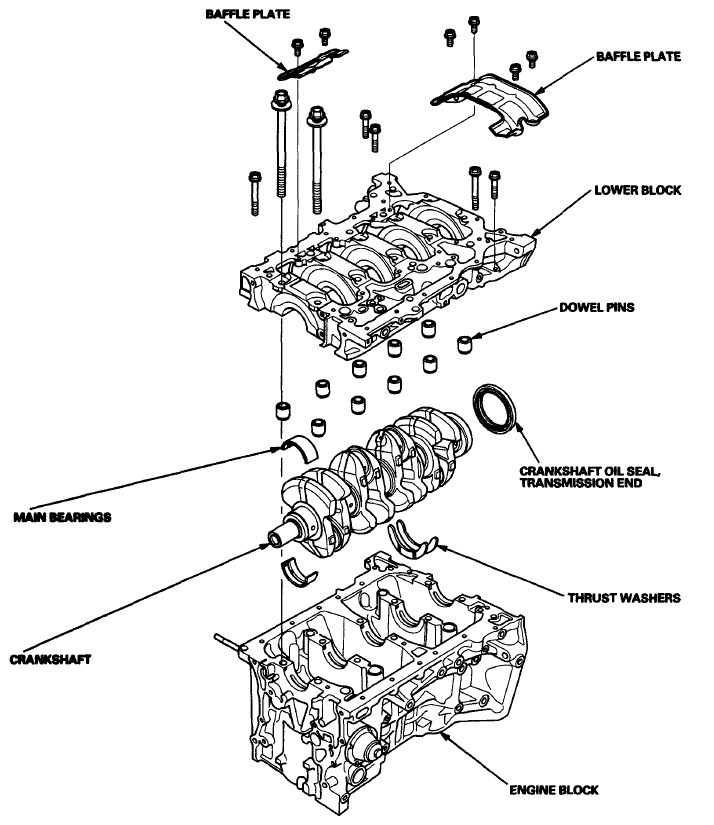

Fig 1: Identifying Engine Block Component Location (1 Of 2)
G06609352Courtesy of AMERICAN HONDA MOTOR CO., INC.

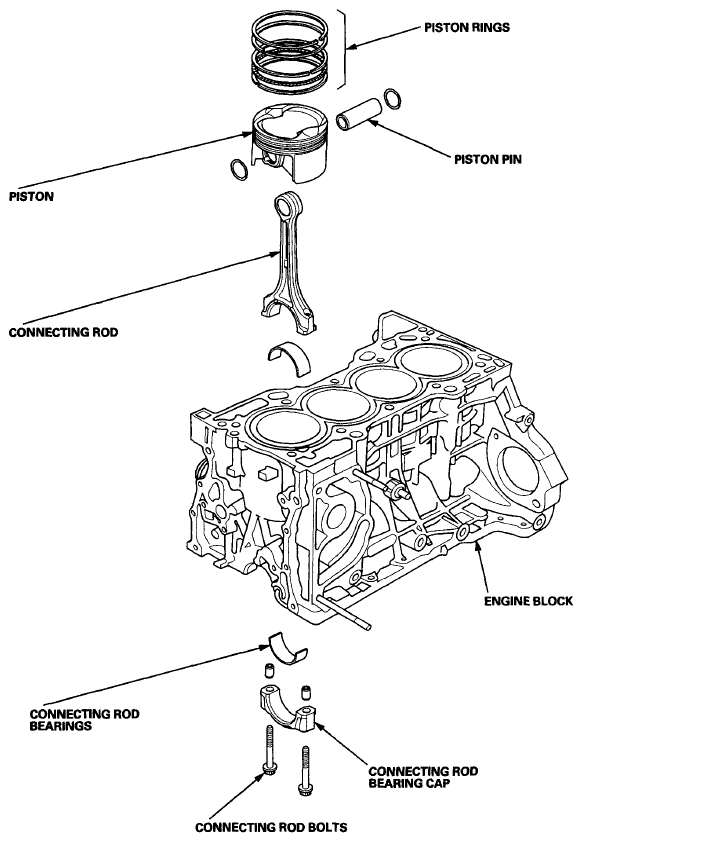

Fig 2: Identifying Engine Block Component Location (2 Of 2)
G06609353Courtesy of AMERICAN HONDA MOTOR CO., INC.
