Lower Torque Rod Replacement

  1. Loosen the upper torque rod mounting bolt (A).

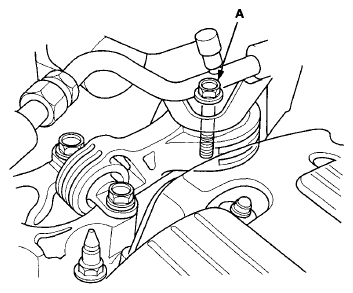

    Fig 1: Identifying Upper Torque Rod Mounting Bolt
    G06609056Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Raise the vehicle on the lift.
  3. Remove the lower torque rod.

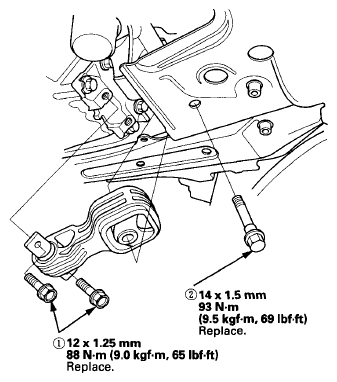

    Fig 2: Lower Torque Rod With Torque Specifications
    G06609057Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the lower torque rod, then tighten the new lower torque rod mounting bolts in the numbered sequence shown.
  5. Lower the vehicle on the lift.
  6. Tighten the upper torque rod mounting bolt.

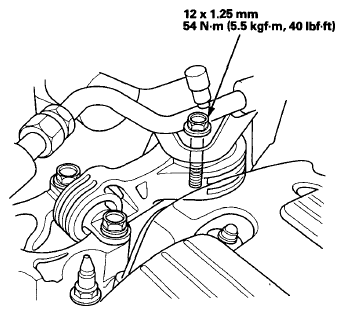

Fig 3: Upper Torque Rod Mounting Bolt With Torque Specification
G06609058Courtesy of AMERICAN HONDA MOTOR CO., INC.
