Oil Filter Base Replacement

  1. Remove the oil filter (see ENGINE OIL FILTER REPLACEMENT ).
  2. Remove the oil filter base (A), then remove the oil filter cover (B).

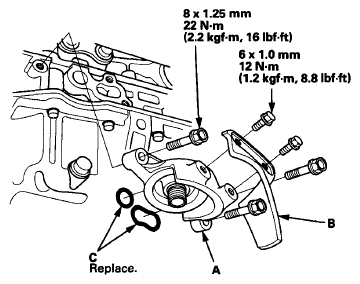

    Fig 1: Oil Filter Base And Oil Filter Cover With Torque Specifications
    G06609508Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Clean the O-ring grooves and mating surface with the oil filter base.
  4. Install the oil filter cover, then install the oil filter base with new O-rings (C).
  5. Install the oil filter (see ENGINE OIL FILTER REPLACEMENT ).
