Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

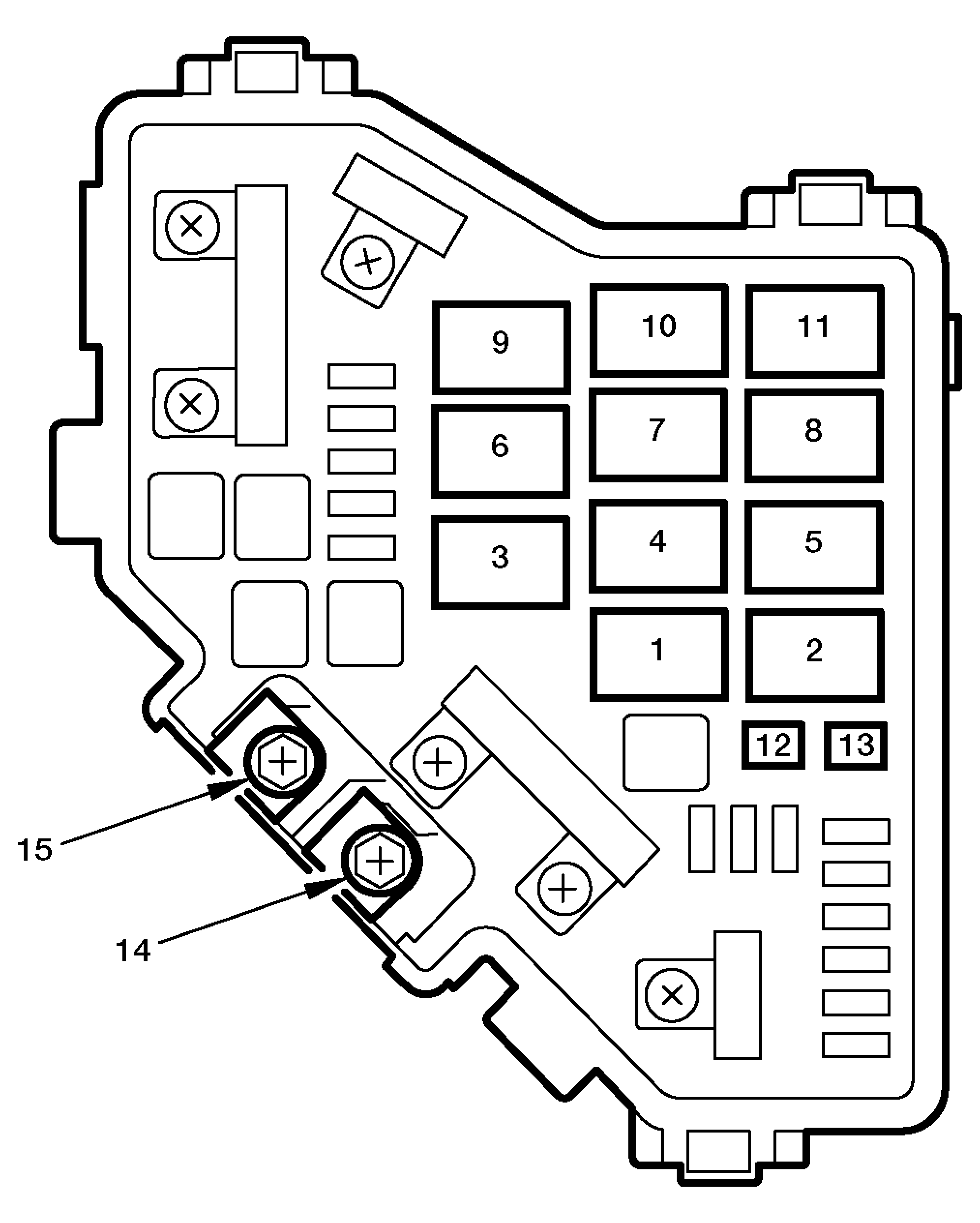

Fig 1: Underhood Fuse/Relay Box

G00453647

Courtesy of AMERICAN HONDA MOTOR CO., INC.

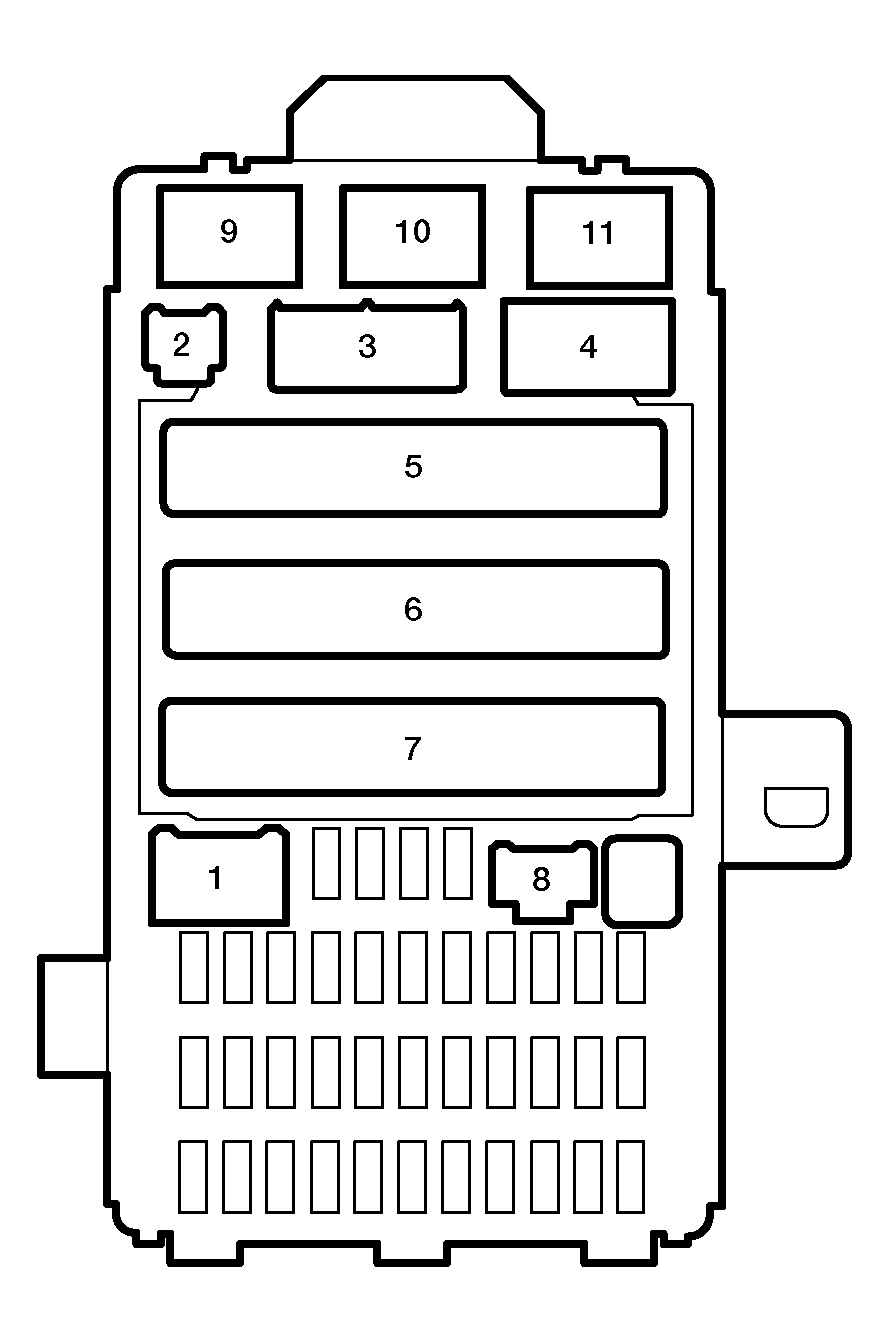

Fig 2: Underdash Fuse/Relay Box

G00453648

Courtesy of AMERICAN HONDA MOTOR CO., INC.

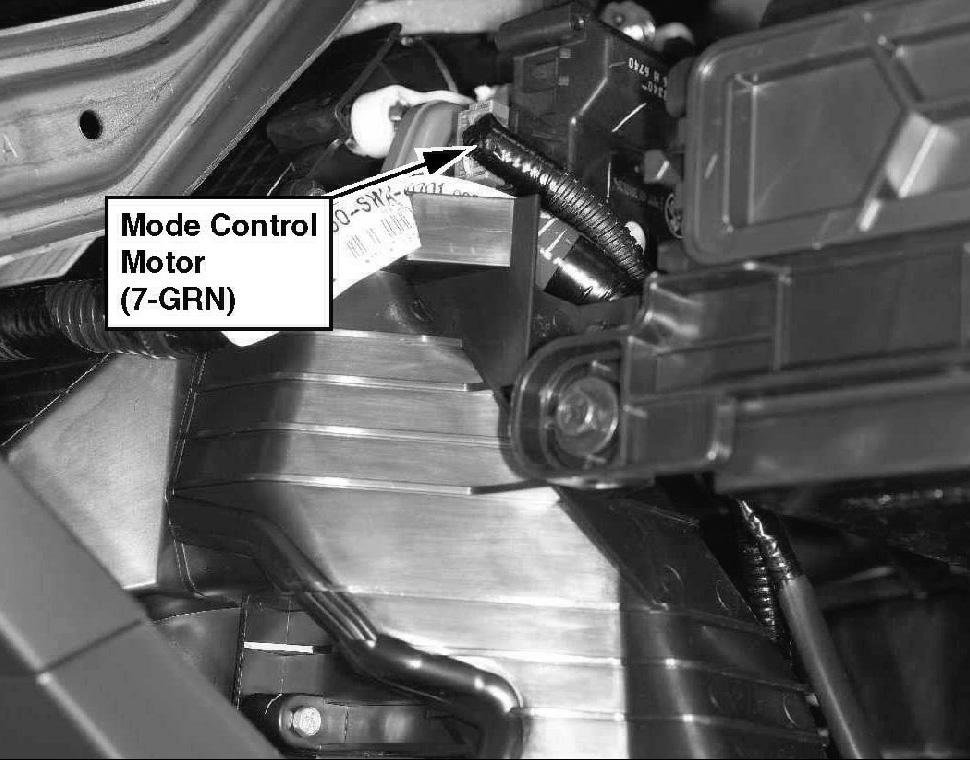

Fig 3: Behind Glove Box

G00453649

Courtesy of AMERICAN HONDA MOTOR CO., INC.

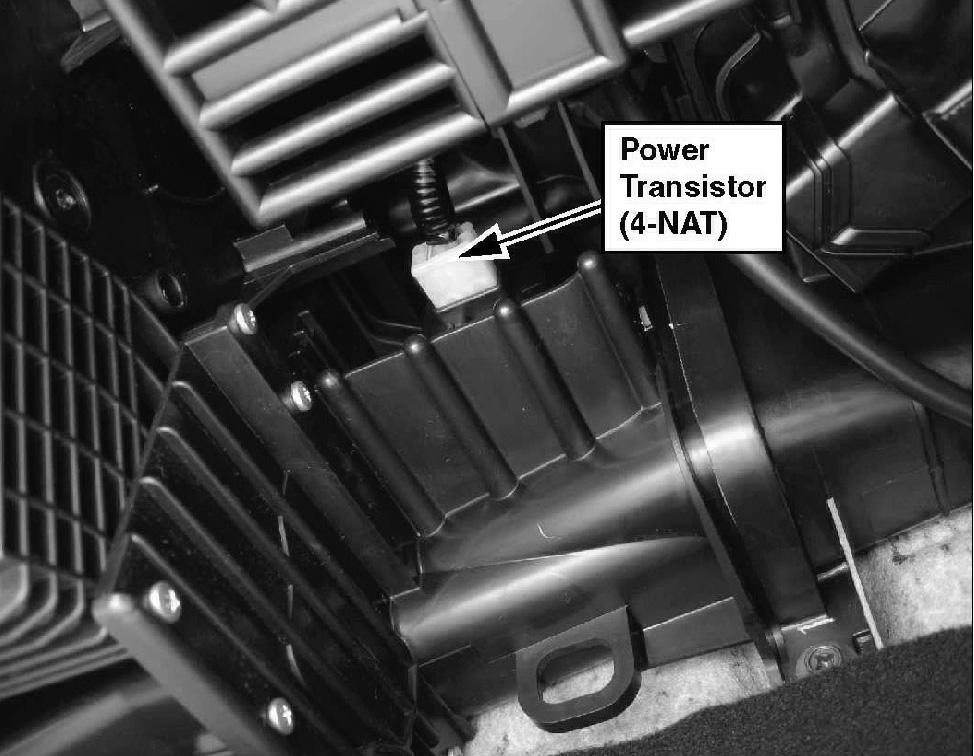

Fig 4: Behind Glove Box

G00453650

Courtesy of AMERICAN HONDA MOTOR CO., INC.

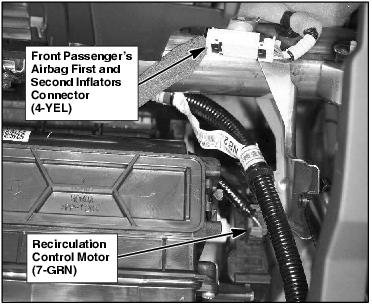

Fig 5: Behind Glove Box

G00444995

Courtesy of AMERICAN HONDA MOTOR CO., INC.

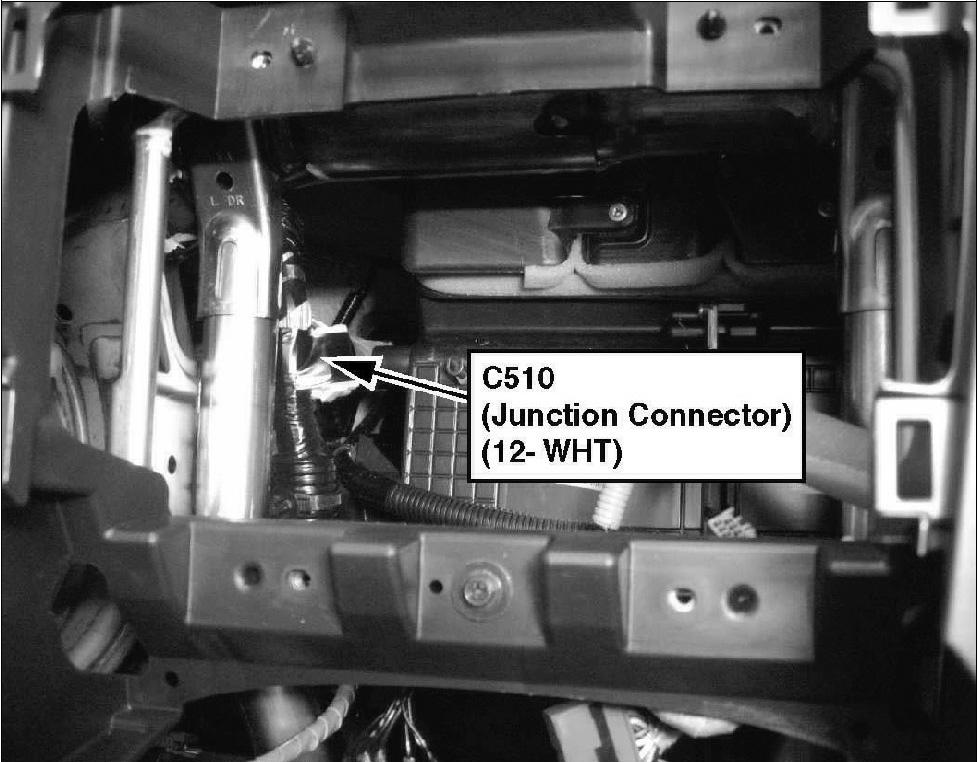

Fig 6: Behind Glove Box (EX, EX-L)

G00453652

Courtesy of AMERICAN HONDA MOTOR CO., INC.

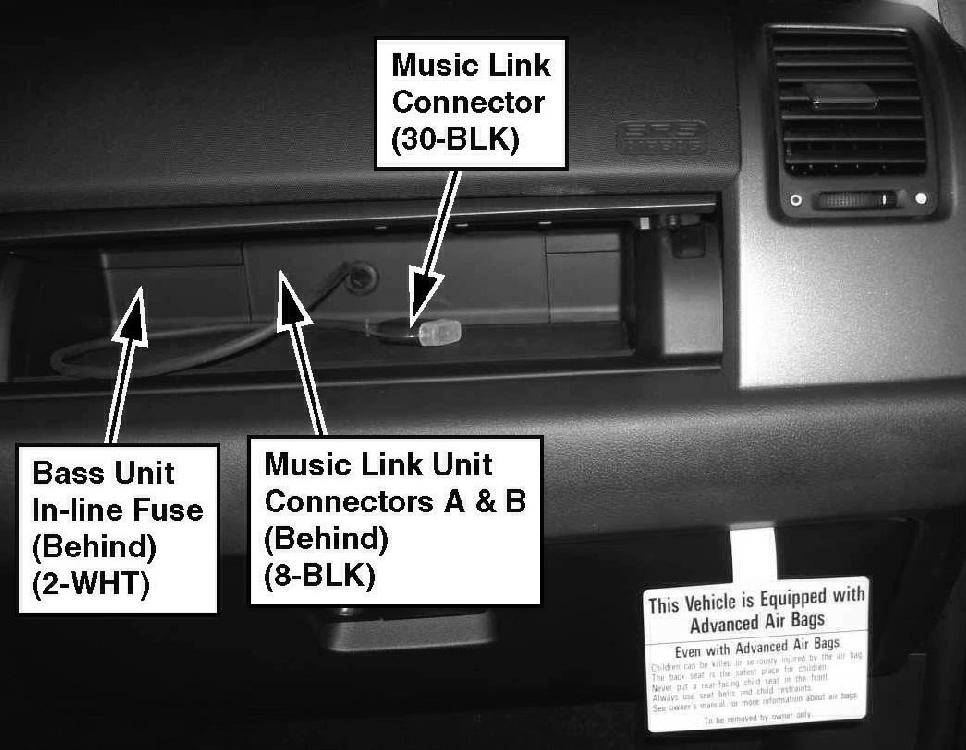

Fig 7: Behind Glove Box (Honda Accessory)

G00453653

Courtesy of AMERICAN HONDA MOTOR CO., INC.

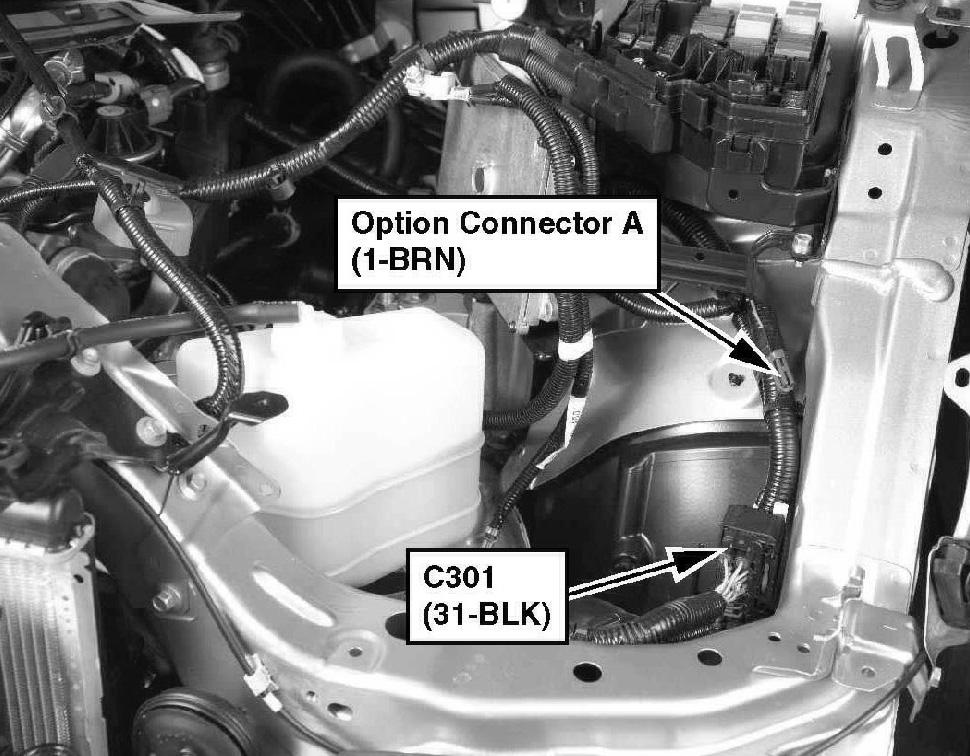

Fig 8: Behind Left Headlight

G00453654

Courtesy of AMERICAN HONDA MOTOR CO., INC.

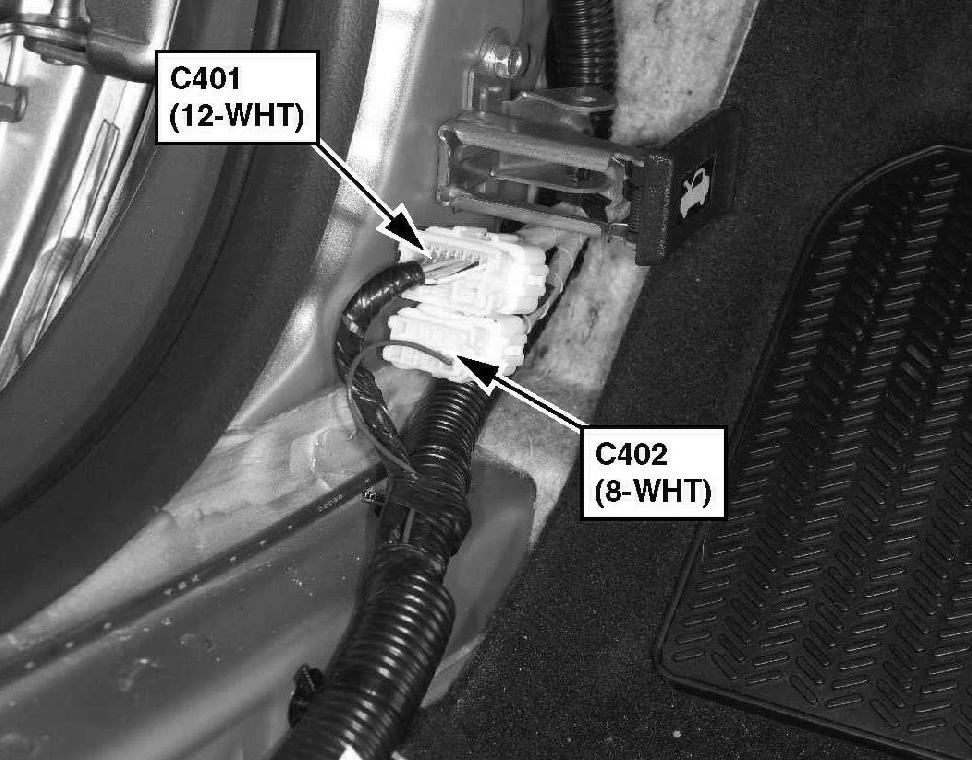

Fig 9: Behind Left Kick Panel

G00453655

Courtesy of AMERICAN HONDA MOTOR CO., INC.

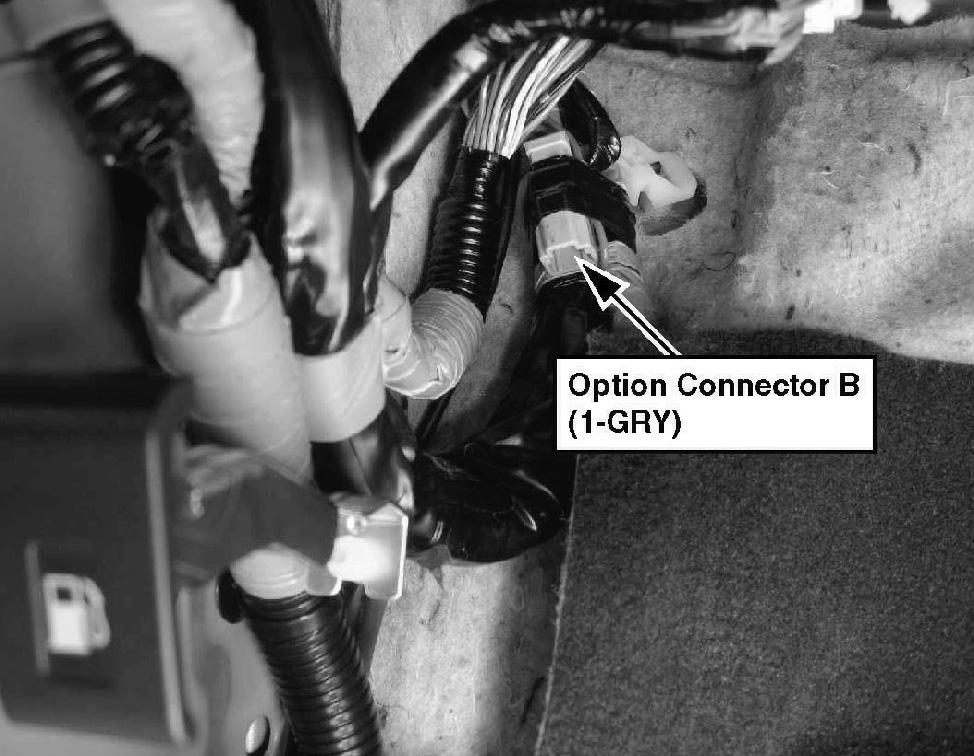

Fig 10: Behind Left Kick Panel

G00453656

Courtesy of AMERICAN HONDA MOTOR CO., INC.

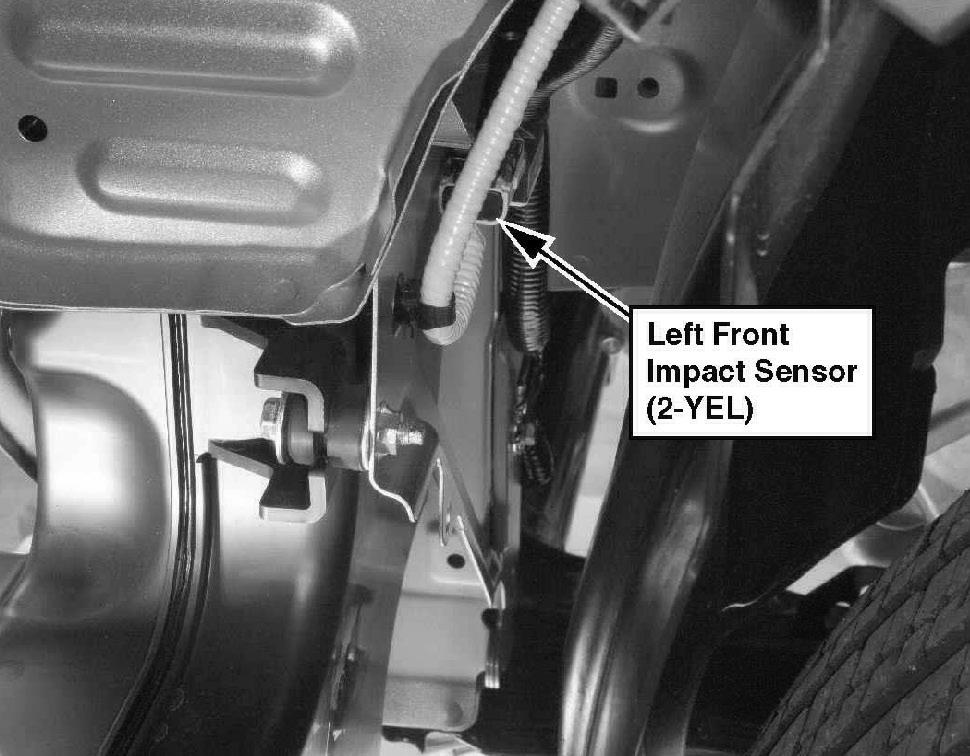

Fig 11: Behind Left Side Of Front Bumper

G00453657

Courtesy of AMERICAN HONDA MOTOR CO., INC.

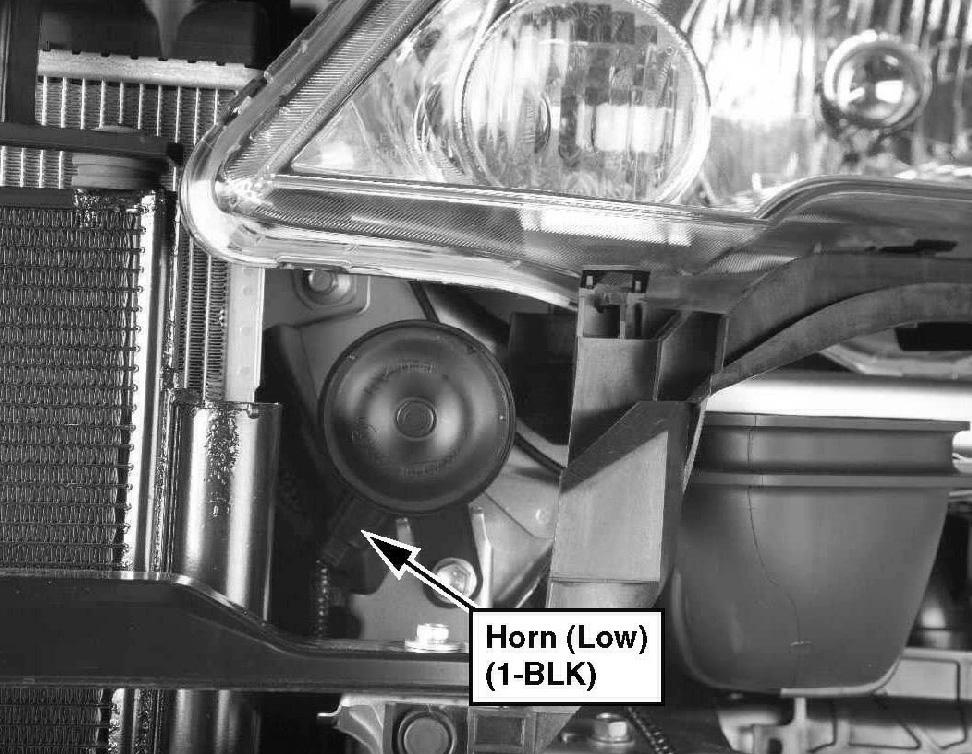

Fig 12: Behind Left Side Of Front Bumper

G00453658

Courtesy of AMERICAN HONDA MOTOR CO., INC.

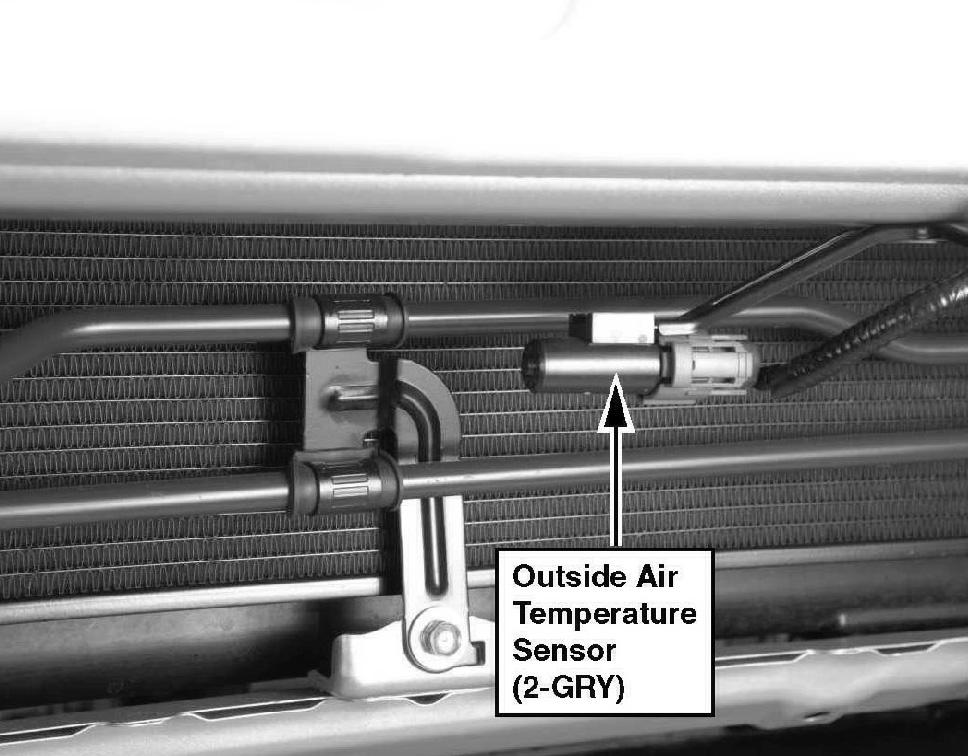

Fig 13: Behind Middle Of Front Bumper

G00453659

Courtesy of AMERICAN HONDA MOTOR CO., INC.

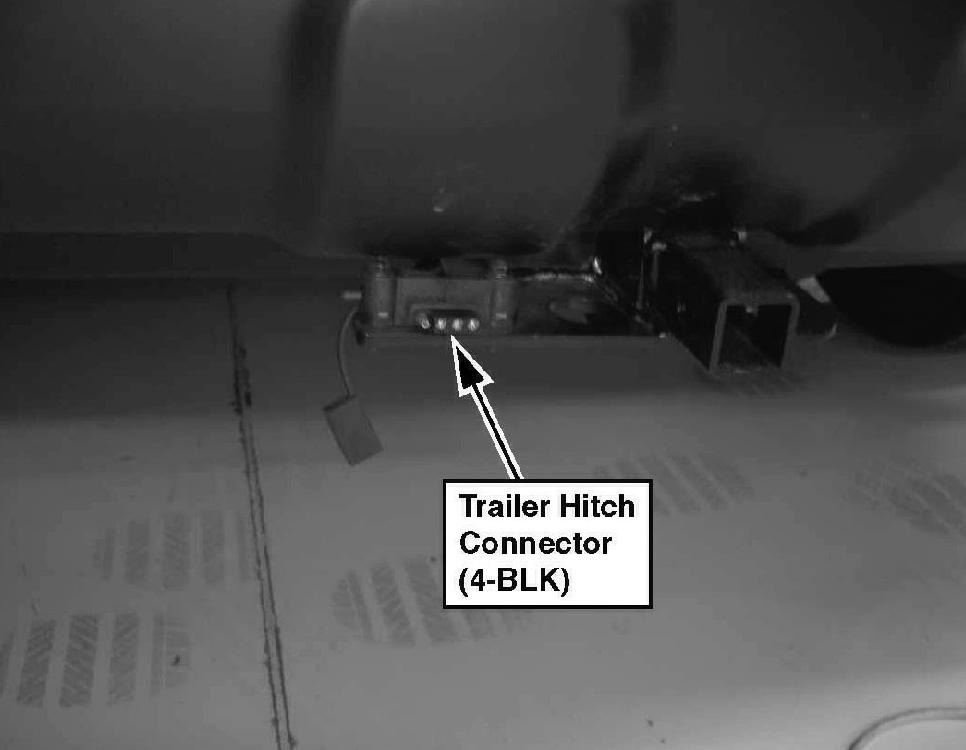

Fig 14: Behind Middle Of Rear Bumper (Honda Accessory)

G00453660

Courtesy of AMERICAN HONDA MOTOR CO., INC.

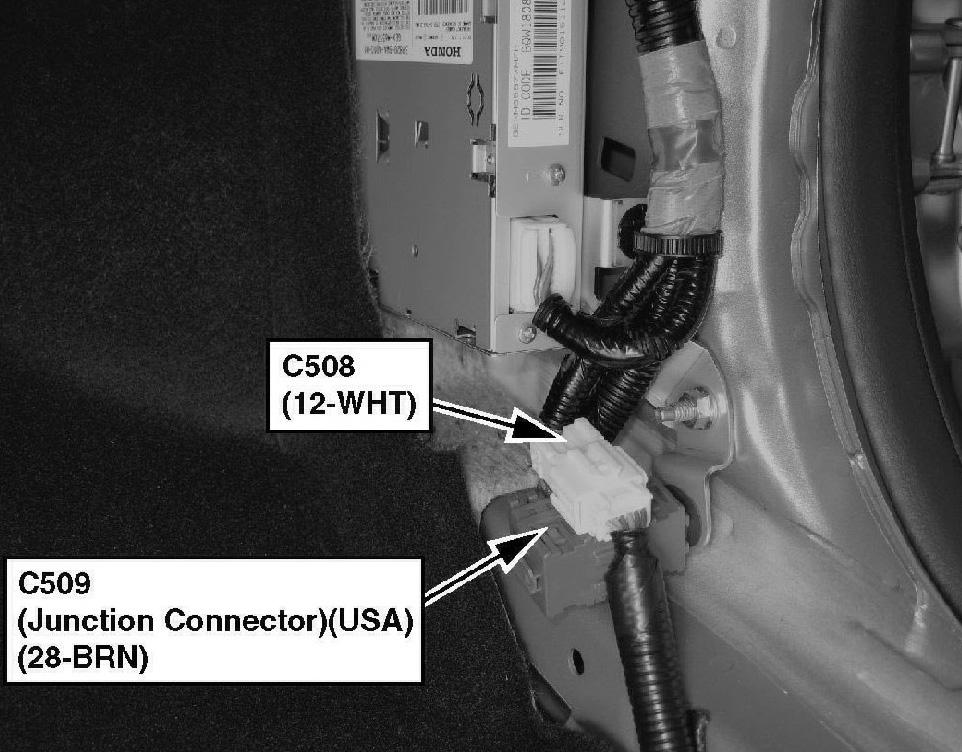

Fig 15: Behind Right Kick Panel (EX-L W/Navigation)

G00453661

Courtesy of AMERICAN HONDA MOTOR CO., INC.

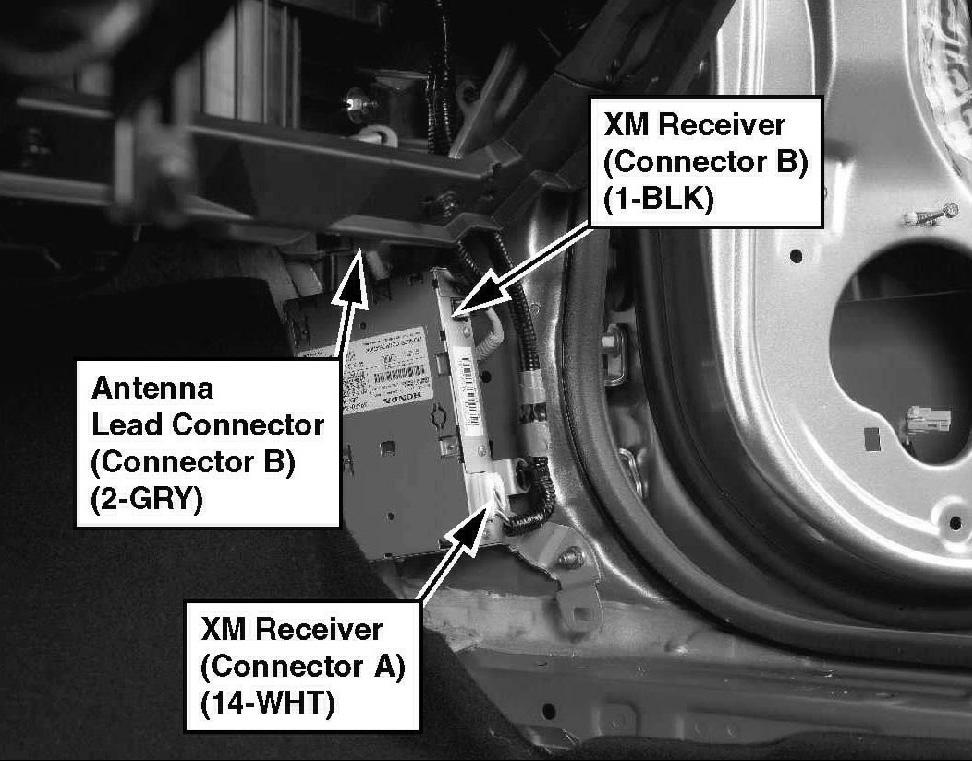

Fig 16: Behind Right Kick Panel (USA: EX-L)

G00453662

Courtesy of AMERICAN HONDA MOTOR CO., INC.

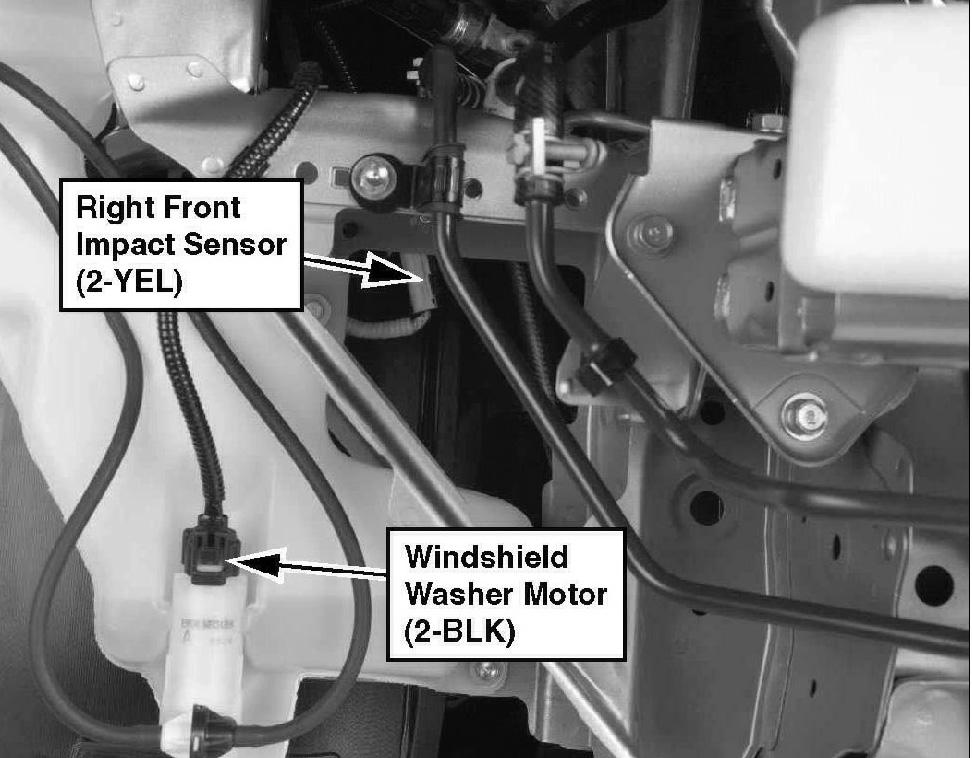

Fig 17: Behind Right Side Of Front Bumper

G00453663

Courtesy of AMERICAN HONDA MOTOR CO., INC.

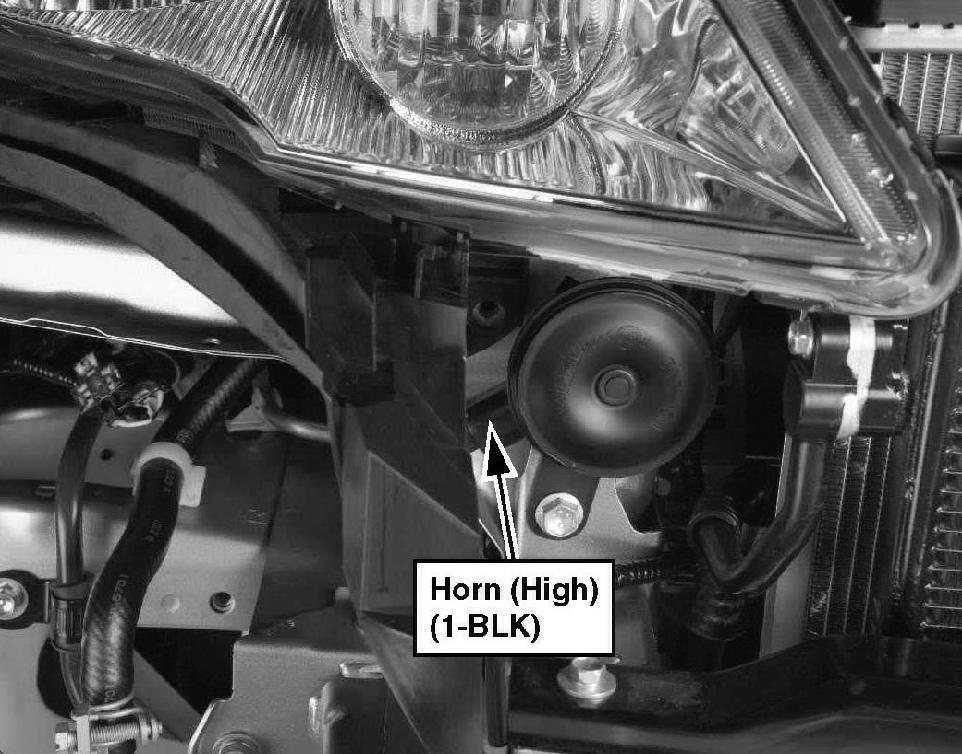

Fig 18: Behind Right Side Of Front Bumper

G00453664

Courtesy of AMERICAN HONDA MOTOR CO., INC.

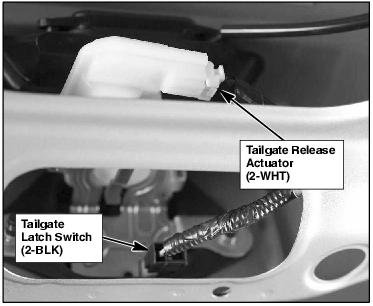

Fig 19: Bottom Of Tailgate

G00444996

Courtesy of AMERICAN HONDA MOTOR CO., INC.

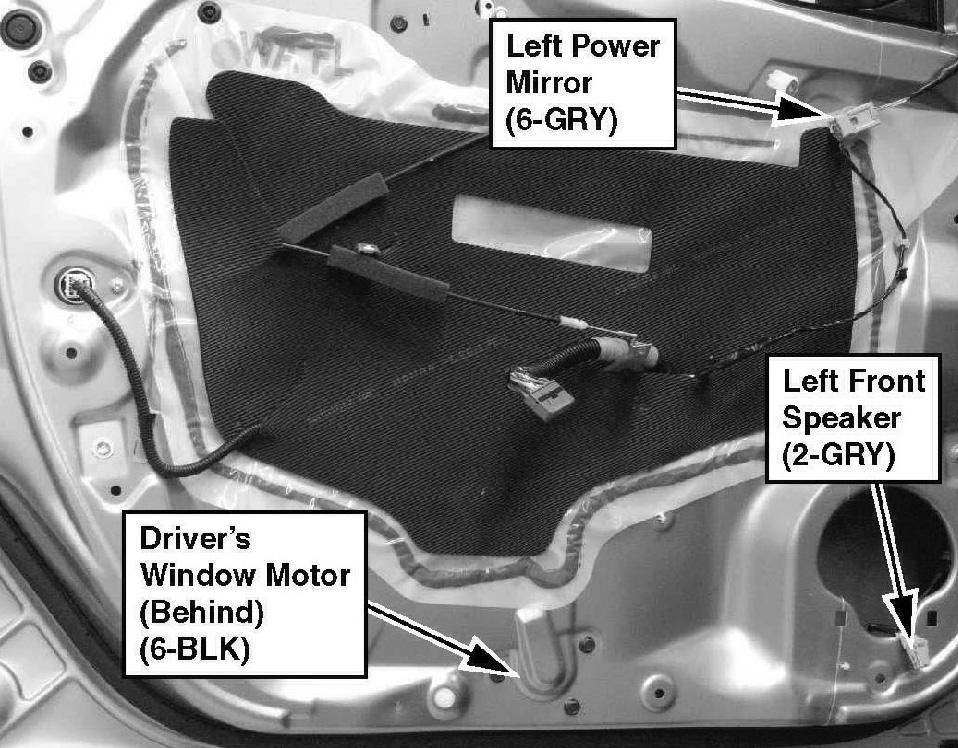

Fig 20: Driver's Door

G00453667

Courtesy of AMERICAN HONDA MOTOR CO., INC.

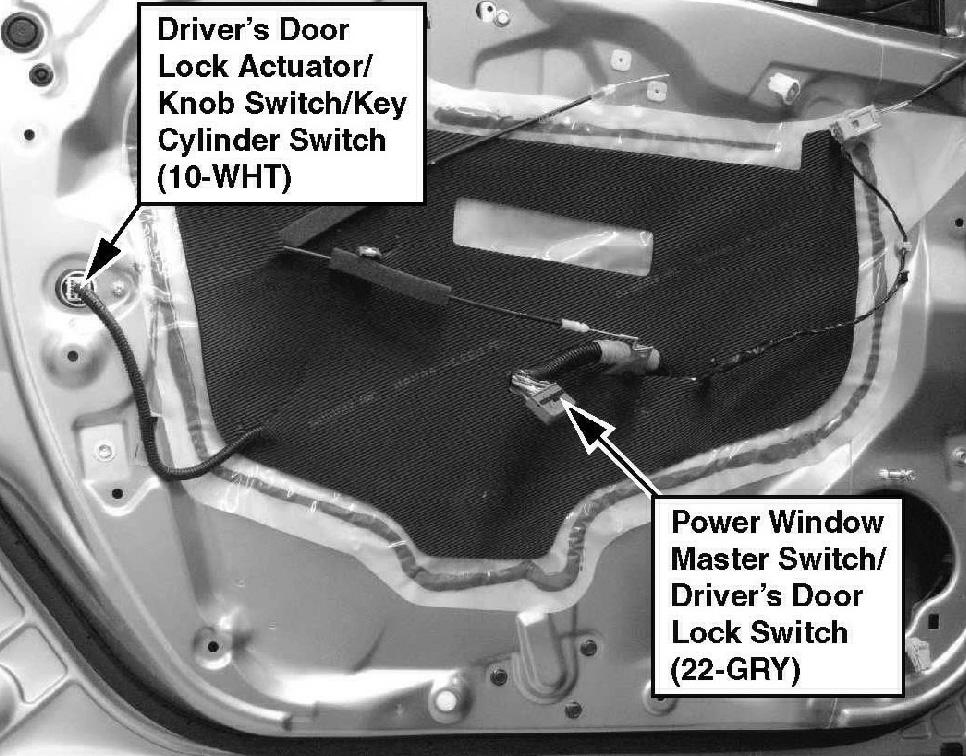

Fig 21: Driver's Door

G00453668

Courtesy of AMERICAN HONDA MOTOR CO., INC.

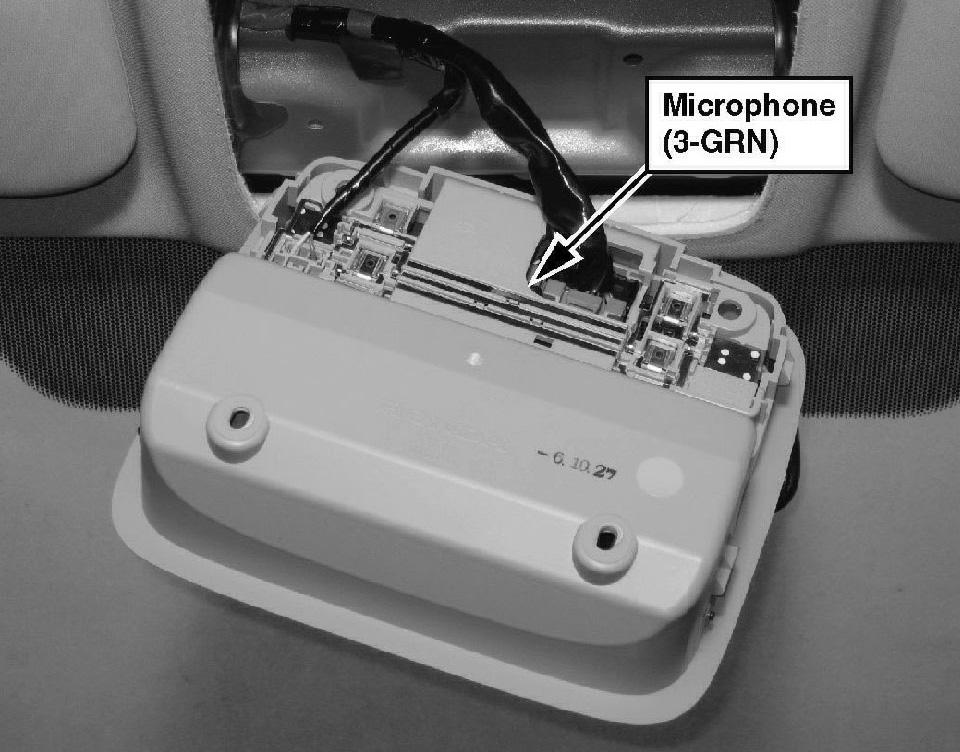

Fig 22: Center Front Of Roof (EX-L W/Navigation)

G00453669

Courtesy of AMERICAN HONDA MOTOR CO., INC.

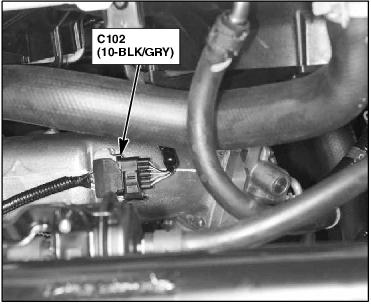

Fig 23: Front Of Engine Compartment

G00444997

Courtesy of AMERICAN HONDA MOTOR CO., INC.

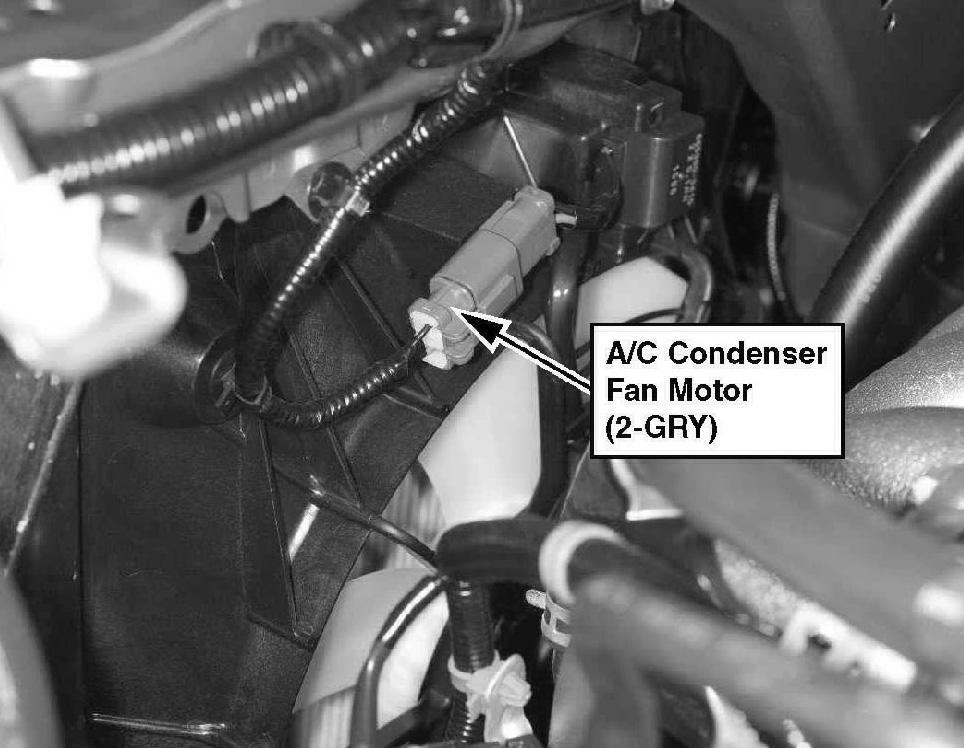

Fig 24: Front Of Engine Compartment

G00453671

Courtesy of AMERICAN HONDA MOTOR CO., INC.

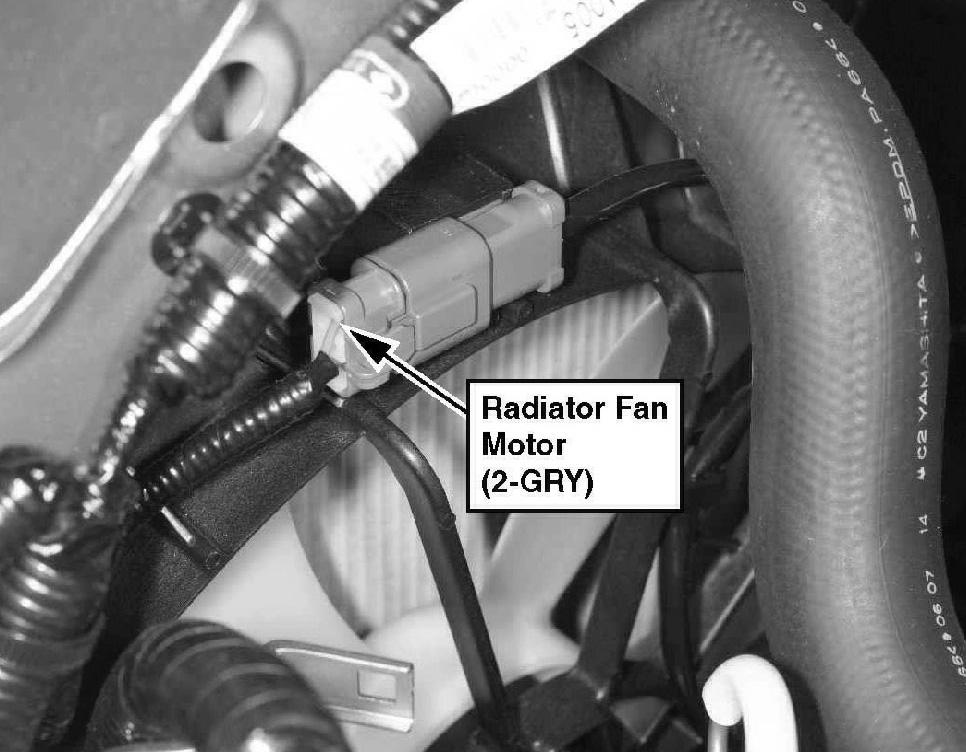

Fig 25: Front Of Engine Compartment

G00453672

Courtesy of AMERICAN HONDA MOTOR CO., INC.

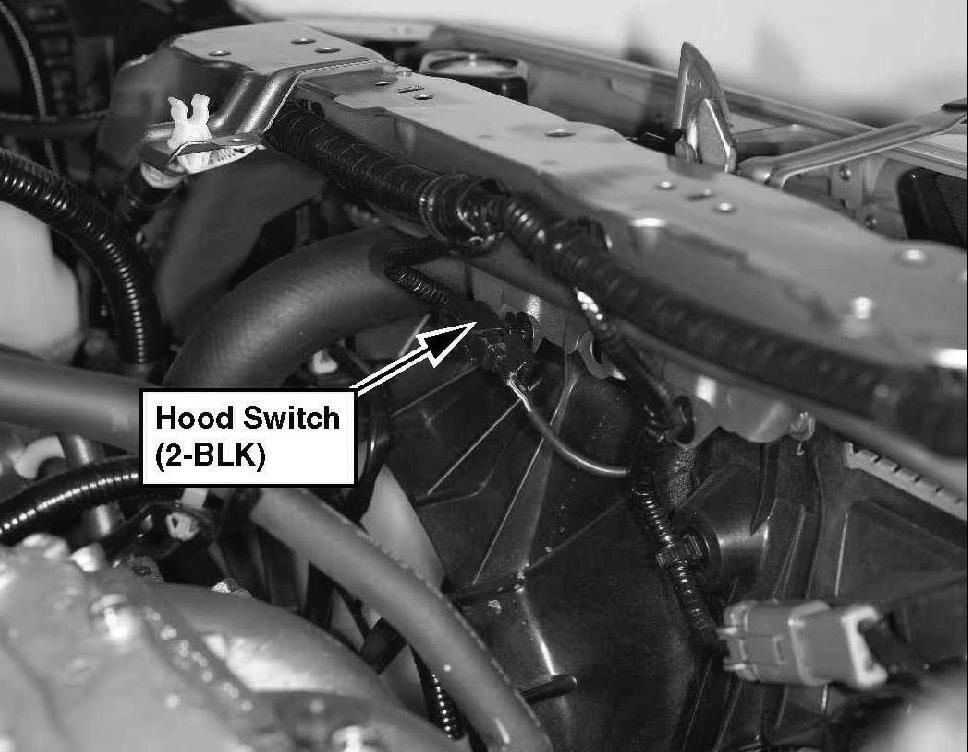

Fig 26: Front Of Engine Compartment (EX, EX-L)

G00453673

Courtesy of AMERICAN HONDA MOTOR CO., INC.

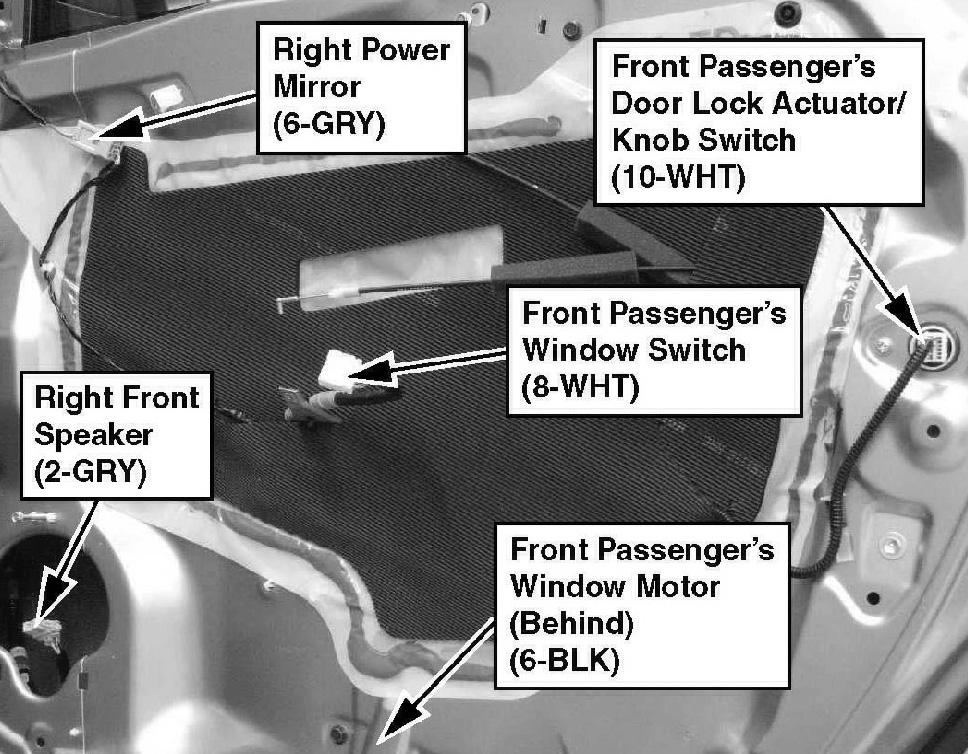

Fig 27: Front Passenger's Door

G00453674

Courtesy of AMERICAN HONDA MOTOR CO., INC.

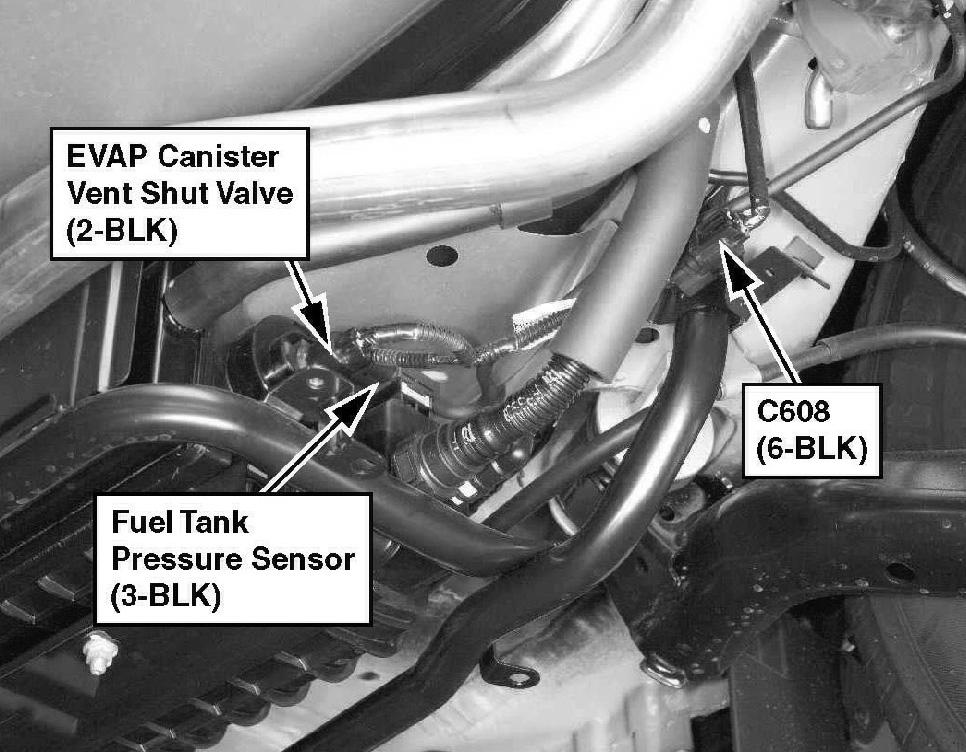

Fig 28: Fuel Tank

G00453675

Courtesy of AMERICAN HONDA MOTOR CO., INC.

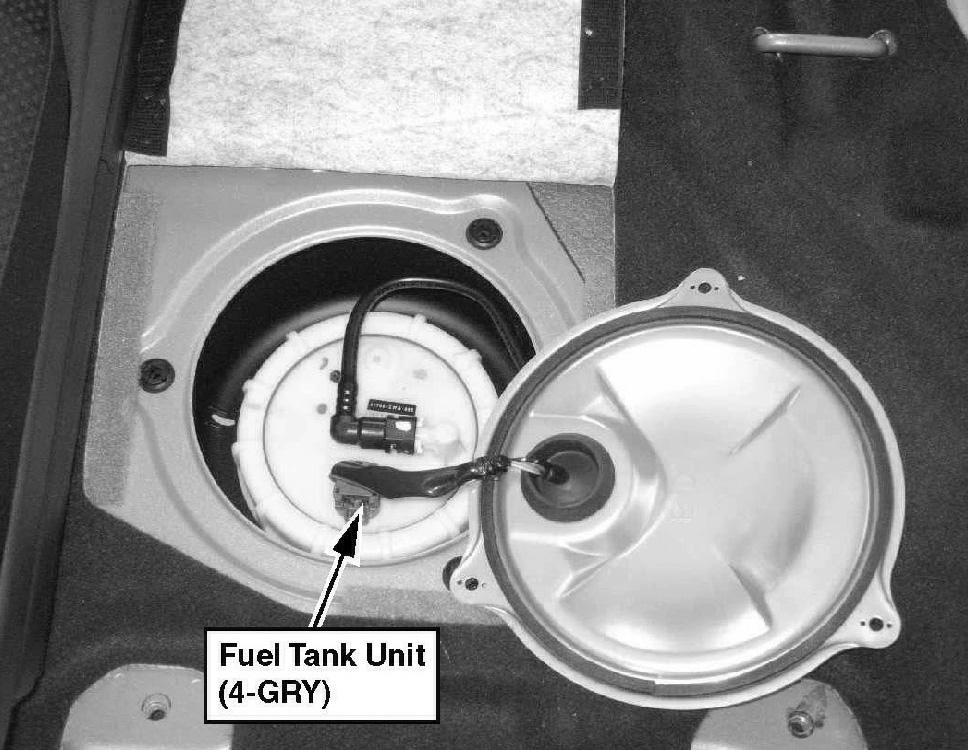

Fig 29: Fuel Tank

G00453676

Courtesy of AMERICAN HONDA MOTOR CO., INC.

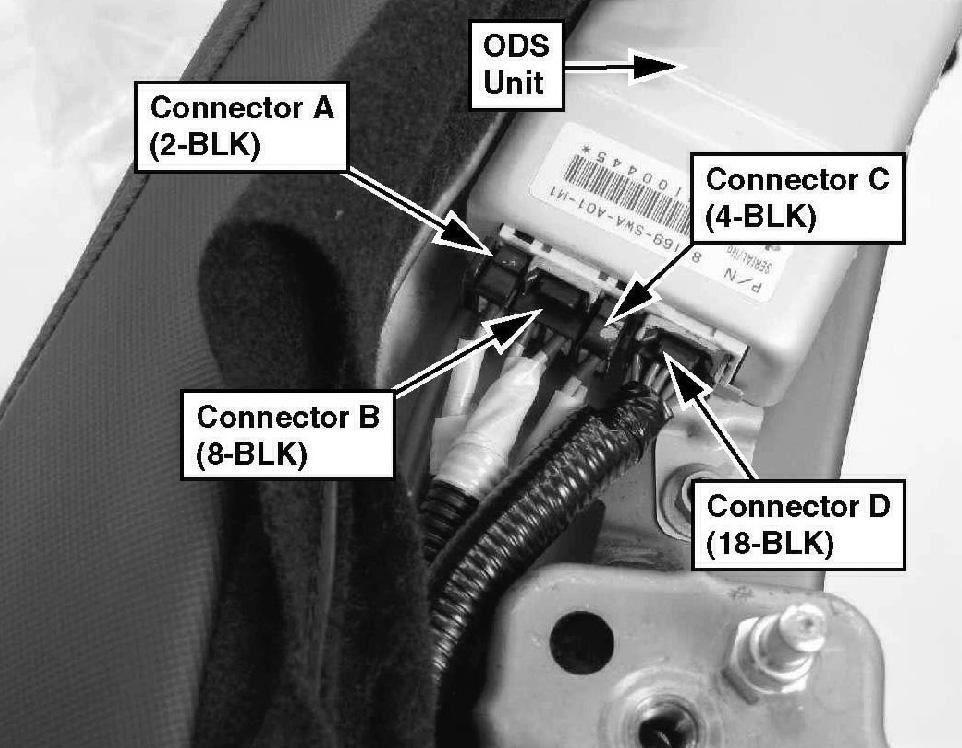

Fig 30: Front Passenger's Seat

G00453677

Courtesy of AMERICAN HONDA MOTOR CO., INC.

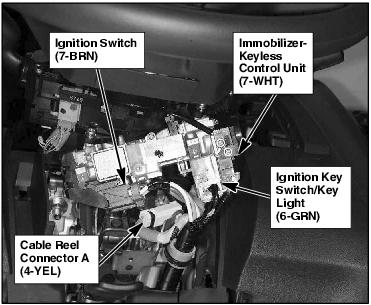

Fig 31: Under Steering Column Cover

G00444998

Courtesy of AMERICAN HONDA MOTOR CO., INC.

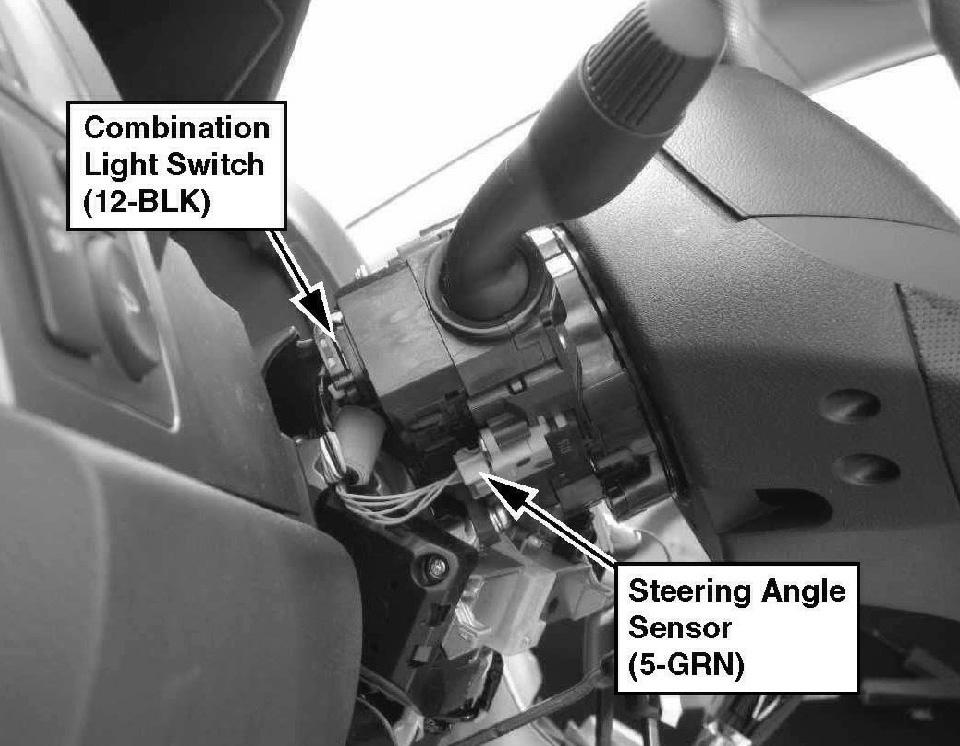

Fig 32: Under Steering Column Cover

G00453679

Courtesy of AMERICAN HONDA MOTOR CO., INC.

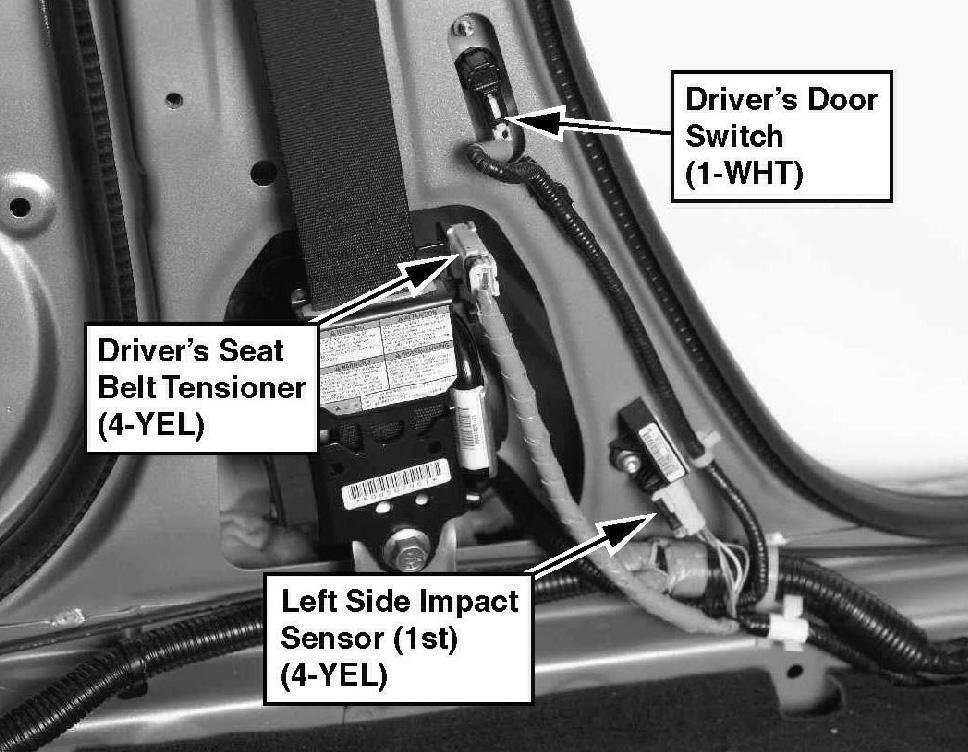

Fig 33: Left "B" Pillar

G00453840

Courtesy of AMERICAN HONDA MOTOR CO., INC.

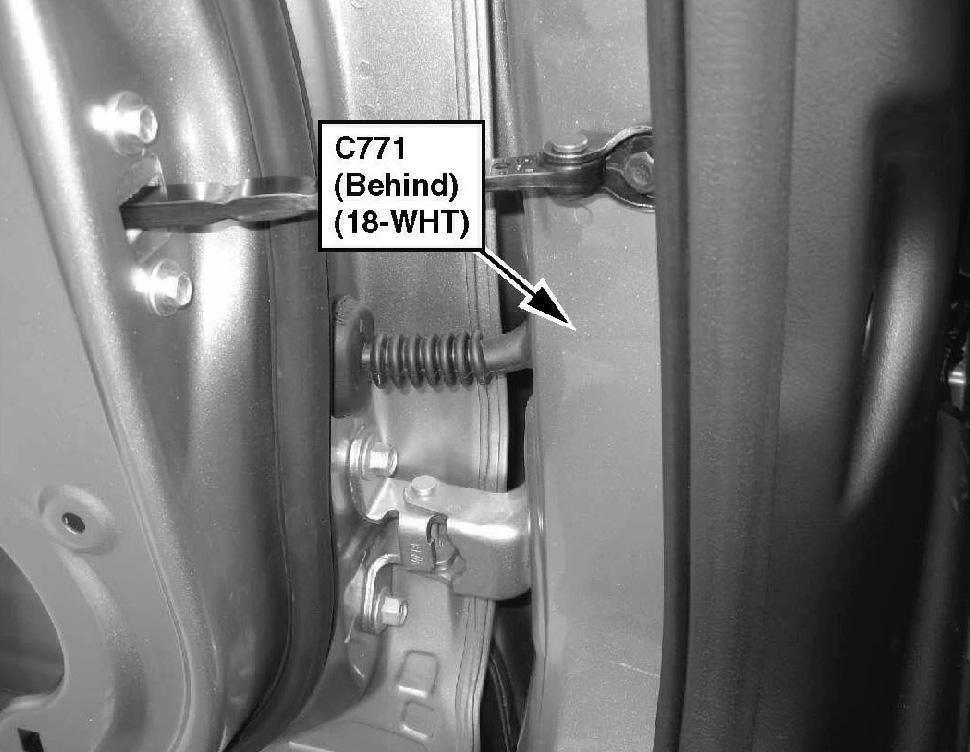

Fig 34: Left "B" Pillar

G00453841

Courtesy of AMERICAN HONDA MOTOR CO., INC.

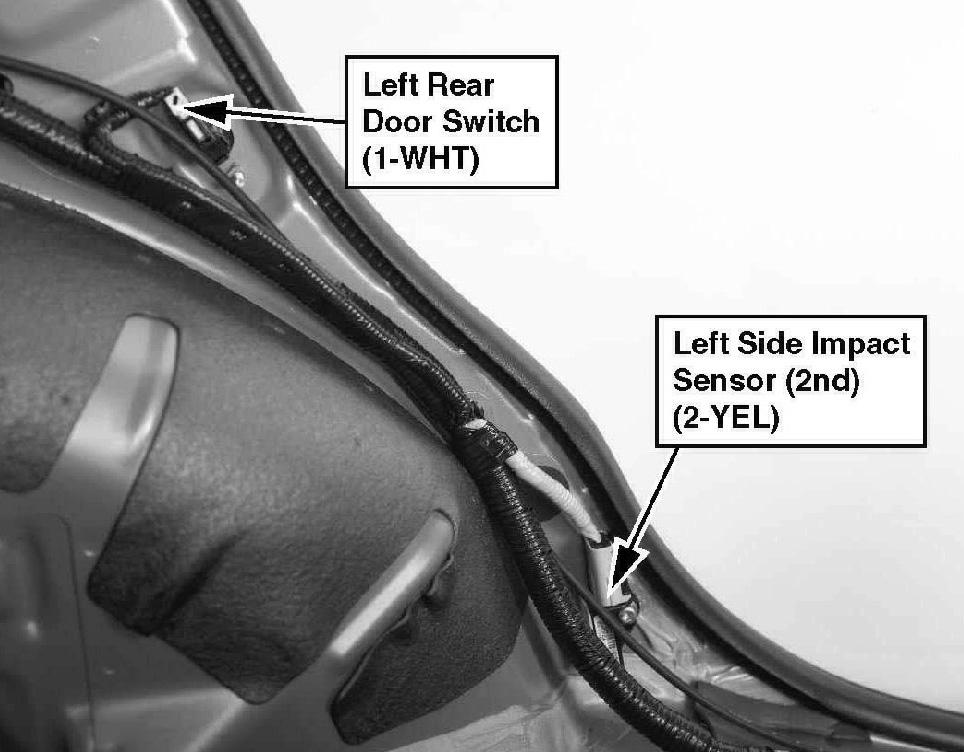

Fig 35: Left "C" Pillar

G00453842

Courtesy of AMERICAN HONDA MOTOR CO., INC.

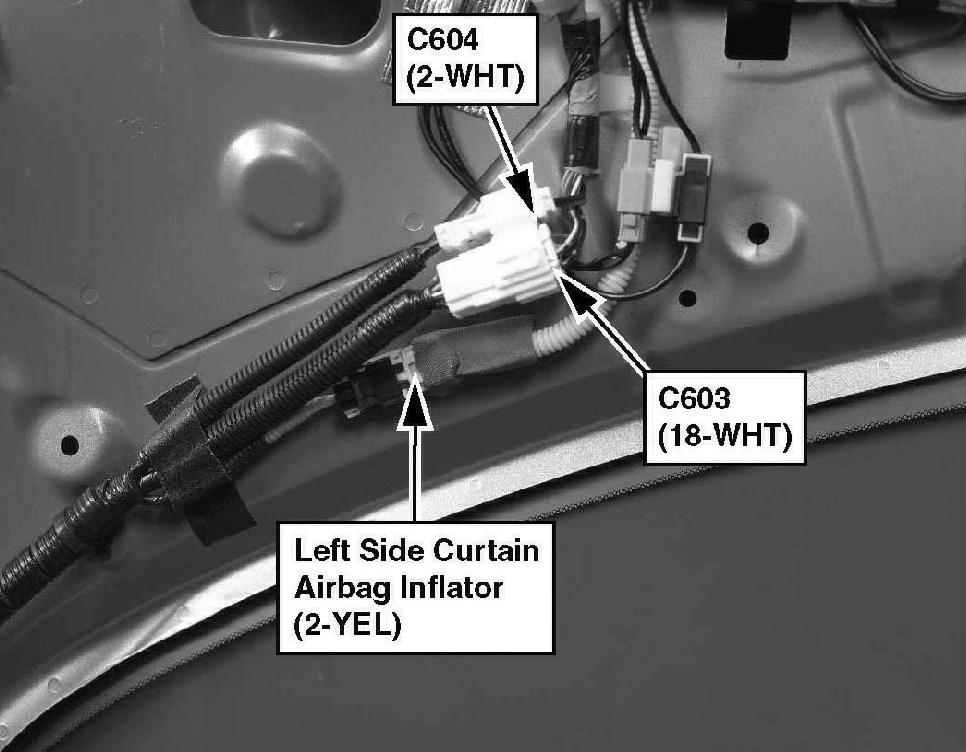

Fig 36: Left "D" Pillar

G00453843

Courtesy of AMERICAN HONDA MOTOR CO., INC.

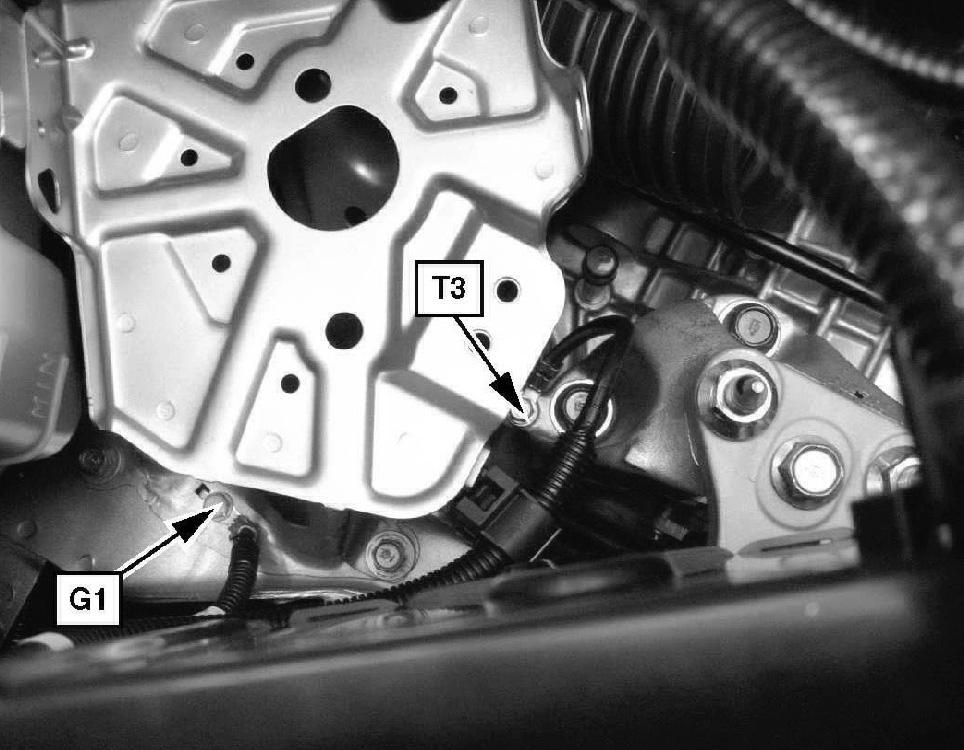

Fig 37: Left Front Of Engine Compartment

G00453844

Courtesy of AMERICAN HONDA MOTOR CO., INC.

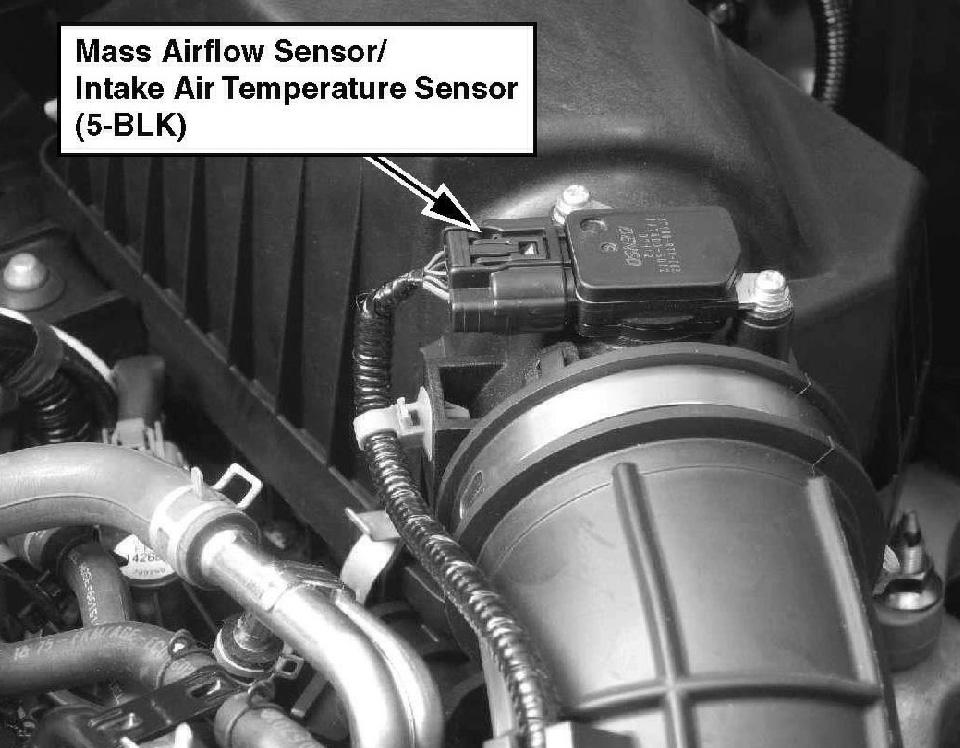

Fig 38: Left Front Of Engine Compartment

G00453845

Courtesy of AMERICAN HONDA MOTOR CO., INC.

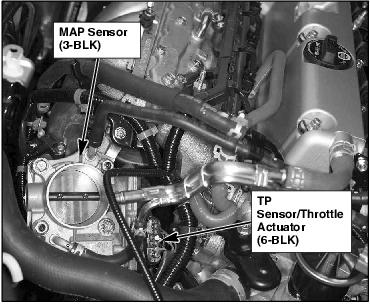

Fig 39: Left Rear Of Engine

G00444999

Courtesy of AMERICAN HONDA MOTOR CO., INC.

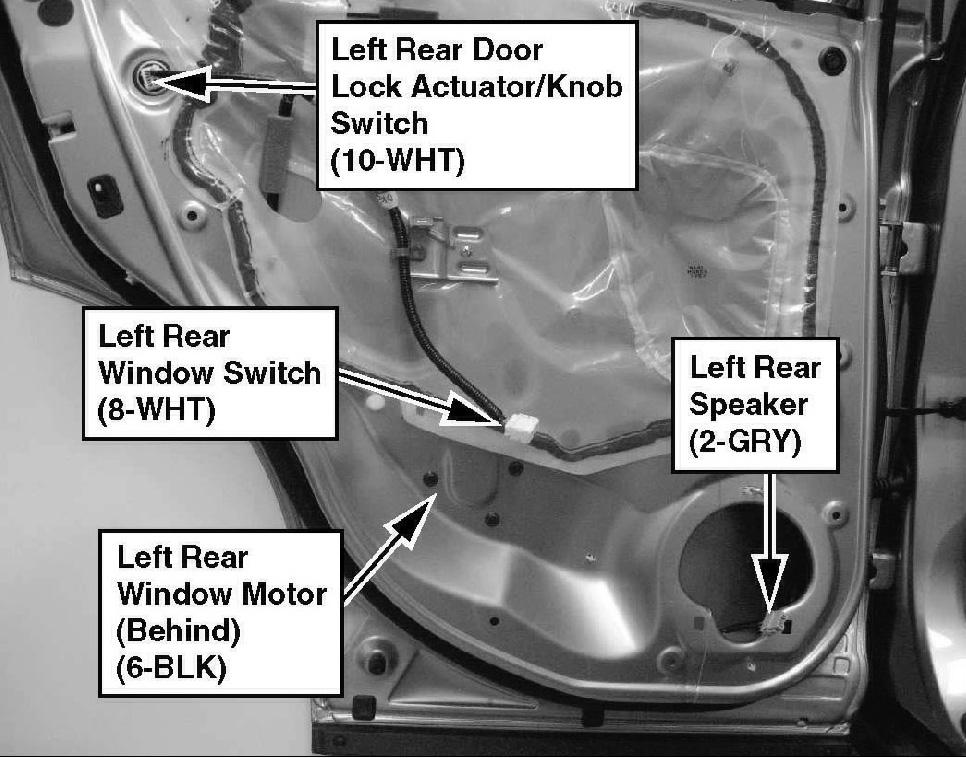

Fig 40: Left Rear Door

G00453847

Courtesy of AMERICAN HONDA MOTOR CO., INC.

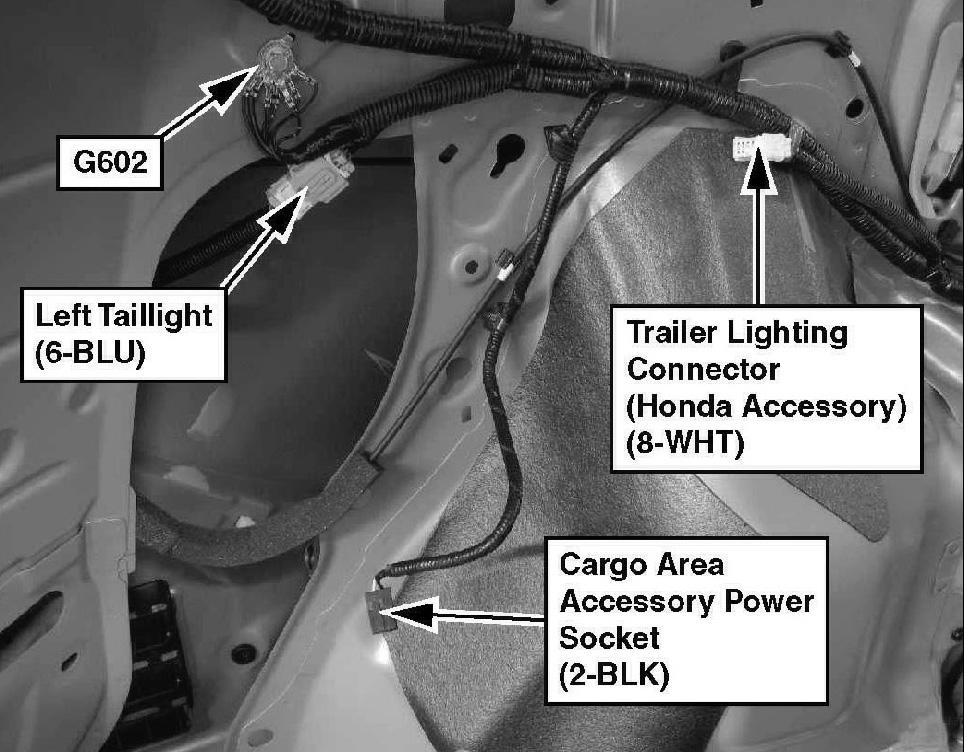

Fig 41: Left Side Of Cargo Area

G00453848

Courtesy of AMERICAN HONDA MOTOR CO., INC.

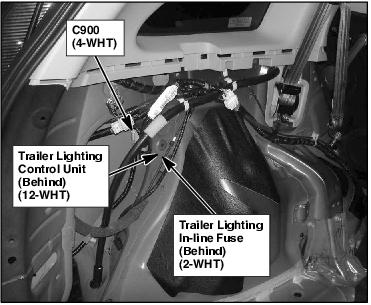

Fig 42: Left Side Of Cargo Area (Honda Accessory)

G00445000

Courtesy of AMERICAN HONDA MOTOR CO., INC.

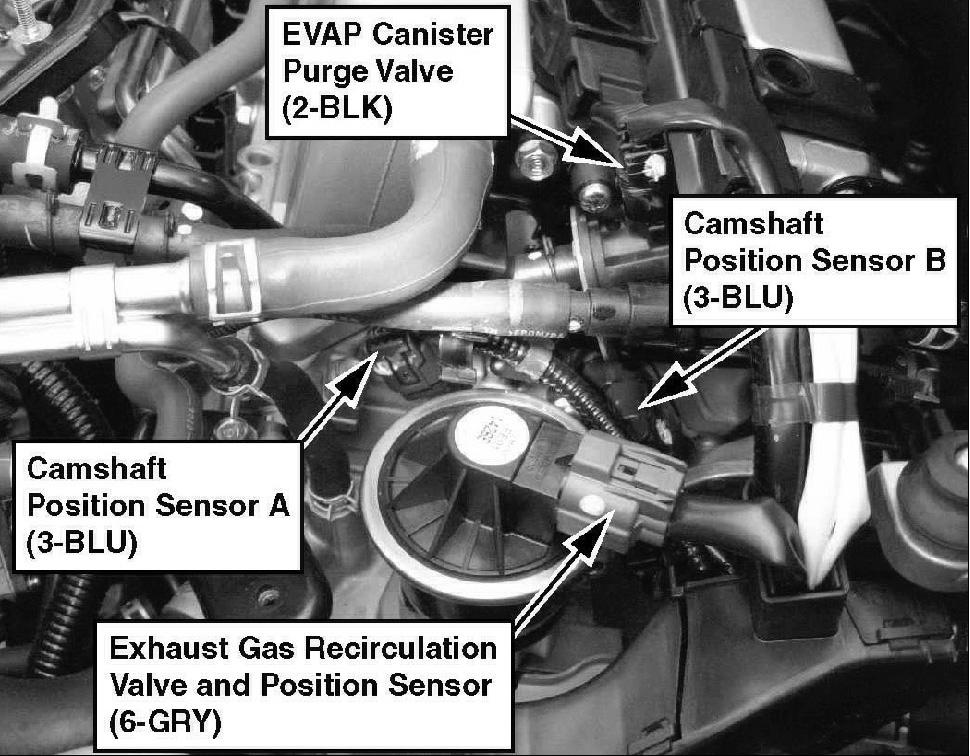

Fig 43: Left Side Of Engine Compartment

G00453850

Courtesy of AMERICAN HONDA MOTOR CO., INC.

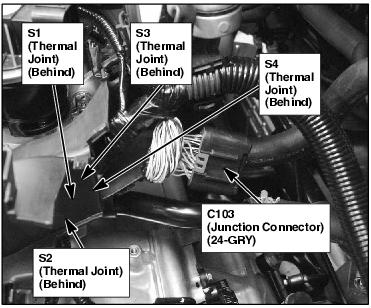

Fig 44: Left Side Of Engine Compartment

G00445001

Courtesy of AMERICAN HONDA MOTOR CO., INC.

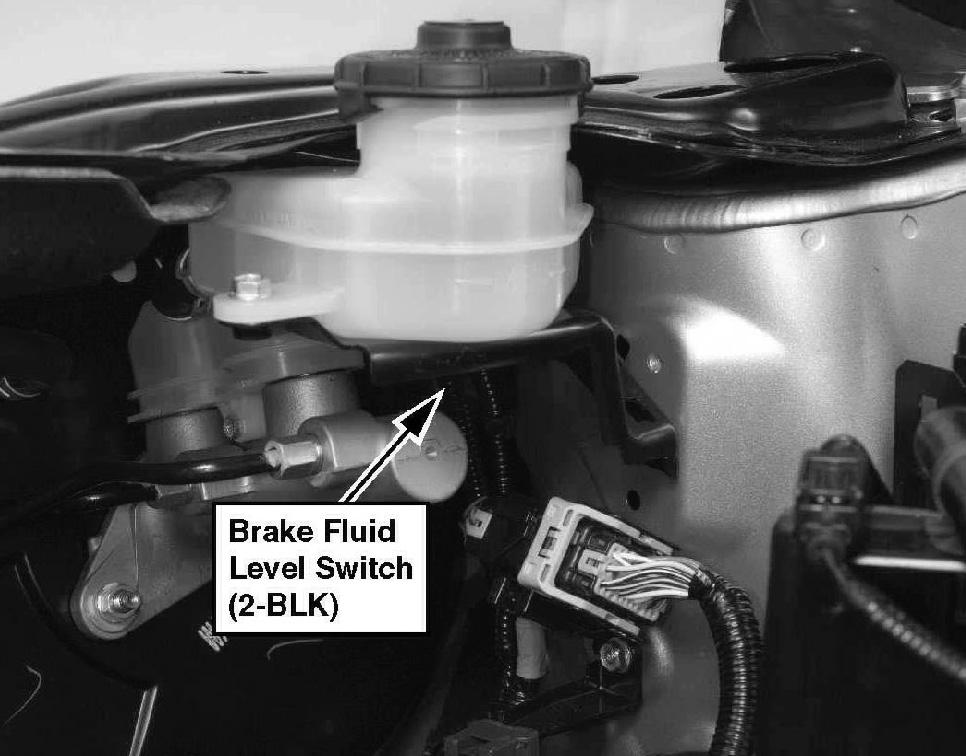

Fig 45: Left Side Of Engine Compartment

G00453852

Courtesy of AMERICAN HONDA MOTOR CO., INC.

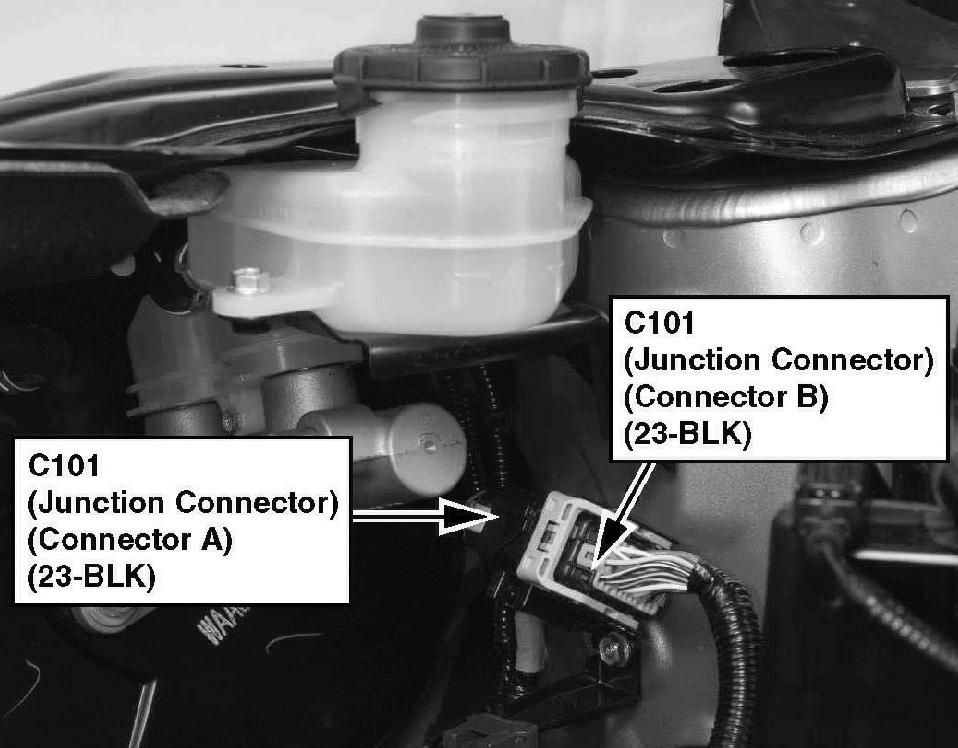

Fig 46: Left Side Of Engine Compartment

G00453853

Courtesy of AMERICAN HONDA MOTOR CO., INC.

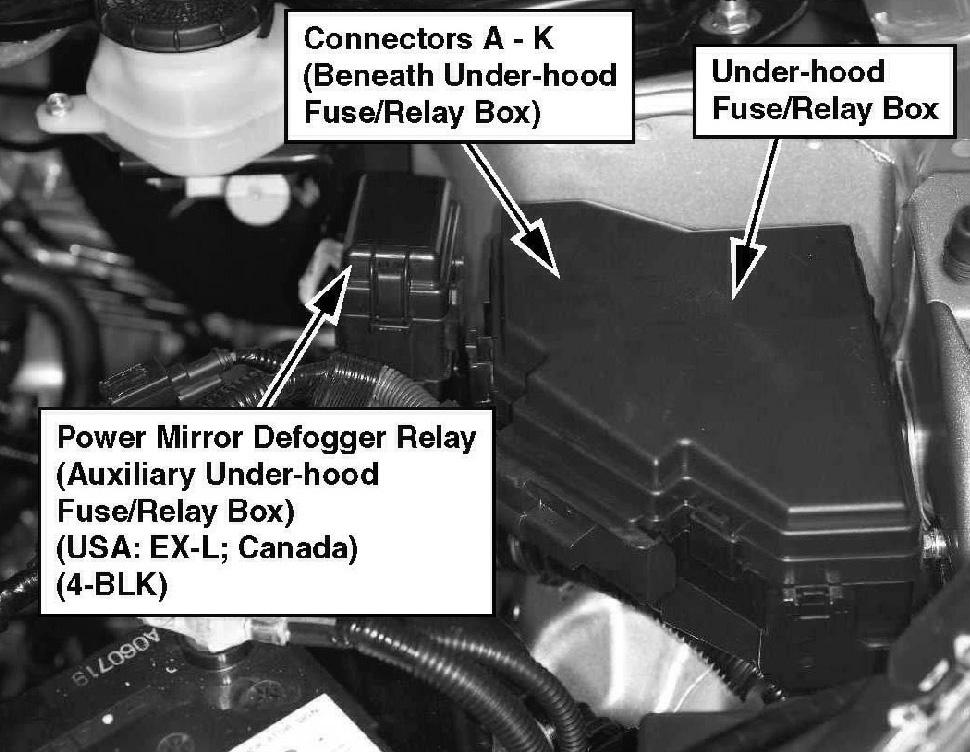

Fig 47: Left Side Of Engine Compartment

G00453854

Courtesy of AMERICAN HONDA MOTOR CO., INC.

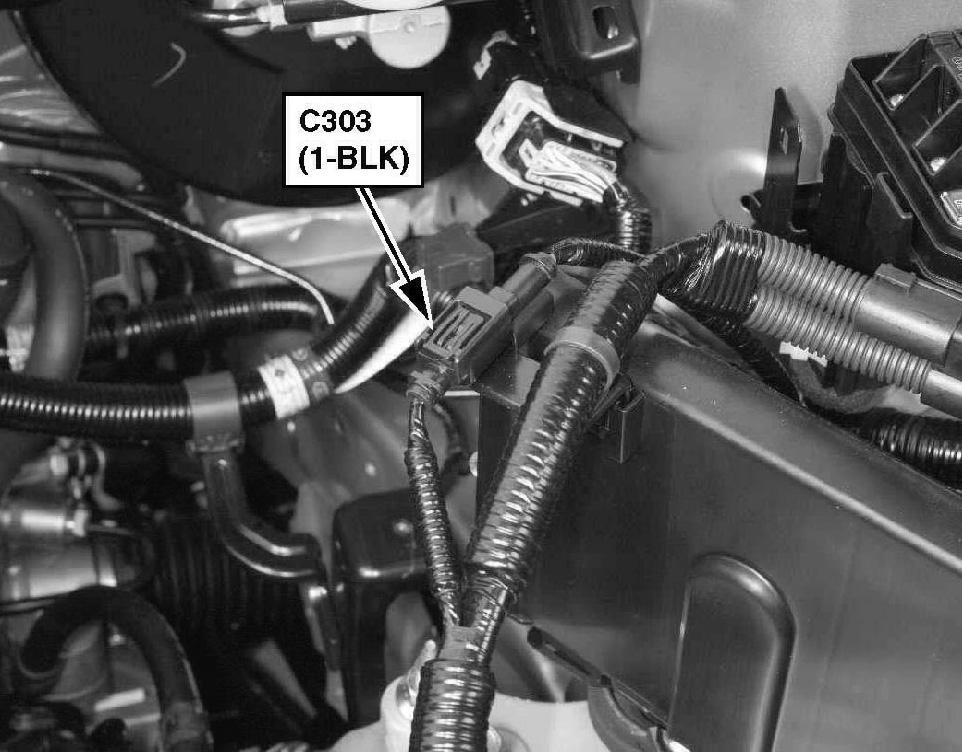

Fig 48: Left Side Of Engine Compartment

G00453855

Courtesy of AMERICAN HONDA MOTOR CO., INC.

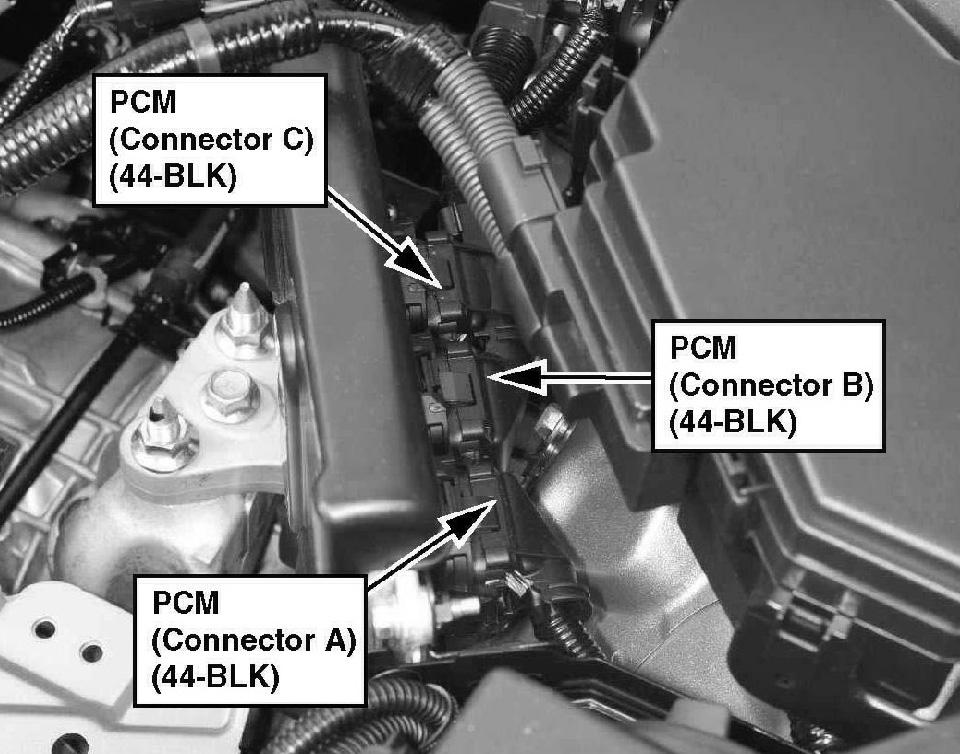

Fig 49: Left Side Of Engine Compartment

G00453856

Courtesy of AMERICAN HONDA MOTOR CO., INC.

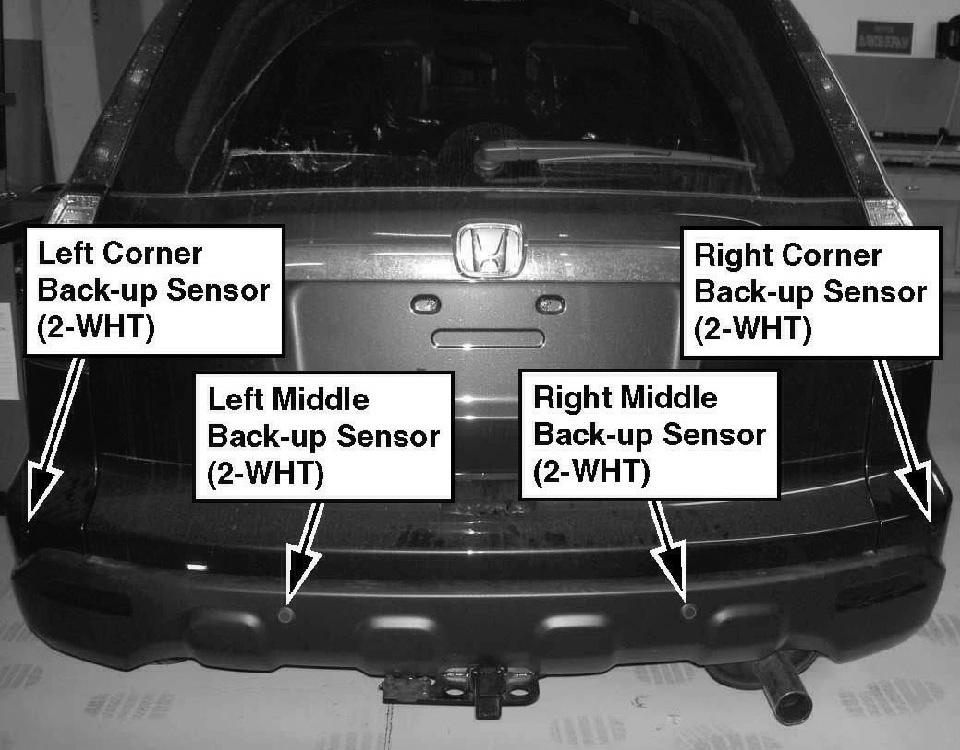

Fig 50: Rear Bumper (Honda Accessory)

G00453857

Courtesy of AMERICAN HONDA MOTOR CO., INC.

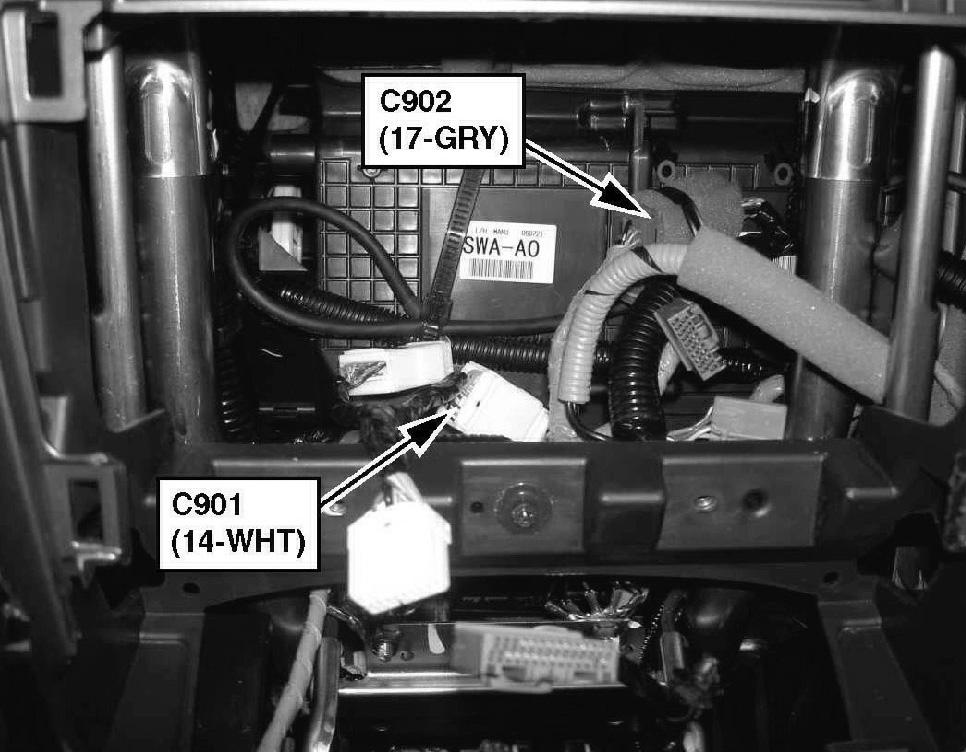

Fig 51: Middle Of Dash

G00453858

Courtesy of AMERICAN HONDA MOTOR CO., INC.

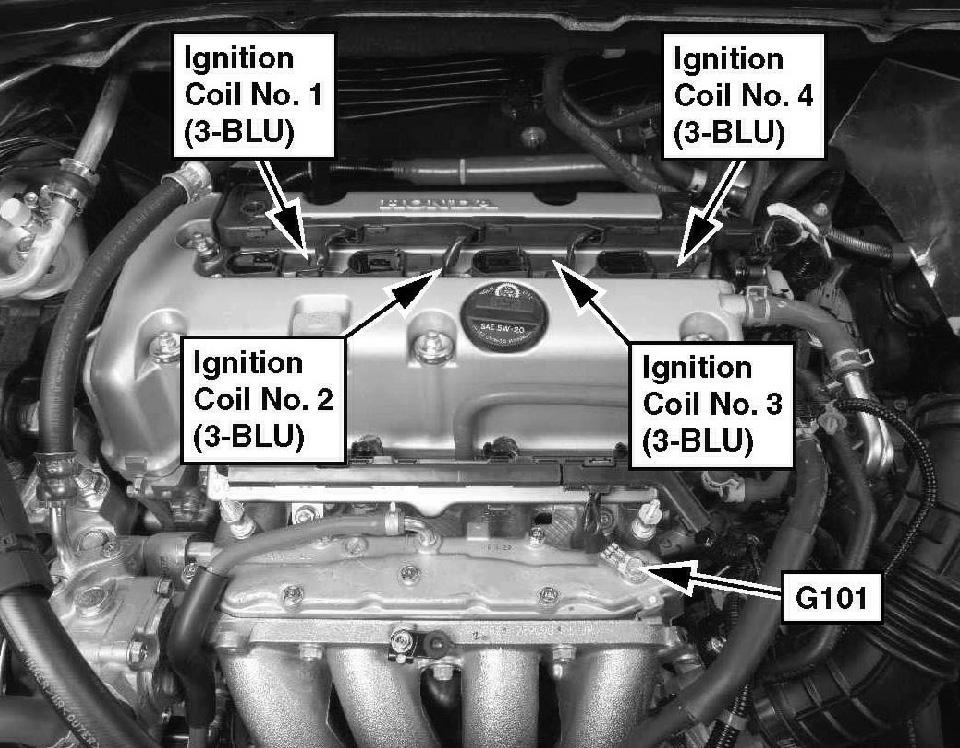

Fig 52: Top Of Engine

G00453859

Courtesy of AMERICAN HONDA MOTOR CO., INC.

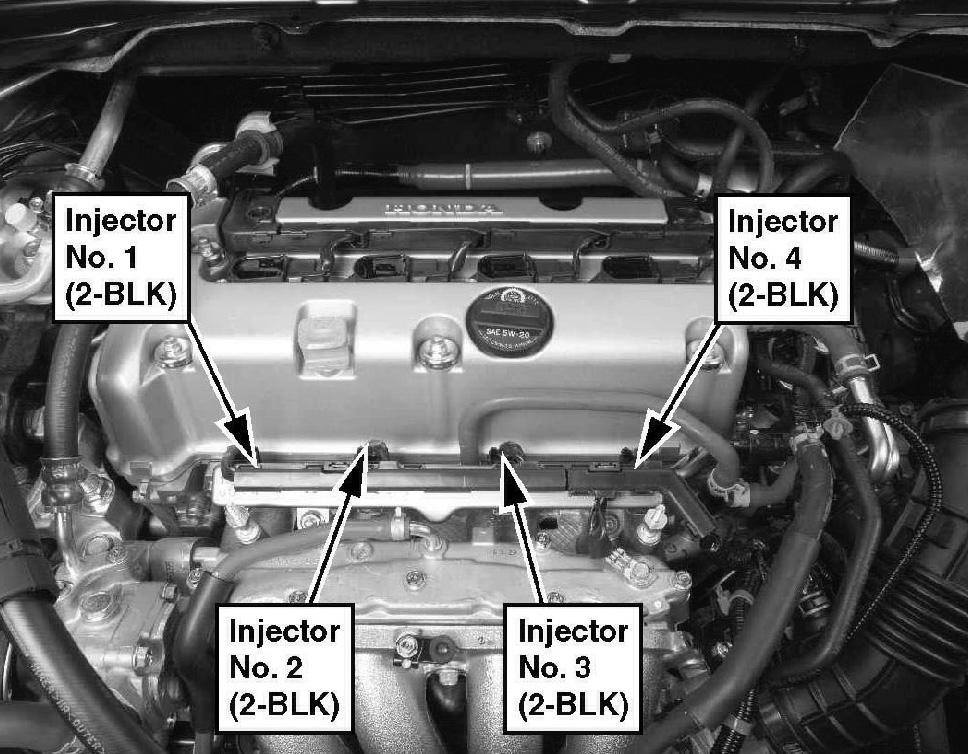

Fig 53: Top Of Engine

G00453860

Courtesy of AMERICAN HONDA MOTOR CO., INC.

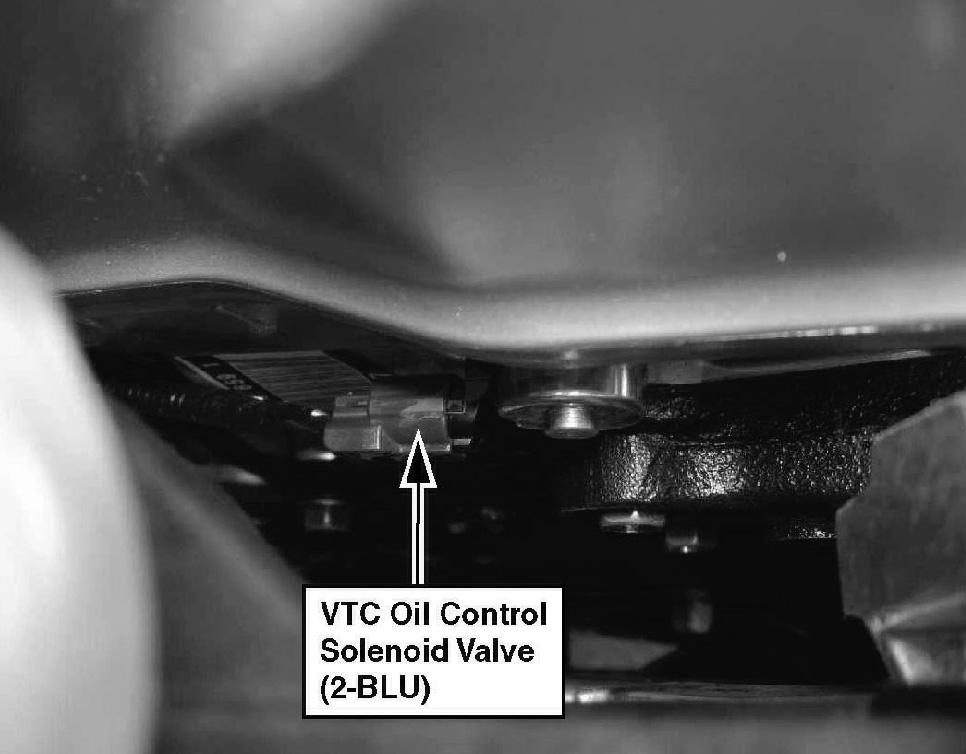

Fig 54: Front Of Engine

G00453861

Courtesy of AMERICAN HONDA MOTOR CO., INC.

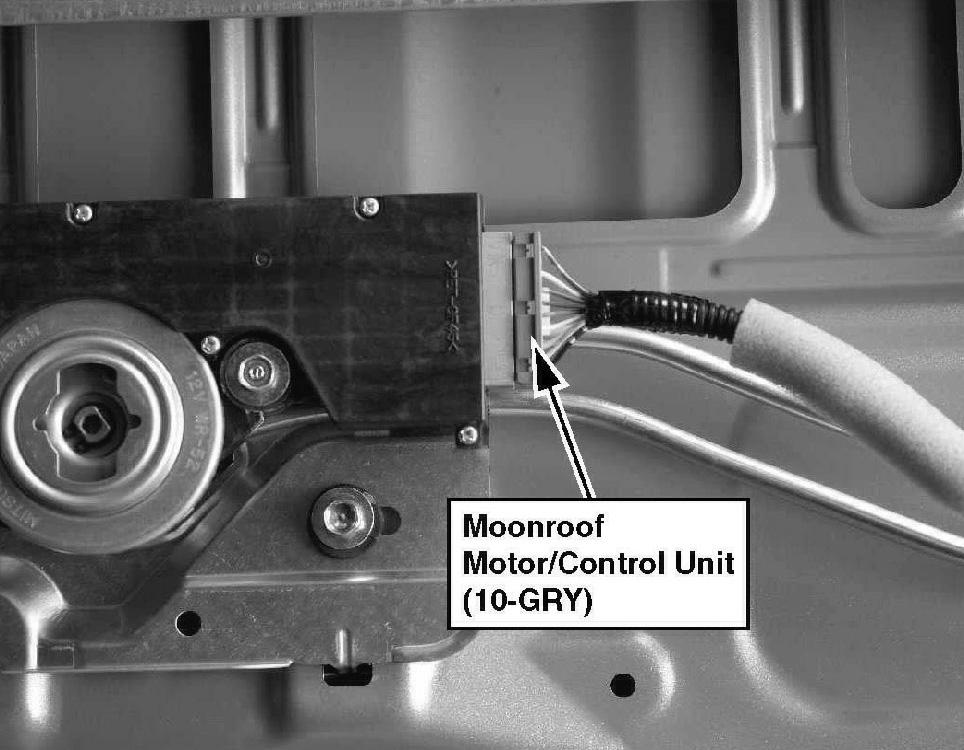

Fig 55: Center Of Roof (EX, EX-L)

G00453862

Courtesy of AMERICAN HONDA MOTOR CO., INC.

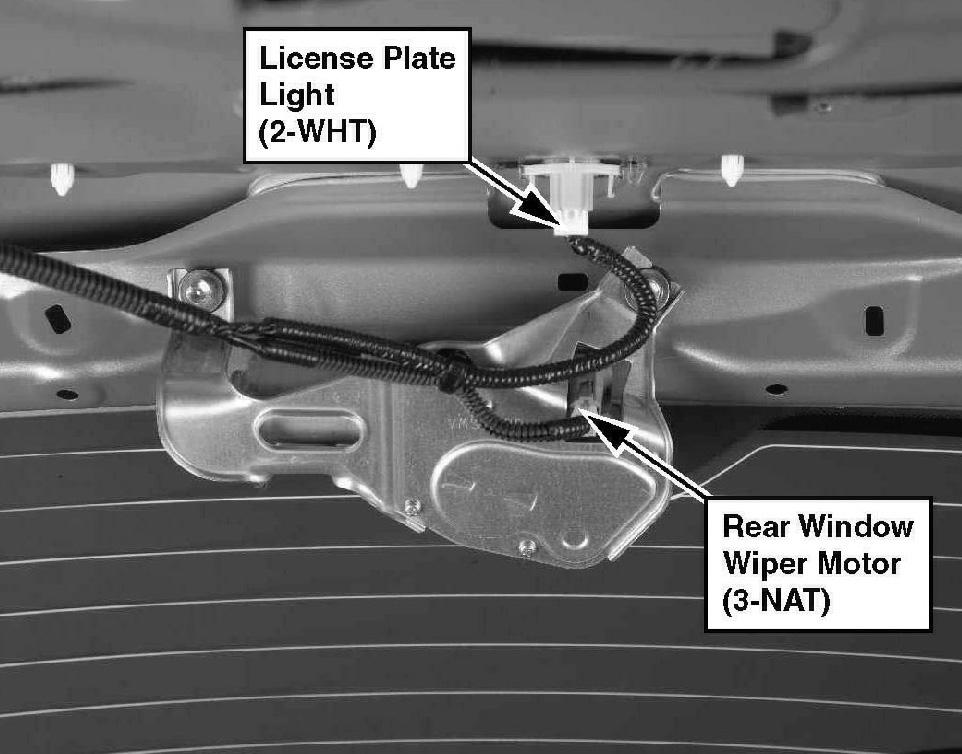

Fig 56: Middle Of Tailgate

G00453863

Courtesy of AMERICAN HONDA MOTOR CO., INC.

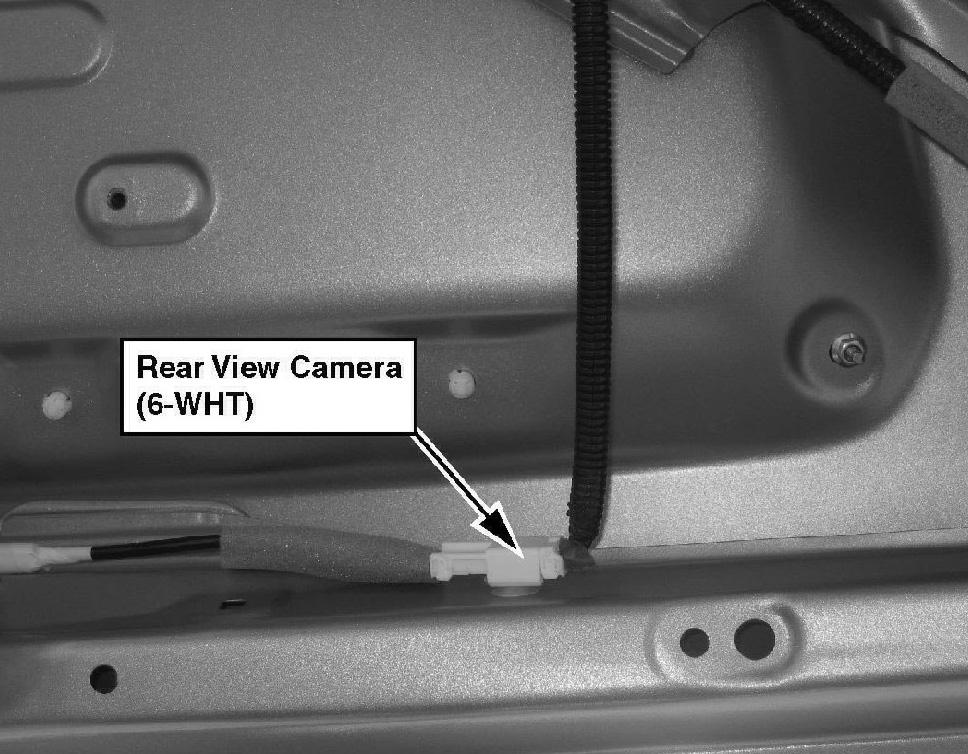

Fig 57: Middle Of Tailgate (EX-L W/Navigation)

G00453864

Courtesy of AMERICAN HONDA MOTOR CO., INC.

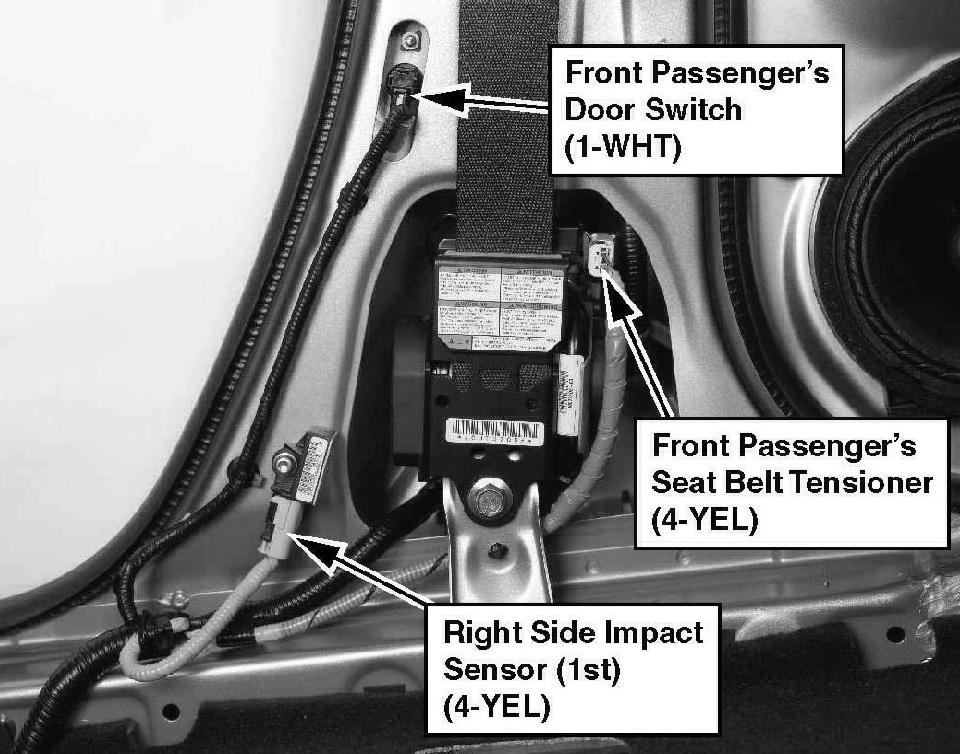

Fig 58: Right "B" Pillar

G00453865

Courtesy of AMERICAN HONDA MOTOR CO., INC.

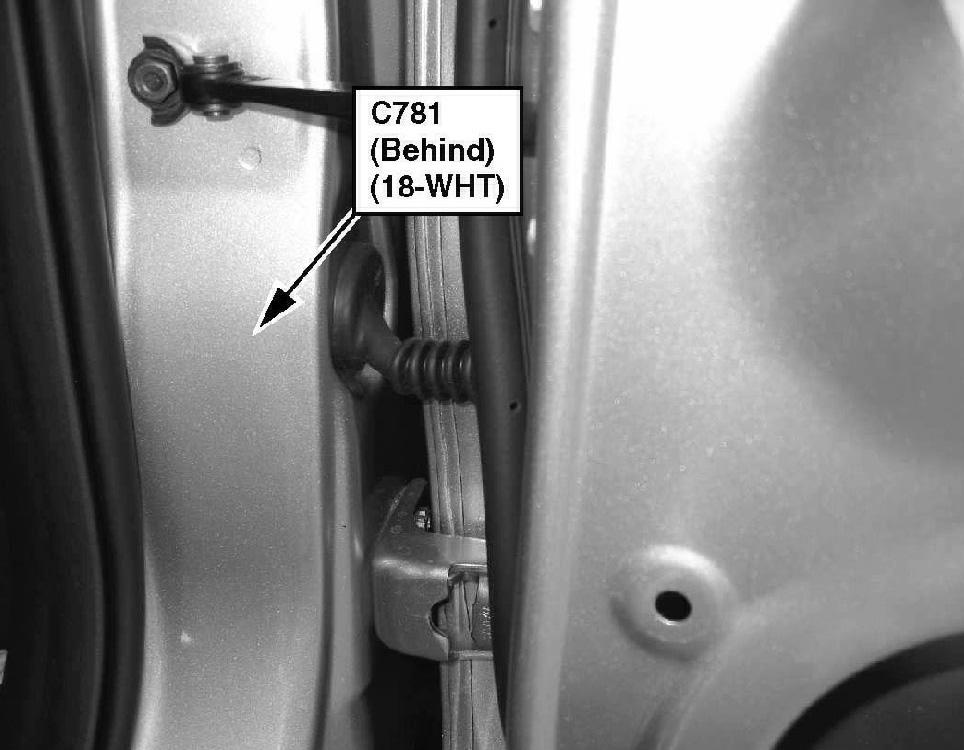

Fig 59: Right "B" Pillar

G00453866

Courtesy of AMERICAN HONDA MOTOR CO., INC.

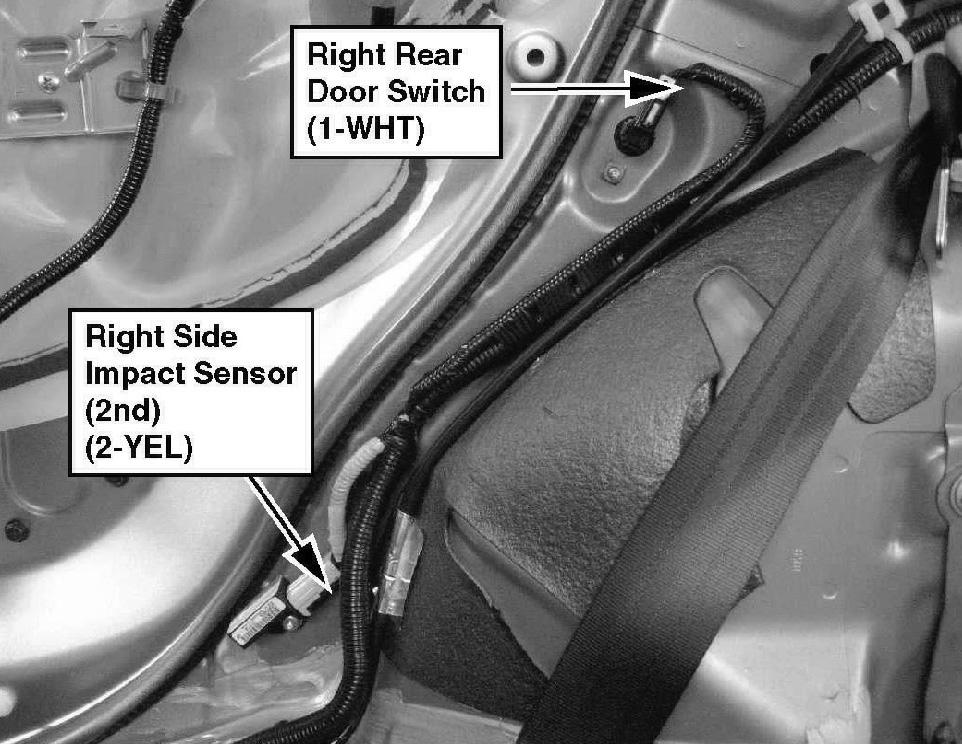

Fig 60: Right "C" Pillar

G00453867

Courtesy of AMERICAN HONDA MOTOR CO., INC.

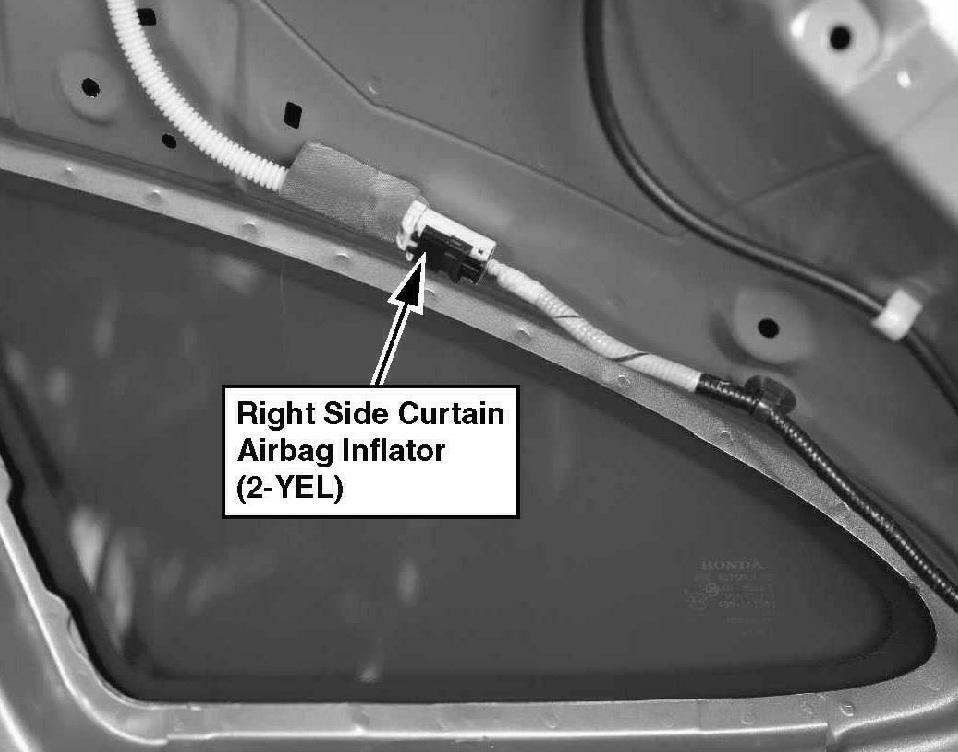

Fig 61: Right "D" Pillar

G00453868

Courtesy of AMERICAN HONDA MOTOR CO., INC.

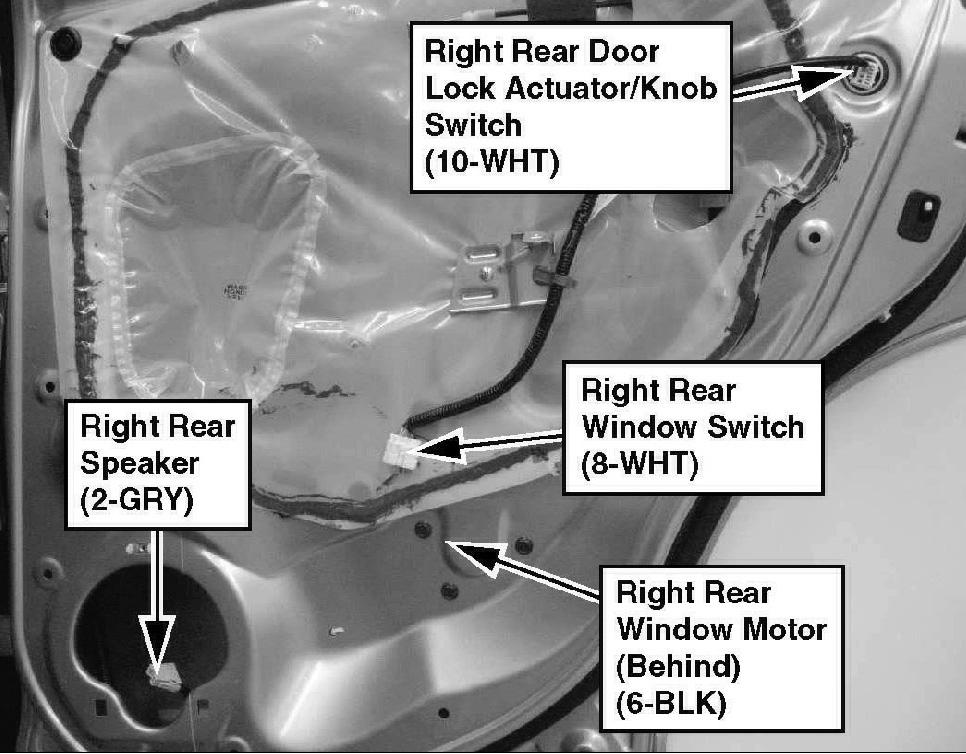

Fig 62: Right Rear Door

G00453869

Courtesy of AMERICAN HONDA MOTOR CO., INC.

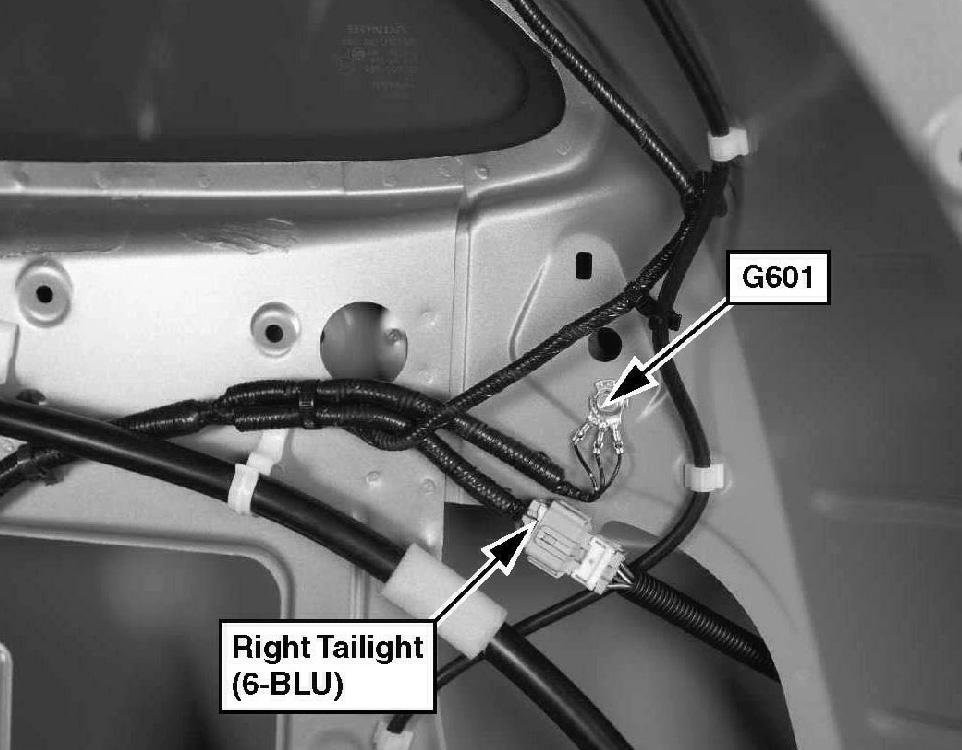

Fig 63: Right Side Of Cargo Area

G00453870

Courtesy of AMERICAN HONDA MOTOR CO., INC.

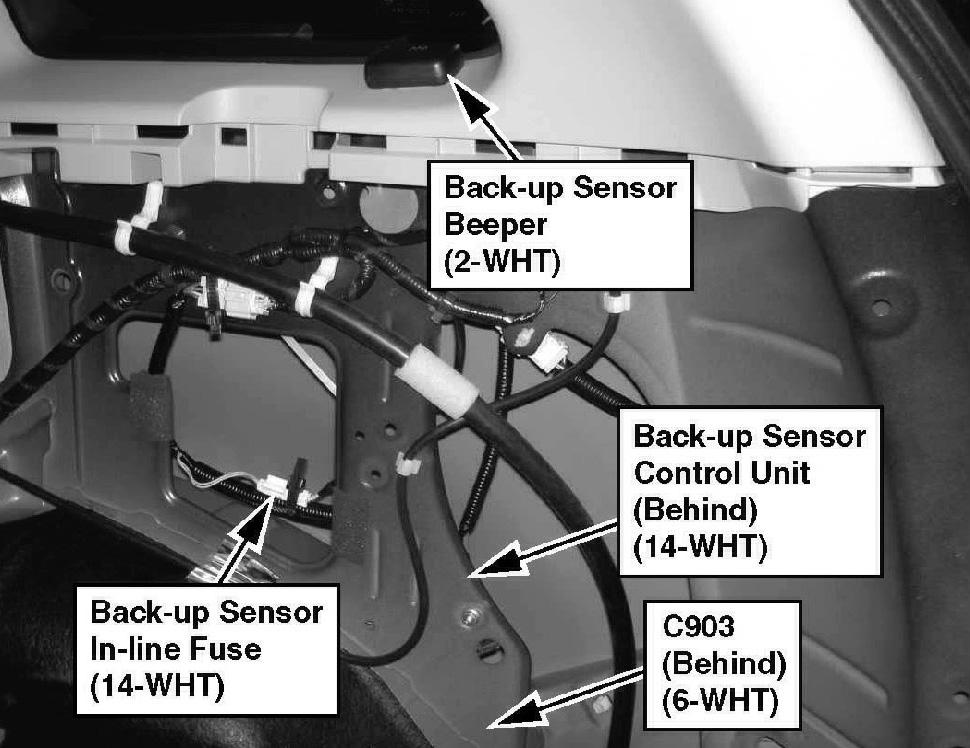

Fig 64: Right Side Of Cargo Area (Honda Accessory)

G00453871

Courtesy of AMERICAN HONDA MOTOR CO., INC.

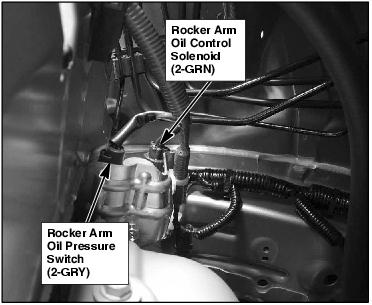

Fig 65: Right Front Of Engine

G00445002

Courtesy of AMERICAN HONDA MOTOR CO., INC.

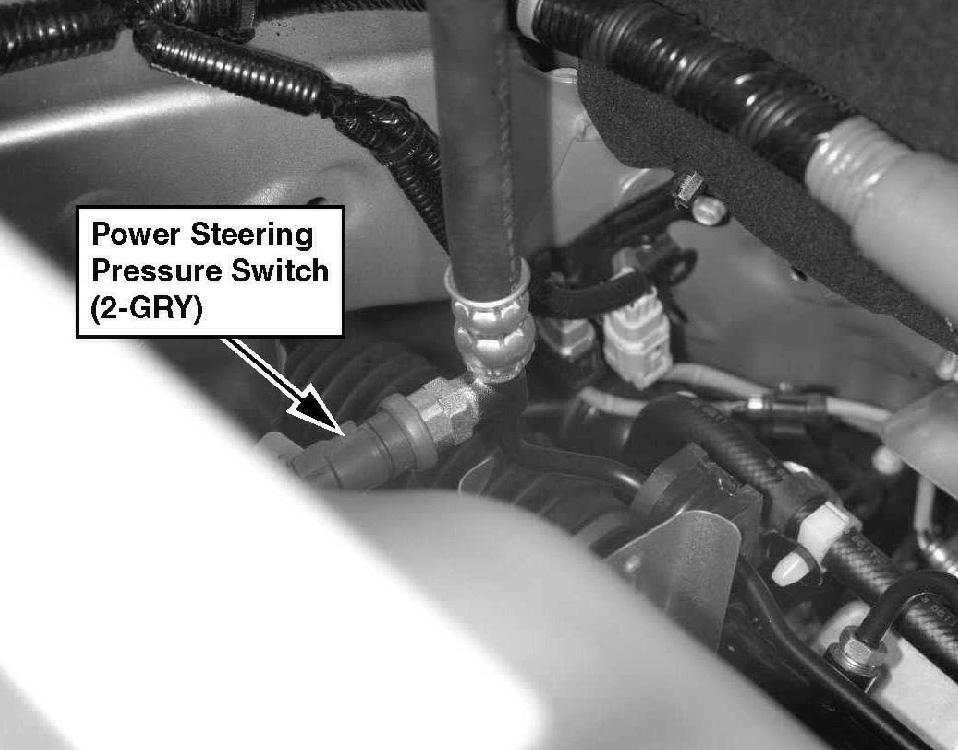

Fig 66: Right Side Of Engine Compartment

G00453873

Courtesy of AMERICAN HONDA MOTOR CO., INC.

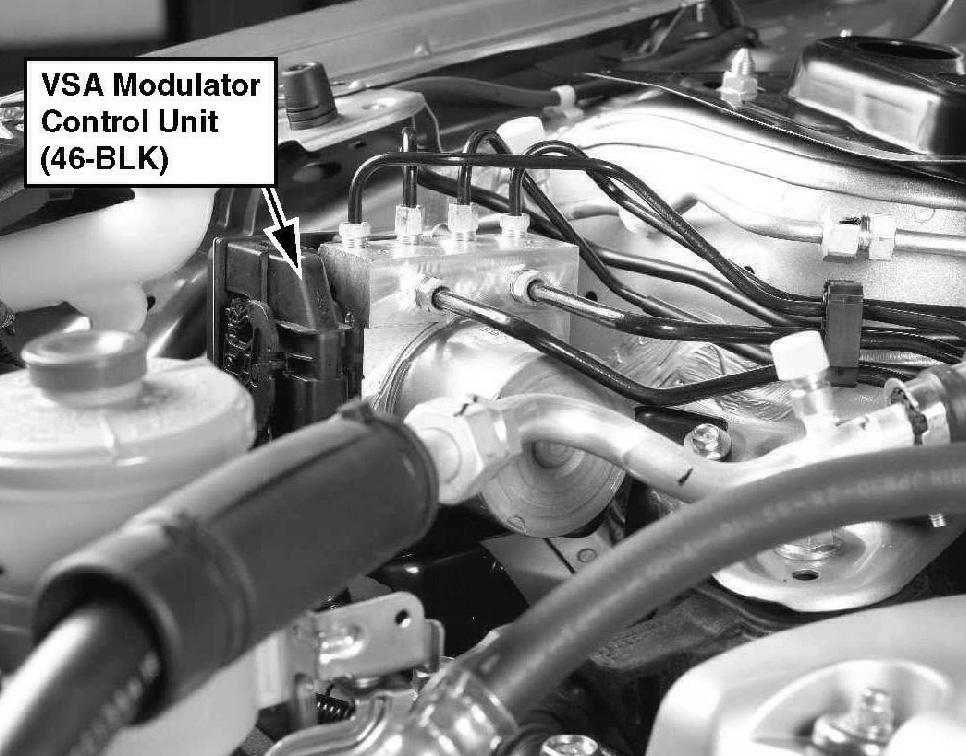

Fig 67: Right Side Of Engine Compartment

G00453874

Courtesy of AMERICAN HONDA MOTOR CO., INC.

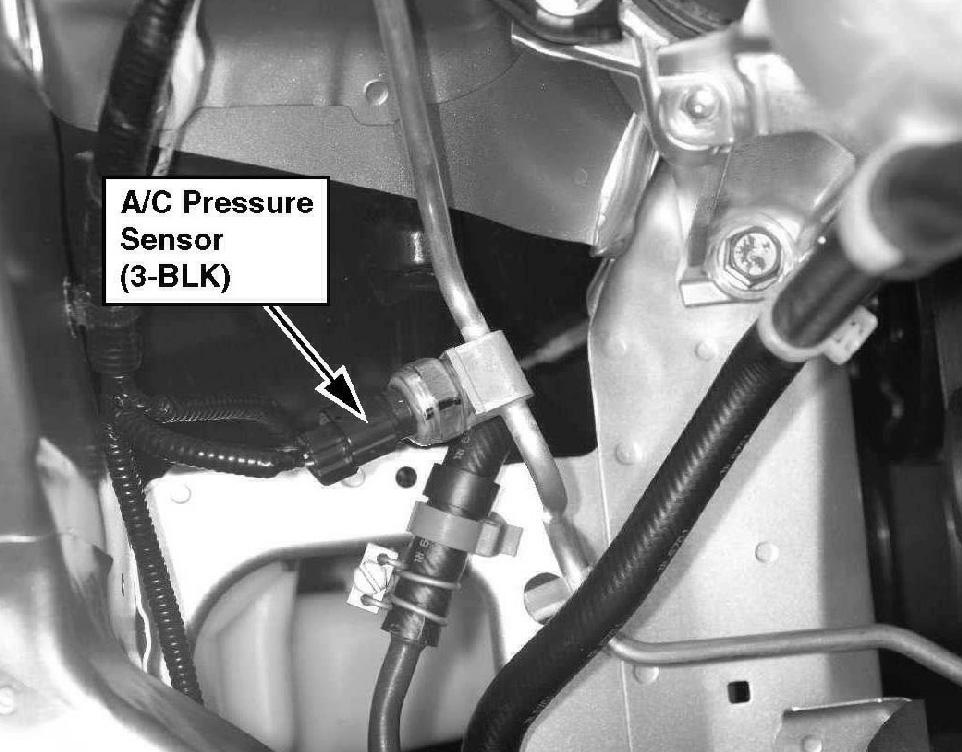

Fig 68: Right Side Of Engine Compartment

G00453875

Courtesy of AMERICAN HONDA MOTOR CO., INC.

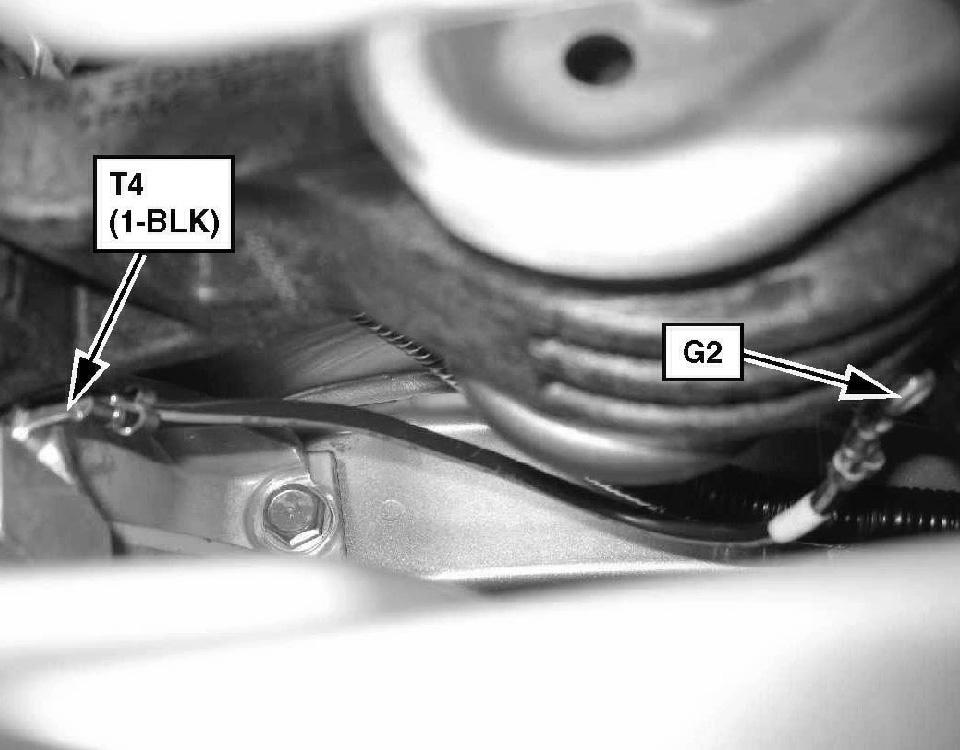

Fig 69: Right Side Of Engine Compartment

G00453876

Courtesy of AMERICAN HONDA MOTOR CO., INC.

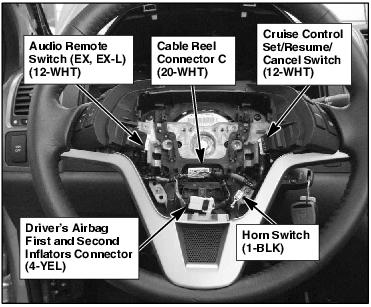

Fig 70: Steering Wheel

G00445003

Courtesy of AMERICAN HONDA MOTOR CO., INC.

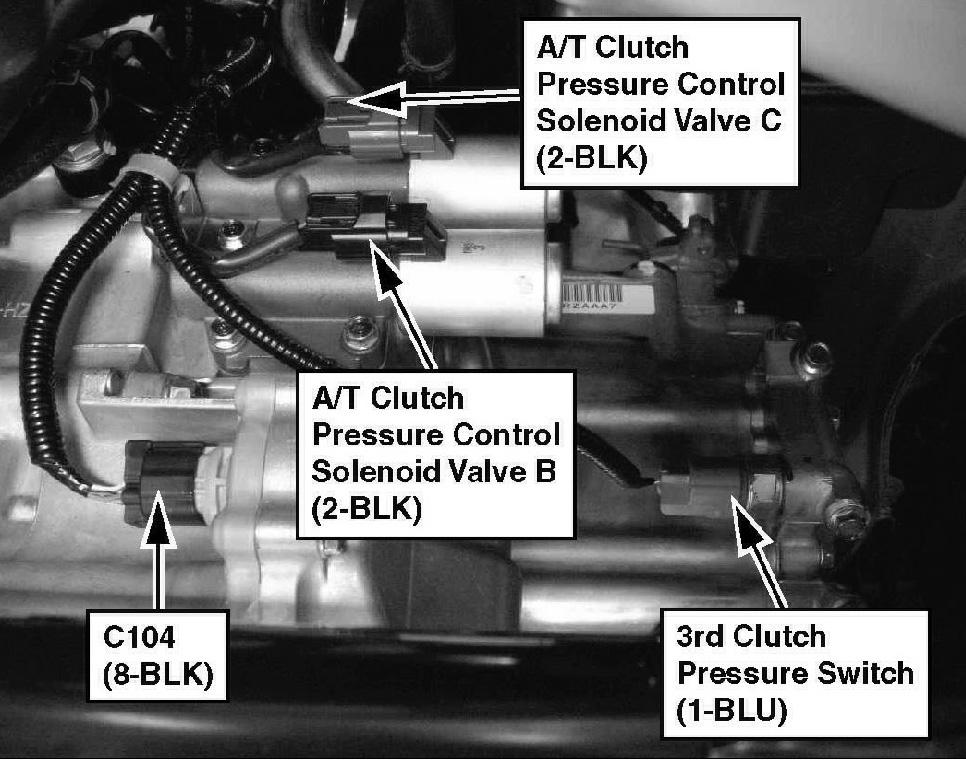

Fig 71: Transmission Housing

G00453878

Courtesy of AMERICAN HONDA MOTOR CO., INC.

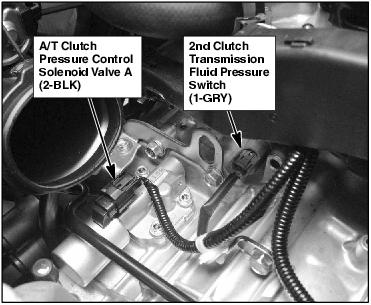

Fig 72: Transmission Housing

G00445004

Courtesy of AMERICAN HONDA MOTOR CO., INC.

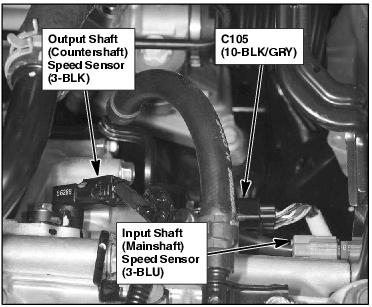

Fig 73: Transmission Housing

G00445005

Courtesy of AMERICAN HONDA MOTOR CO., INC.

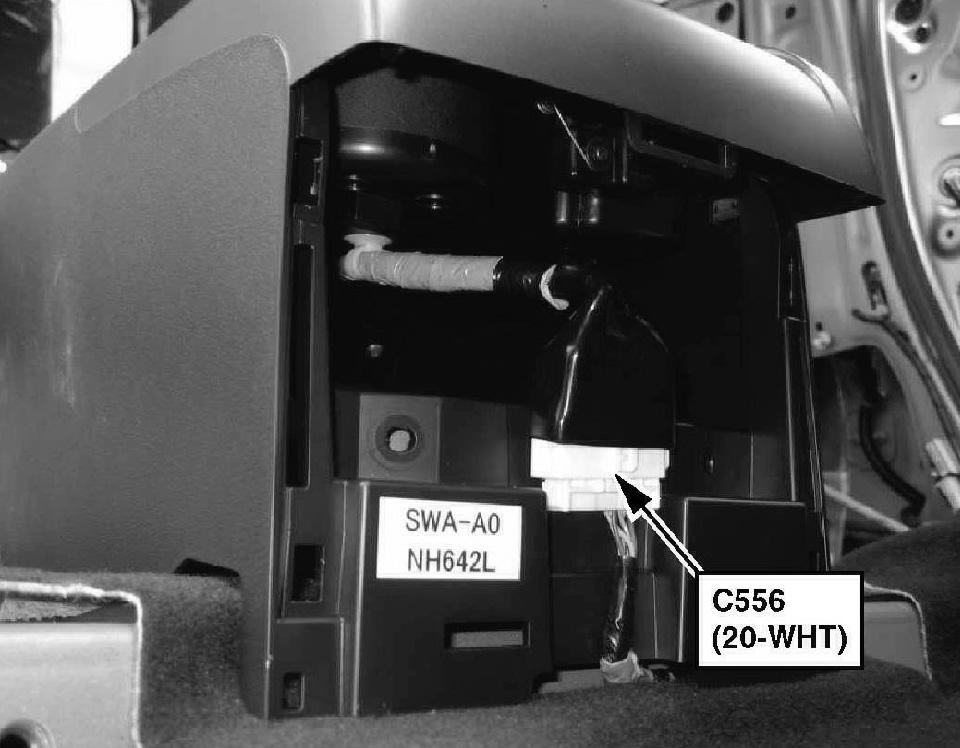

Fig 74: Under Center Console (EX-L)

G00453881

Courtesy of AMERICAN HONDA MOTOR CO., INC.

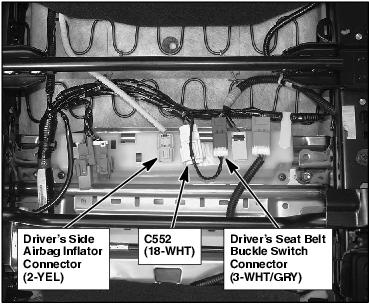

Fig 75: Right Side Of Driver's Seat Back

G00445024

Courtesy of AMERICAN HONDA MOTOR CO., INC.

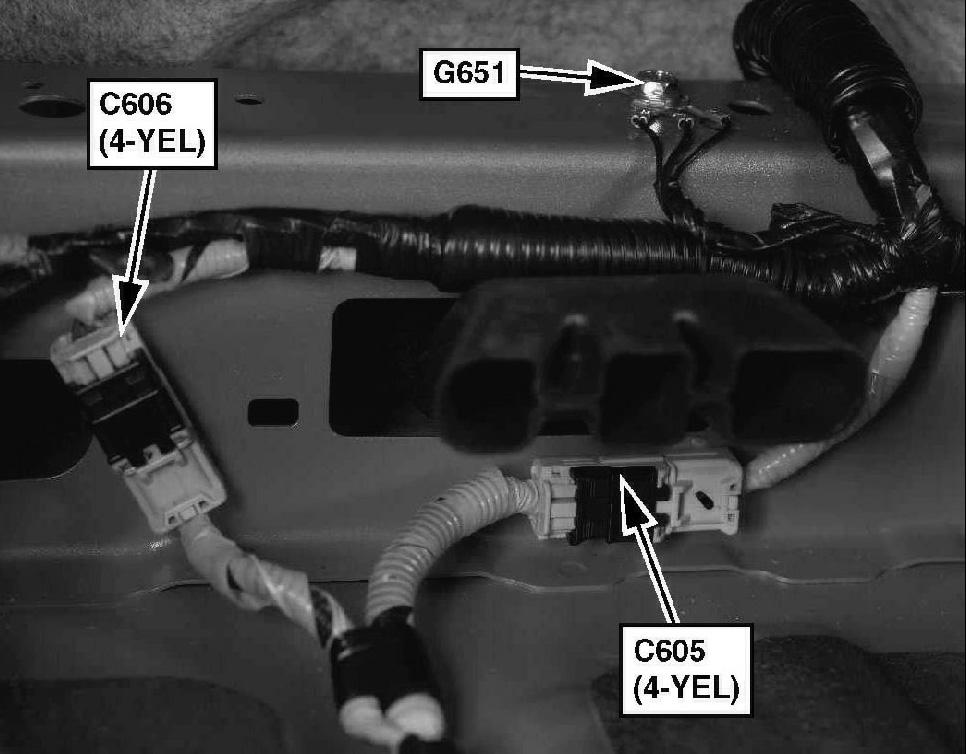

Fig 76: Under Driver's Seat

G00453883

Courtesy of AMERICAN HONDA MOTOR CO., INC.

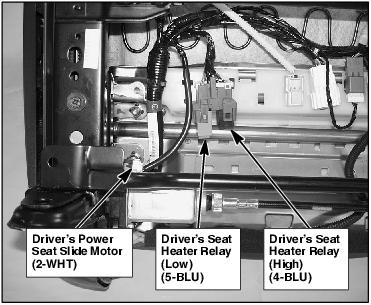

Fig 77: Right Side Of Driver's Seat Back (EX-L)

G00445023

Courtesy of AMERICAN HONDA MOTOR CO., INC.

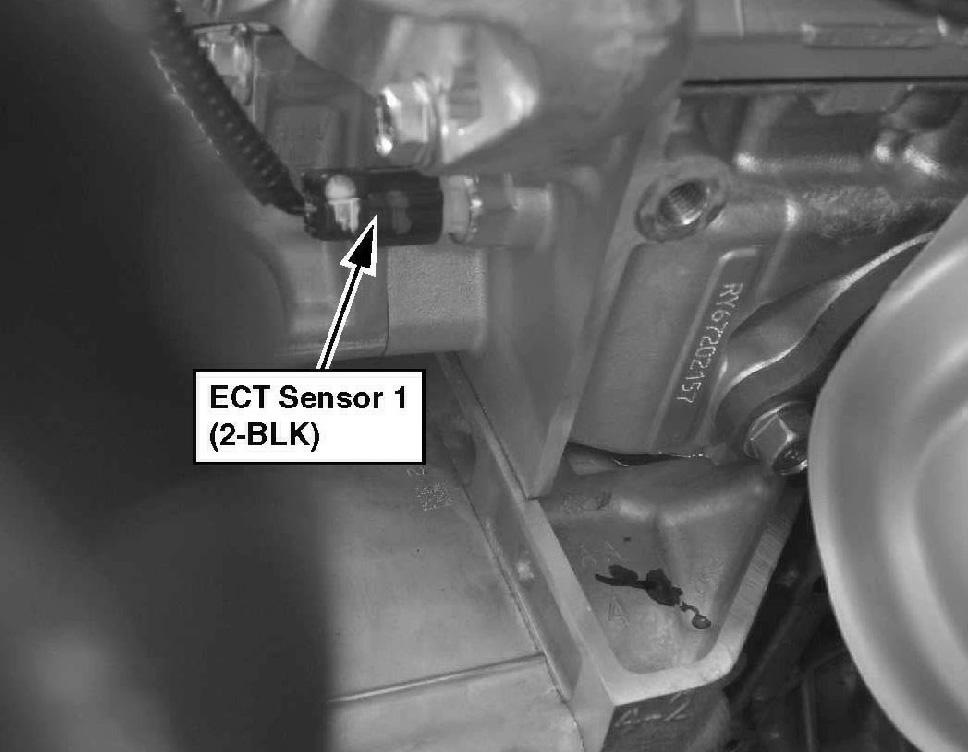

Fig 78: Rear Of Engine

G00453885

Courtesy of AMERICAN HONDA MOTOR CO., INC.

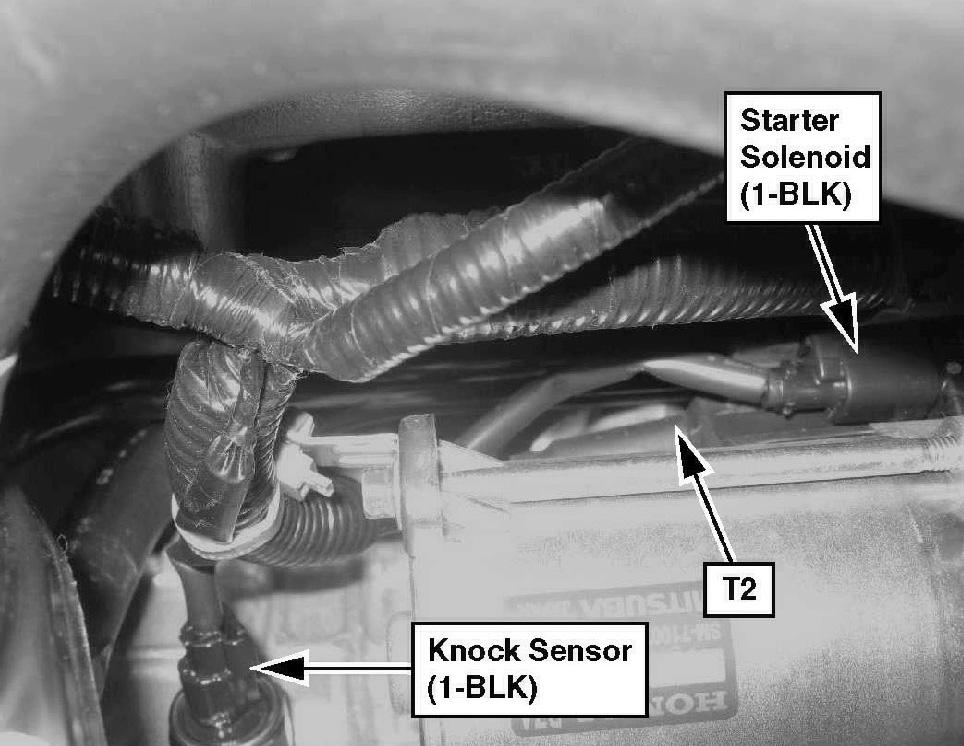

Fig 79: Left Rear Of Engine

G00453886

Courtesy of AMERICAN HONDA MOTOR CO., INC.

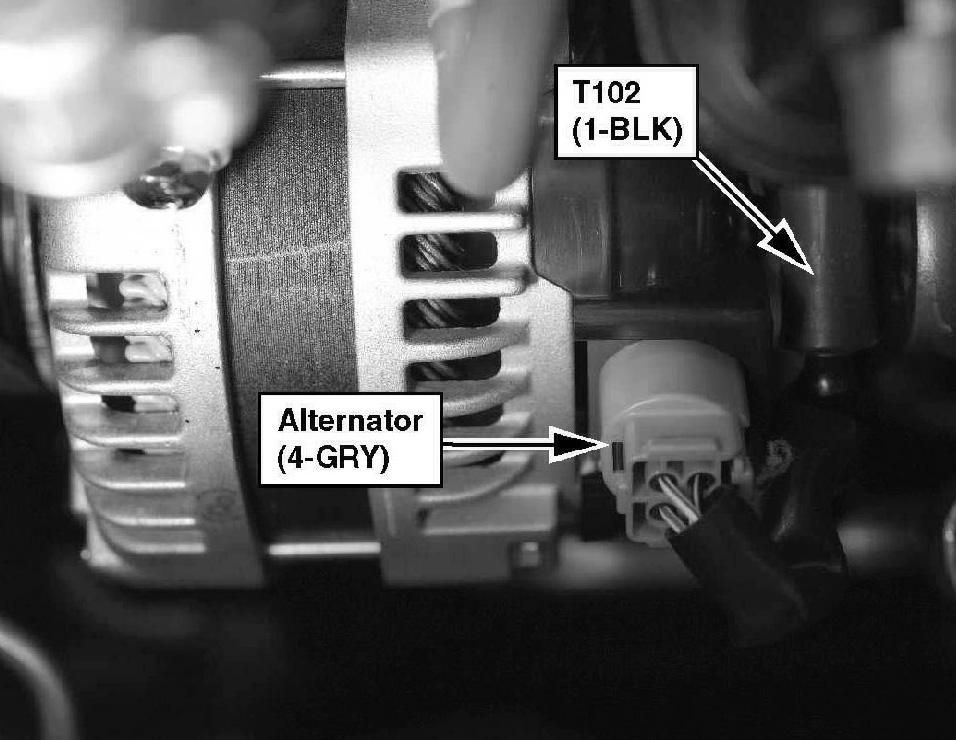

Fig 80: Left Front Of Engine

G00453887

Courtesy of AMERICAN HONDA MOTOR CO., INC.

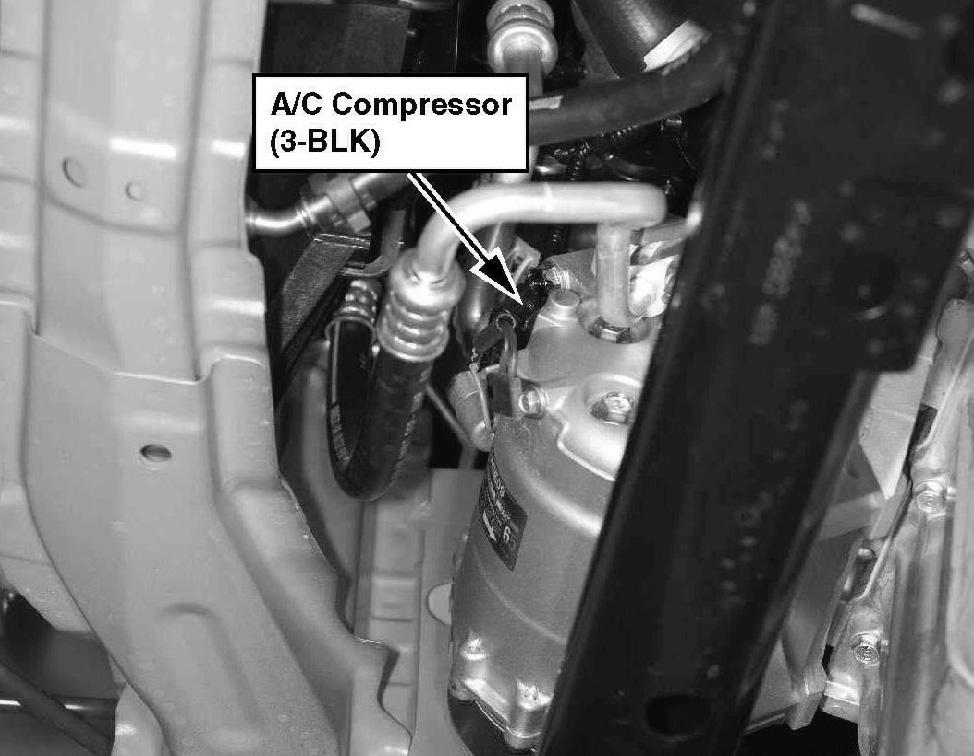

Fig 81: Left Front Of Engine

G00453888

Courtesy of AMERICAN HONDA MOTOR CO., INC.

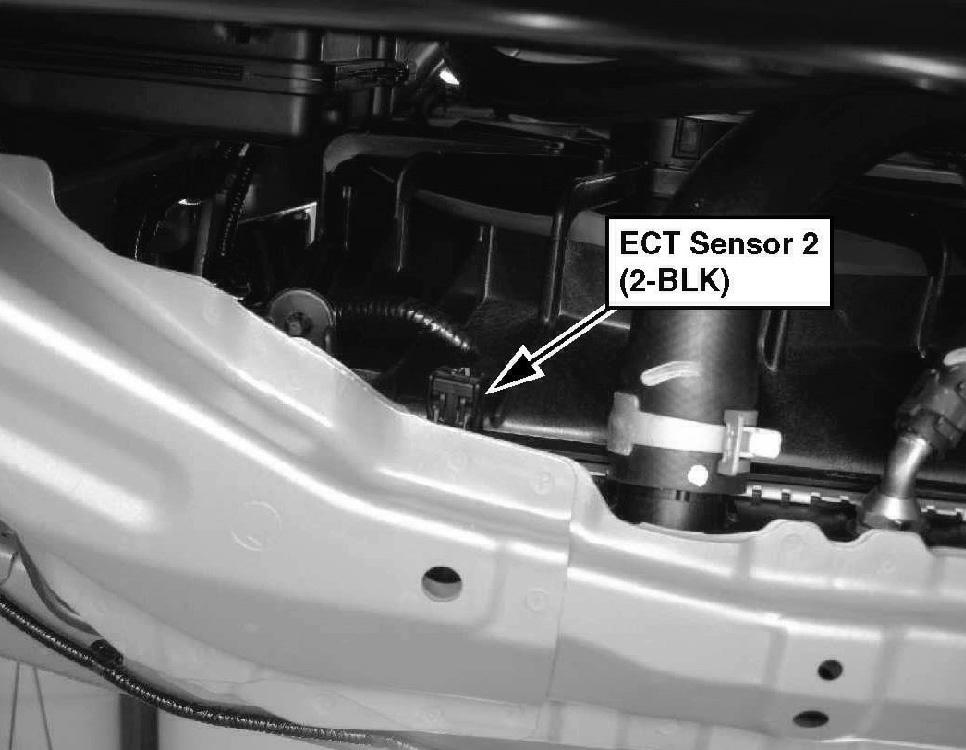

Fig 82: Bottom Of Radiator

G00453889

Courtesy of AMERICAN HONDA MOTOR CO., INC.

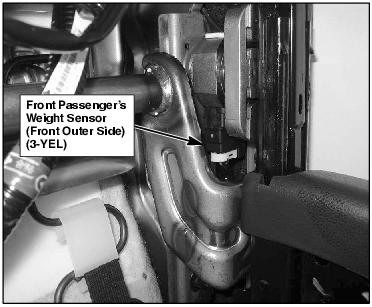

Fig 83: Under Front Passenger's Seat

G00445006

Courtesy of AMERICAN HONDA MOTOR CO., INC.

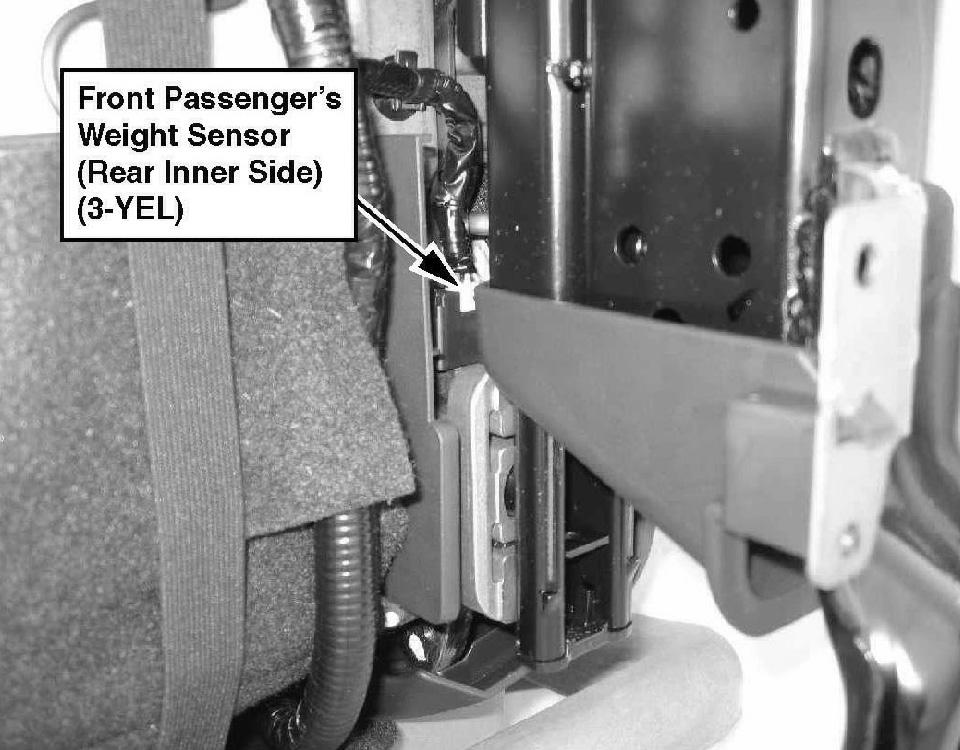

Fig 84: Under Front Passenger's Seat

G00453891

Courtesy of AMERICAN HONDA MOTOR CO., INC.

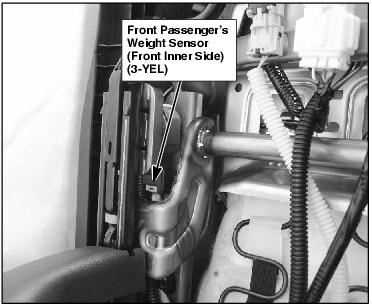

Fig 85: Under Front Passenger's Seat

G00445007

Courtesy of AMERICAN HONDA MOTOR CO., INC.

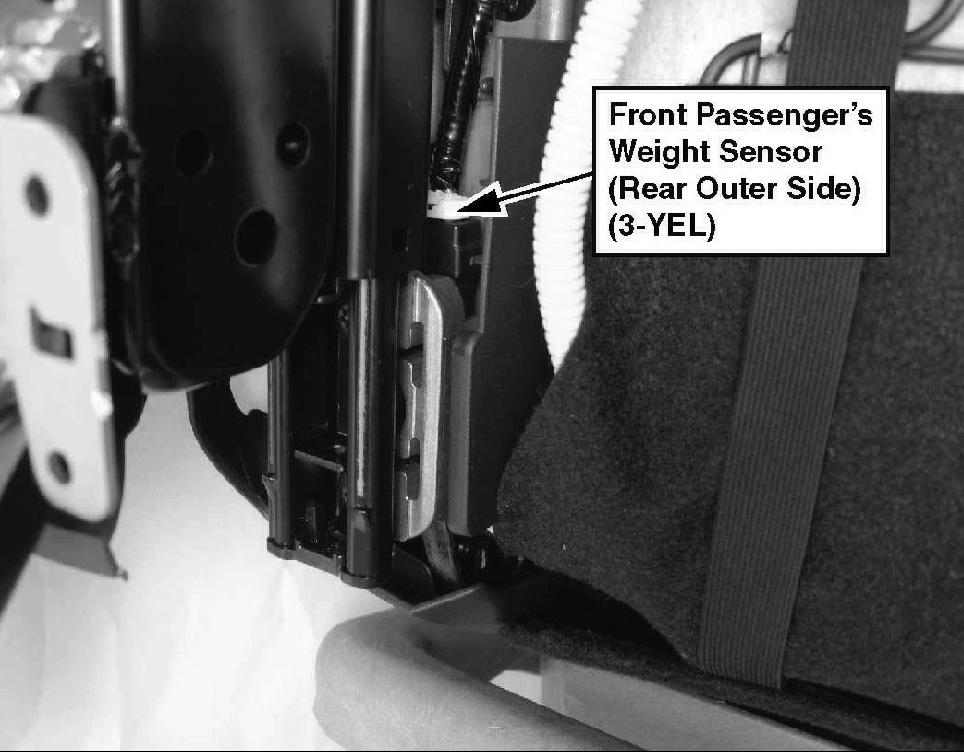

Fig 86: Under Front Passenger's Seat

G00453893

Courtesy of AMERICAN HONDA MOTOR CO., INC.

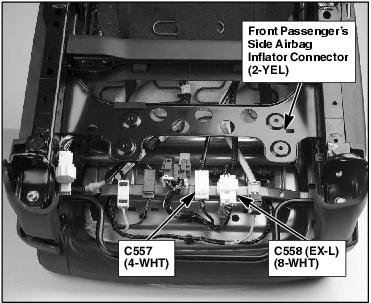

Fig 87: Under Front Passenger's Seat

G00445008

Courtesy of AMERICAN HONDA MOTOR CO., INC.

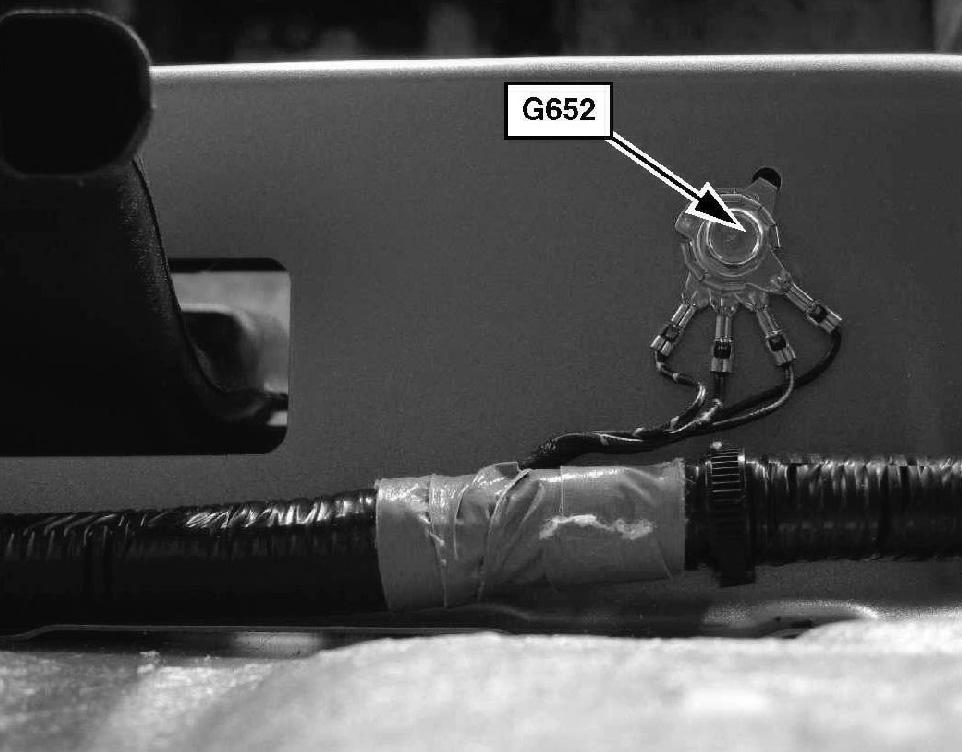

Fig 88: Under Front Passenger's Seat

G00453895

Courtesy of AMERICAN HONDA MOTOR CO., INC.

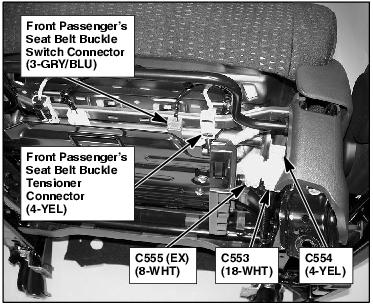

Fig 89: Under Front Passenger's Seat

G00445009

Courtesy of AMERICAN HONDA MOTOR CO., INC.

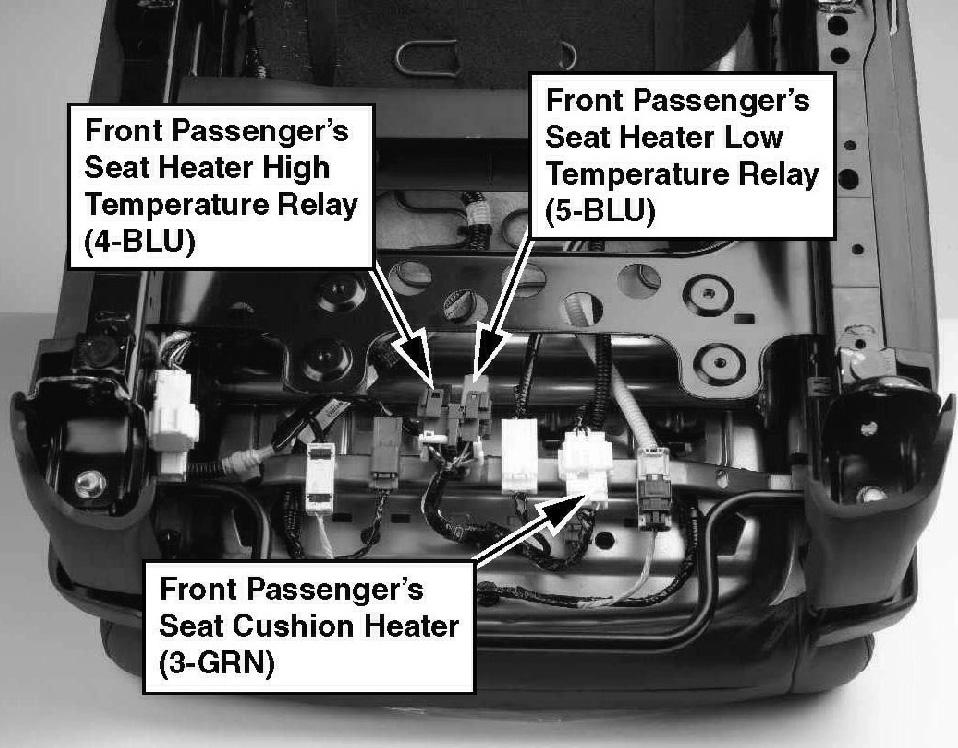

Fig 90: Under Front Passenger's Seat (EX-L)

G00453897

Courtesy of AMERICAN HONDA MOTOR CO., INC.

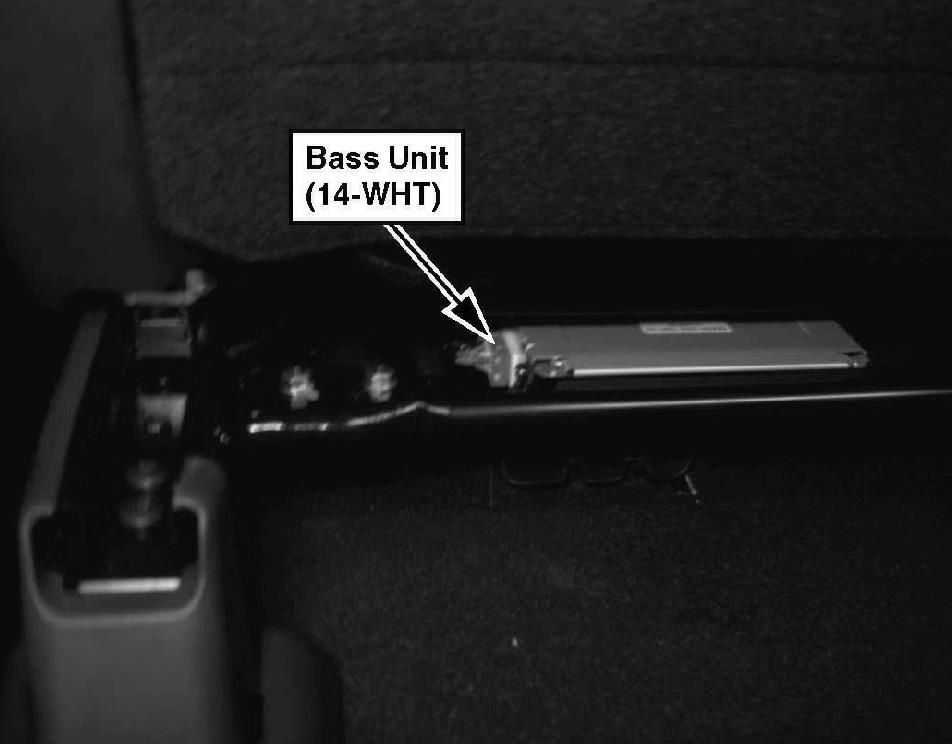

Fig 91: Under Front Passenger's Seat (Honda Accessory)

G00453898

Courtesy of AMERICAN HONDA MOTOR CO., INC.

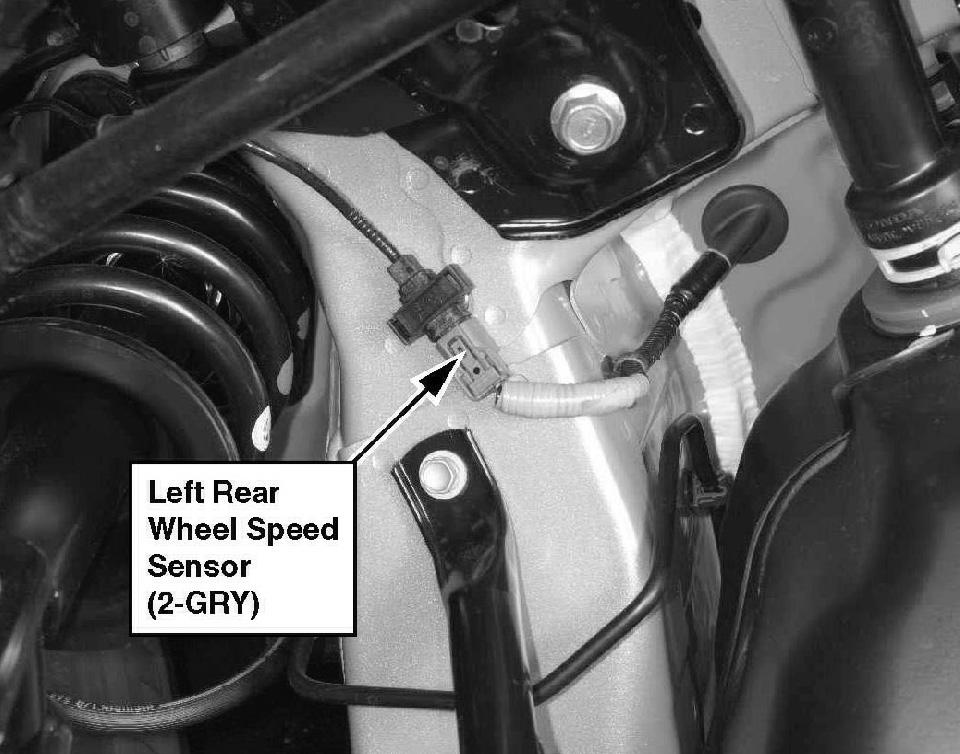

Fig 92: Under Left Rear Of Vehicle

G00453899

Courtesy of AMERICAN HONDA MOTOR CO., INC.

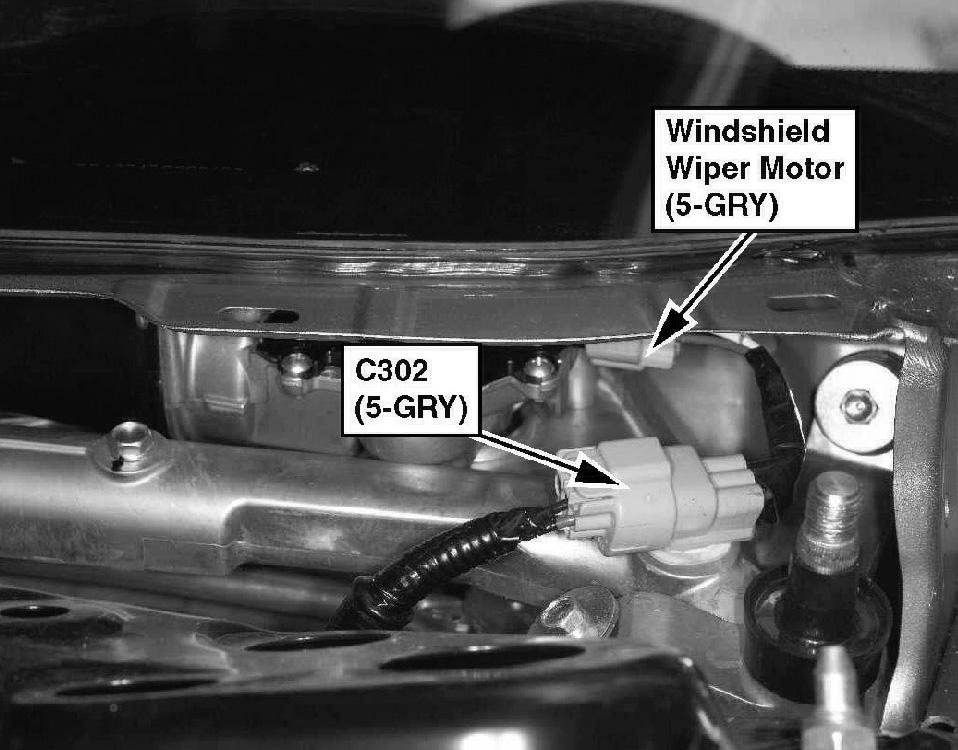

Fig 93: Under Left Side Of Cowl Cover

G00453900

Courtesy of AMERICAN HONDA MOTOR CO., INC.

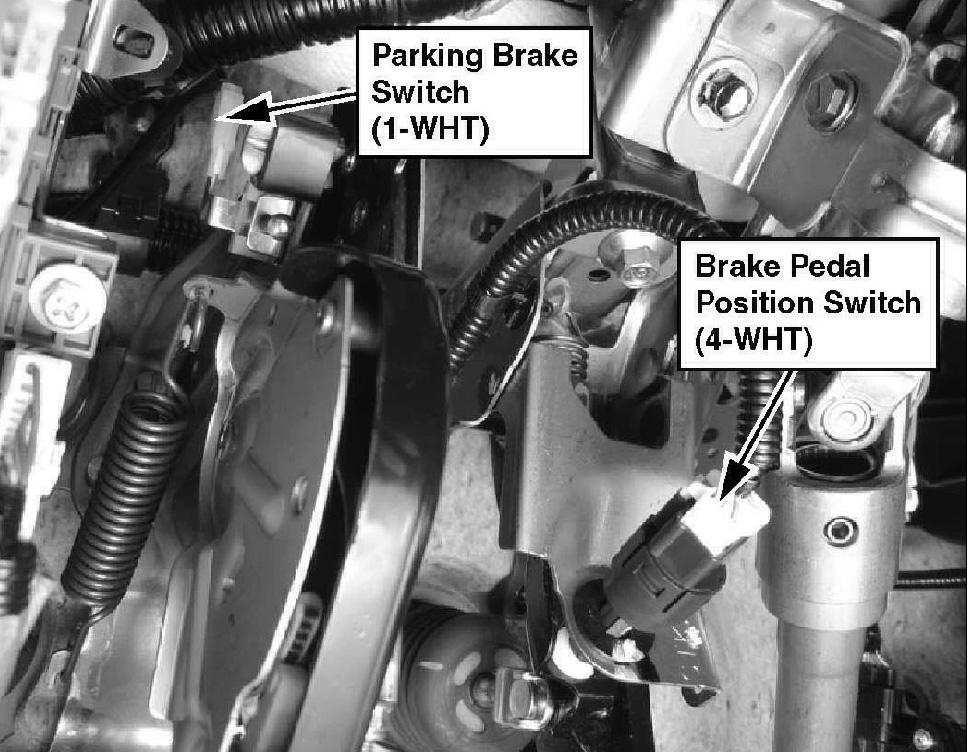

Fig 94: Under Left Side Of Dash

G00453901

Courtesy of AMERICAN HONDA MOTOR CO., INC.

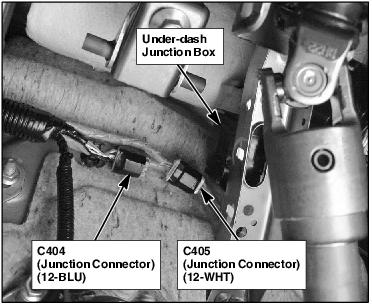

Fig 95: Under Left Side Of Dash

G00445010

Courtesy of AMERICAN HONDA MOTOR CO., INC.

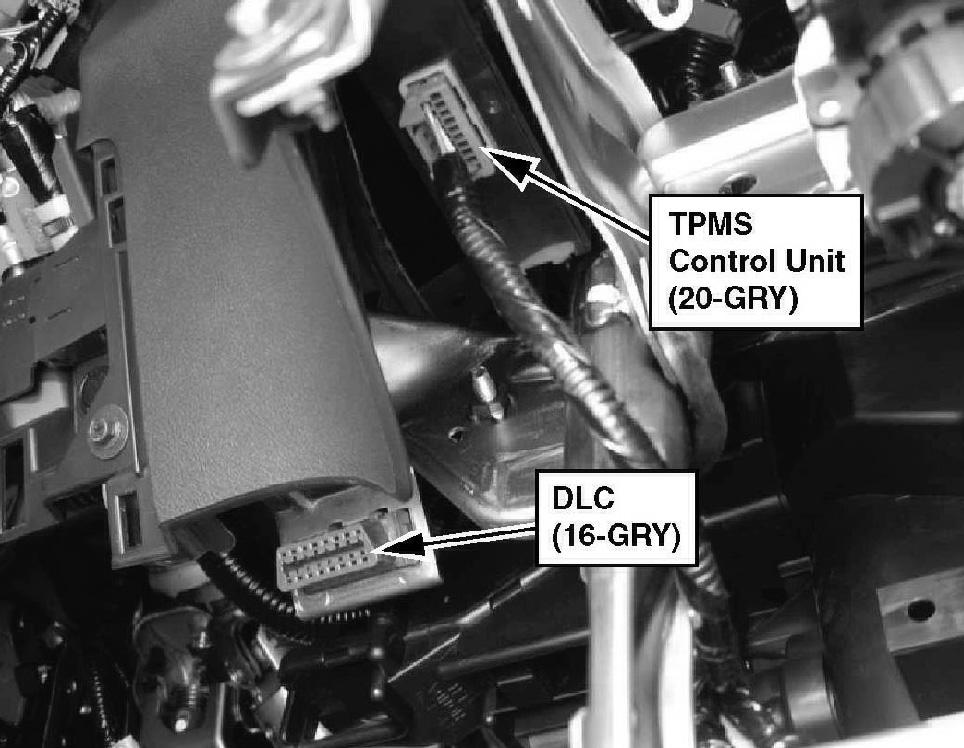

Fig 96: Under Left Side Of Dash

G00453904

Courtesy of AMERICAN HONDA MOTOR CO., INC.

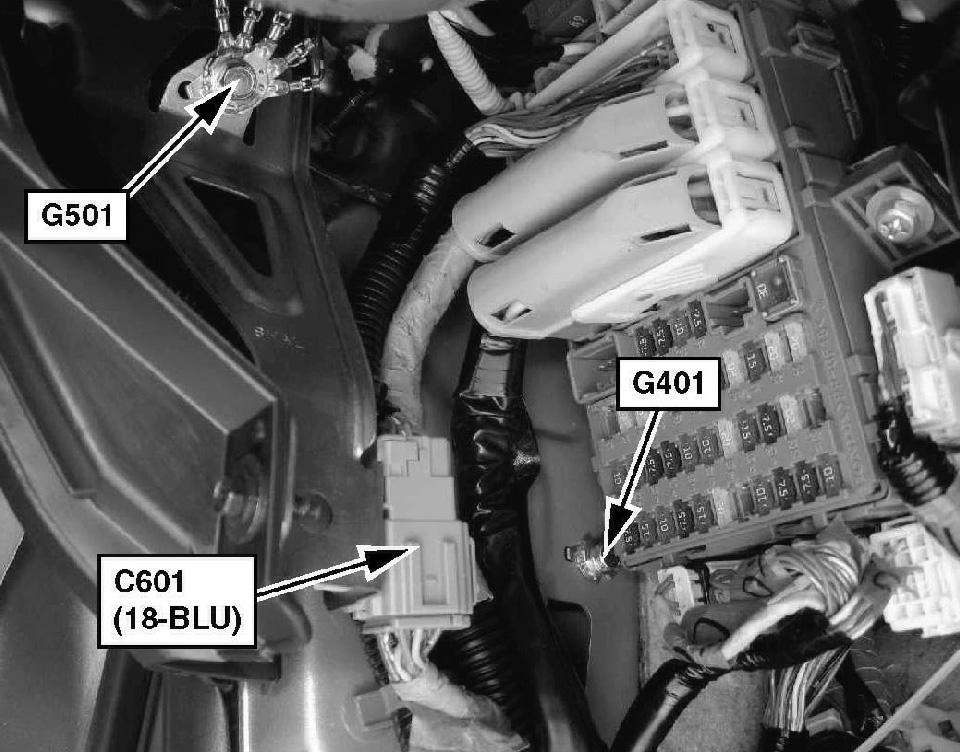

Fig 97: Under Left Side Of Dash

G00453905

Courtesy of AMERICAN HONDA MOTOR CO., INC.

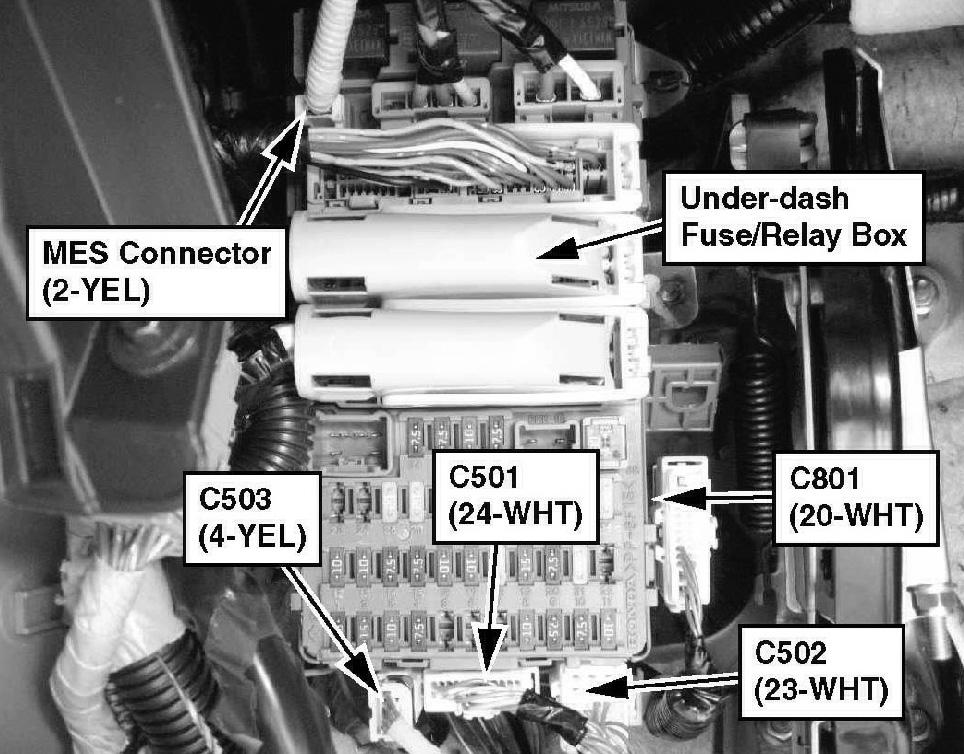

Fig 98: Under Left Side Of Dash

G00453906

Courtesy of AMERICAN HONDA MOTOR CO., INC.

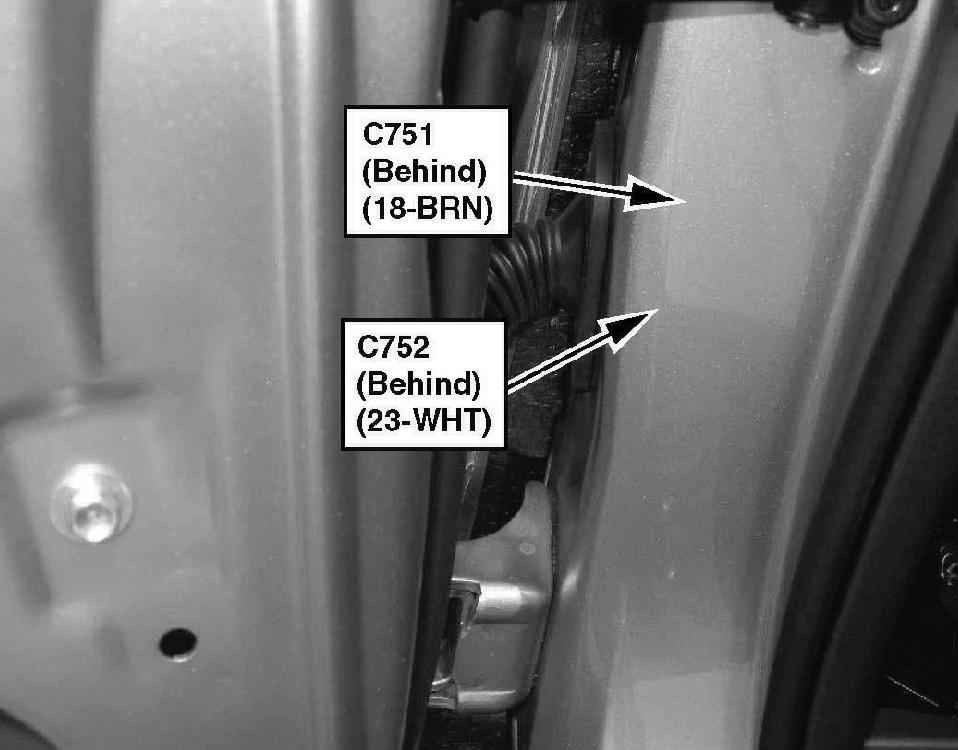

Fig 99: Under Left Side Of Dash

G00453907

Courtesy of AMERICAN HONDA MOTOR CO., INC.

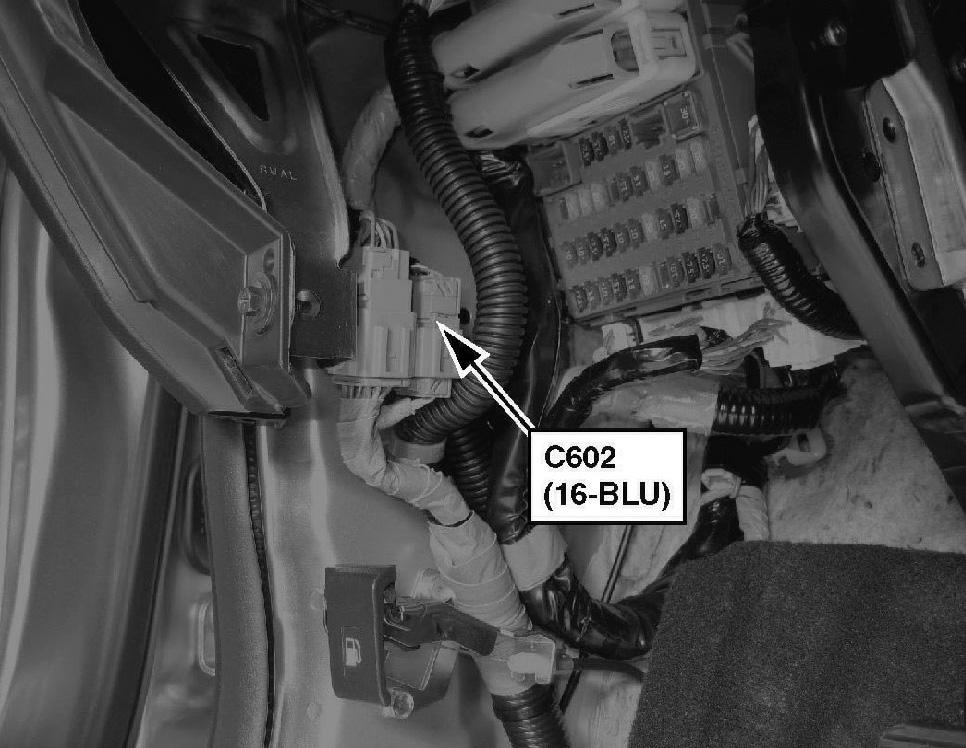

Fig 100: Under Left Side Of Dash (EX-L W/Navigation)

G00453908

Courtesy of AMERICAN HONDA MOTOR CO., INC.

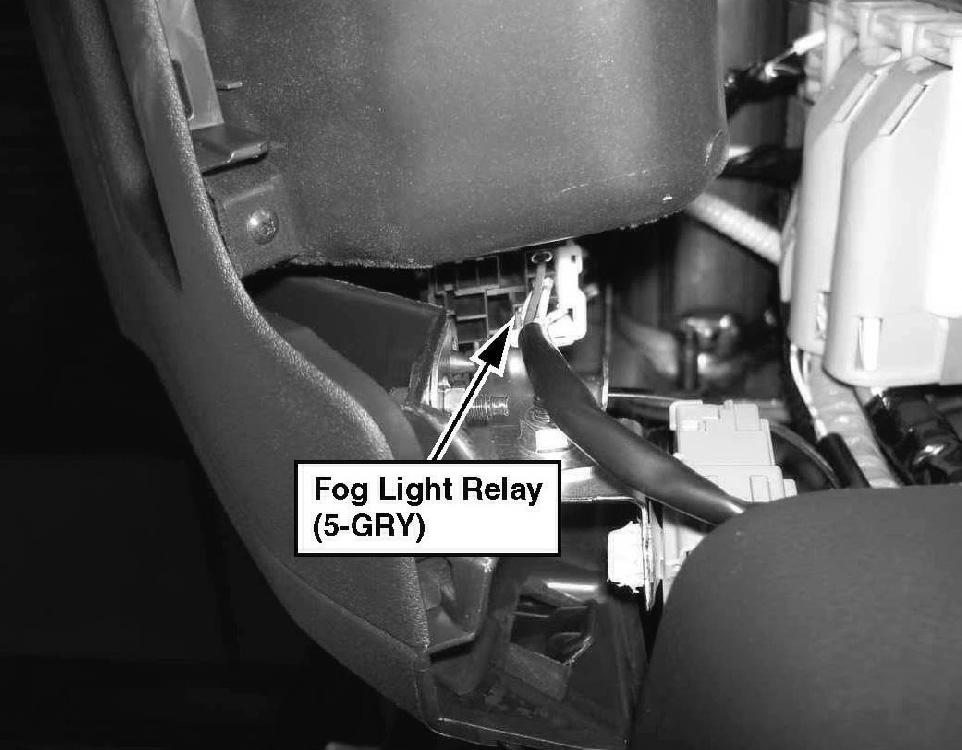

Fig 101: Under Left Side Of Dash (Honda Accessory)

G00453909

Courtesy of AMERICAN HONDA MOTOR CO., INC.

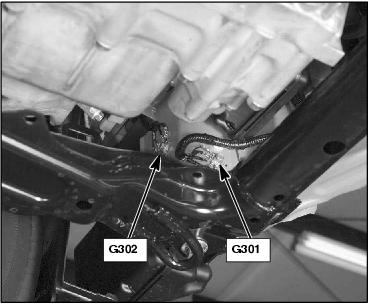

Fig 102: Under Left Side Of Engine Compartment

G00445012

Courtesy of AMERICAN HONDA MOTOR CO., INC.

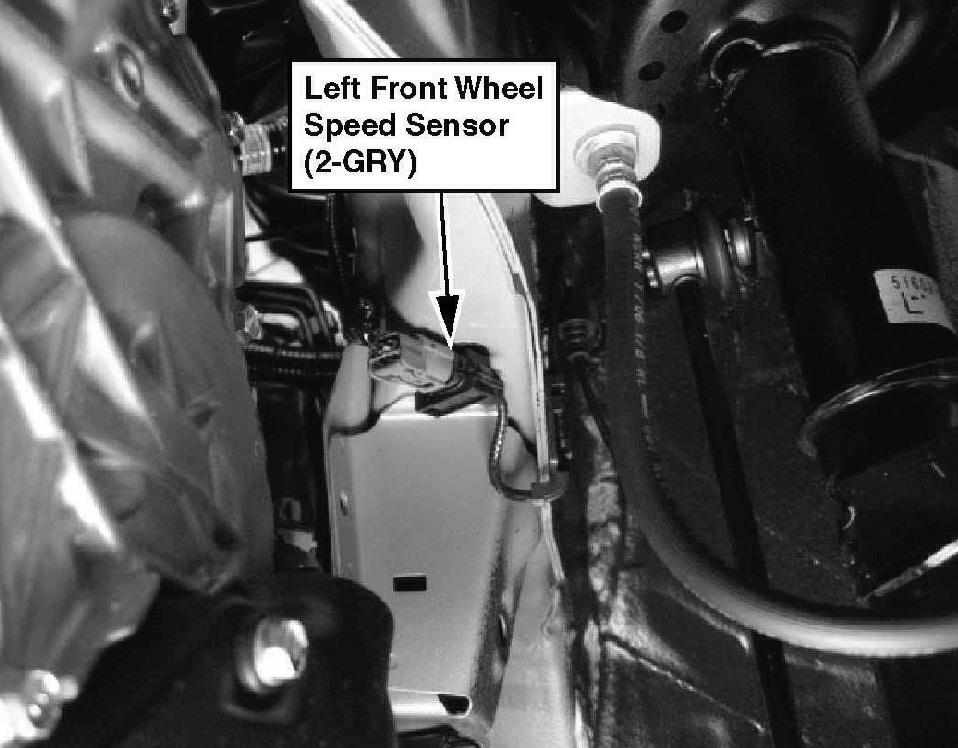

Fig 103: Under Left Side Of Engine Compartment

G00453911

Courtesy of AMERICAN HONDA MOTOR CO., INC.

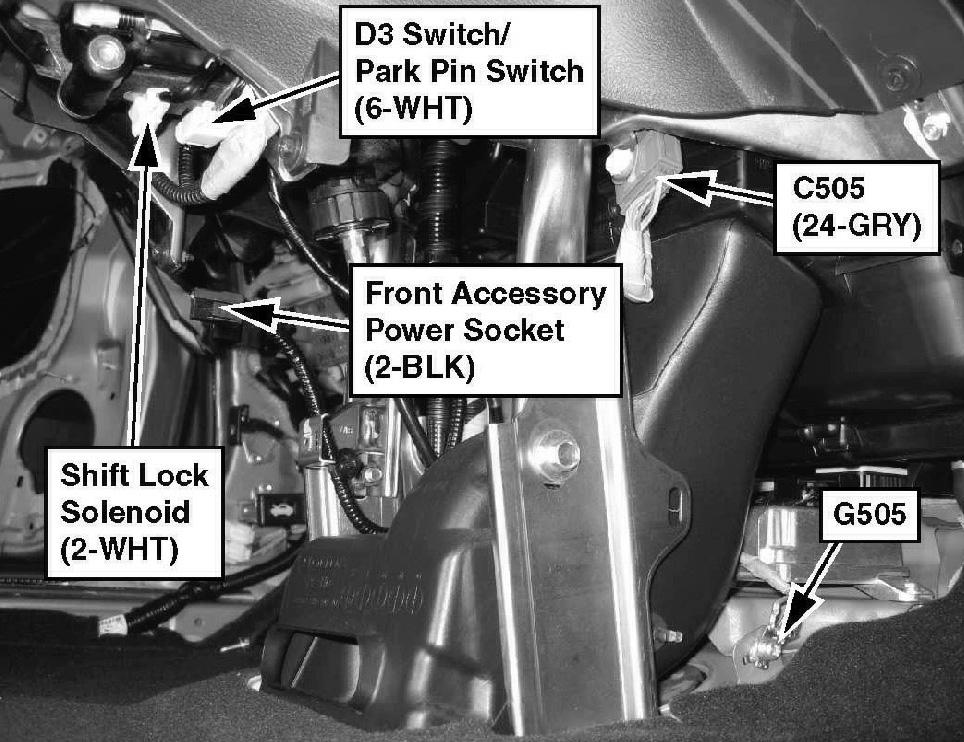

Fig 104: Under Middle Of Dash

G00453912

Courtesy of AMERICAN HONDA MOTOR CO., INC.

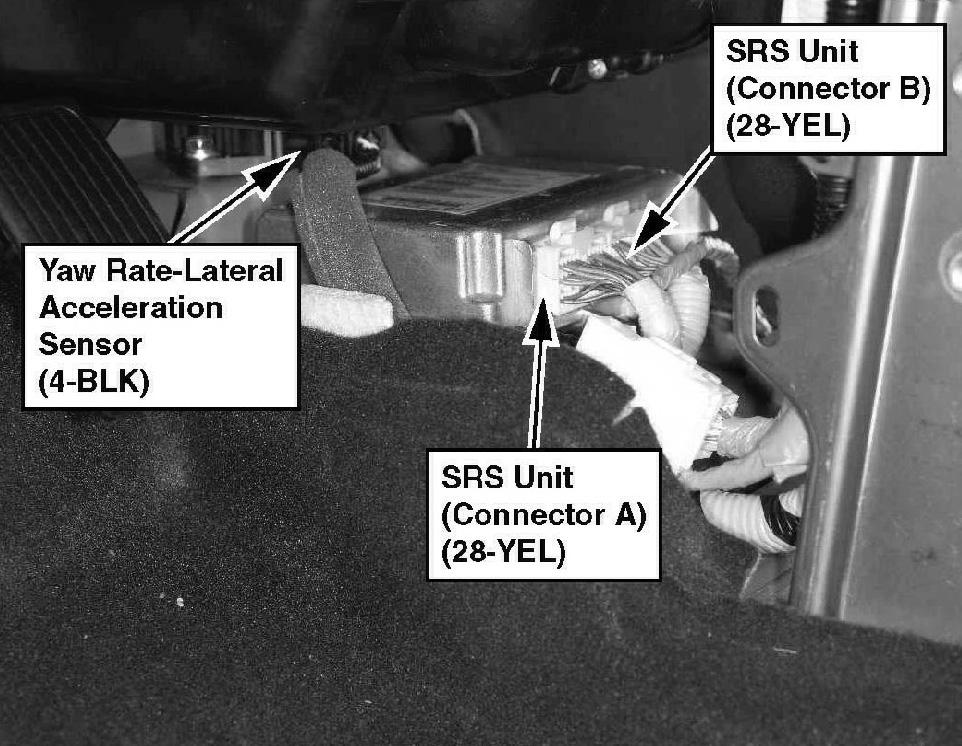

Fig 105: Under Middle Of Dash

G00453913

Courtesy of AMERICAN HONDA MOTOR CO., INC.

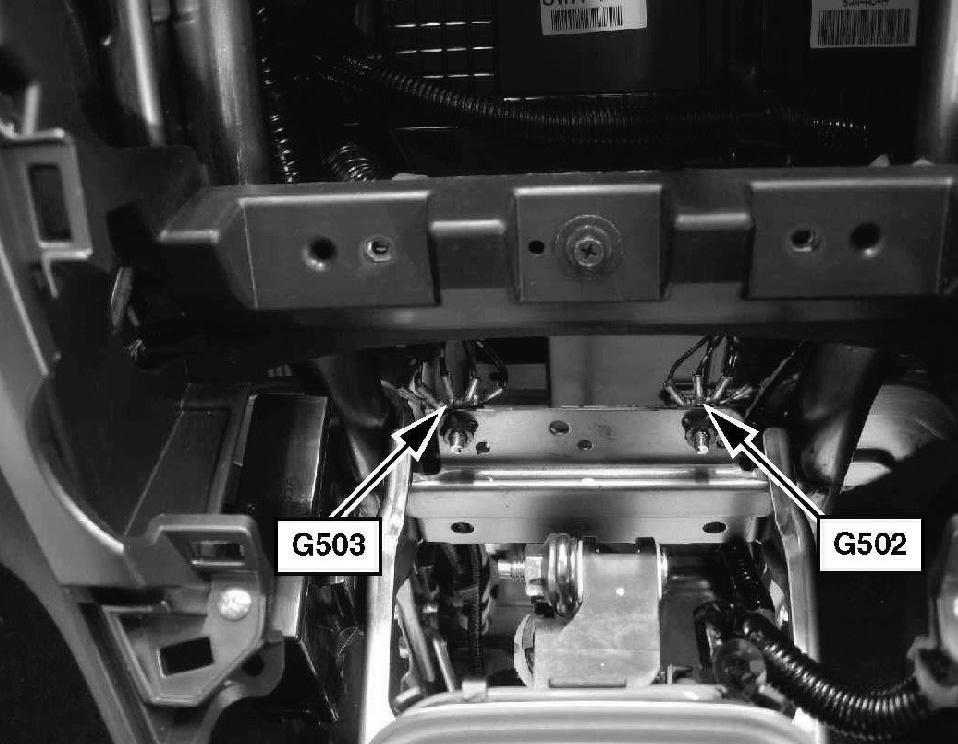

Fig 106: Under Middle Of Dash

G00453914

Courtesy of AMERICAN HONDA MOTOR CO., INC.

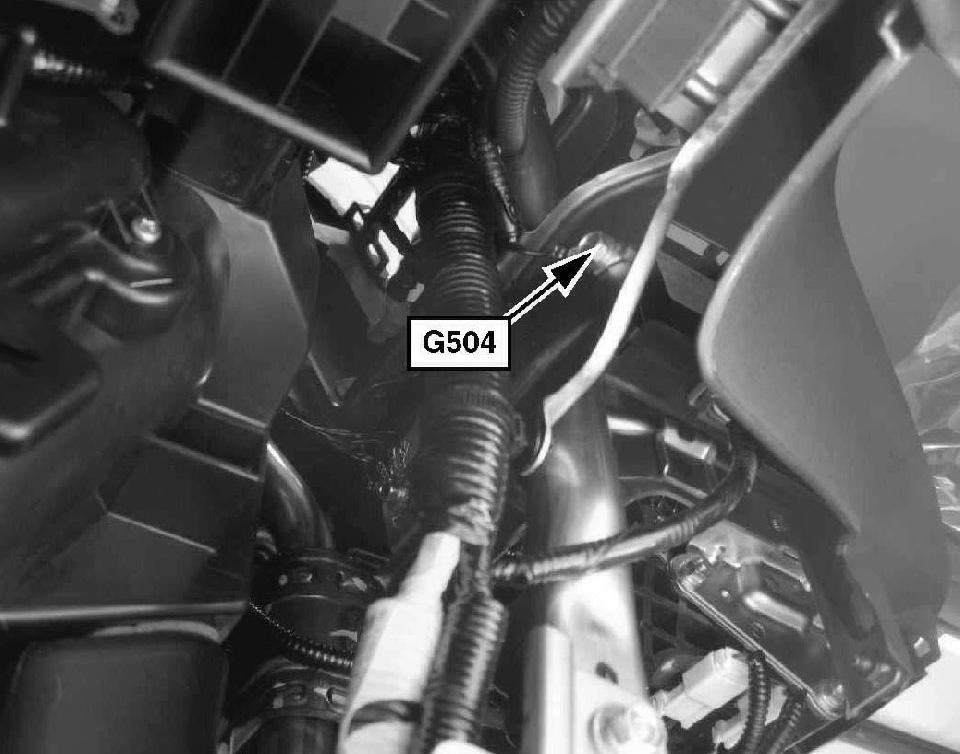

Fig 107: Under Middle Of Dash

G00453915

Courtesy of AMERICAN HONDA MOTOR CO., INC.

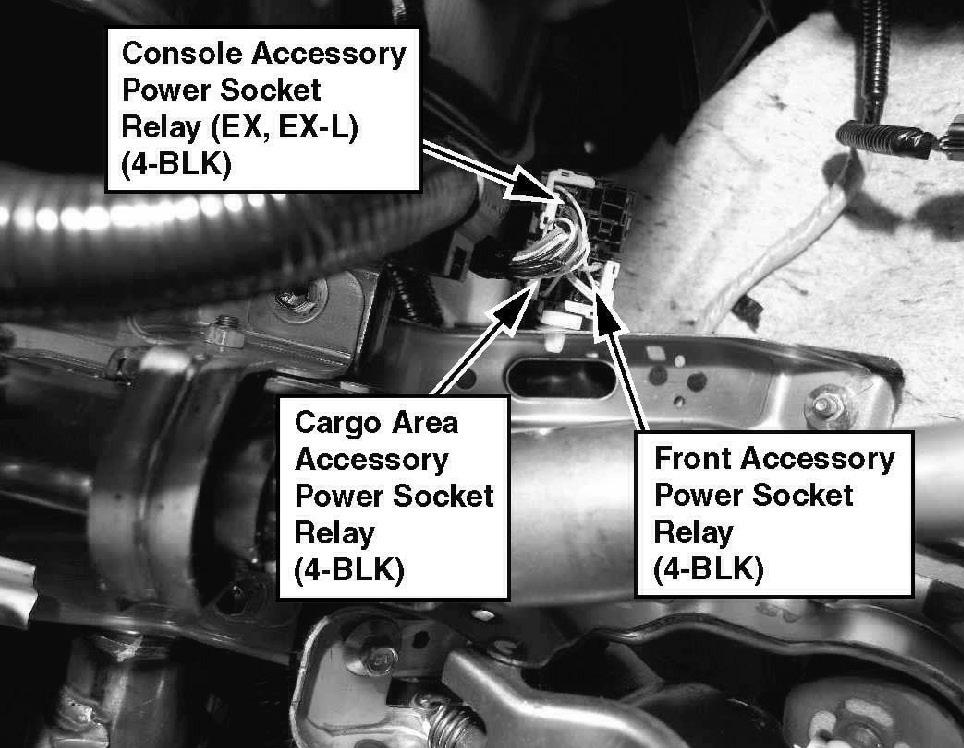

Fig 108: Under Middle Of Dash

G00453916

Courtesy of AMERICAN HONDA MOTOR CO., INC.

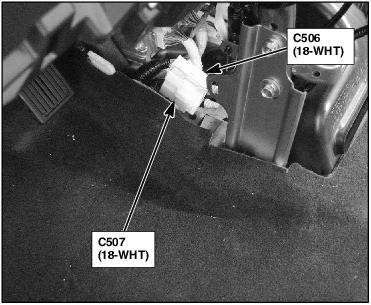

Fig 109: Under Middle Of Dash

G00445013

Courtesy of AMERICAN HONDA MOTOR CO., INC.

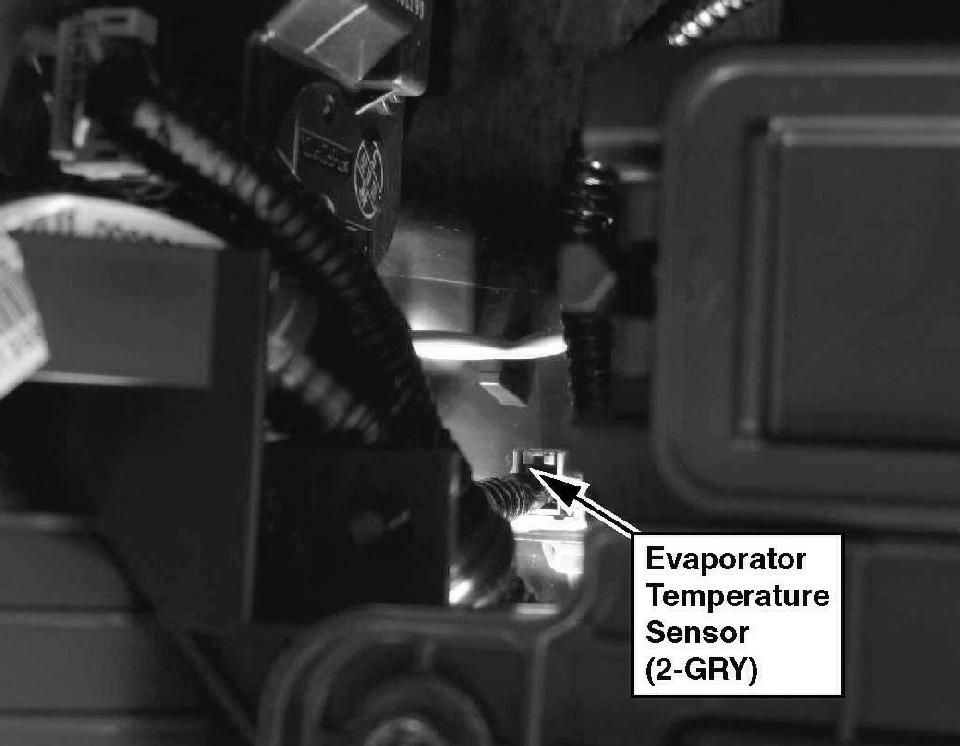

Fig 110: Under Middle Of Dash

G00453918

Courtesy of AMERICAN HONDA MOTOR CO., INC.

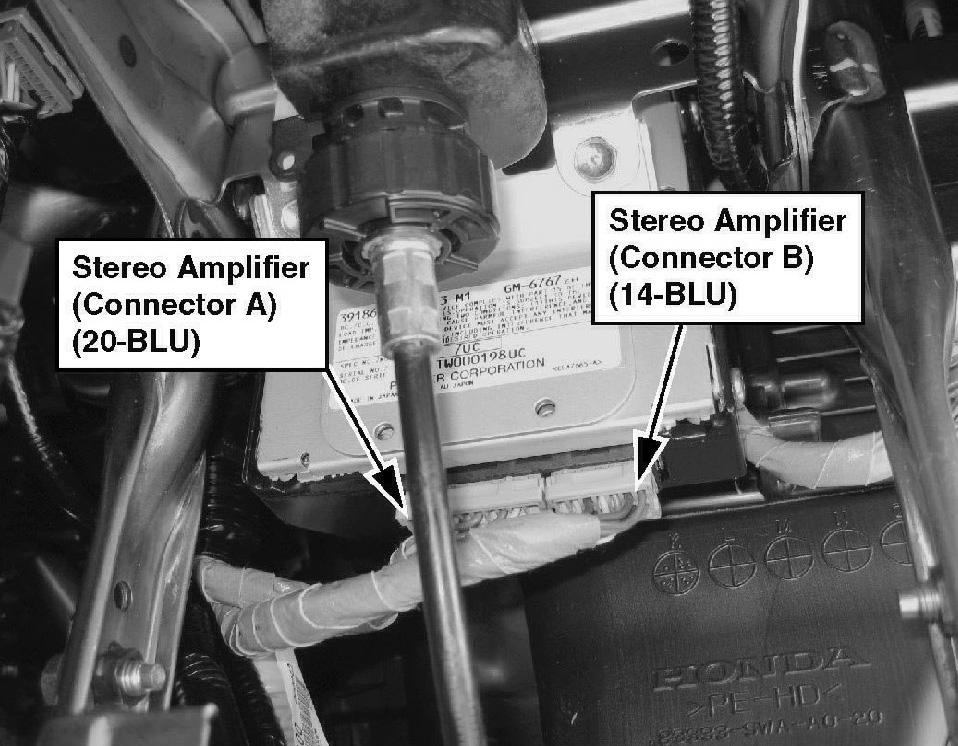

Fig 111: Under Middle Of Dash (EX-L W/Navigation)

G00453919

Courtesy of AMERICAN HONDA MOTOR CO., INC.

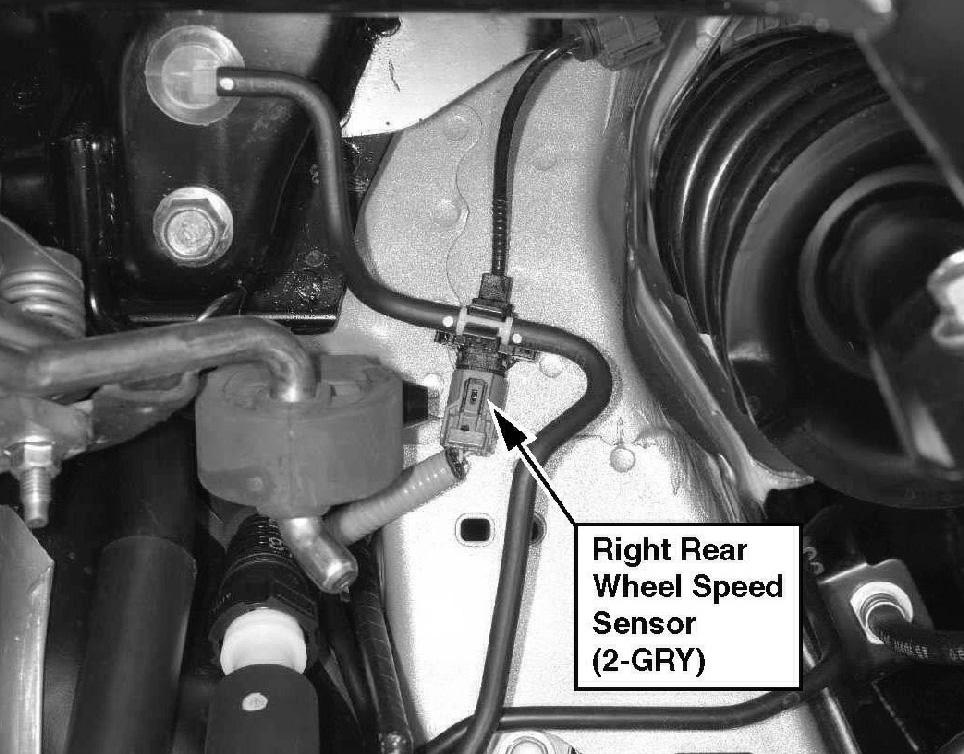

Fig 112: Under Right Rear Of Vehicle

G00453920

Courtesy of AMERICAN HONDA MOTOR CO., INC.

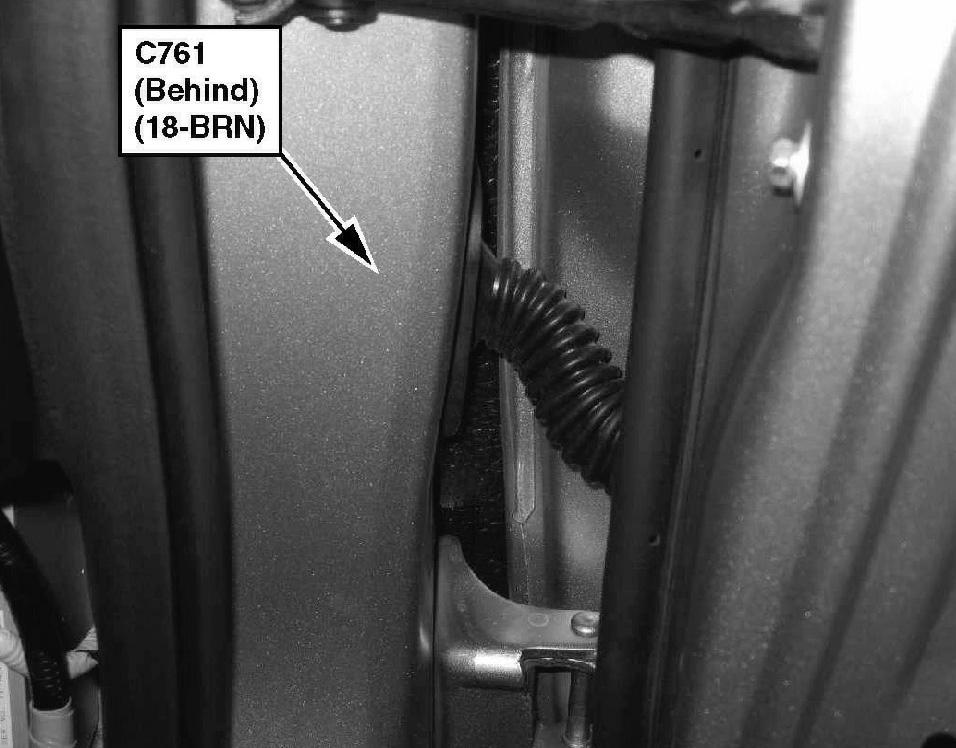

Fig 113: Under Right Side Of Dash

G00453921

Courtesy of AMERICAN HONDA MOTOR CO., INC.

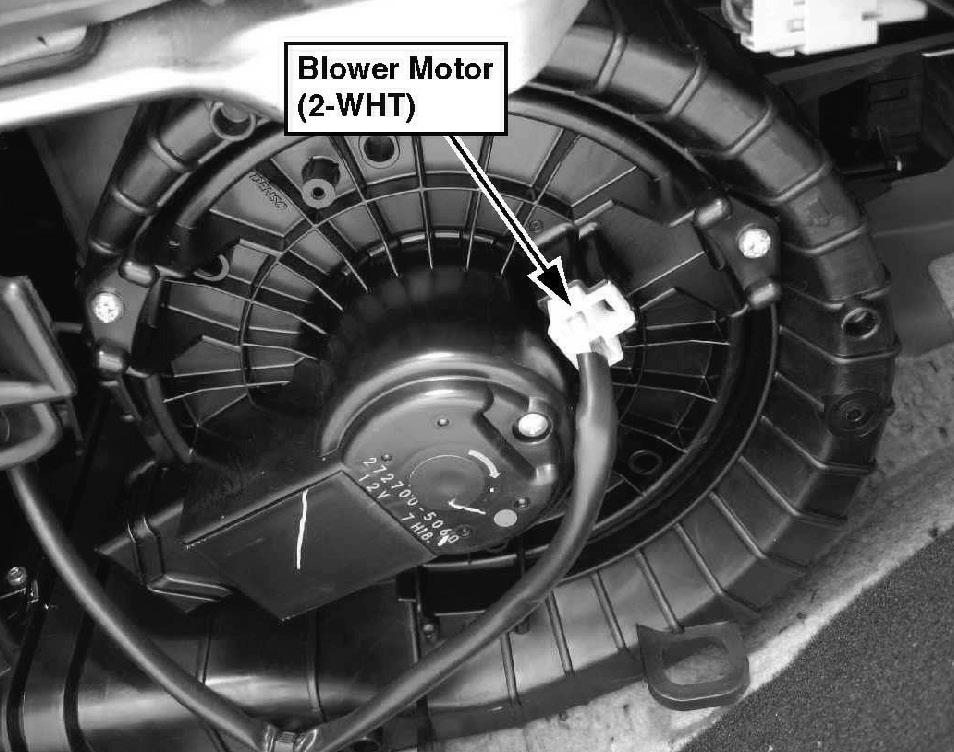

Fig 114: Under Right Side Of Dash

G00453922

Courtesy of AMERICAN HONDA MOTOR CO., INC.

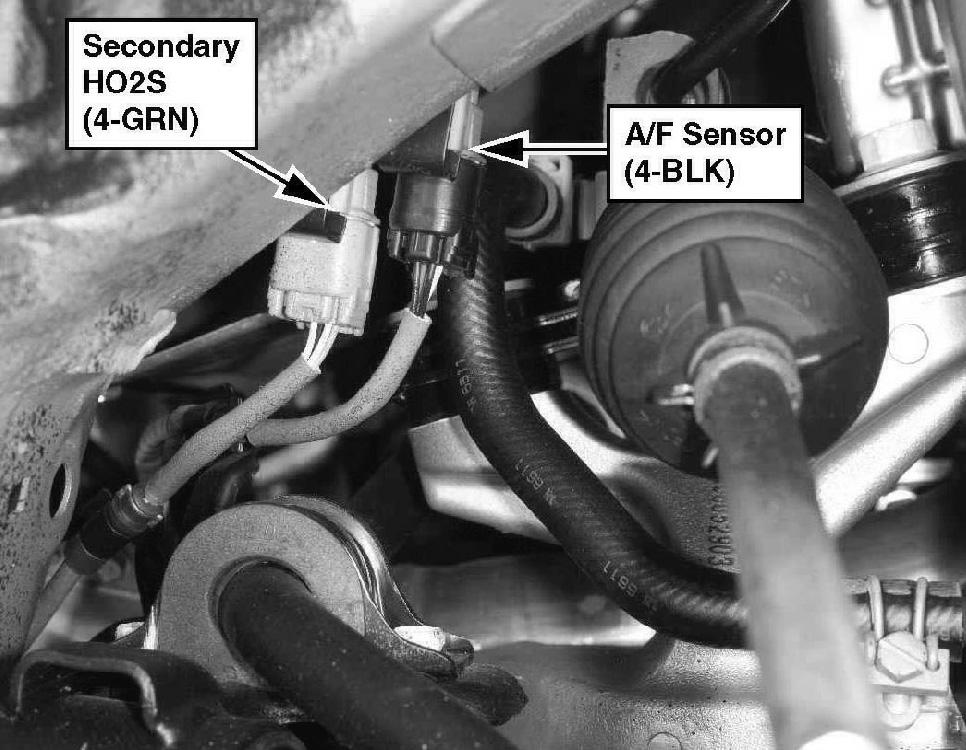

Fig 115: Under Right Side Of Engine Compartment

G00453923

Courtesy of AMERICAN HONDA MOTOR CO., INC.

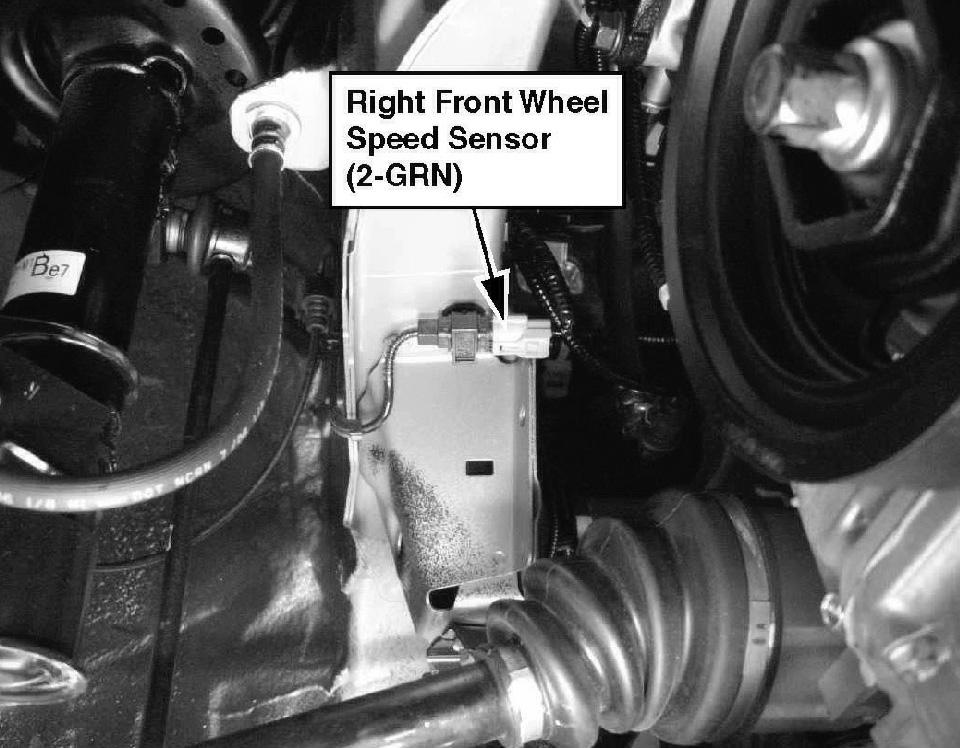

Fig 116: Under Right Side Of Engine Compartment

G00453924

Courtesy of AMERICAN HONDA MOTOR CO., INC.

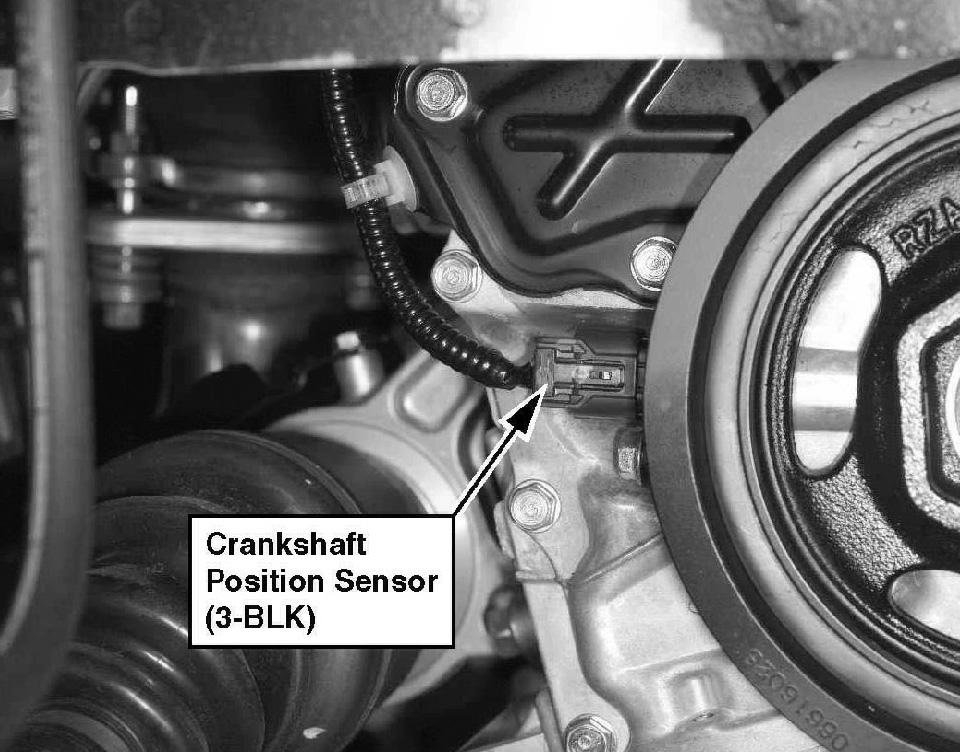

Fig 117: Under Right Side Of Engine Compartment

G00453925

Courtesy of AMERICAN HONDA MOTOR CO., INC.

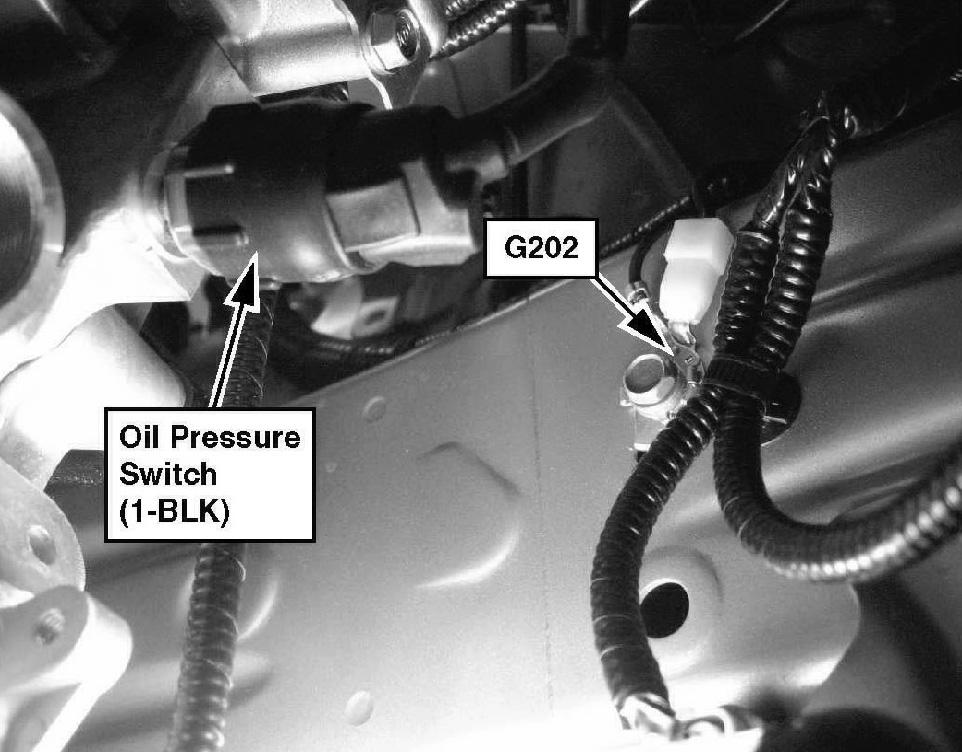

Fig 118: Under Right Side Of Engine Compartment

G00453926

Courtesy of AMERICAN HONDA MOTOR CO., INC.

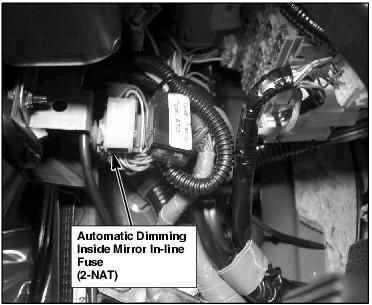

Fig 119: Under Left Side Of Dash

G00445011

Courtesy of AMERICAN HONDA MOTOR CO., INC.

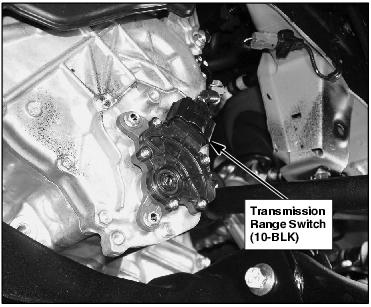

Fig 120: On Transmission

G00445014

Courtesy of AMERICAN HONDA MOTOR CO., INC.

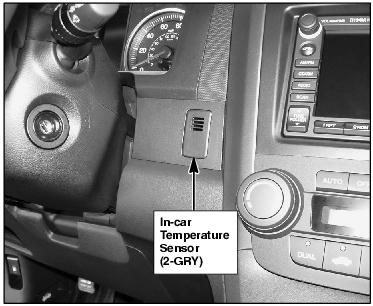

Fig 121: Left Side Of Dash

G00445015

Courtesy of AMERICAN HONDA MOTOR CO., INC.

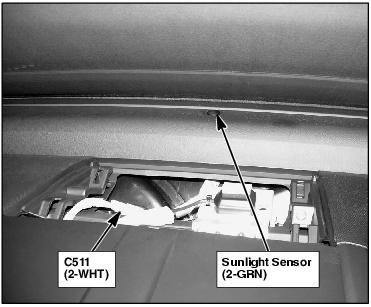

Fig 122: Middle Of Dash

G00445016

Courtesy of AMERICAN HONDA MOTOR CO., INC.

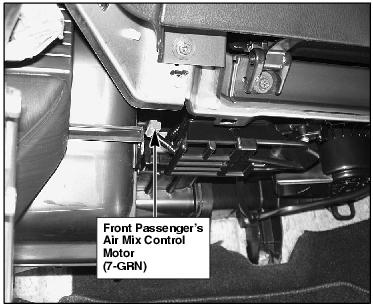

Fig 123: Under Right Side Of Dash

G00445017

Courtesy of AMERICAN HONDA MOTOR CO., INC.

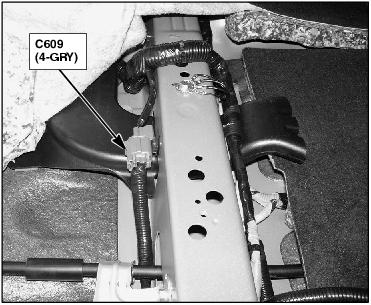

Fig 124: Under Driver's Seat

G00445018

Courtesy of AMERICAN HONDA MOTOR CO., INC.

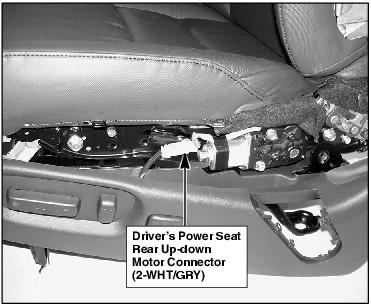

Fig 125: Left Side Of Driver's Seat

G00445019

Courtesy of AMERICAN HONDA MOTOR CO., INC.

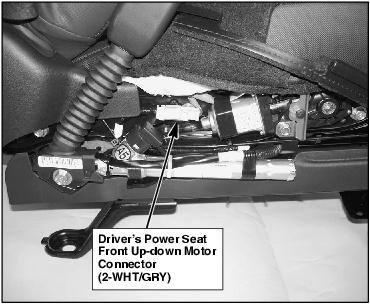

Fig 126: Right Side Of Driver's Seat

G00445020

Courtesy of AMERICAN HONDA MOTOR CO., INC.

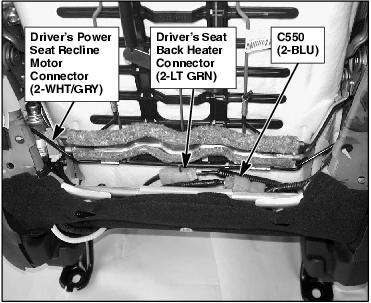

Fig 127: Under Driver's Seat

G00445021

Courtesy of AMERICAN HONDA MOTOR CO., INC.

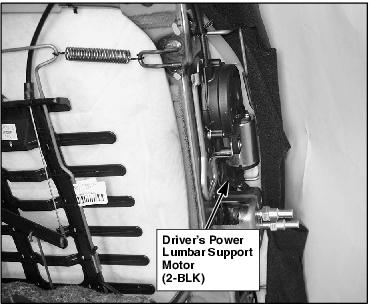

Fig 128: Right Side Of Driver's Seat Back

G00445022

Courtesy of AMERICAN HONDA MOTOR CO., INC.

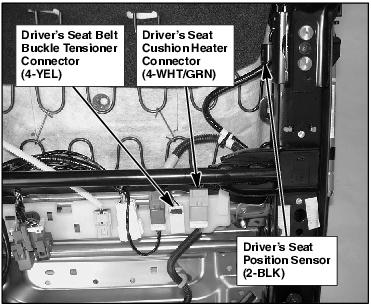

Fig 129: Under Driver's Seat

G00445025

Courtesy of AMERICAN HONDA MOTOR CO., INC.

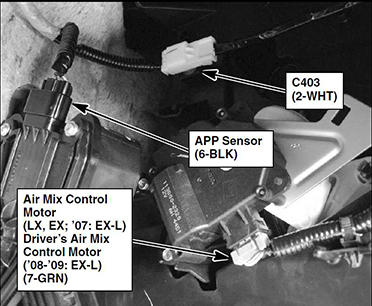

Fig 130: Under Left Side Of Dash

G00472338

Courtesy of AMERICAN HONDA MOTOR CO., INC.
