Honda
>>
2009
>>
CR-V EX, 2.4 RE3
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Glass
>>
Component Location Index
Component Location Index

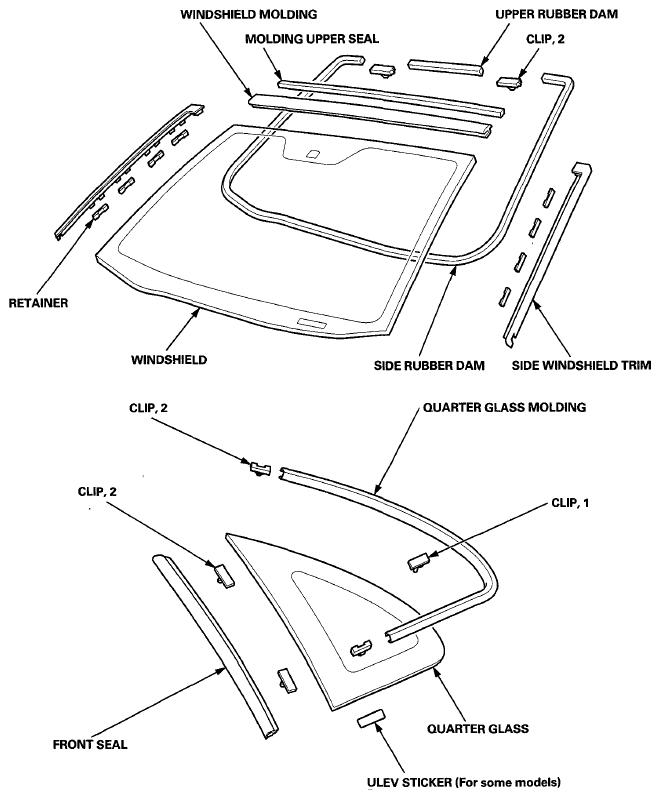

Fig 1: Glass Component Location Index (1 Of 2)

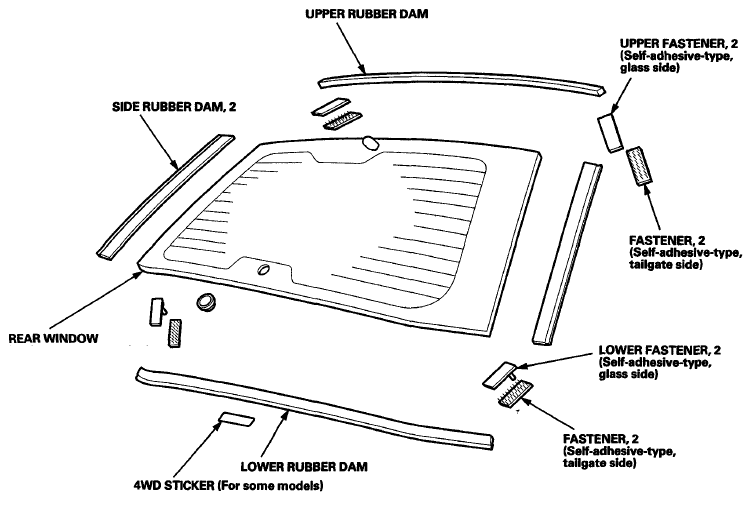

Fig 2: Glass Component Location Index (2 Of 2)
