Connecting Rod and Crankshaft End Play Inspection

Remove the oil pump (see OIL PUMP OVERHAUL ).
Measure the connecting rod end play with a feeler gauge between the connecting rod and crankshaft.
Connecting Rod End Play

Standard (New): 0.15-0.30 mm (0.006-0.012 in.)

Service Limit: 0.40 mm (0.016 in.)

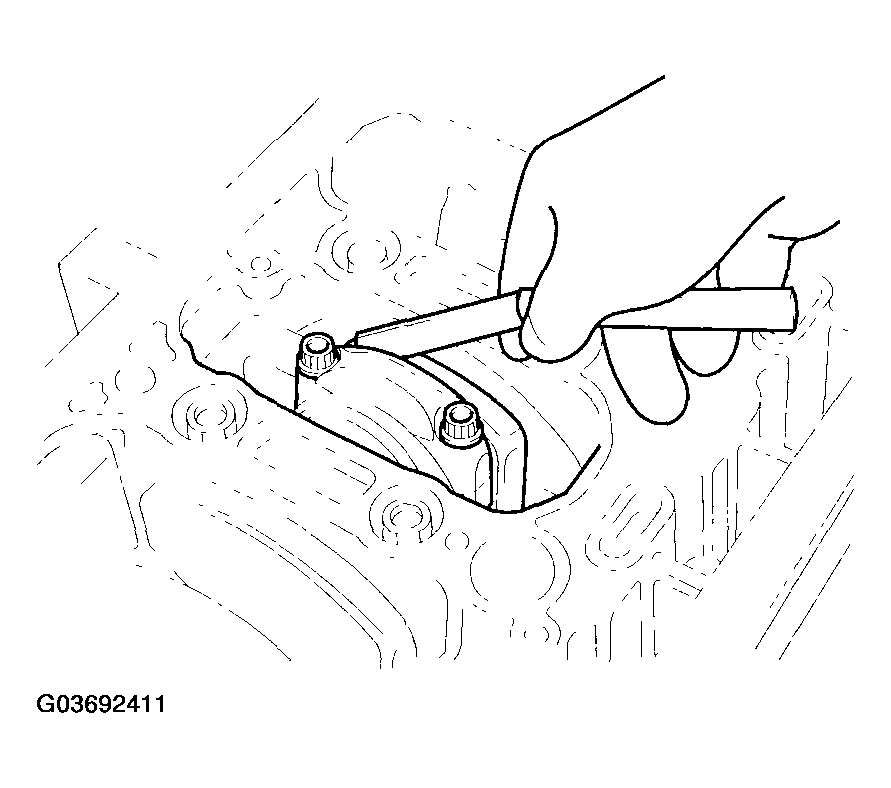

Fig 1: Measuring Connecting Rod End Play With Feeler Gauge
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the connecting rod end play is out-of-tolerance, install a new connecting rod, and recheck. If it is still out-of-tolerance, replace the crankshaft (see OIL PAN REMOVAL ).
Push the crankshaft firmly away from the dial indicator, and zero the dial against the end of the crankshaft. Then pull the crankshaft firmly back toward the indicator; the dial reading should not exceed the service limit.
Crankshaft End Play

Standard (New): 0.10-0.35 mm (0.004-0.014 in.)

Service Limit: 0.45 mm (0.018 in.)

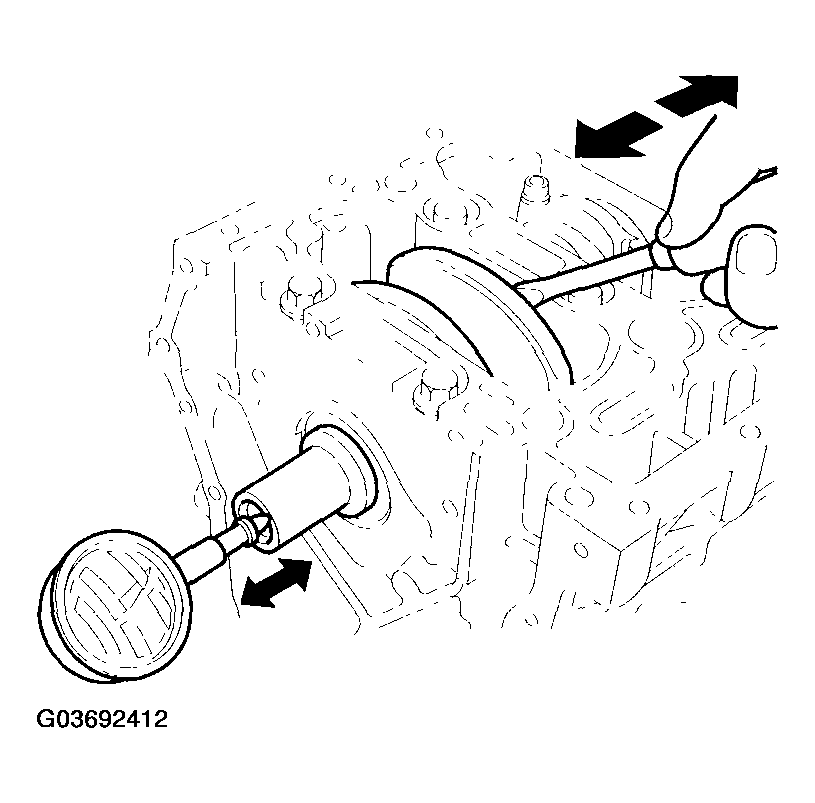

Fig 2: Measuring Crankshaft End Play
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the end play is excessive, replace the thrust washers and recheck. If it is still out-of-tolerance, replace the crankshaft (see OIL PAN REMOVAL ).
