ATF Cooler Outlet Hose Replacement

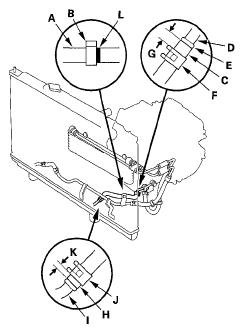

- Remove the ATF cooler outlet hose (A) from the hose clamp (B), then disconnect the hose ends from the ATF cooler lines.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Slide the ATF cooler outlet hose with the yellow paint end (C) over the ATF cooler line (D) on the transmission until the hose end contacts with the bulge (E).
- Secure the hose with the clip (F) at 6-8 mm (0.2-0.3 in.) (G) from the hose end.
- Slide the hose end (H) over the cooler line (I) on the ATF cooler under the radiator until the hose end contacts the bend in the line.
- Secure the hose with the clip (J) at 2-4 mm (0.1-0.2 in.) (K) from the hose end.
- Install the hose in the clamp at the mark (L).
