EGR Valve Replacement

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the intake manifold cover (see step 1 in IGNITION COIL REMOVAL/INSTALLATION ).
  2. Disconnect the EGR valve 6P connector (A).

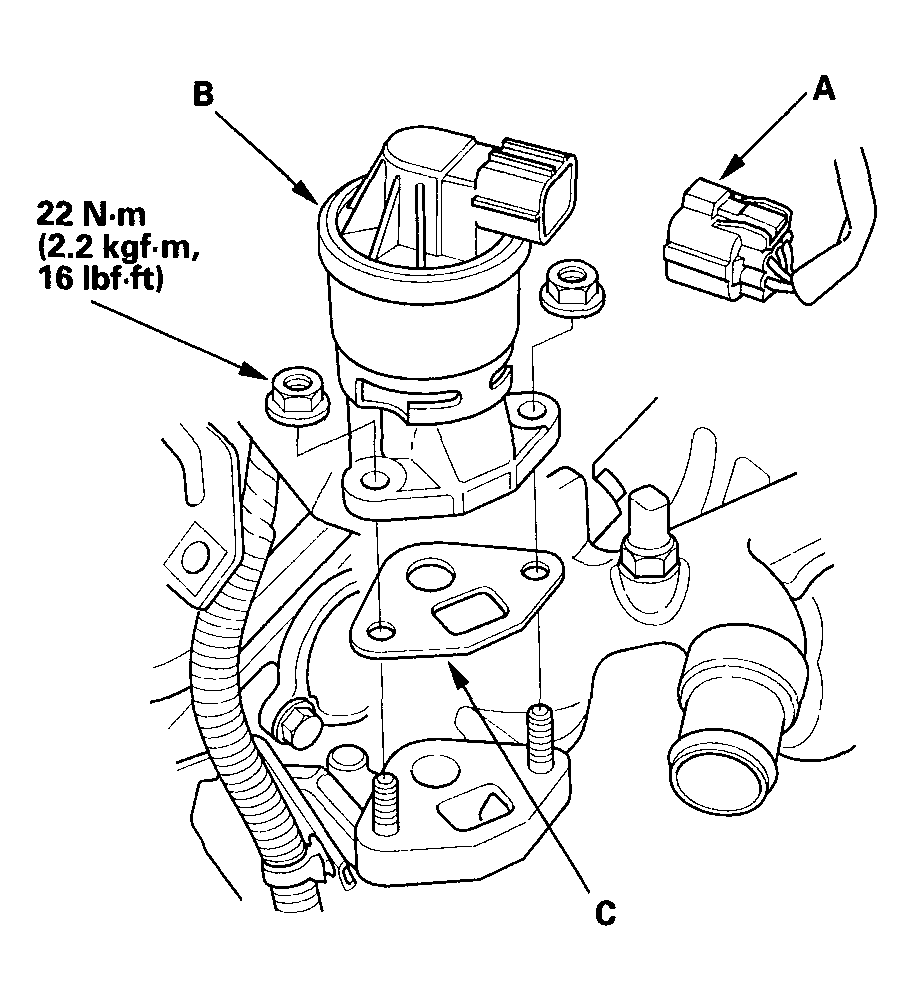

    Fig 1: Disconnecting EGR Valve 6P Connector With Torque Specifications
    G04245558Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the EGR valve (B).
  4. Install the valve in the reverse order of removal with a new gasket (C).
  5. Install the ignition coil cover.
