Drive Belt Replacement

  1. Move the auto-tensioner (A) to relieve tension from the drive belt, then remove the drive belt.

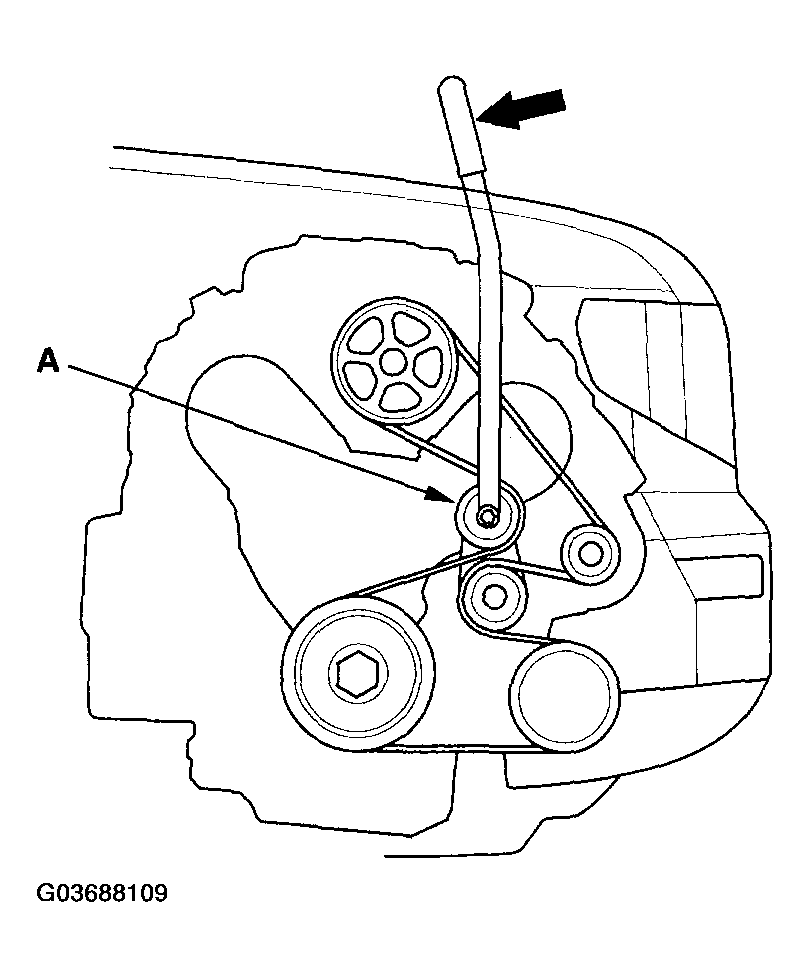

    Fig 1: Moving Auto-Tensioner
    G03688109Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the new belt in the reverse order of removal.
    NOTE: For belt routing, see COMPONENT LOCATION INDEX & DRIVE BELT ROUTING
