Tire Pressure Sensor Replacement: Installation

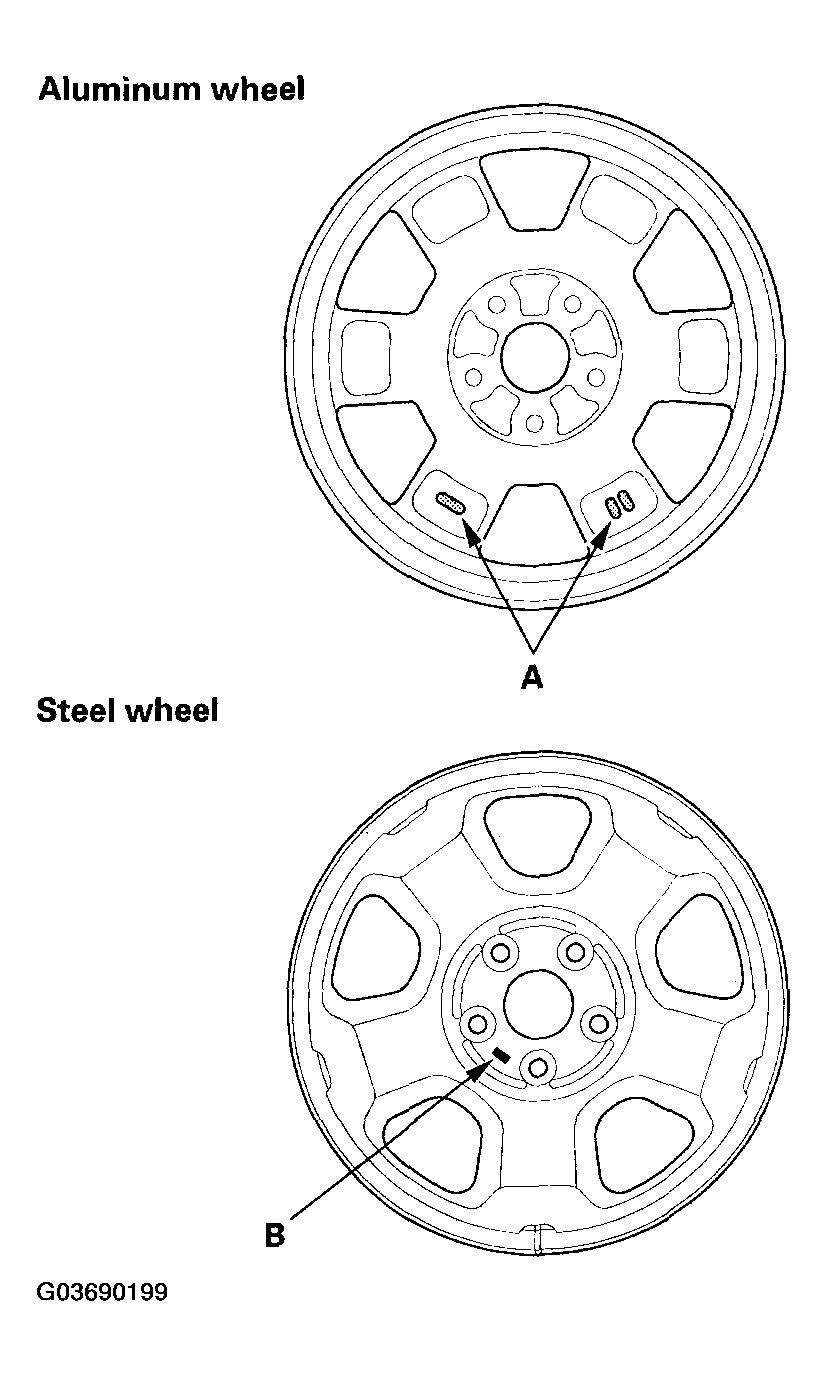

NOTE: Use only wheels that have counterweights (A) or a "SJC" stamp (B) on them.

Fig 1: Identifying Counterweights And "SJC" Stamp On Wheel

Courtesy of AMERICAN HONDA MOTOR CO., INC.

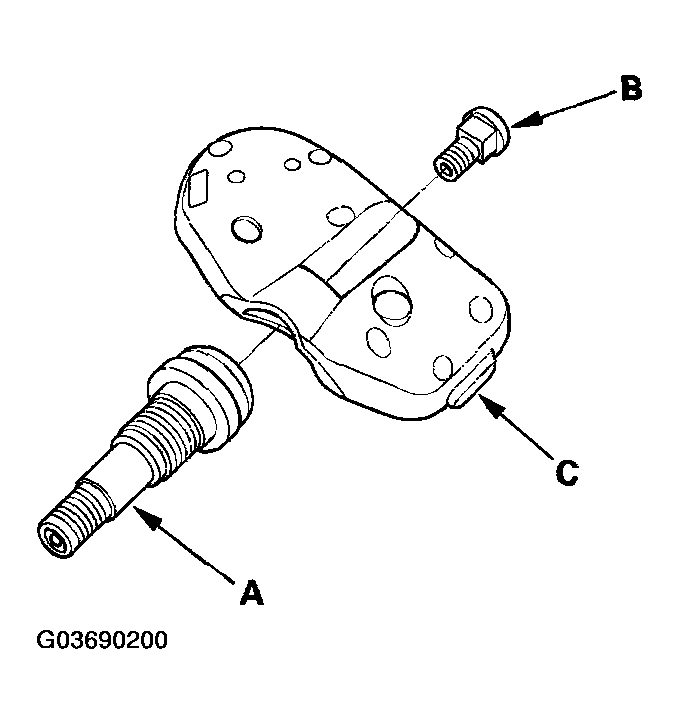

1. Assemble the new valve stem (A), new screw (B), and the sensor-transmitter (C).
   NOTE: Always use a new valve stem and new screw.
   Fig 2: Installing New Valve Stem And Sensor-Transmitter

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Before installing the tire pressure sensor, clean the mating surfaces on the sensor and the wheel.

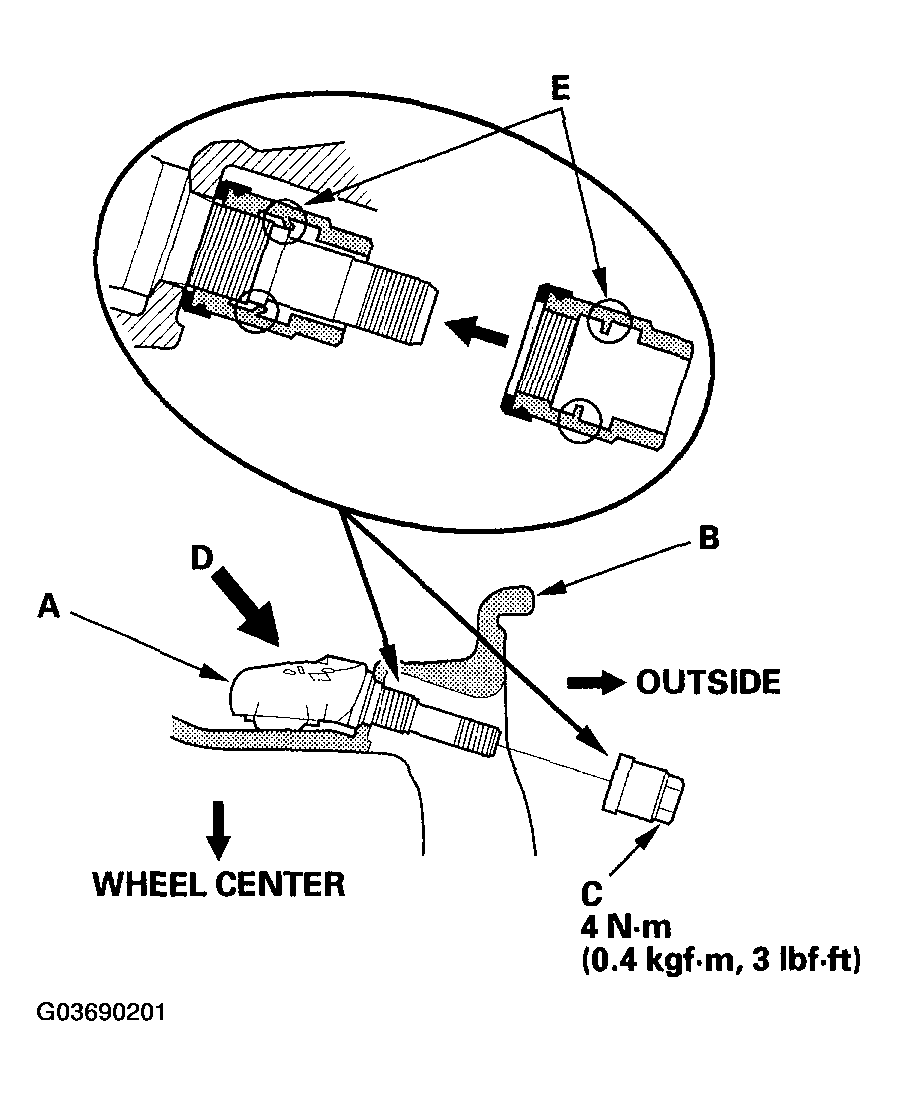

3. Install the tire pressure sensor (A) to the wheel (B), and tighten the valve nut (C) finger tight. Make sure the pressure sensor is resting on the wheel.
   Fig 3: Installing Tire Pressure Sensor To Wheel And Tightening Valve Nut With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Tighten the valve nut to the specified torque while holding the tire pressure sensor toward (D) the wheel. You may hear a snap or pop as you tighten the nut. This is normal.
   NOTE:

   • Do not reuse any nut that has been tightened, even one time, to the specified torque, as it is deformed inside (E).
   • Do not use air or electric impact tools to tighten a valve stem nut.
   • Tightening the nut above the specified torque can damage the nut.
   • Make sure that there is no space between the sensor and the wheel.

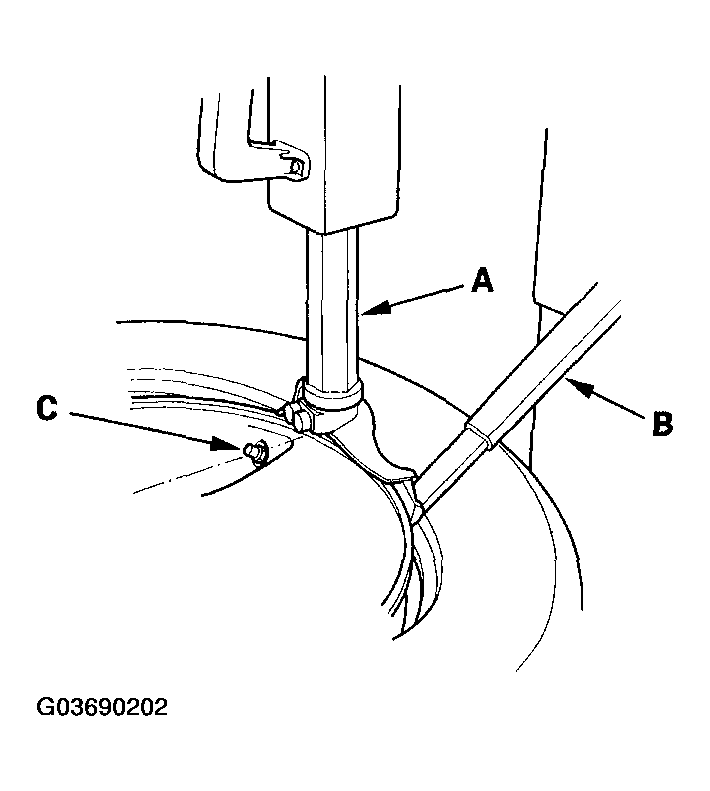

5. Lube the tire bead, and position the wheel so the tire machine (A) and tire iron (B) are next to the valve stem (C) and will move away from it when the machine starts. Then install the tire onto the wheel.
   Fig 4: Installing Tire Onto Wheel

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Inflate the tire to 300 kPa (3.1 kgf/cm² , 44 psi) to seat the tire bead to the rim, then adjust the tire pressure to 220 kPa (2.2 kgf/cm² , 32 psi), and install the valve stem cap.
   NOTE: Make sure the tire bead is seated on both sides of the rim uniformly.
7. Check and adjust the wheel balance, then install the wheels on the vehicle. Torque the wheels to specifications.
8. Remove the jack stands, and lower the jack.
9. Connect the HDS and memorize the pressure sensor ID(s) (see MEMORIZING THE TIRE PRESSURE SENSOR ID  ).
