Tire Pressure Monitoring System
>>
System Description
>>
TPMS Control Unit Inputs and Outputs for Connector A (14P)
TPMS Control Unit Inputs and Outputs for Connector A (14P)

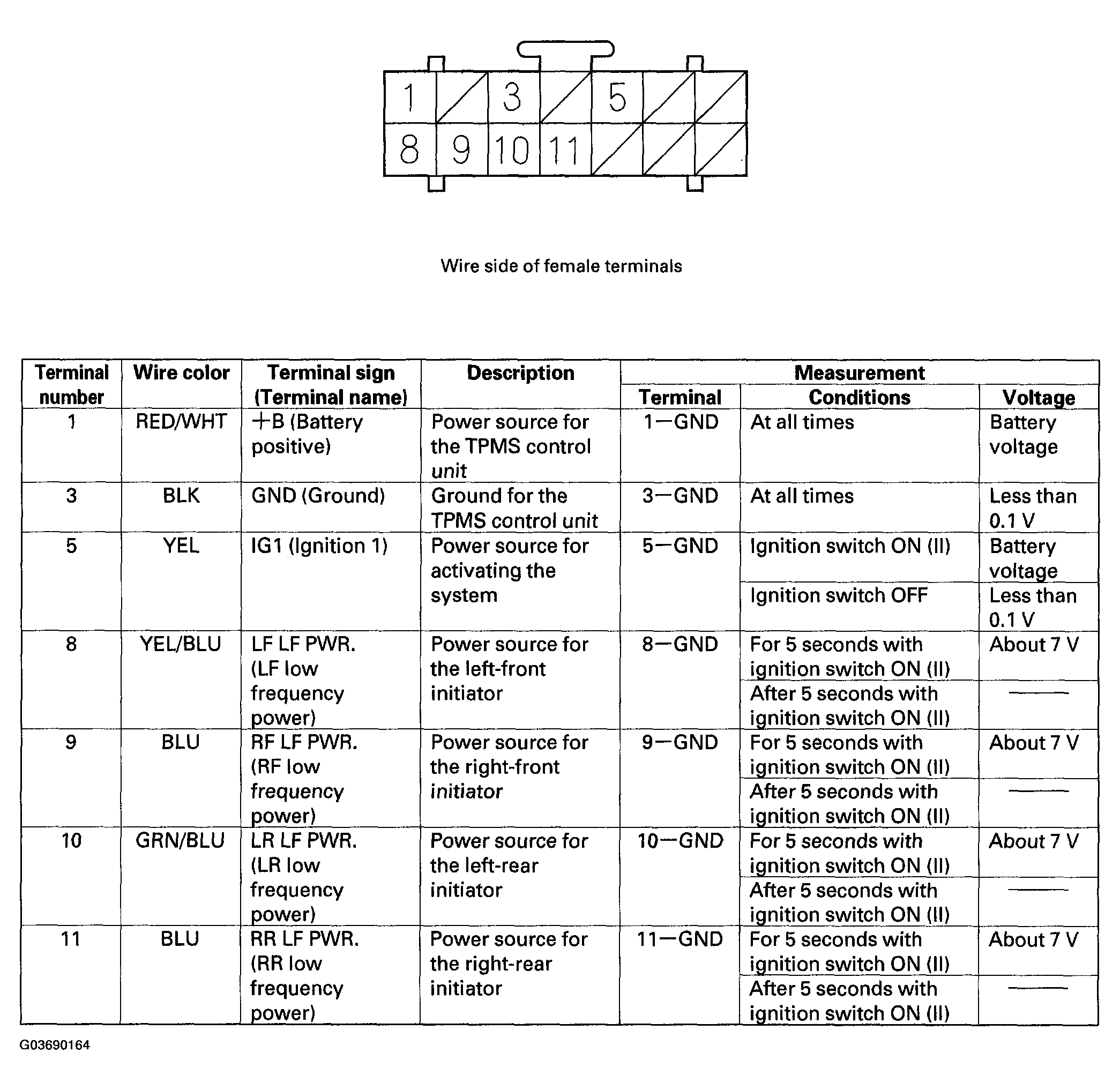

Fig 1: Identifying TPMS Control Unit Connector A (14P)
