Driver's Air Mix Control Motor Replacement

  1. Remove the driver's dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
  2. Remove the self-tapping screws and the duct (A).

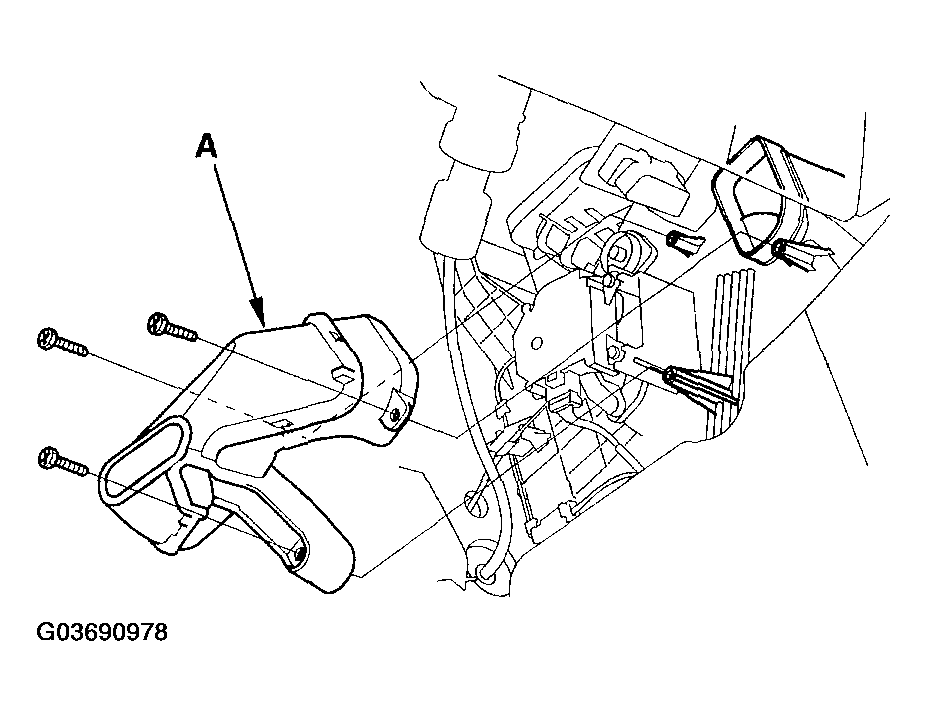

    Fig 1: Removing Self-Tapping Screws And Duct
    G03690978Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the 7P connector (A) from the driver's air mix control motor (B). Remove the self-tapping screws and the driver's air mix control motor from the heater unit.

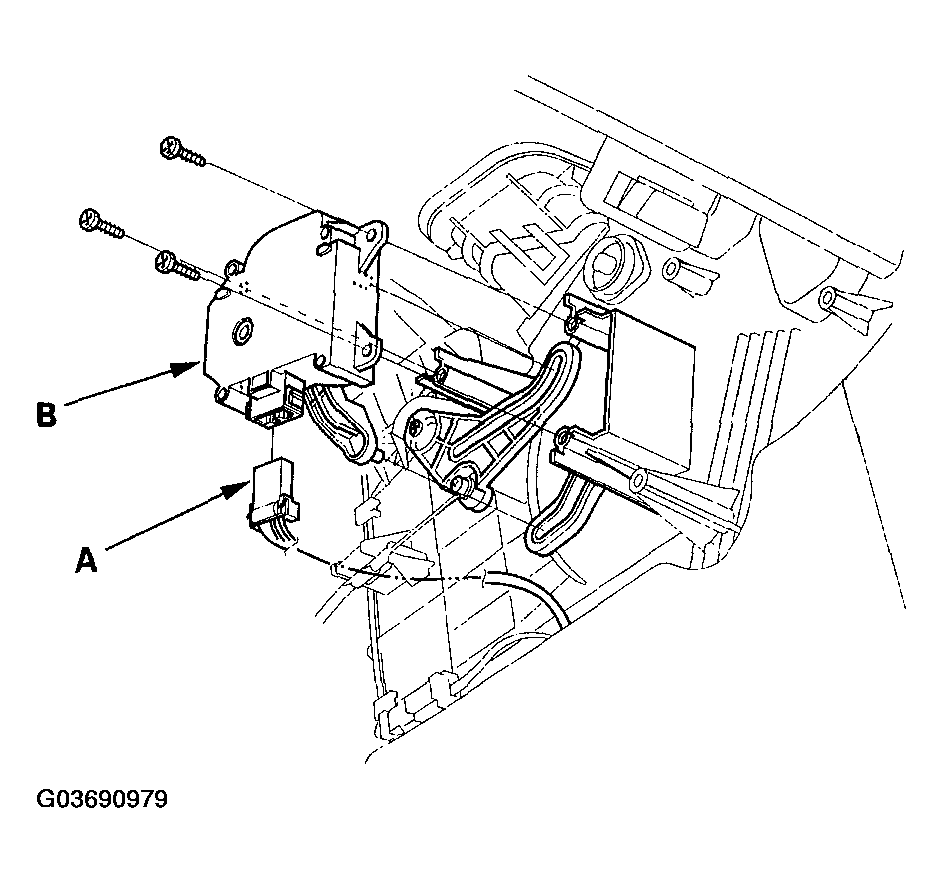

    Fig 2: Disconnecting 7P Connector From Driver's Air Mix Control Motor
    G03690979Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
