Section 67 (Rear Differential)
>>
System Description
>>
Electronic Control System
>>
VTM-4 Control Unit Electrical Connections
VTM-4 Control Unit Electrical Connections
WARNING:
This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

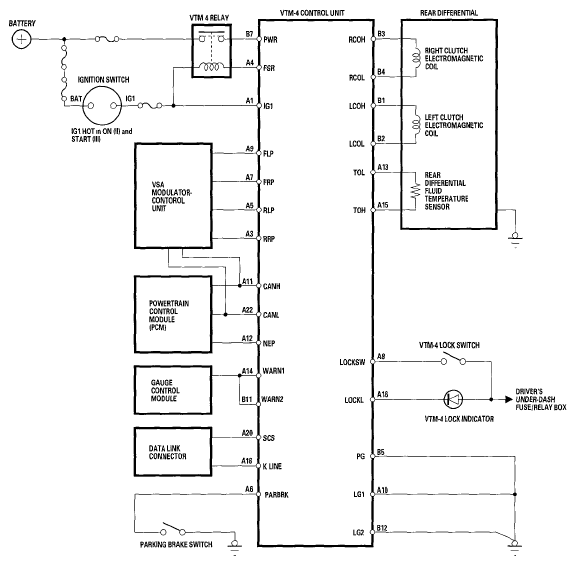

Fig 1: VTM-4 Control Unit Electrical Connections Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
