With XM

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headliner (see HEADLINER REMOVAL/INSTALLATION ).
  2. Remove the nut (A) from the XM antenna (B).

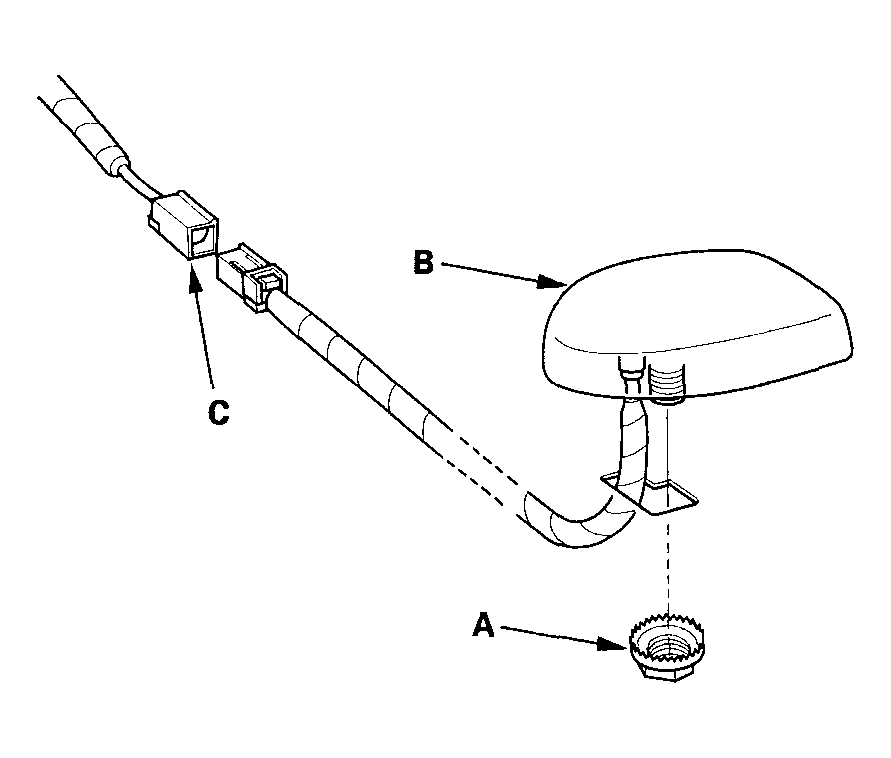

    Fig 1: Disconnecting Connector & XM Antenna
    G04247455Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the connector (C), and remove the XM antenna.
  4. Install the XM antenna in the reverse order of removal.
