XM Receiver Connector for Inputs and Outputs (With XM)

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

When replacing a XM receiver connector, match the wires to the cavities listed in CONNECTOR TERMINAL REFERENCE TABLE .

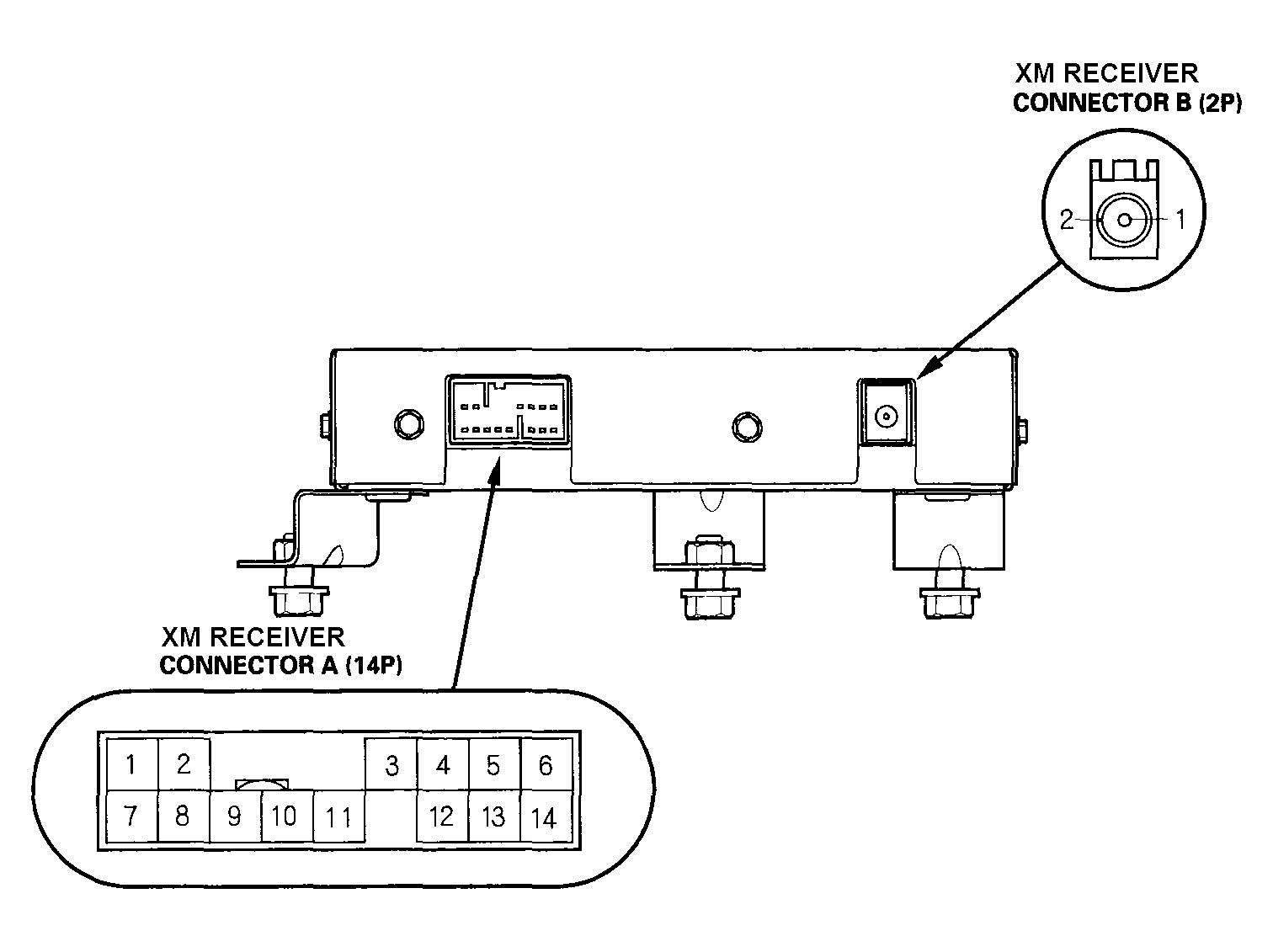

Fig 1: Identifying XM Receiver Connector Terminals
G04247394Courtesy of AMERICAN HONDA MOTOR CO., INC.
XM RECEIVER CONNECTOR A

Cavity Wire Connect to
A1 RED/BLU Audio unit (+B GA-NET)
A2 LT GRN/RED Audio unit (SAT SYS ACC)
A3 LT BLU(1) Audio unit (GA-NET BUS SHIELD)
A4 -- Not used
A5 WHT Audio unit (SAT R+)
A6 RED Audio unit (SAT L+)
A7 -- Not used
A8 -- Not used
A9 RED/BLU Audio unit (GA-NET BUS+)
A10 RED/WHT Audio unit (GA-NET BUS-)
A11 GRY/BLU Audio unit (GA-NET GND)
A12 -- Not used
A13 BLK Audio unit (SAT R-)
AH GRN Audio unit (SAT L-)
(1) The shielded wires have a heat-shrunk tube insulating the outide of the wire. The color of the insulting tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
XM RECEIVER CONNECTOR B

Cavity Wire Connect to
B1 -- Satellite signal antenna (SIG)
B2 -- Satellite signal antenna (SH (SAT))
