Tweeter (Except LX Model)

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Carefully pry the tweeter (A) out of the dashboard, then disconnect the 2P connector (B) from the tweeter.

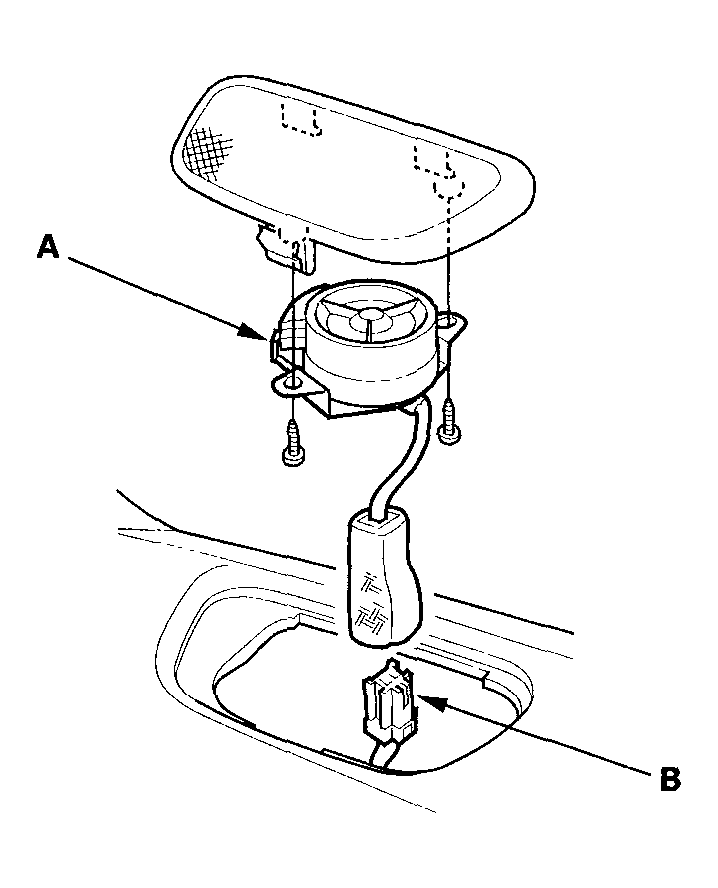

    Fig 1: Disconnecting 2P Connector From Tweeter
    G04247451Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the screws and tweeter.
