Active Noise Control Microphone Removal/Installation: 2WD

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Remove the headliner (see HEADLINER REMOVAL/INSTALLATION ).
Disconnect the connector (A), then remove the screws and the active noise control microphone (B).

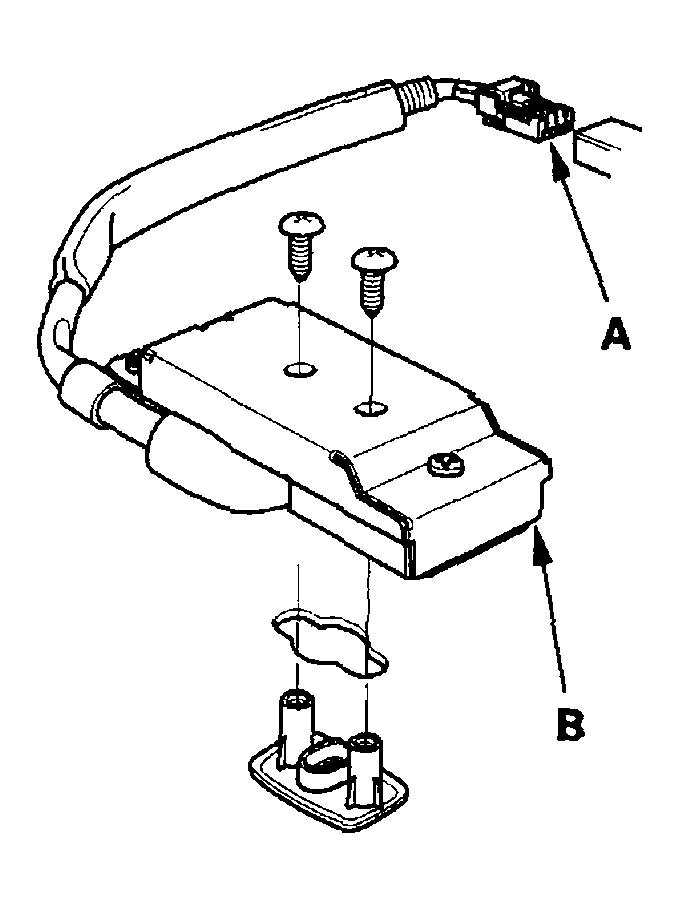

Fig 1: Disconnecting Connector, Removing Screws & Active Noise Control Microphone
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the active noise control microphone in the reverse order of removal.
