AM/FM Antenna Test

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

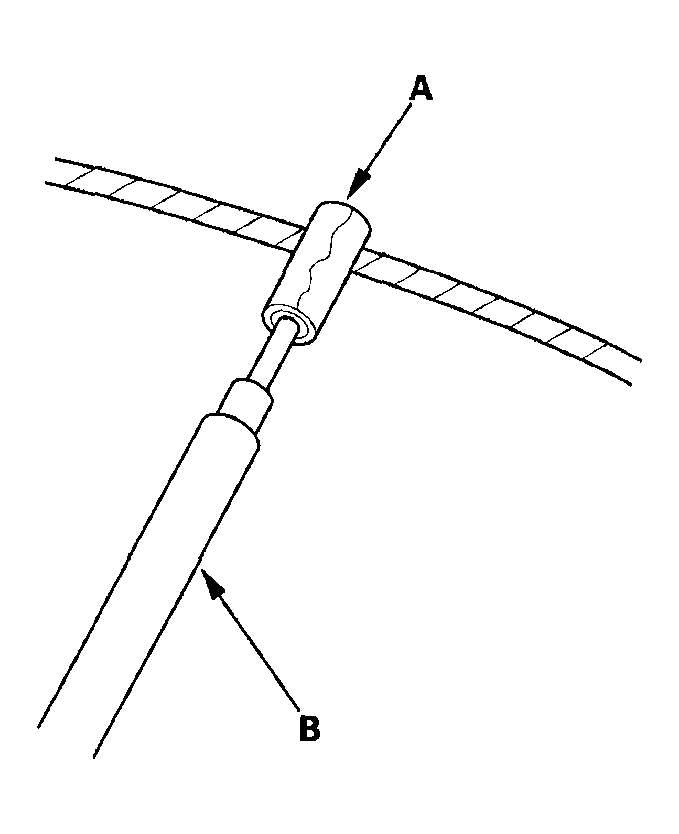

Wrap aluminum foil (A) around the tip of the tester probe (B) as shown in Fig 1.

Fig 1: Identifying Aluminum Foil & Tester Probe
Courtesy of AMERICAN HONDA MOTOR CO., INC.

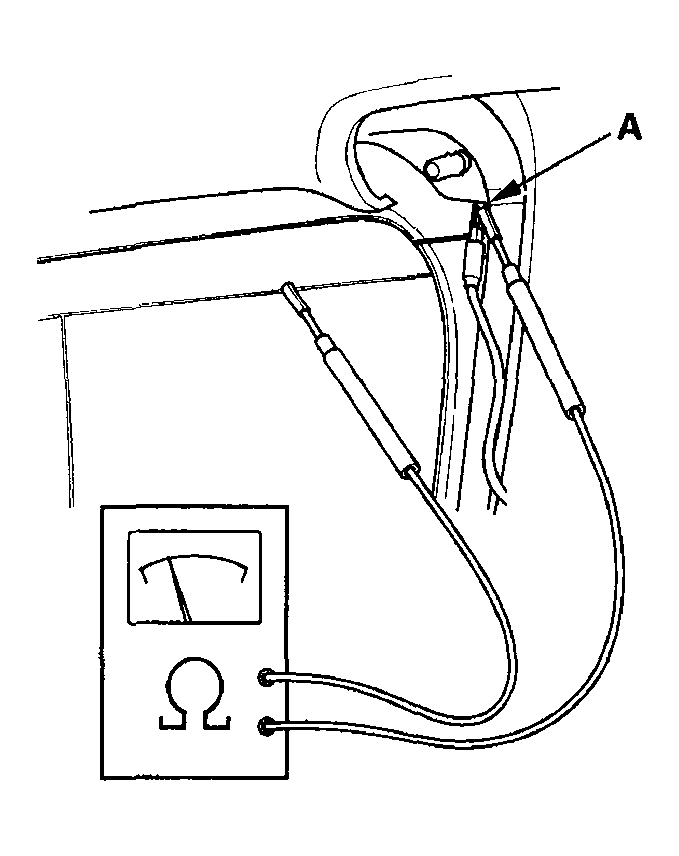

Touch one tester probe near the window antenna terminal (A) here, and move the other tester probe along the antenna wires to check for continuity. Repair if there is no continuity.

Fig 2: Checking Continuity For Window Antenna Terminal
Courtesy of AMERICAN HONDA MOTOR CO., INC.
