AM/FM Antenna Repair

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: To make an effective repair, the broken section must be no longer than 1 inch.

Lightly rub the area around the broken section (A) with fine steel wool, then clean it with isopropyl alcohol.

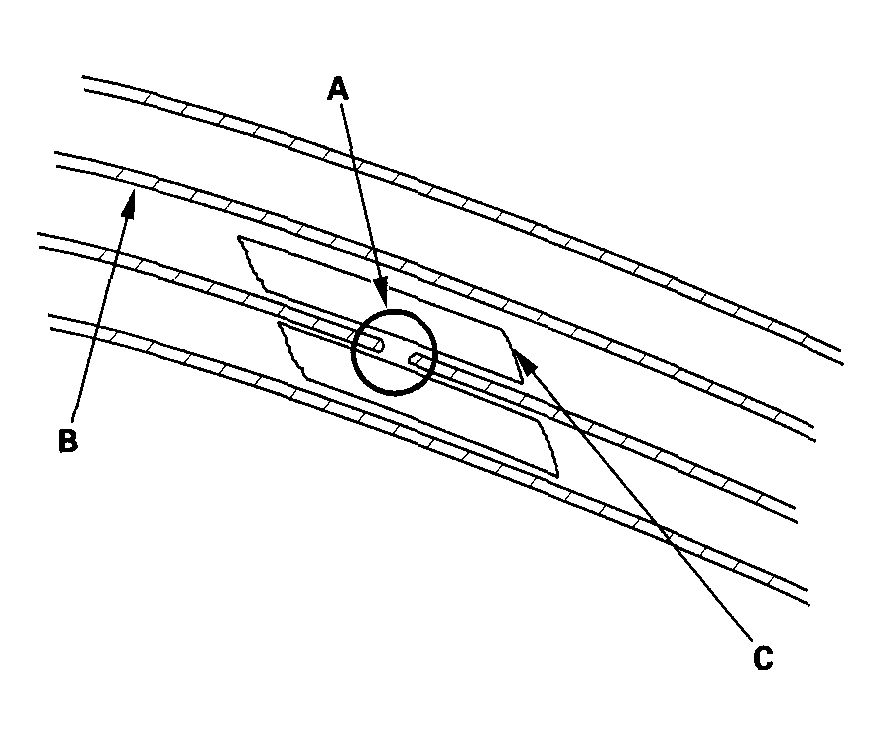

Fig 1: Identifying Broken Section
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Carefully mask above and below the broken portion of the window antenna wire (B) with cellophane tape (C).
Mix the silver conductive paint thoroughly. Using a small brush, apply a heavy coat of paint (A) extending about 1/8" on both sides of the break. Allow 30 minutes to dry.

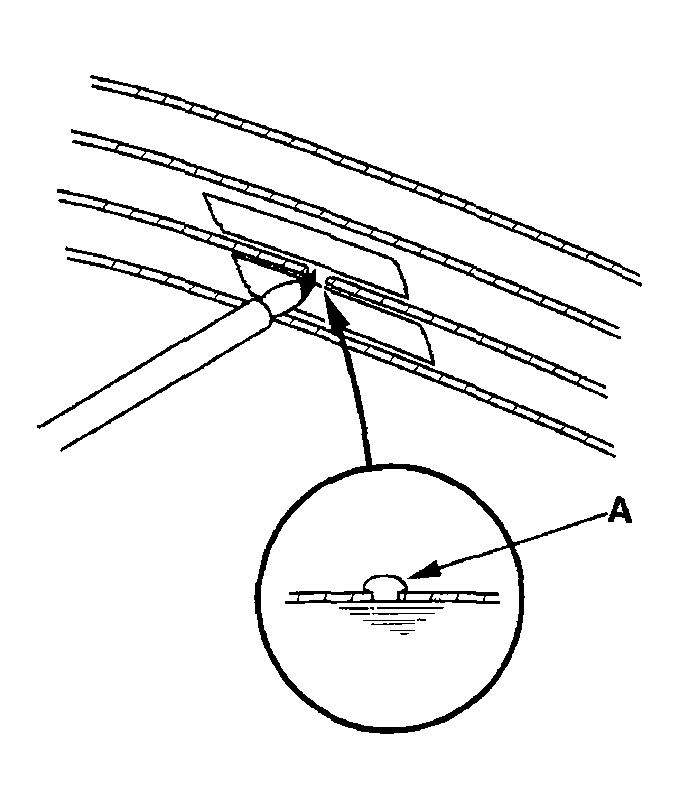

Fig 2: Applying Heavy Coat Of Paint Using Small Brush
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity in the repaired wire.
Apply a second coat of paint in the same way. Let it dry 3 hours before removing the tape.
