Oil Filter Feed Pipe Replacement

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the filter (see ENGINE OIL REPLACEMENT  ).
  2. Remove the oil filter feed pipe.

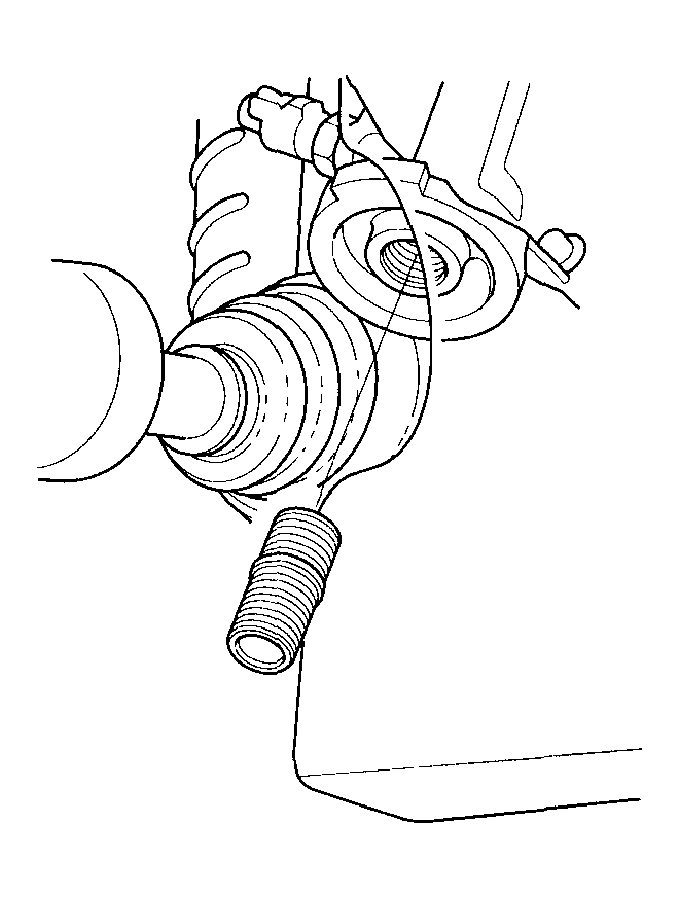

    Fig 1: Removing Oil Filter Feed Pipe
    G04244983Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install two 20 x 1.5 mm nuts (A) onto the new oil filter feed pipe, and hold one nut with a wrench, then tighten the other nut.

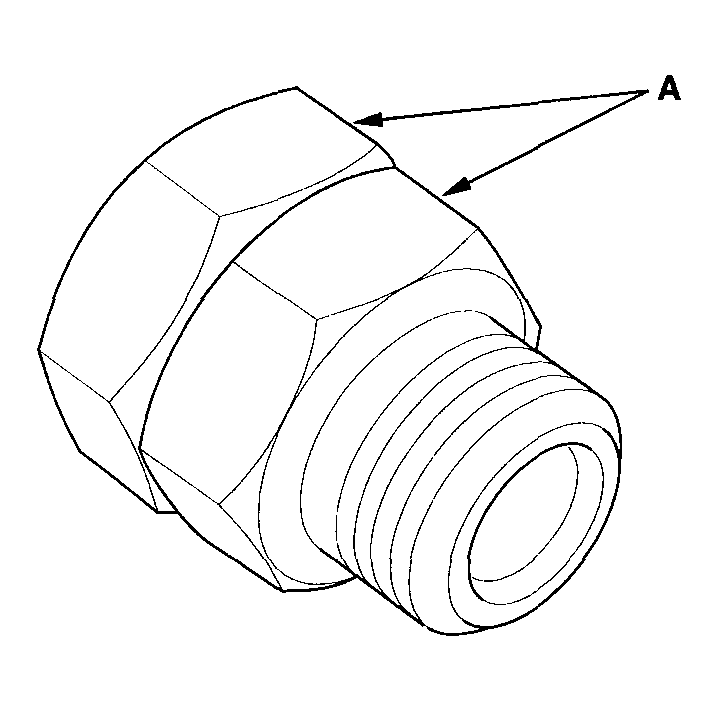

    Fig 2: Installing New Oil Filter Feed Pipe Nuts
    G04244984Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Tighten the oil filter feed pipe to 49 N.m (5.0 kgf.m, 36 lbf.ft), then remove the nuts from the oil filter feed pipe.
