Circuit Diagram

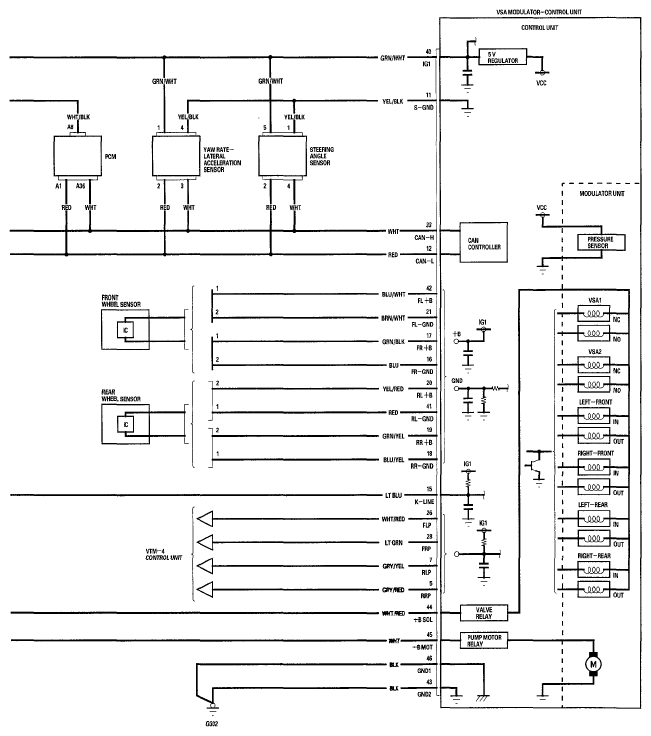

Fig 1: VSA - Circuit Diagram (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

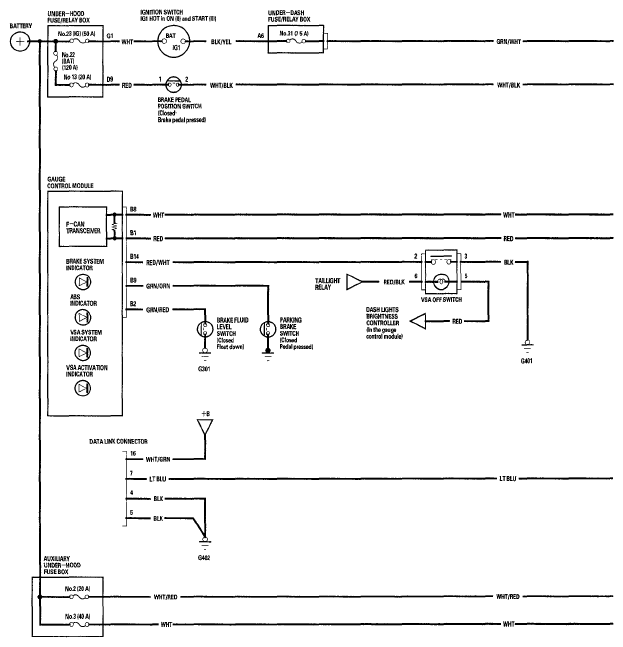

Fig 2: VSA - Circuit Diagram (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

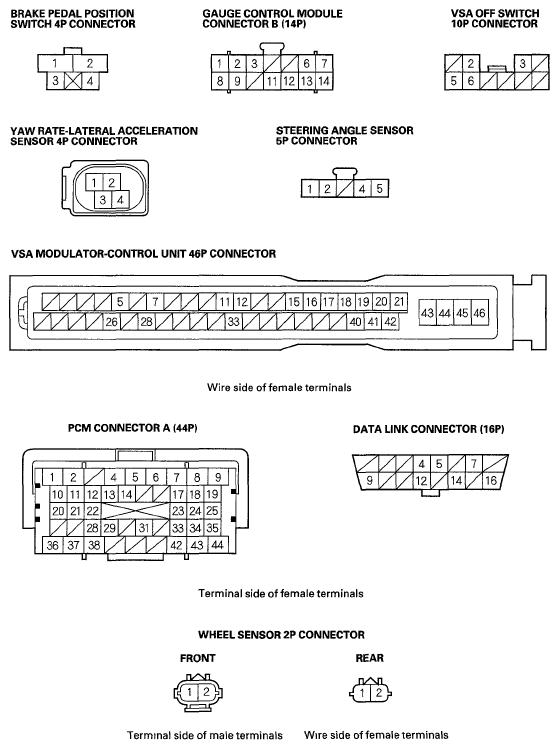

Fig 3: Identifying Brake Pedal Position Switch Connectors And Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.
