Exploded View

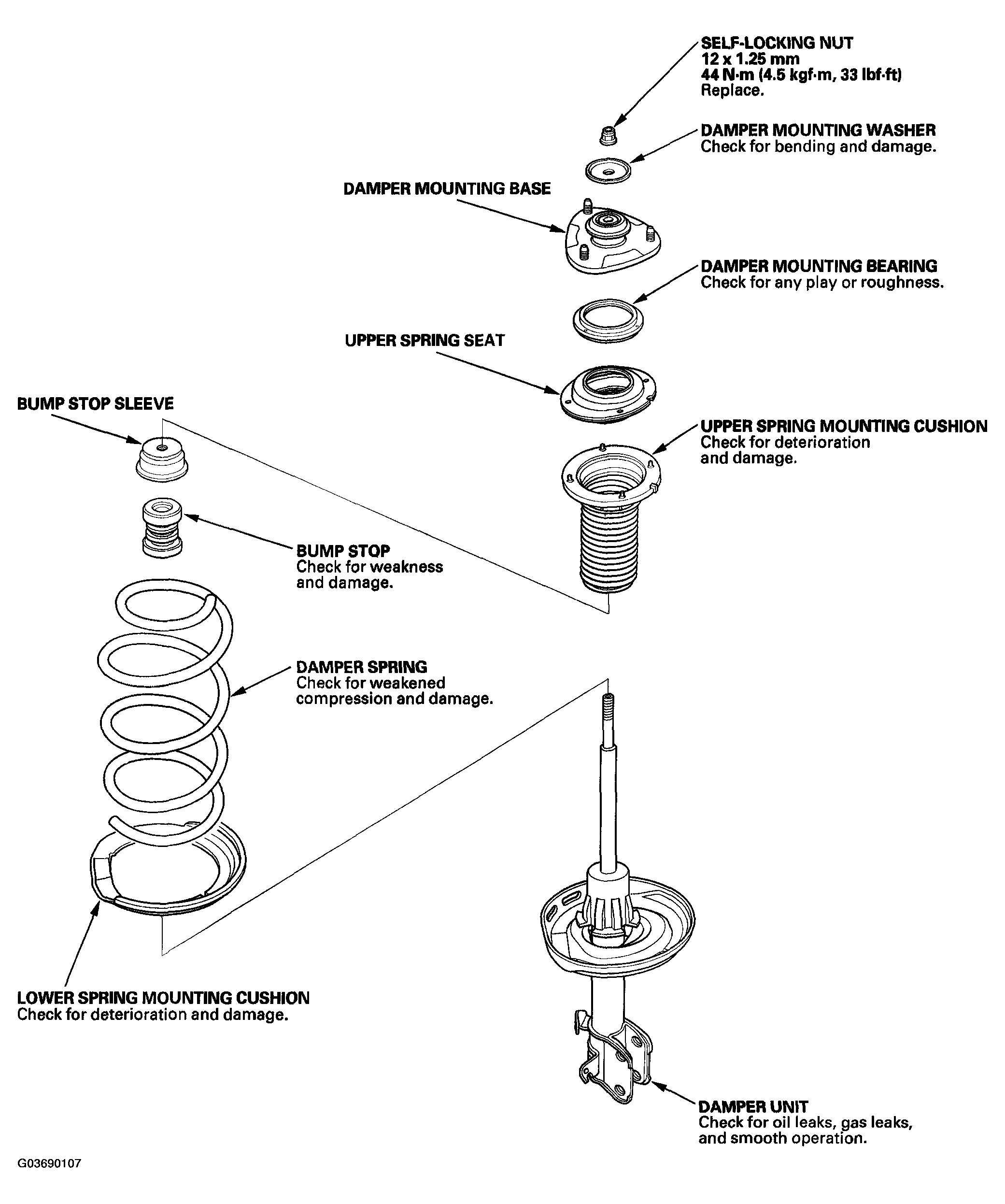

Fig 1: Exploded View Of Damper/Spring

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: When compressing the damper spring, use a commercially available strut spring compressor (Branick MST-580A or Model 7200, or equivalent). According to the manufacturer's instructions.
