System Evacuation

CAUTION:
  • Air conditioning refrigerant or lubricant vapor can irritate your eyes, nose, or throat.
  • Be careful when connecting service equipment.
  • Do not breathe refrigerant or vapor.
NOTE:
  • If accidental system discharge occurs, ventilate work area before resuming service.
  • Additional health and safety information may be obtained from the refrigerant and lubricant manufacturers.
  1. When an A/C System has been opened to the atmosphere, such as during installation or repair, it must be evacuated using an R-134a refrigerant recovery/recycling/charging station. If the system has been open for several days, the receiver/dryer should be replaced, and the system should be evacuated for several hours.
  2. Connect an R-134a refrigerant recovery/recycling/ charging station (A) to the high-pressure service port (B) and the low-pressure service port (C), as shown, following the equipment manufacturer's instructions. Evacuate the system.

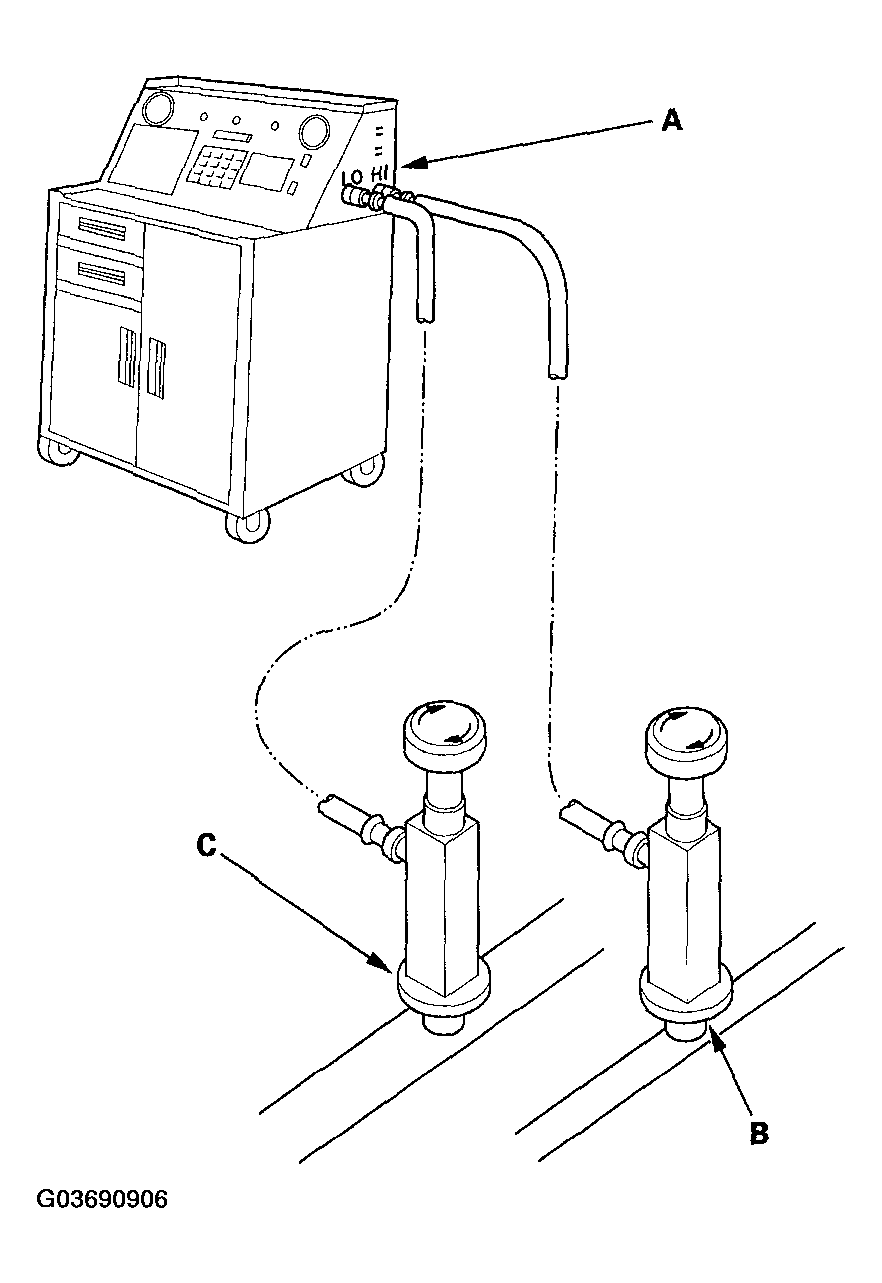

    Fig 1: Connecting R-134A Refrigerant Recycling/ Charging Station To The High-Pressure Service Port And The Low-Pressure Service Port
    G03690906Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. If the low-pressure does not reach more than 93.3 kPa (700 mmHg, 27.6 in.Hg) in 15 minutes, there is probably a leak in the system. Partially charge the system, and check for leaks (see step  5 ).
