Outside Air Temperature Sensor Replacement

  1. Lift the tab (A) to release the lock, then remove the outside air temperature sensor (B) from the bulkhead bracket. Disconnect the 2P connector (C) from the outside air temperature sensor.

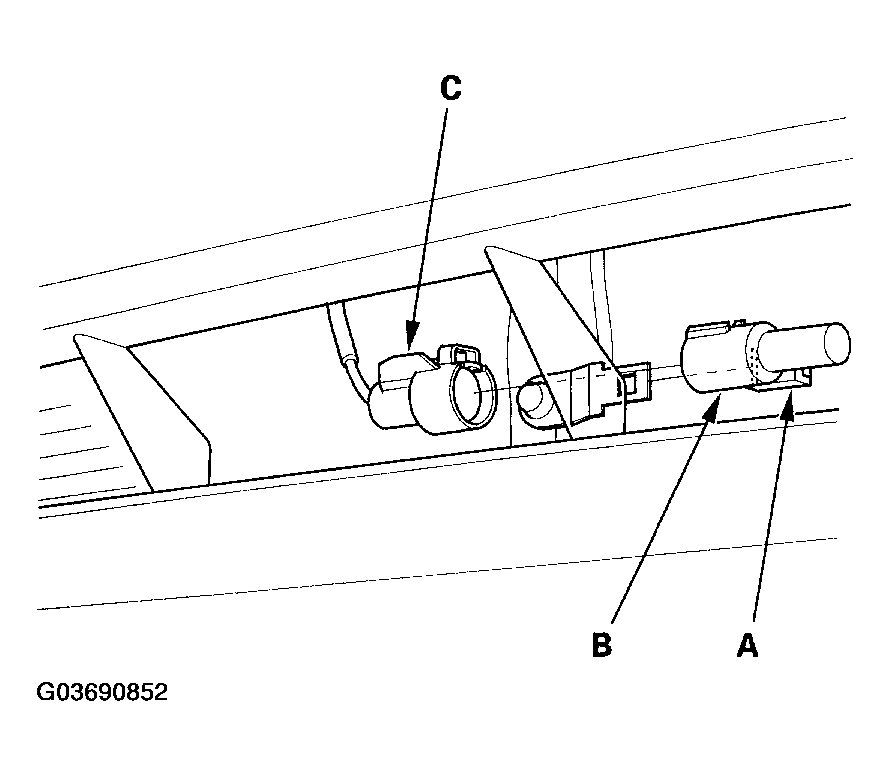

    Fig 1: Removing The Outside Air Temperature Sensor From The Bulkhead Bracket
    G03690852Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the sensor in the reverse order of removal.
