HVAC Control Unit Removal and Installation

  1. Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
  2. Remove the self-tapping screws, and the HVAC control unit (A).

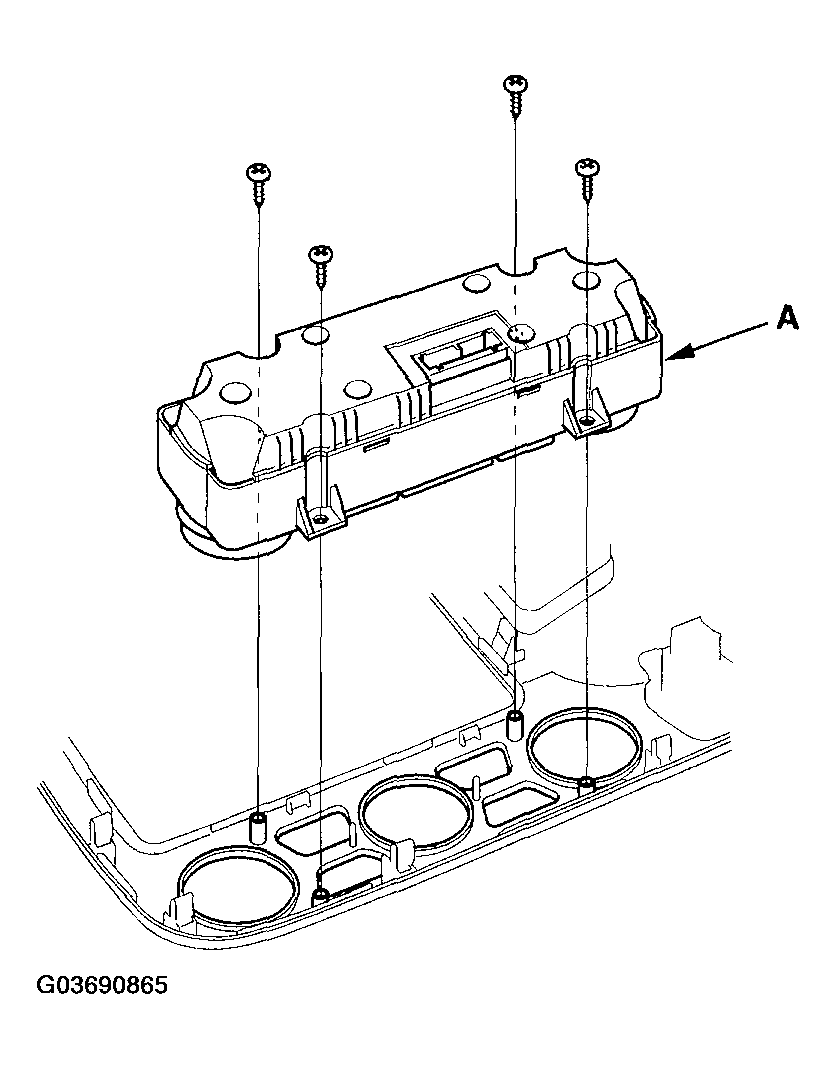

    Fig 1: Removing Self-Tapping Screws And The HVAC Control Unit
    G03690865Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the control unit in the reverse order of removal. After installation, operate the various functions to make sure they work properly.
  4. Run the self-diagnosis function to confirm that there are no problems in the system (see GENERAL TROUBLESHOOTING INFORMATION  ).
