Evaporator Temperature Sensor Test
- Remove the evaporator temperature sensor (see EVAPORATOR TEMPERATURE SENSOR TEST
).

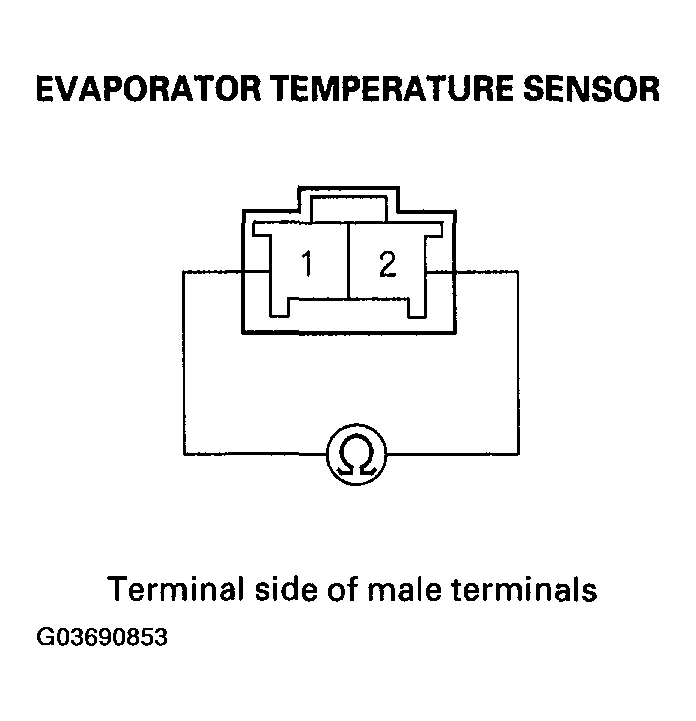

- Dip the sensor in ice water, and measure the resistance between its terminals.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Then pour warm water on the sensor, and check for a change in resistance.

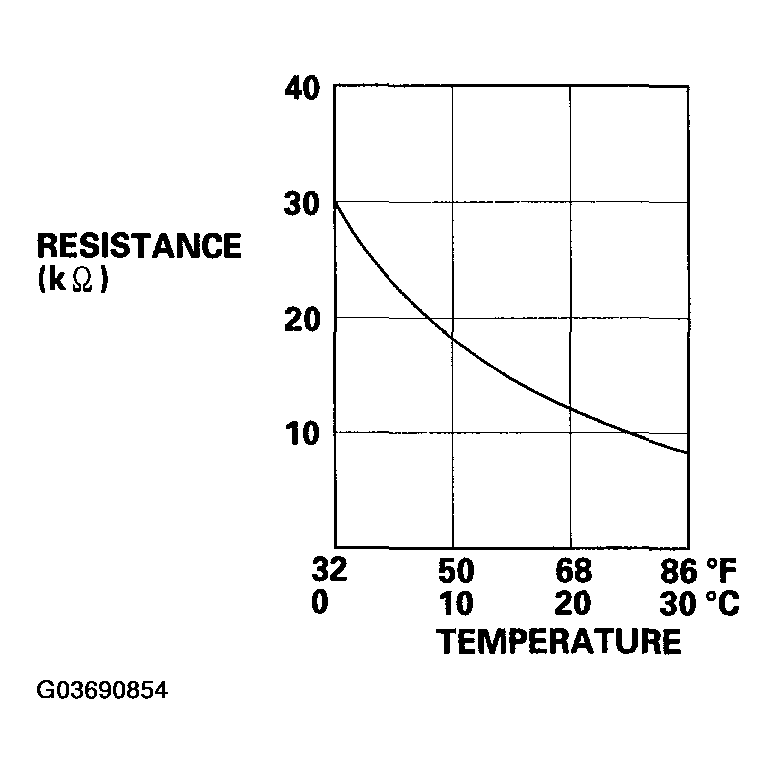

- Compare the resistance readings with the specifications shown in the graph; the resistance should be within the specifications.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- If the resistance is not as specified, replace the evaporator temperature sensor (see EVAPORATOR TEMPERATURE SENSOR TEST
).
