Circuit Diagram

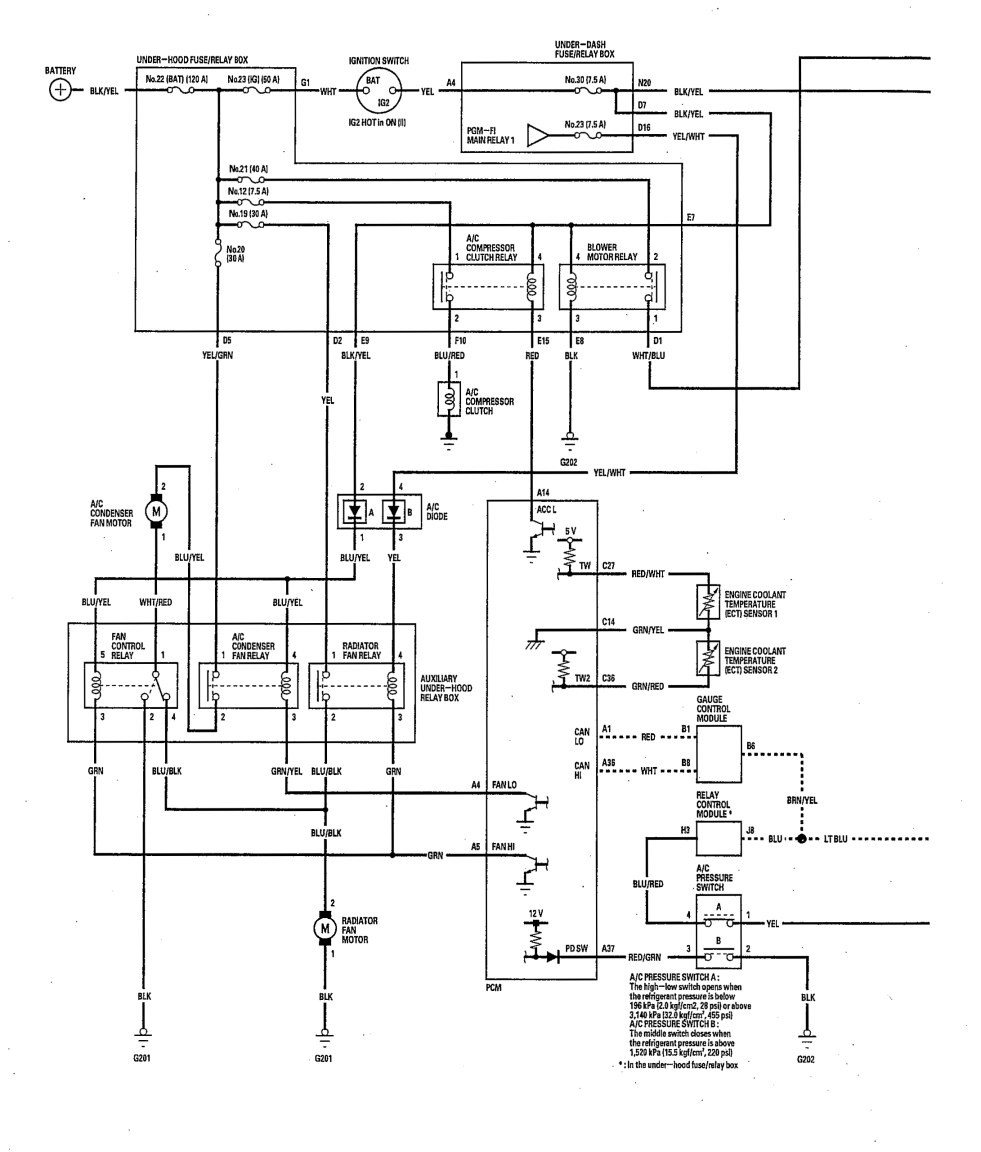

Fig 1: Heating/Air Conditioning Circuit Diagram (1 Of 2)
G03690787Courtesy of AMERICAN HONDA MOTOR CO., INC.

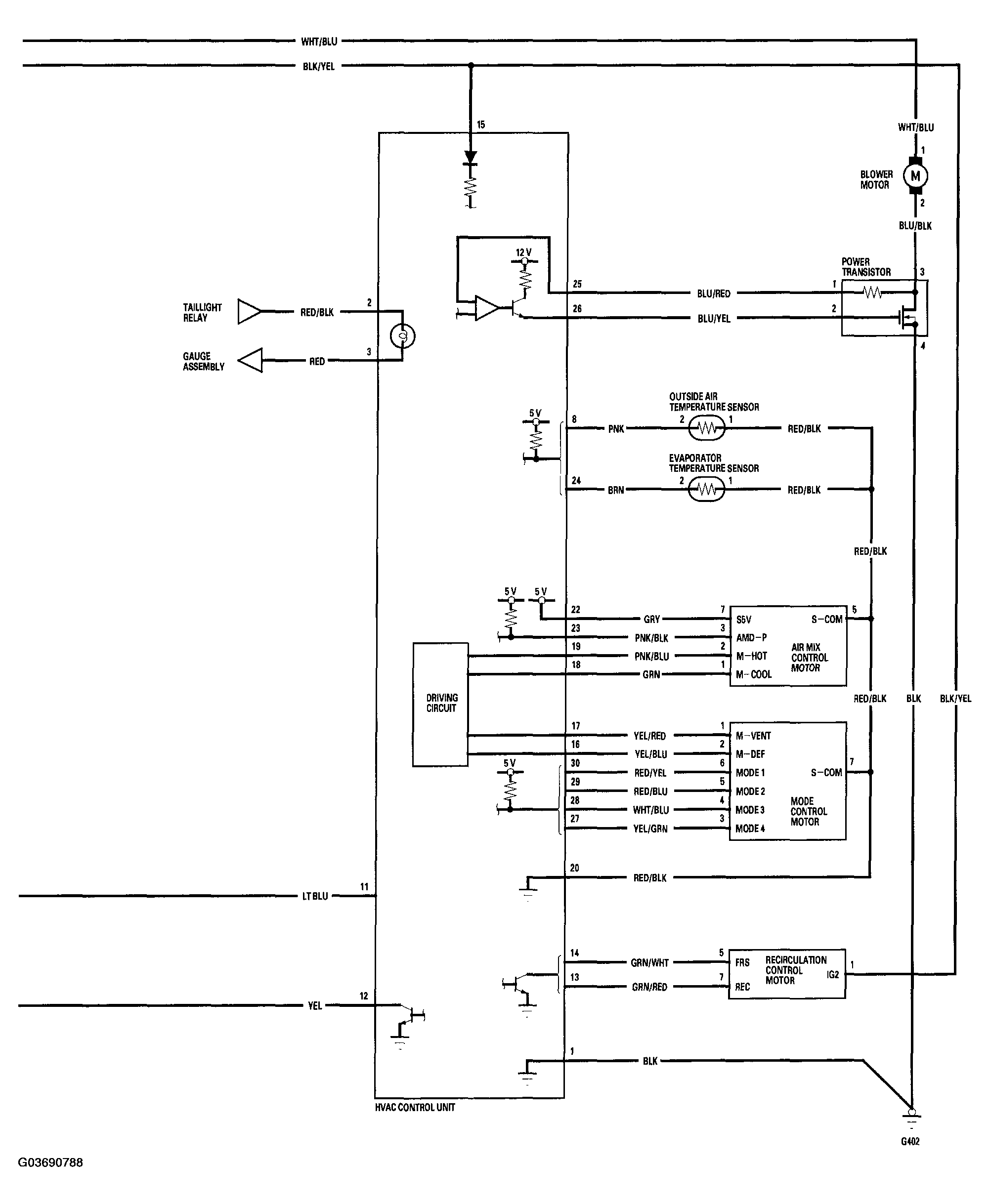

Fig 2: Heating/Air Conditioning Circuit Diagram (2 Of 2)
G03690788Courtesy of AMERICAN HONDA MOTOR CO., INC.
