A/C Refrigerant Oil Replacement
Recommended PAG oil: DENSO ND-OIL 8
- P/N 38897-PR7-A01AH: 120 mL (4 fl-oz)
- P/N 38899-PR7-A01:40mL (1 1/3 fl-oz)
Add the recommended refrigerant oil in the amount listed if you replace any of the following parts.
- To avoid contamination, do not return the oil to the container once dispensed, and never mix it with other refrigerant oils.
- Immediately after using the oil, reinstall the cap on the container, and seal it to avoid moisture absorption.
- Do not spill the refrigerant oil on the vehicle; it may damage the paint; if it gets on the paint, wash it off immediately.
A/C REFRIGERANT OIL SPECIFICATION
| A/C condenser | 45mL (1 1/2 fl-oz) |
| Evaporator | 45mL (1 1/2 fl-oz) |
| Line or hose | 10 mL (1/3 fl-oz) |
| Leakage repair | 25 mL (5/6 fl-oz) |

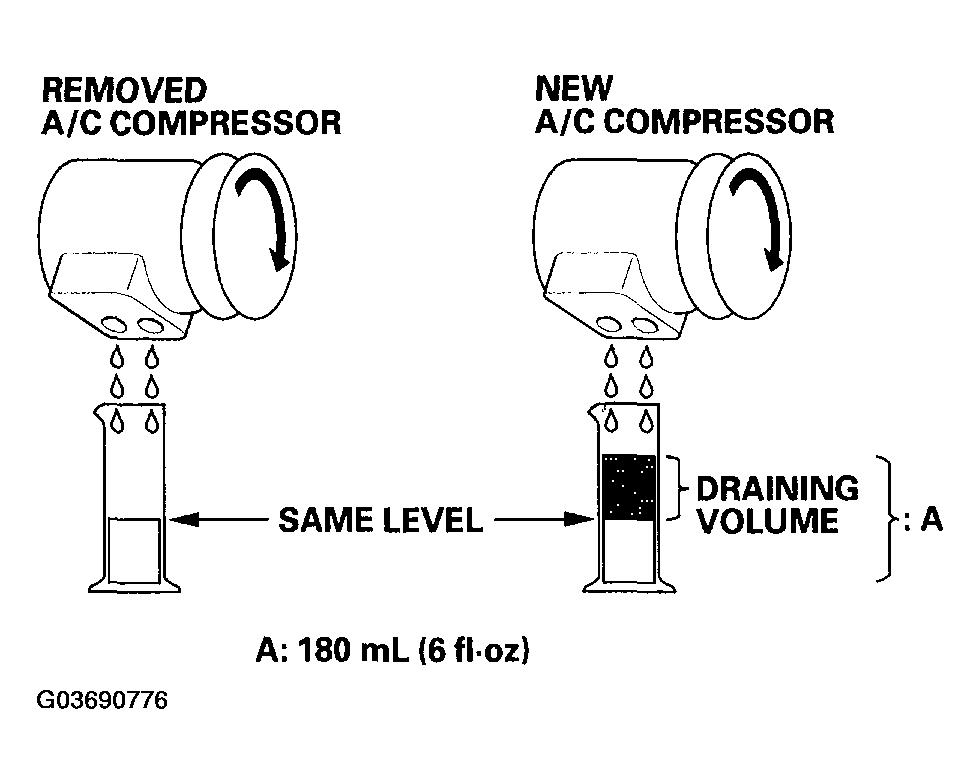

| A/C compressor | For A/C compressor replacement, subtract the volume of oil drained from the removed A/C compressor from 180 mL (6 fl-oz), and drain the calculated volume of oil from the new A/C compressor: 180 mL (6 fl-oz) - Volume of removed A/C compressor = Volume to drain from new A/C compressor. |
NOTE:
Even if no oil is drained from the removed A/C compressor, don't drain more than 50 mL (1 2/3 fl-oz) from the new A/C compressor.
