A/C Condenser Replacement
- Recover the refrigerant with a recovery/recycling charging station (see REFRIGERANT RECOVERY
).
- Remove the front bulkhead cover (see FRONT BULKHEAD COVER REPLACEMENT
).

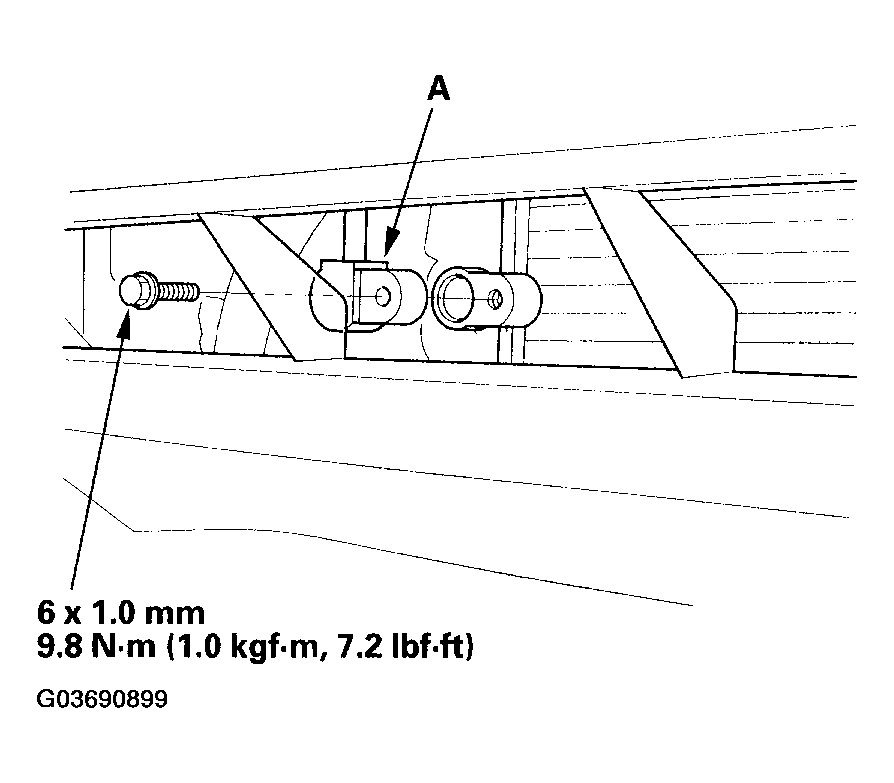

- Remove the bolt, then disconnect the receiver line (A) from the A/C condenser.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

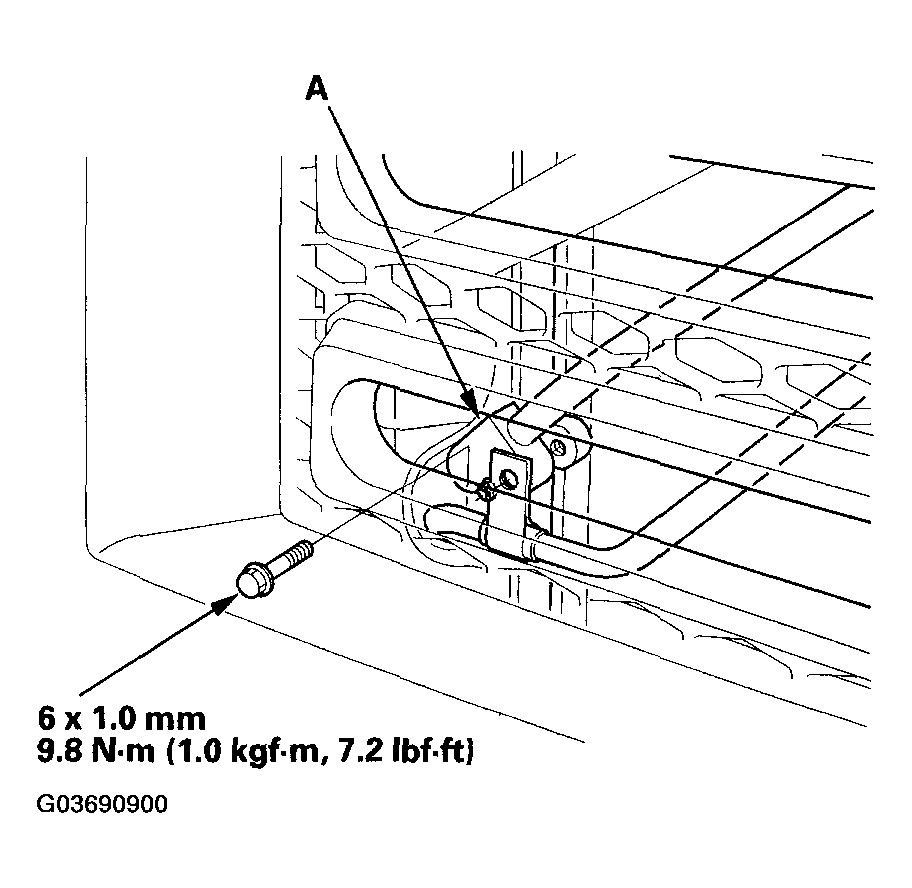

- Remove the bolts, then disconnect the discharge line (A) from the A/C condenser.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

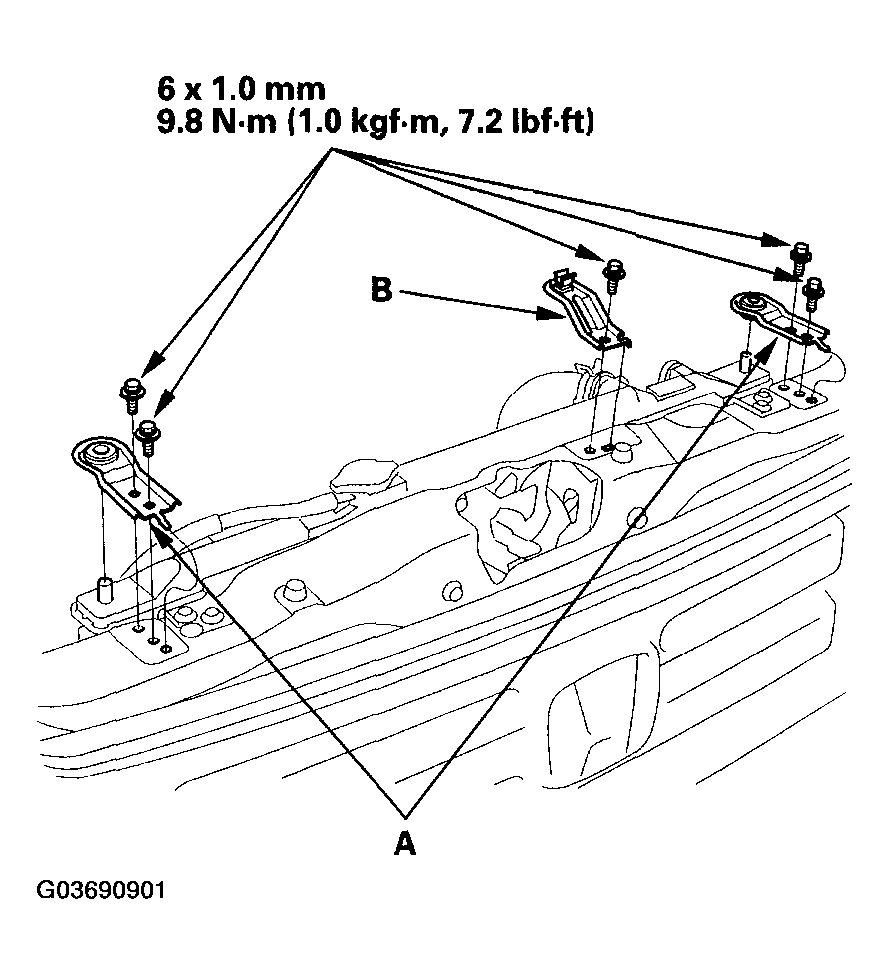

- Remove the bolts, the radiator upper mount brackets (A), and the hood opener bracket (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.

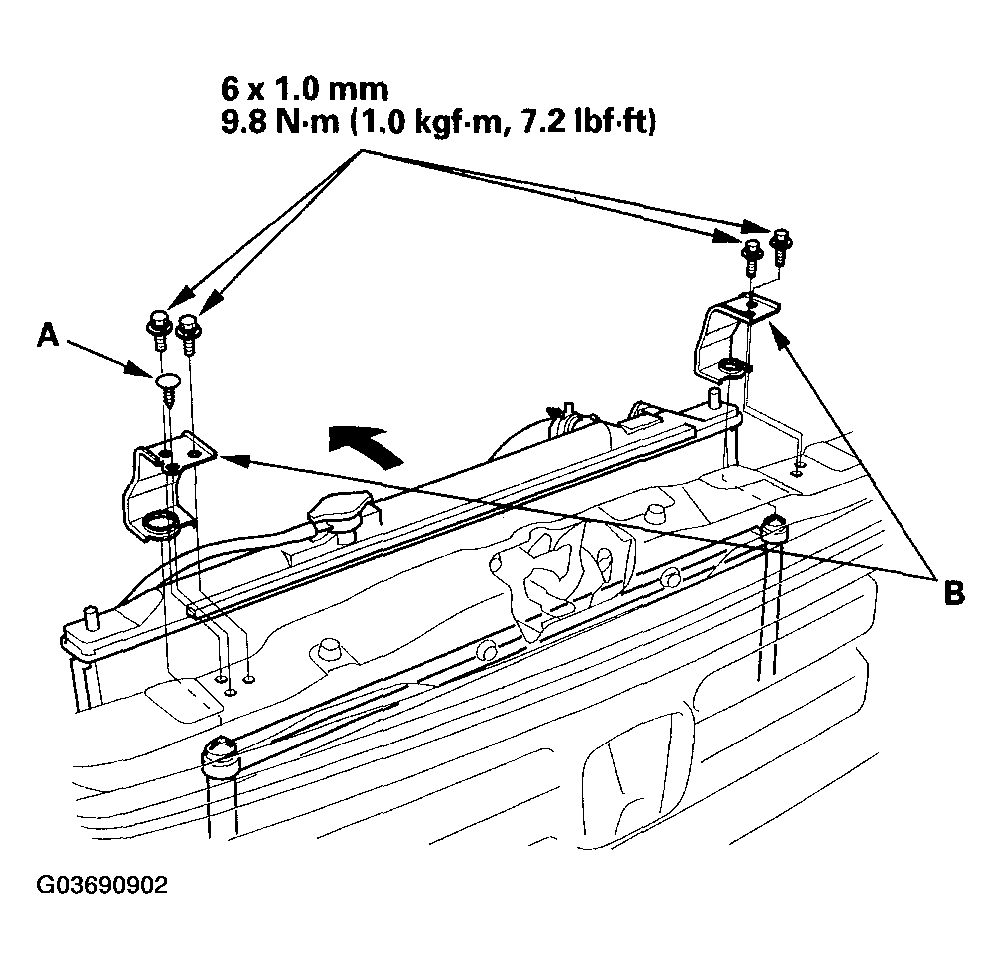

- Remove the clip (A), the bolts, and the A/C condenser upper mount brackets (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.

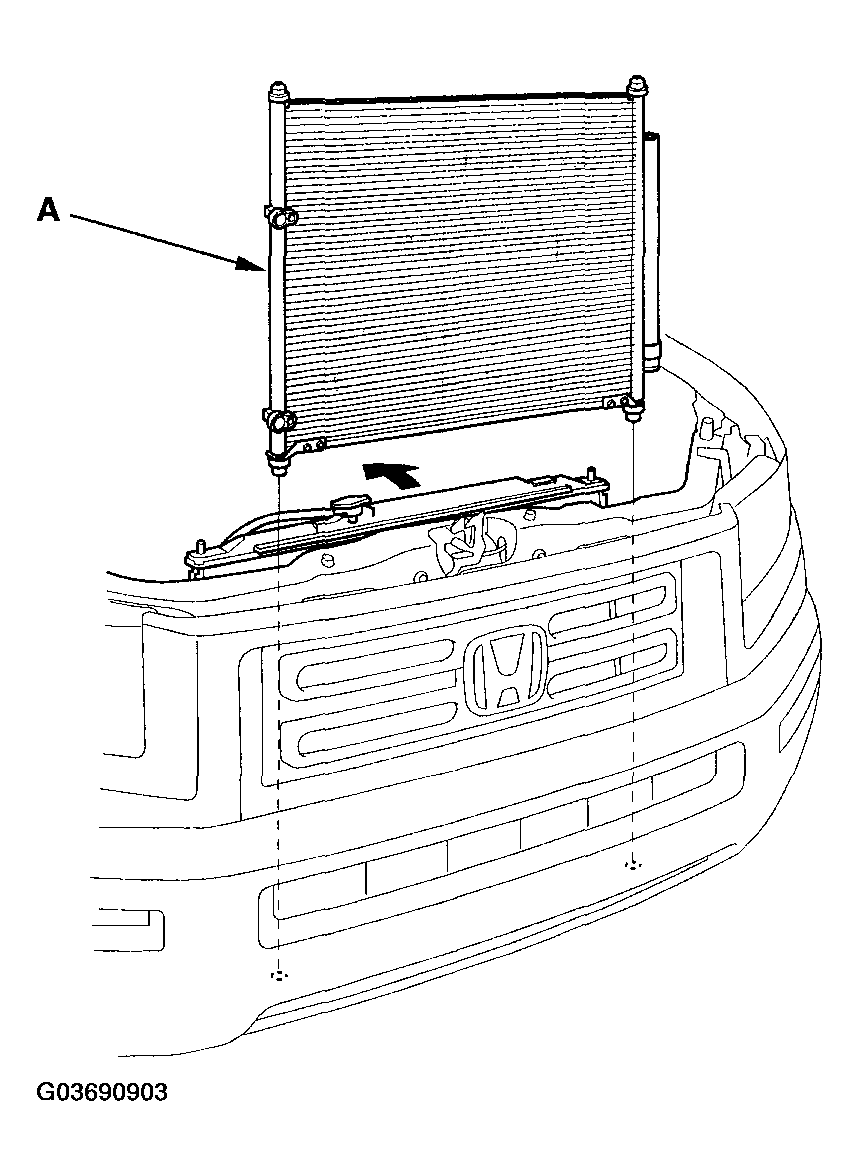

- Remove the A/C condenser (A) by lifting it up. Be careful not to damage the radiator and A/C condenser fins when removing the A/C condenser.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the A/C condenser in the reverse order of removal, and note these items:
- If you're installing a new A/C condenser, add refrigerant oil (DENSO ND-OIL 8) (see A/C SERVICE TIPS AND PRECAUTIONS
).
- Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the correct O-rings for HFC-134a (R-134a) to avoid leakage.
- Immediately after using the oil, reinstall the cap on the container, and seal it to avoid moisture absorption.
- Do not spill the refrigerant oil on the vehicle; it may damage the paint; if the refrigerant oil contacts the paint, wash it off immediately.
- Charge the system (see SYSTEM CHARGING
).
- Enter the anti-theft codes for the radio and navigation system, then enter the customer's XM radio channel presets.
