Yaw Rate-Lateral Acceleration Sensor Replacement

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Do not damage or drop the sensor as it is sensitive.
Do not use power tools.

Make sure the ignition switch OFF.
Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
Disconnect the connector (A).

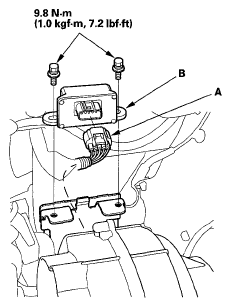

Fig 1: Yaw Rate-Lateral Acceleration Sensor And Fasteners With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the yaw rate-lateral acceleration sensor (B).
Install the sensor in the reverse order of removal.
Do the VSA sensor neutral position memorization (see VSA SENSOR NEUTRAL POSITION MEMORIZATION ).
