VSA Modulator-Control Unit Removal and Installation: Removal

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Make sure the ignition switch OFF.
Disconnect the VSA modulator-control unit 47P connector (A) by pushing the lock (B) and pulling up the lever (C); the connector disconnects itself.

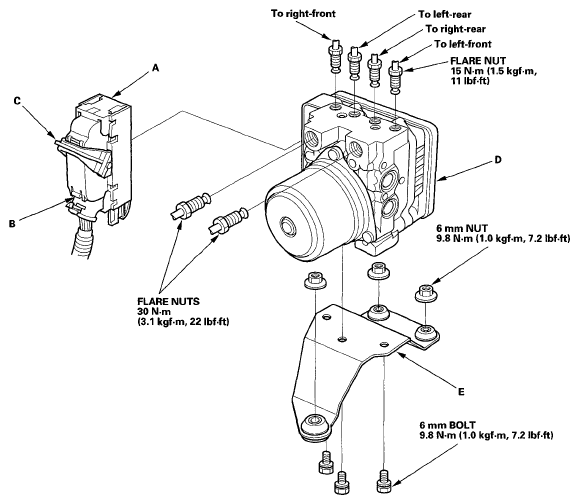

Fig 1: VSA Modulator-Control Unit Removing/Installing Replacement Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the six brake lines from the VSA modulator-control unit (D).
Remove the VSA modulator-control unit with bracket (E) from the body.
Remove the VSA modulator-control unit from the bracket.
