TCS Features

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

When a drive wheel loses traction on a slippery road surface and starts to spin, the VSA modulator-control unit applies brake pressure to the spinning wheel and sends engine torque control request to the PCM to slow the spinning wheel and keep traction.

4WD:

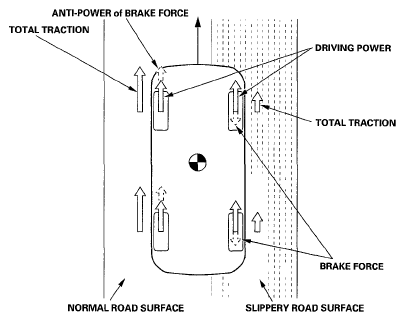

Fig 1: Identifying TCS Features (4WD)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

2WD:

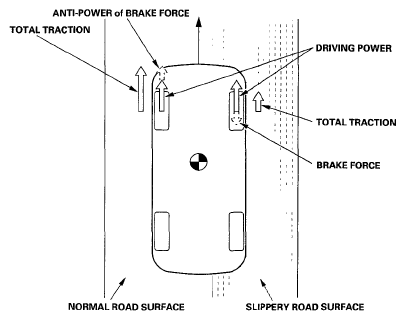

Fig 2: Identifying TCS Features (2WD)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
