Rack Guide Adjustment

Special Tools Required

Locknut wrench, 40 mm

07MAA-SL00100 or 07916-SA50001

1. Set the wheels in the straight ahead position.
2. Loosen the rack guide screw locknut (A) with the locknut wrench, then remove the rack guide screw (B).

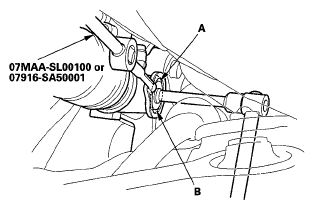

   Fig 1: Identifying Rack Guide Screw Locknut And Rack Guide Screw

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Remove the old sealant from the rack guide screw (A), and apply new sealant (Three Bond 1215 or Loctite 5699) to the middle of the threads (B). Loosely install the rack guide screw on the steering gearbox.
   NOTE: If more than 5 minutes has passed after applying the sealant, remove the old sealant and residue, and reapply new sealant.
   Fig 2: Identifying Rack Guide Screw And Sealant Apply Area

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Tighten the rack guide screw (A) to 25 N.m (2.5 kgf.m, 18 lbf.ft), then loosen it.
   Fig 3: Identifying Rack Guide Screw Tightening Sequence

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Retighten the rack guide screw to 3.9 N.m (0.4 kgf.m, 4 lbf.ft), then back it off to the specified angle.

   Specified return angle: 20 ° max.

6. Hold the rack guide screw stationary with a wrench, and tighten the locknut by hand until it's fully seated.
7. Install the locknut wrench on the locknut (B), continue to hold the rack guide screw stationary and tighten the locknut an additional 30 "with the locknut wrench.
8. Check for unusual steering effort through the complete turning range.
9. Check the steering wheel rotational play (see STEERING WHEEL ROTATIONAL PLAY CHECK  ) and the power assist (see POWER ASSIST CHECK  ).
