Spare Tire Hoist Replacement

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the spare tire.
  2. Remove the bolts, then remove the spare tire hoist (A). Take care not to bend the cable (B).

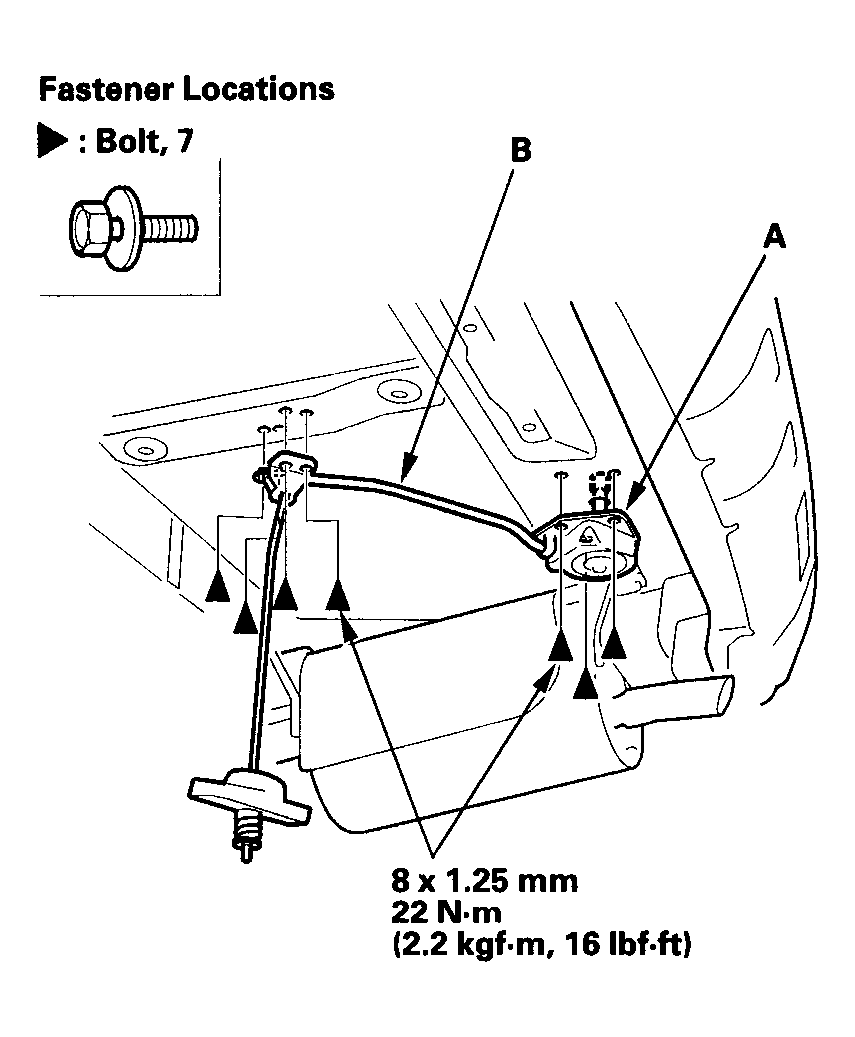

    Fig 1: Removing Spare Tire Hoist With Torque Specifications
    G04248428Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the hoist in the reverse order of removal.
