Brake Pedal Replacement

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the brake pedal position switch connector (A).

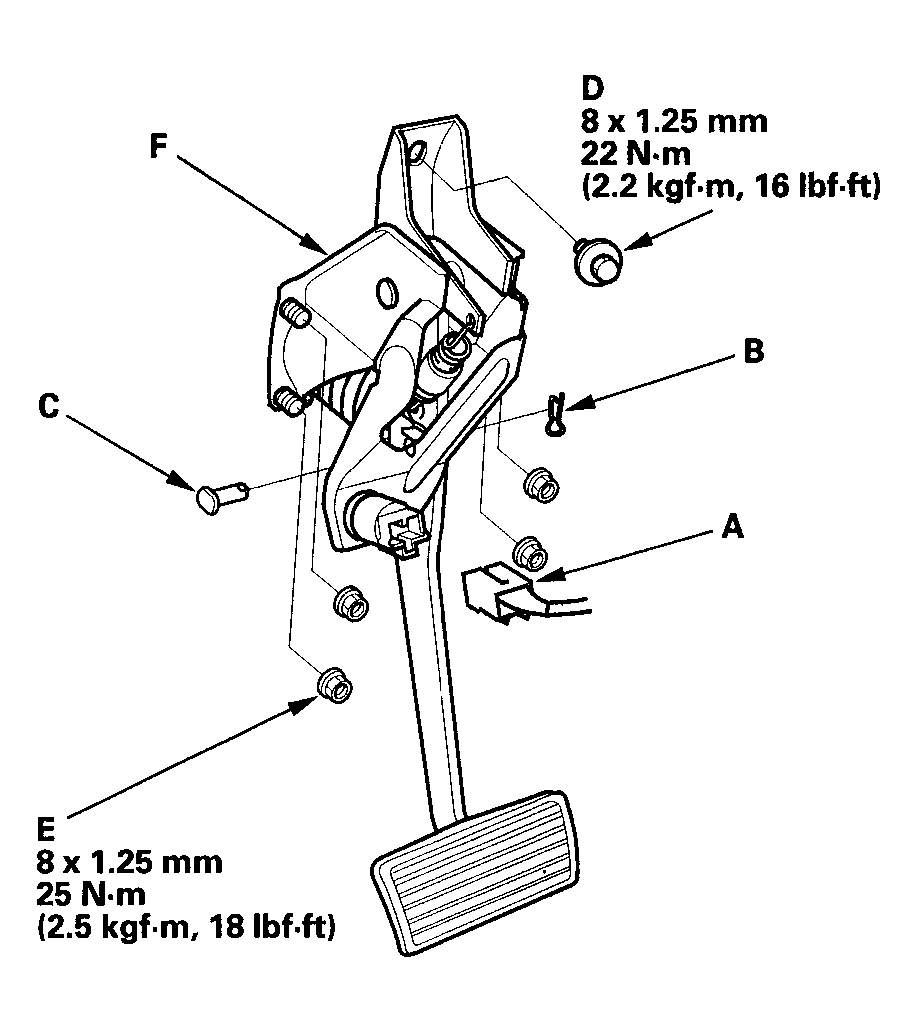

    Fig 1: Disconnecting Brake Pedal Position Switch Connector With Torque Specifications
    G04246687Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the lock pin (B) and joint pin (C).
    NOTE: Use a new lock pin whenever installing.
  3. Remove the brake pedal bracket mounting bolt (D) and nuts (E).
  4. Remove the brake pedal with bracket (F).
  5. Install in the reverse order of removal.
  6. Do the brake pedal and brake pedal position switch adjustment (see BRAKE PEDAL AND BRAKE PEDAL POSITION SWITCH ADJUSTMENT  ).
