Knuckle/Hub Replacement

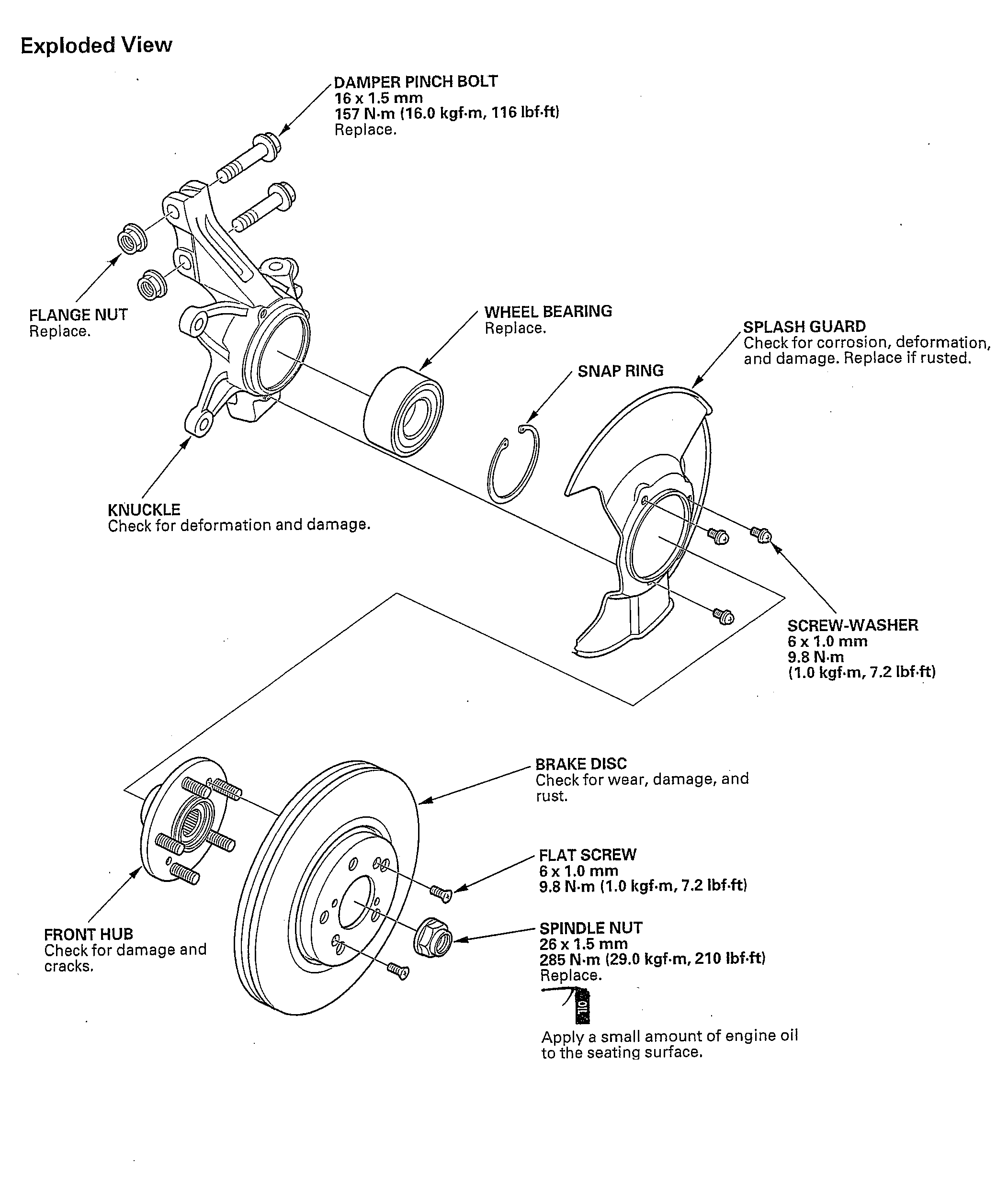

Fig 1: Exploded View Of Knuckle/Hub With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Ball joint remover, 28 mm 07MAC-SL0A202
• Hub dis/assembly tool, 40 mm 07GAF-SE00100
• Attachment, 62 x 68 mm 07746-0010500
• Driver 07749-0010000
• Support base 07965-SD90100
• Attachment, 96 mm 07948-SB00101
• Attachment, 80 mm 07VAD-P8A010A

1. Raise the front of the vehicle, and support it with safety stands in the proper locations (see LIFT AND SUPPORT POINTS ).

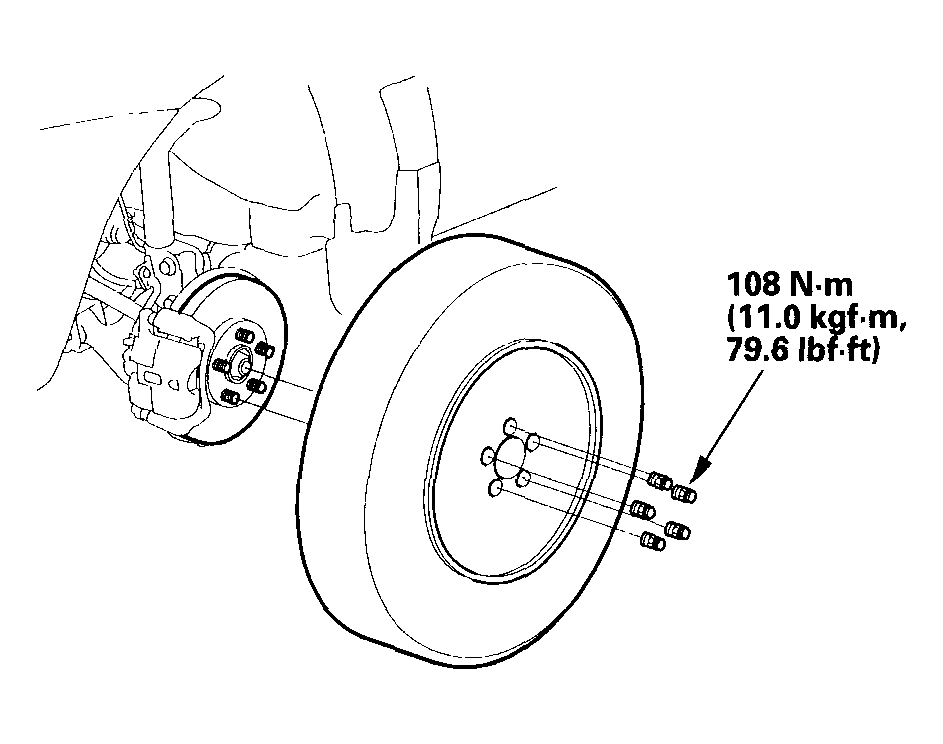

2. Remove the wheel nuts and front wheels.
   Fig 2: Removing Wheel Nuts And Front Wheels With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

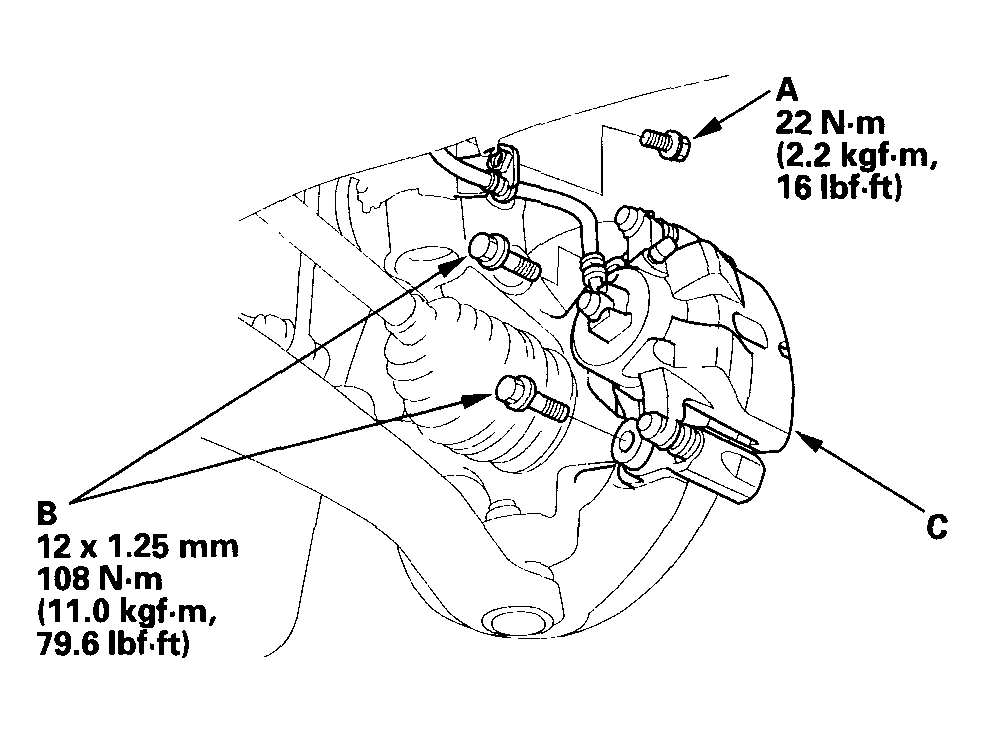

3. Remove the brake hose mounting bolt (A).
   Fig 3: Removing Brake Hose Mounting Bolt With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Remove the caliper mounting bolts (B), and hang the caliper assembly (C) to one side. To prevent damage to the caliper assembly or brake hose, use a short piece of wire to hang the caliper from the undercarriage. Do not twist the brake hose with force.

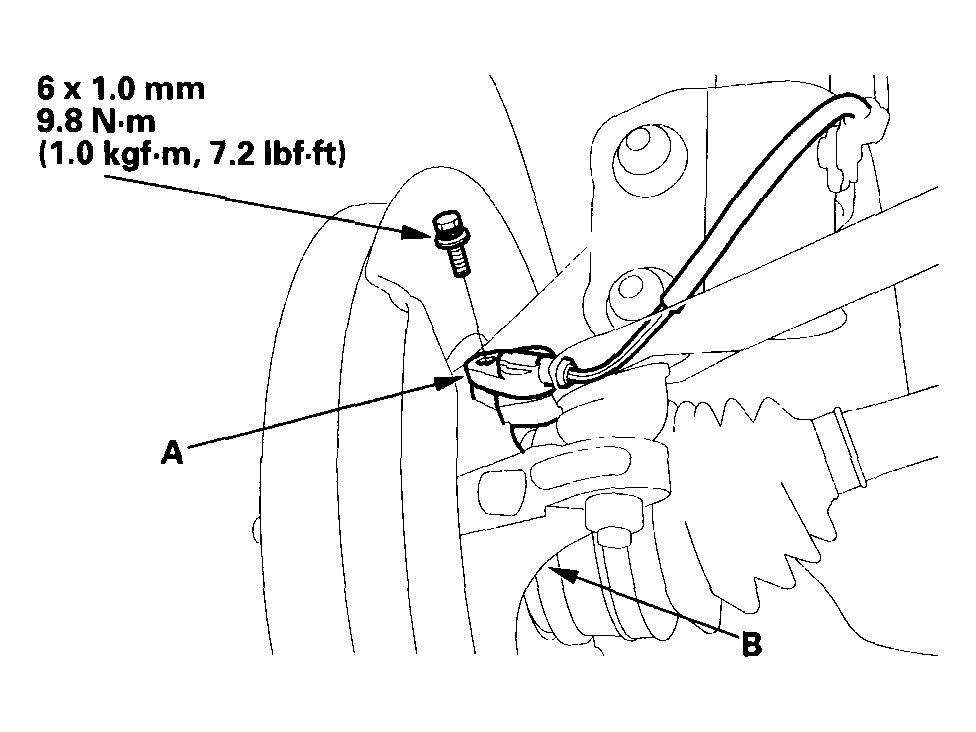

5. Remove the wheel sensor (A) from the knuckle (B). Do not disconnect the wheel sensor connector.
   Fig 4: Removing Wheel Sensor With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

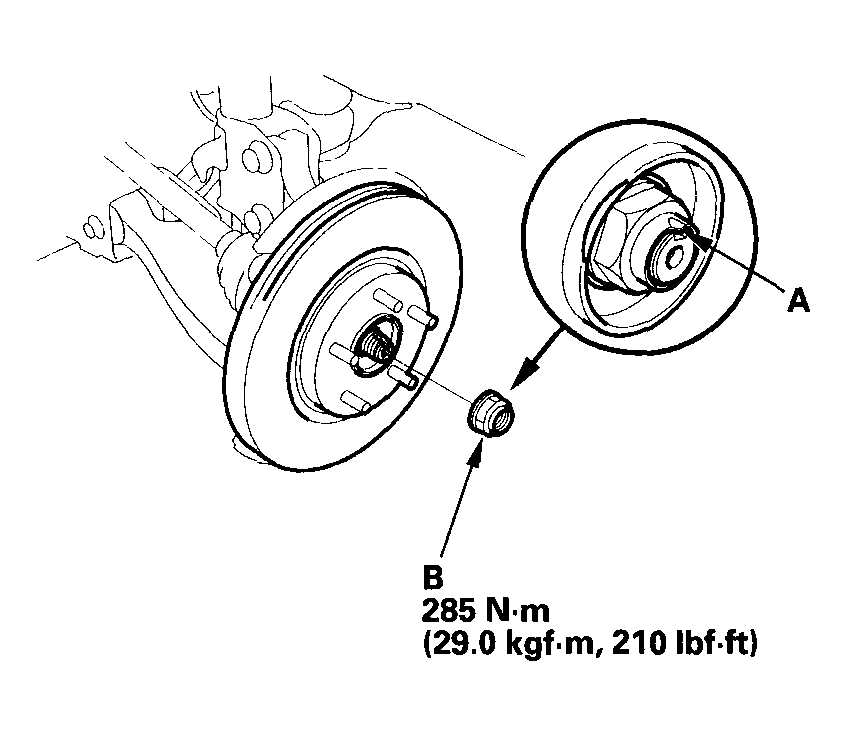

6. Raise the stake (A) of the spindle nut (B), then remove and discard the nut.
   Fig 5: Raising Stake Of Spindle Nut With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. Remove the brake disc (see FRONT BRAKE DISC REPLACEMENT ).
8. Check the front hub for damage and cracks.

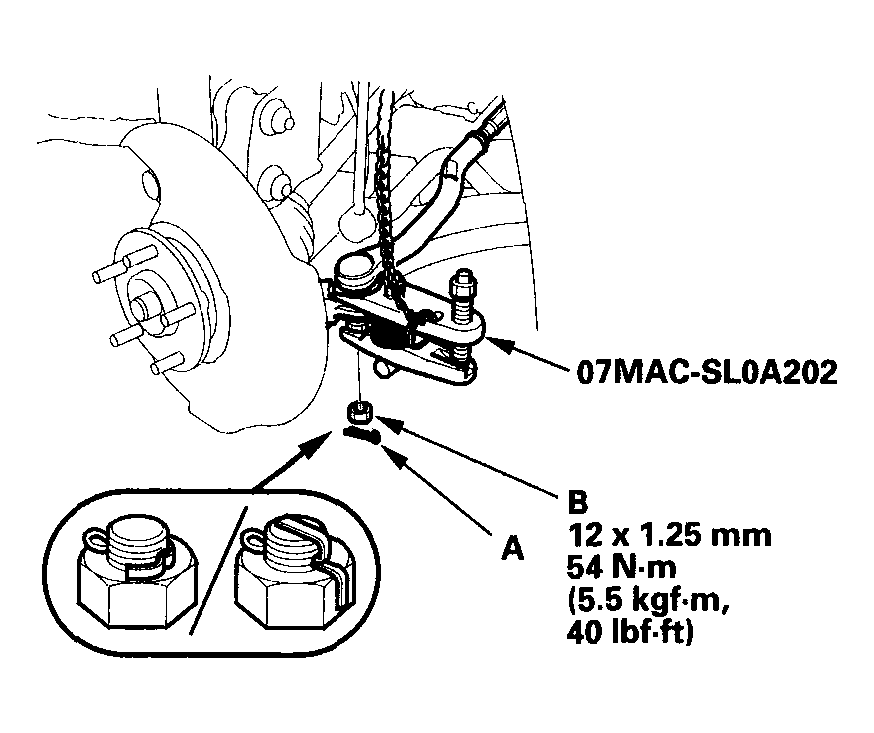

9. Remove the cotter pin (A) from the tie-rod end ball joint, then loosen the nut (B).
   NOTE: During installation, install the new cotter pin after tightening the nut, and bend its end as shown.
   Fig 6: Removing Cotter Pin With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
10. Disconnect the tie-rod ball joint from the knuckle using the special tool (see BALL JOINT Removal ).

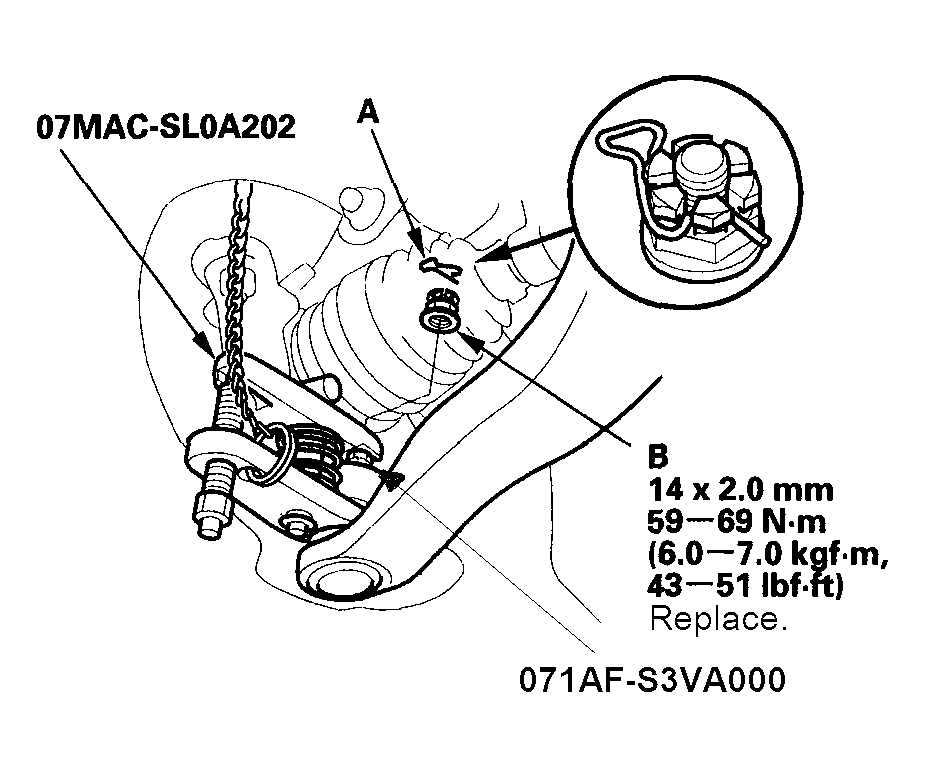

11. Remove the lock pin (A) from the lower arm ball joint castle nut (B), and remove the nut.
    NOTE: During installation, install the new lock pin after tightening the new castle nut.
    Fig 7: Removing Lock Pin With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
12. Disconnect the lower arm ball joint from the knuckle using the special tool (see BALL JOINT REMOVAL ).
    NOTE: Do not force or hammer on the lower arm, or pry between the lower arm and the knuckle. You could damage the ball joint.

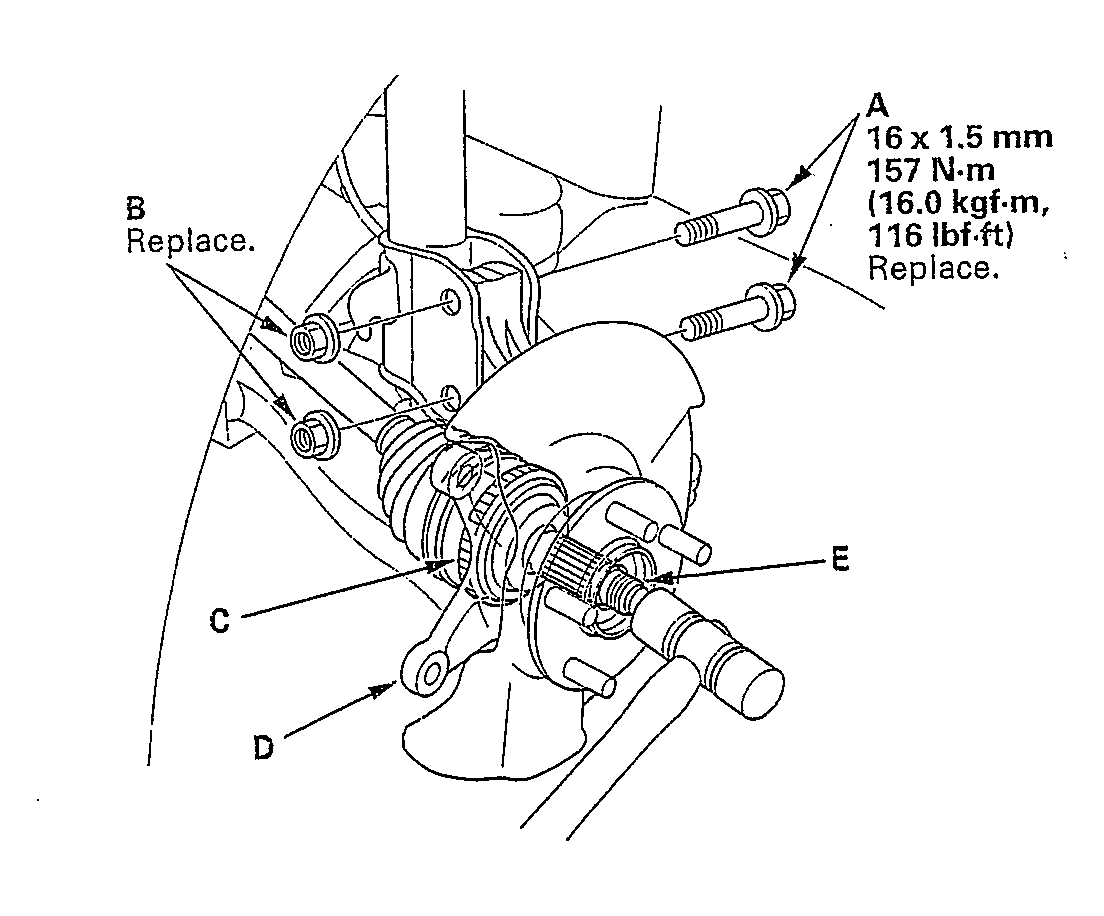

13. Remove the damper pinch bolts (A) and flange nuts (B) from the damper.
    NOTE: During installation, install the new damper pinch bolts and new flange nuts.
    Fig 8: Removing Damper Pinch Bolts With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
14. Remove the driveshaft outboard joint (C) from the knuckle (D) by tapping the driveshaft end (E) with a plastic hammer, then remove the knuckle.
    NOTE:

    • Do not pull the driveshaft end outward. The inner driveshaft joint may come apart.
    • During installation, apply grease to the mating surfaces of the wheel bearing and driveshaft outboard joint (see step 1 under FRONT DRIVESHAFT INSTALLATION ).

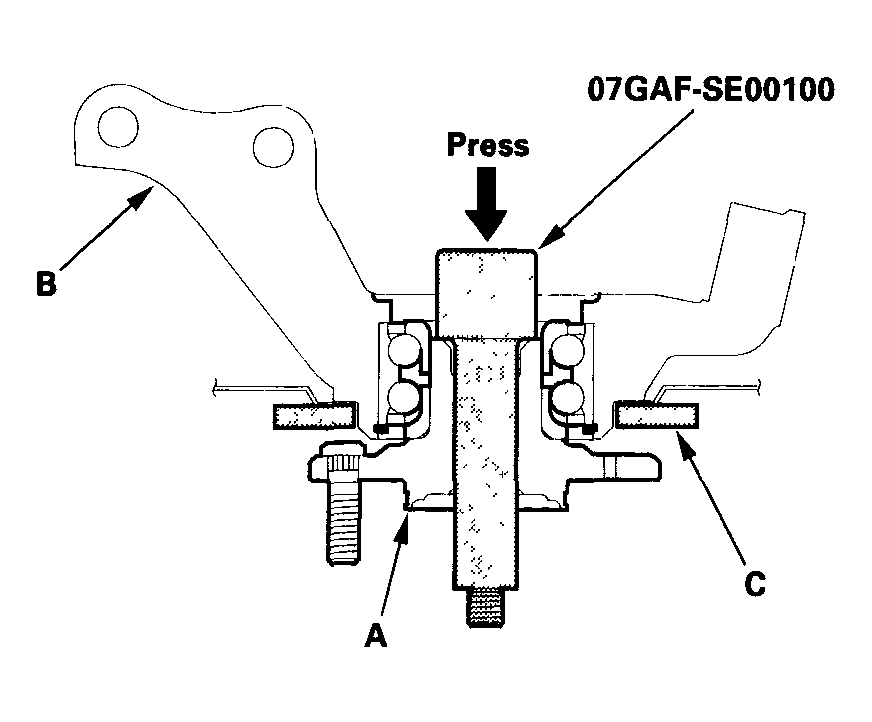

15. Separate the hub (A) from the knuckle (B) using the special tool and a hydraulic press. Hold the knuckle with the attachment (C) of the hydraulic press or equivalent tool. Be careful not to deform the splash guard. Hold onto the hub to keep it from falling when pressed clear.
    Fig 9: Separating Hub From Knuckle

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

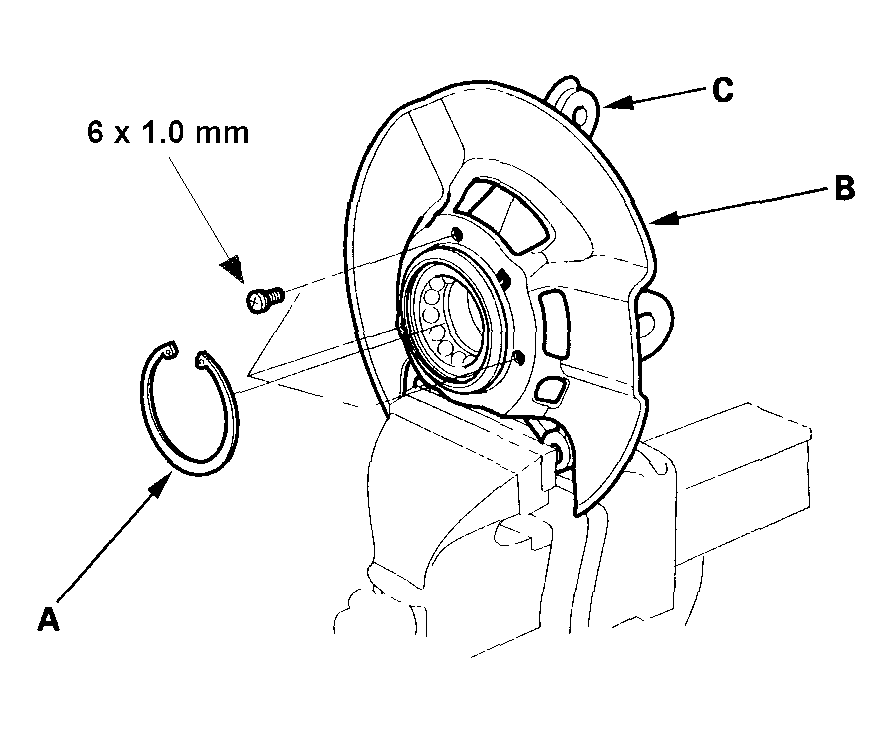

16. Remove the snap ring (A) and the splash guard (B) from the knuckle (C).
    Fig 10: Removing Snap Ring

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

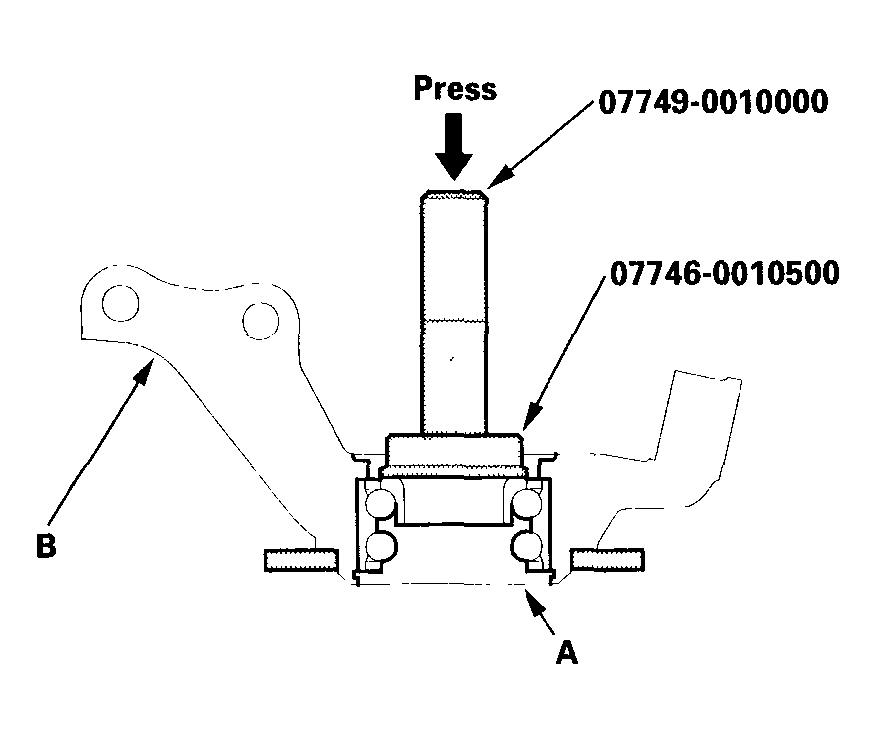

17. Press the wheel bearing (A) out of the knuckle (B) using the special tools and a press.
    Fig 11: Pressing Out Wheel Bearing

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
18. Press the wheel bearing inner race (A) from the hub (B) using the special tool, commercially available bearing separator (C), and a press.
    Fig 12: Pressing Wheel Bearing Inner Race From Hub

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
19. Wash the knuckle and hub thoroughly in high flash point solvent before reassembly.

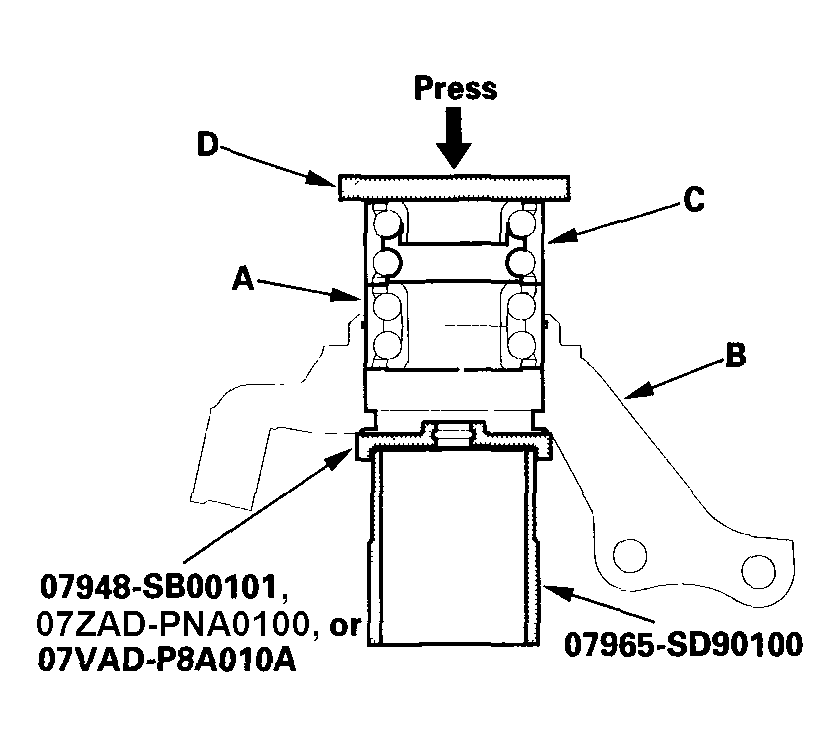

20. Press a new wheel bearing (A) into the knuckle (B) using the old bearing (C), a steel plate (D), the special tools, and a press. Be careful not to damage the sleeve of the pack seal.
    Fig 13: Pressing Wheel Bearing Into Knuckle

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

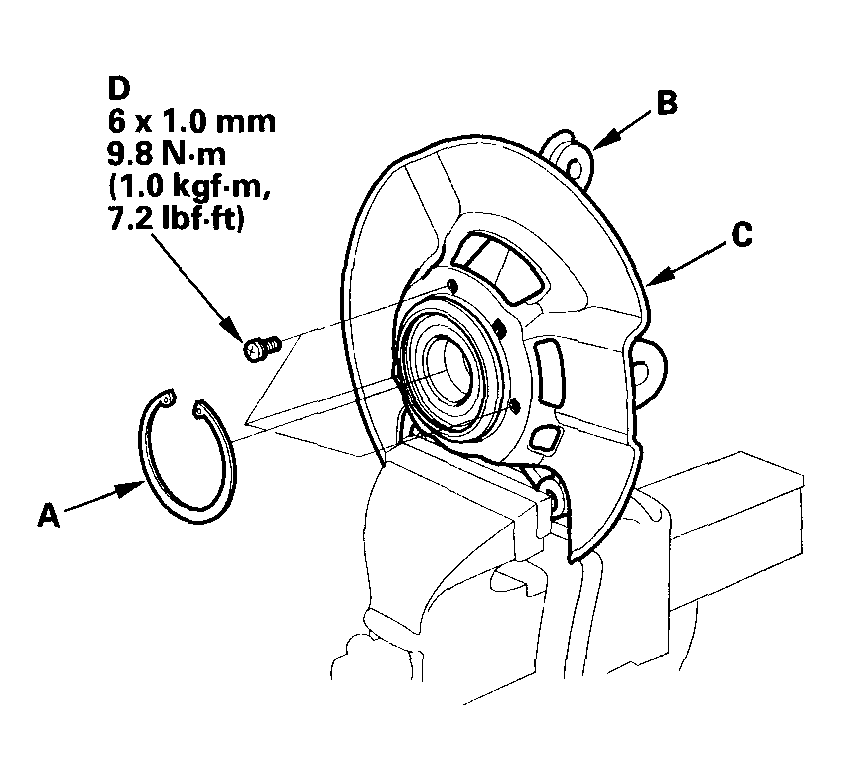

21. Install the snap ring (A) securely in the knuckle (B).
    Fig 14: Installing Snap Ring With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
22. Install the splash guard (C), and tighten the screws (D) to the specified torque value.

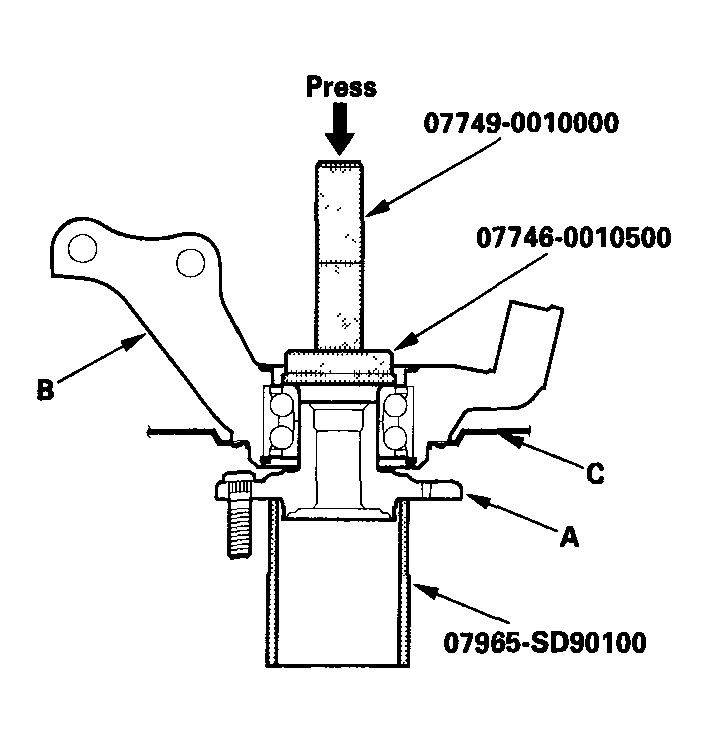

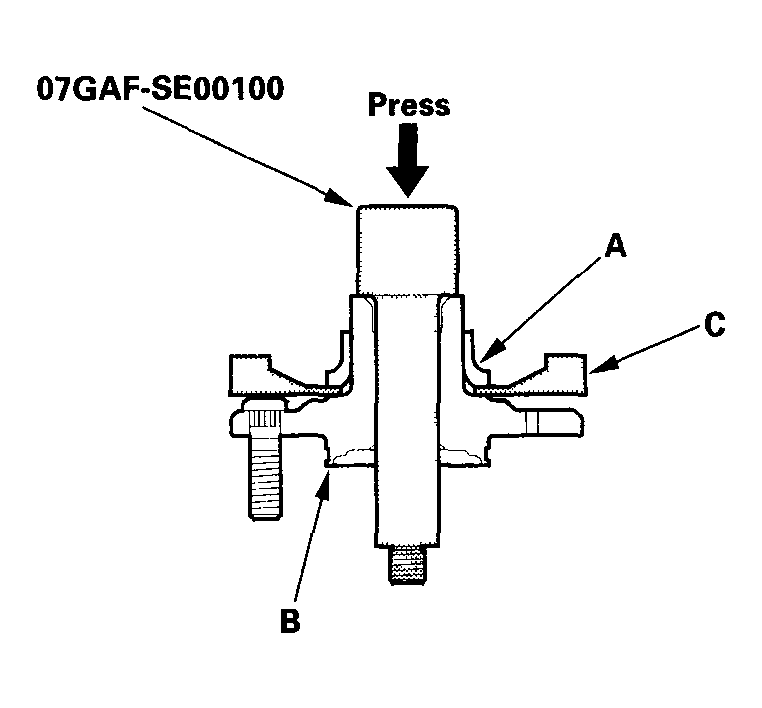

23. Install the hub (A) onto the knuckle (B) using the special tools and a press. Be careful not to deform the splash guard (C).
    Fig 15: Installing Hub Onto Knuckle

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
24. Install the knuckle in the reverse order of removal, and note these items:
    • Be careful not to damage the ball joint boots when installing the knuckle.
    • First install all the components and lightly tighten the bolts and nuts, then raise the suspension to load it with the vehicle's weight before fully tightening to the specified torque values. Do not place the jack against the ball joint pin of the knuckle.
    • Tighten all mounting hardware to the specified torque values.
    • Before connecting the lower ball joint to the knuckle, degrease the threaded section and tapered portion of the ball joint pin, the knuckle connecting hole, the threaded section and mating surface of the castle nut.
    • Torque the castle nut to the lower torque specification, then tighten it only far enough to align the slot with the pin hole. Do not align the castle nut by loosening it.
    • Install a new lock pin on the castle nut after torquing.
    • Use a new spindle nut on reassembly.
    • Before installing the new spindle nut, apply a small amount of engine oil to the seating surface of the nut. After tightening, use a drift to stake the spindle nut shoulder against the driveshaft.
    • Before installing the brake disc, clean the mating surfaces of the front hub and the inside of the brake disc.
    • Before installing the wheel, clean the mating surfaces of the brake disc and the inside of the wheel.
    • Check the front wheel alignment, and adjust it if necessary (see WHEEL ALIGNMENT ).
