J35Z1 Engine

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner housing assembly (see AIR CLEANER REMOVAL/INSTALLATION ).
  2. Raise the vehicle on the hoist to full height.
  3. Disconnect the active control engine mount (ACM) actuator connector (A) from the rear engine mount, then remove the harness clamp (B). Remove the bolt (C) securing the P/S line.

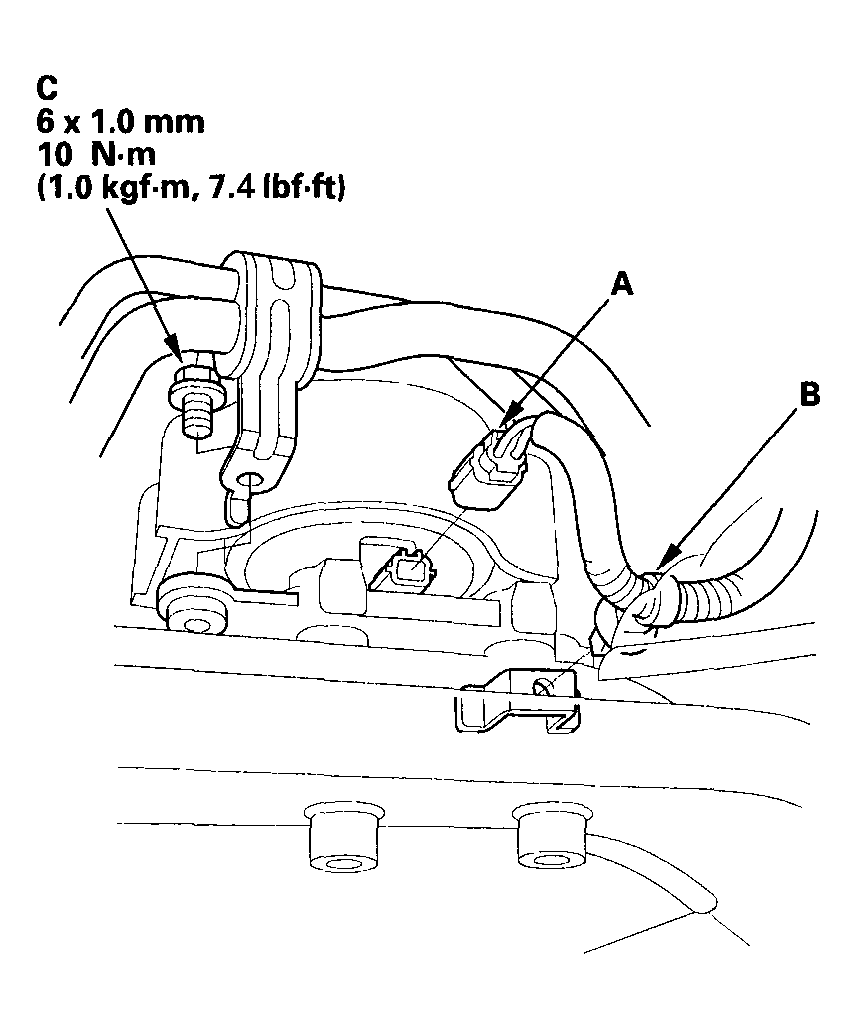

    Fig 1: Removing Harness Clamp With Torque Specifications
    G04244581Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the rear engine mount bolts.

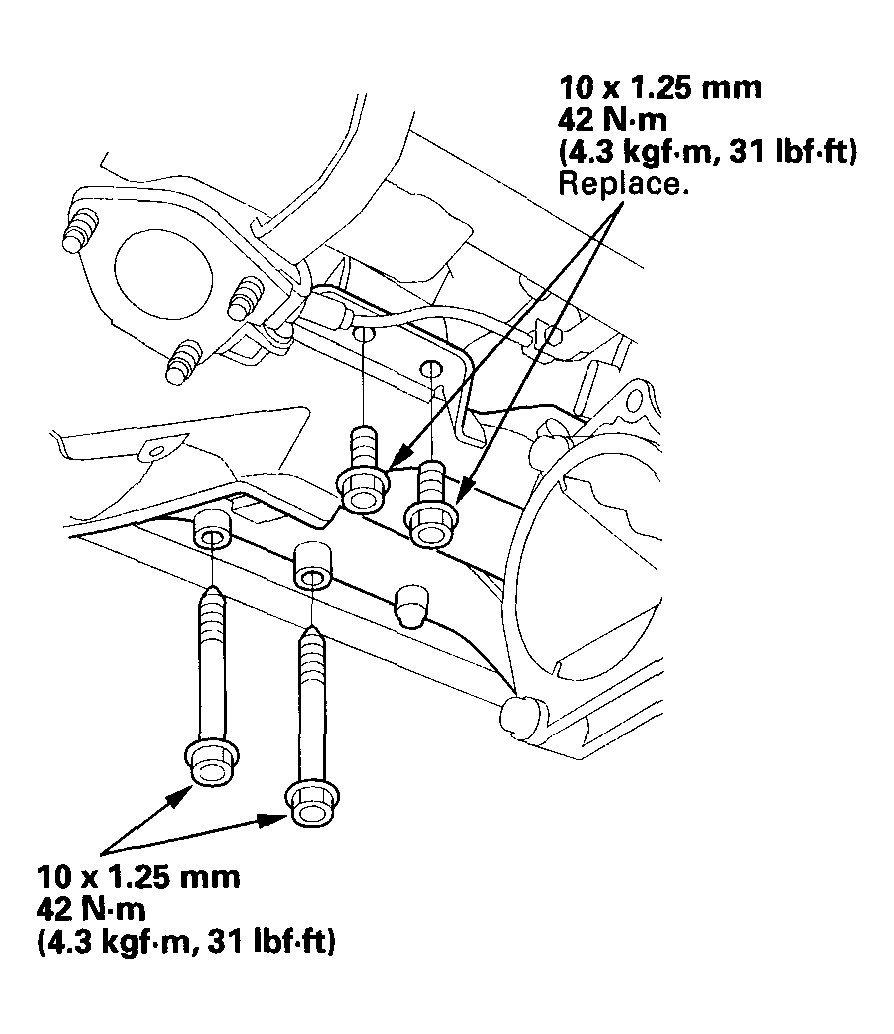

    Fig 2: Removing Rear Engine Mount Bolts With Torque Specifications
    G04244582Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Lower the vehicle on the hoist.
  6. Support the engine with a jack and wood block under the oil pan.
  7. Remove the rear mount stop (A), then remove the front mount bolt (B).

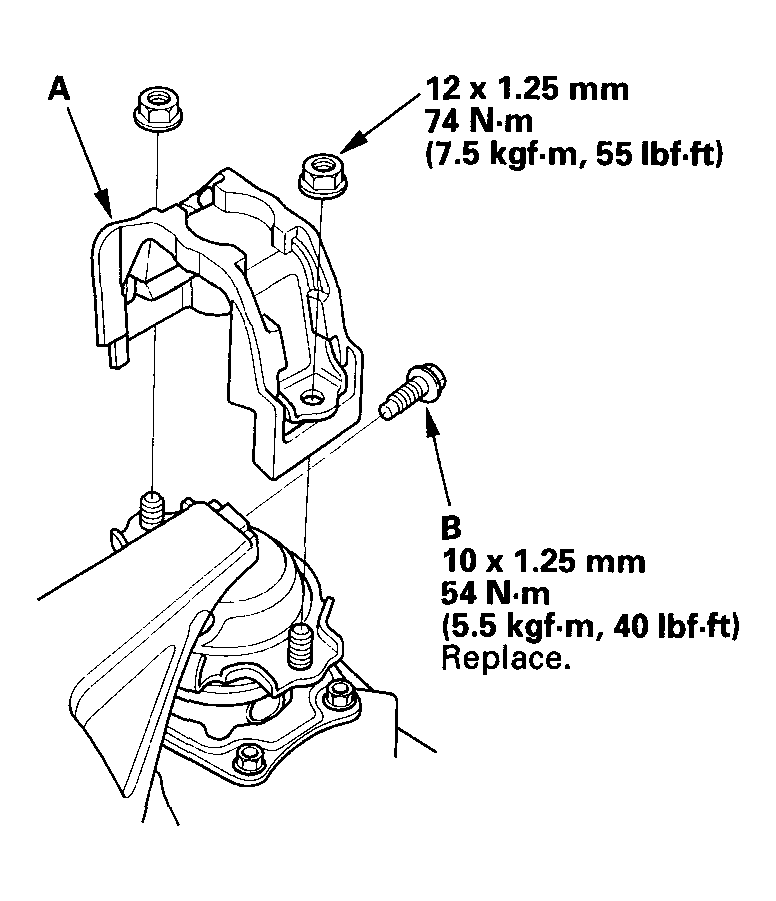

    Fig 3: Removing Front Mount Bolt With Torque Specifications
    G04244583Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Remove the rear mount.
  9. Remove the rear mount base.

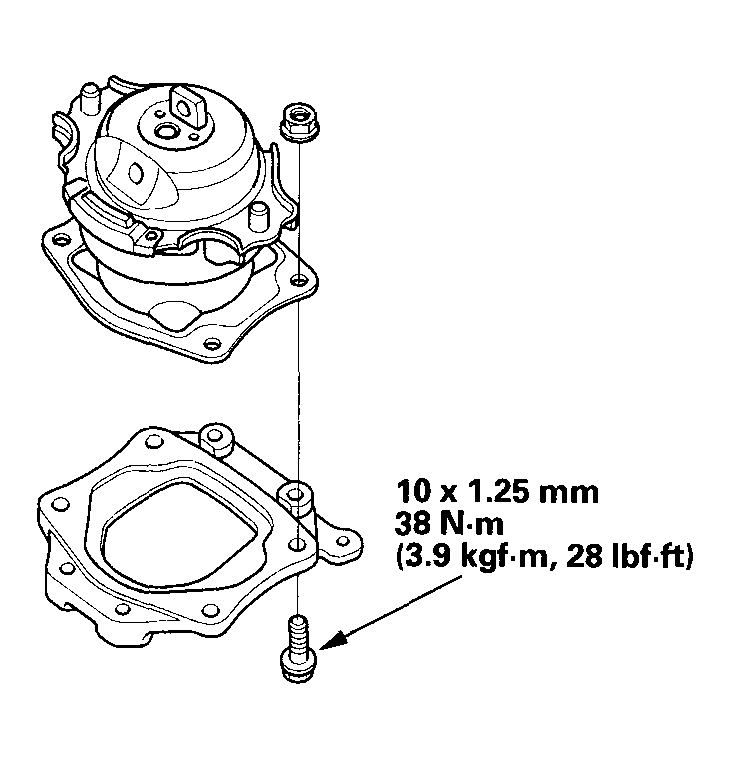

    Fig 4: Removing Rear Mount Base With Torque Specifications
    G04244584Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Install the rear mount in the reverse order of removal.
