J35A9 Engine

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the auto-tensioner (A) with a belt tension release tool to relieve tension from the drive belt, then remove the drive belt.

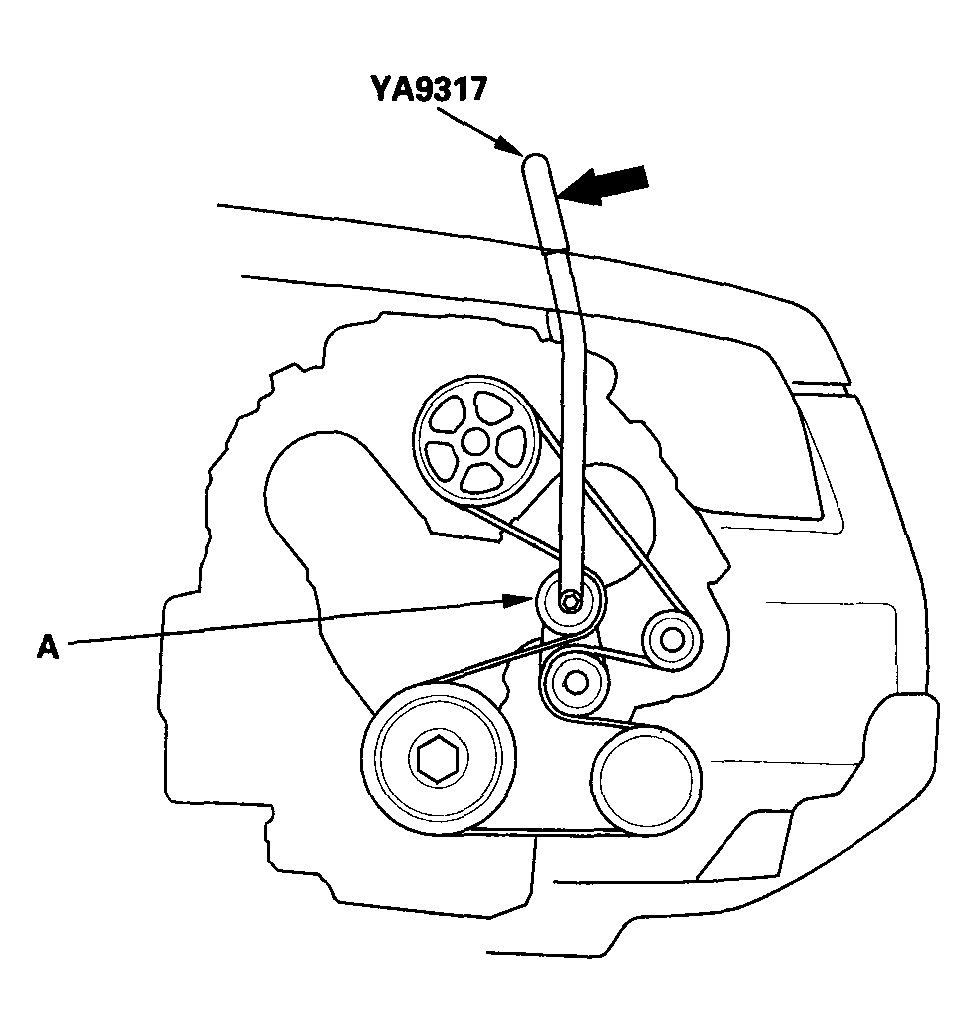

    Fig 1: Removing Drive Belt - J35A9 Engine
    G04244467Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the new belt in the reverse order of removal.
    NOTE: For belt routing, see COMPONENT LOCATION INDEX & DRIVE BELT ROUTING
