Console Armrest Removal/Installation

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Take care not to scratch the console.
Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.

Remove the center console trim (see step 2 ).

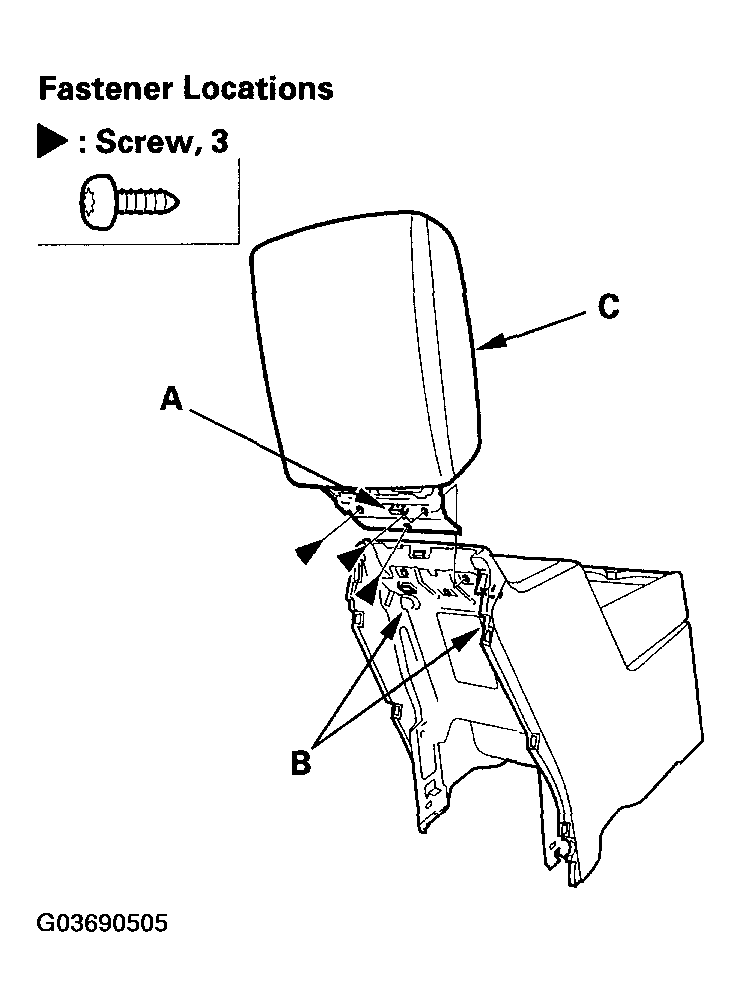

Using a T20 Torx bit, remove the screws and release the hooks (A, B), then remove the armrest (C).

Fig 1: Removing Armrest
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the armrest in the reverse order of removal.
